TEAC PL-D2100A Service Manual

Cover page of TEAC PL-D2100A Service Manual

Service Manual for TEAC PL-D2100A, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 27 pages
  • File size: 7.74 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
NOTES
DVD Home Theater System
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
CONTENTS
2 EXPLODED VIEW AND PARTS LIST
3 PC BOARDS AND PARTS LIST
5 INCLUDED ACCESSORIES
2
3
7
18
VIDEO
DIGITAL OUT
DOLBY
DIGIT A L
4 WIRING DIAGRAM
17
1 SPECIFICATIONS
Parts of [ ] mark can be used only with the version
designated.
DVD HOME THEATER SYSTEM PL-D2100
TUNING
SELECT
FUNCTION
PHONES
VOLUME / ADJUST
CD-R/CD-RE COMPATABLE
DVD/VCD/CD/MP3
[SG]: SINGAPORE [HK]: HONG KONG
[E]: EUROPE [SAF]: SOUTH AFRICA
PL-D2100A ( New version for PL-D2100 ) had been
produced since July 2004 from Serial Number 4600001.
There is a circle A mark below the main unit label and
also a circle A mark besides the serial number of the
main unit of PL-D2100A. Circle A mark on the serial
number label is also shown on the Carton Box of
PL-D2100A.
PL-D2100A
background image
NOTES
DVD Home Theater System
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
CONTENTS
2 EXPLODED VIEW AND PARTS LIST
3 PC BOARDS AND PARTS LIST
5 INCLUDED ACCESSORIES
2
3
7
18
VIDEO
DIGITAL OUT
DOLBY
DIGIT A L
4 WIRING DIAGRAM
17
1 SPECIFICATIONS
Parts of [ ] mark can be used only with the version
designated.
DVD HOME THEATER SYSTEM PL-D2100
TUNING
SELECT
FUNCTION
PHONES
VOLUME / ADJUST
CD-R/CD-RE COMPATABLE
DVD/VCD/CD/MP3
[SG]: SINGAPORE [HK]: HONG KONG
[E]: EUROPE [SAF]: SOUTH AFRICA
PL-D2100A ( New version for PL-D2100 ) had been
produced since July 2004 from Serial Number 4600001.
There is a circle A mark below the main unit label and
also a circle A mark besides the serial number of the
main unit of PL-D2100A. Circle A mark on the serial
number label is also shown on the Carton Box of
PL-D2100A.
PL-D2100A
background image
PL-D2100A
1 SPECIFICATIONS
2
Pickup :
Signal system :
NTSC / PAL
Semiconductor laser, Wavelength 650 nm
Video signal horizontal resolution :
More than 55 dB (DVD)
DVD Player
More than 480 lines (DVD)
Tuning range :
Antenna terminals :
87.5 ~ 108.0 MHz (50 kHz step)
10.7 MHz
FM Tuner
System:
PLL quartz-locked digital synthesizer system
Line outputs :
Video outputs
1 Vp-p 75 ohms
AV Connector :
SCART x 1
S-video :
Y: 1 Vp-p 75 ohms, C:0.3 Vp-p 75 ohms
300mVrms, 2.2 kilo ohms
Total harmonic distortion :
Audio frequency response (at 2 CH stereo mode) :
Audio signal-to-noise ratio :
More than 80 dB
Less than 0.01%
20 Hz ~ 20 kHz (+1/-3dB)
Video signal-to-noise-ratio :
75 ohms, unbalanced
Intermediate frequency :
Tuning range :
522 ~ 1620 kHz (9 kHz interval)
AM Tuner
System:
PLL quartz-locked digital synthesizer system
Audio outputs
Output Power :
Speaker unit :
16.5 cm, cone type
75 W ( 80 Hz, THD 10%)
Active Subwoofer
Dimension (W x H x D ):
Input Power :
Power consumption :
30 W maximun
70 W
Weight :
7.0 kg
Speakers
Speaker unit :
75 mm (Front/Surround)
Rated impedance :
4 ohms
90 x 130 x 81mm (Front/Rear)
Dimension (W x H x D ):
Weight :
Front/Center speaker cable (5 m x 3)
Surround speaker cable (10 m x 2)
Subwoofer RCA pin cord (1.8 m)
FM antenna x 1
AM loop antenna x 1
Remote control unit x 1
RCA video cable x 1
Batteries (AA, R6, SUM-3) x 2
200 x 300 x 321mm
200 x 77 x 81mm (Center)
CVBS Video :
Output Power :
30W + 30W
Design and specifications are subject to change without notice.
Illustrations may differ slightly from production model.
Weight and dimensions are approximate.
General
Dimension (W x H x D ):
Weight:
Power requirements :
230V AC, 50 Hz (Europe model)
Power consumption :
120 W (STAND BY: less than 0.5W)
4.1 kg
430 x 348 x 48 mm
Operating temperature:
Operating humidity:
5% ~ 90%
Storage temperature:
5 C ~ 35 C (40 F ~ 95 F )
-20 C ~ 55 C (-4 F ~ 131 F)
65 mm x 2 (Center)
Accessories
0.8 kg (Front)/0.6kg (Surround) /1kg (Center)
(Stereo, 0.2% THD, 20Hz to 20kHz, 8 ohm)
(0.7% THD, 1kHz, 8 ohm, only on channel driven)
30W per channel
Surround Output Power :
background image
background image
REF. NO

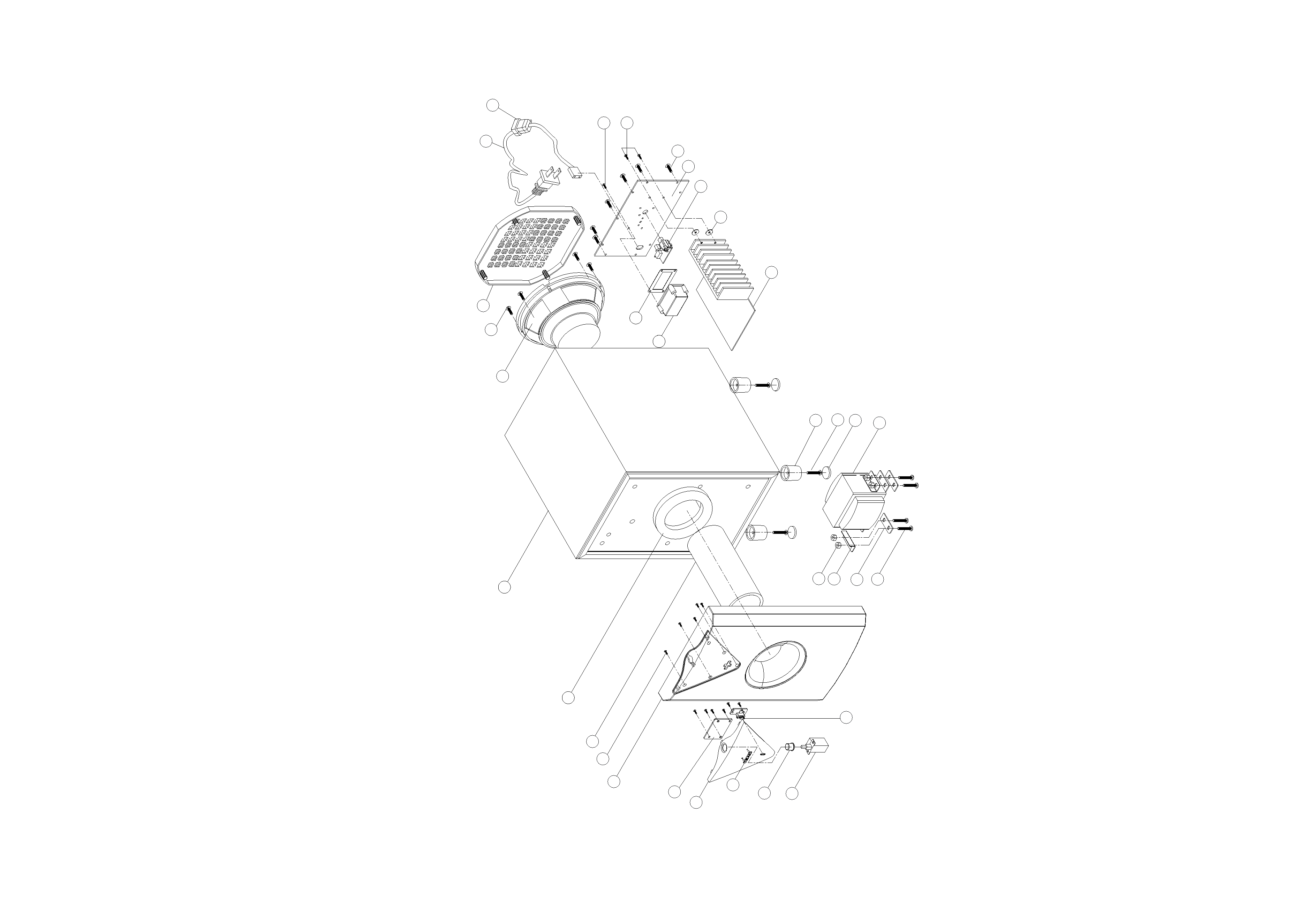

EXPLODED VIEW - 1
PARTS NO.
DESCRIPTION
REMARKS
4
1-2
FAN021208-0002
DC FAN 12V
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-25
1-26
1-27
1-28
1-29
1-30
1-31
BPF200023-0001
FRONT PANEL
BPK208017-0001
FUNCTION KNOB
BPK208018-0001
VOLUME KNOB
POWER KNOB
BPK218018-0001
BPK228018-0001
OPEN/CLOSE KNOB
BPD200011-0001
DVD DOOR
LED LENS
BPN200026-0001
BPN200024-0001
FRONT PANEL LENS [E]
BOTTOM CABINET
GSE200064-0101
BACK CABINET [HK, SG]
GSE200080-0006
BPN200025-0001
DOOR LENS
DBU001005-0010
BUSHING AC LINE BUSHING
GSE200059-0009
TOP CABINET
SPACER - A=70 C=1.3-2MM
DSS100019-0001
FAN NET COVER
GSN207001-0001
!
1-1
PL-D2100A
ASL261620-1101
DVD MECH. HRT21+HRL02 ASSY
WPC020160-0005
POWER PCB ASSY
BEP221002-0001
PVC SHEET- 127.8X115.8X25MM
APE200070-0002
MAIN PCB ASSY
VPE003252-0010
LINE CODE 2P - VDE [E, SAF]
VPE1K6253-0020
LINE CORD 3P, BS [HK, SG]
BRB200006-0001
RUBBER 115.6X6.6X2MM
APE200752-0003
STANDBY PCB ASSY
APE200751-0003
CONTROL PCB ASSY
BRB000049-0002
RUBBER - 14X2MM WHITE
WTP000011-0007
TUNER PACK KST-ML104MA1-30
HOT001004-0001
SNAP RIVET 4X20 BLK
APE201540-0001
SCART PCB ASSY [E, SAF]
APE104210-0002
YUV PCB ASSY [HK,SG]
HSF143084-1060
SCREW STEEL M3X6X0.5P
HST143084-1060
SCREW M3X6X0.5P
HSP140054-1080
SCREW T3X8X1.06P
GSE200080-0207
BACK CABINET [E, SAF]
BPN200024-0002
FRONT PANEL PVC TRANSPARENT [SAF,HK,SG]
!
