background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2555
T-ZZB OCT. 2001 Printed in Japan
S-NM3V
XCN/E
S-NM3V XCN/NC
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
This product is component of system.
System
Service Manual
Remarks
RRV2546
RRV2555
Component
X-NM30VCD
XR-NM3V
S-NM3V
COMPACT MINI COMPONENT
STEREO VCD CASSETE DECK RECEIVER
SPEAKER SYSTEM
This service manual
The grille is attached to the cabinet by catches. Detach by
pulling it toward you.
The cord stopper is attached to the back board by press-
fitting. To detach it, pull it while rotating it by the radio
pincers.
The cosmetic baffle assy is attached to the cabinet by 4 ex-
ternal boss screws. To detach it, unfasten those screws.
The woofer is attached to the inner baffle by 4 external
screws. To detach it, first remove cosmetic baffle assy.
Then unfasten those screws. When attaching it, face its ter-
minal upward.
The tweeter is attached to the inner baffle by external adhesive
tape. To detach tweeter, first remove cosmetic baffle and
woofer, next remove tweeter cord. Then remove the tweeter
together with adhesive tape. When attaching it, face its cord
downward. Then go it through the hole of the inner buffle board
together with the packing.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
RRV2555
T-ZZB OCT. 2001 Printed in Japan
S-NM3V
XCN/E
S-NM3V XCN/NC
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
This product is component of system.
System
Service Manual
Remarks
RRV2546
RRV2555
Component
X-NM30VCD
XR-NM3V
S-NM3V
COMPACT MINI COMPONENT
STEREO VCD CASSETE DECK RECEIVER
SPEAKER SYSTEM
This service manual
The grille is attached to the cabinet by catches. Detach by
pulling it toward you.
The cord stopper is attached to the back board by press-
fitting. To detach it, pull it while rotating it by the radio
pincers.
The cosmetic baffle assy is attached to the cabinet by 4 ex-
ternal boss screws. To detach it, unfasten those screws.
The woofer is attached to the inner baffle by 4 external
screws. To detach it, first remove cosmetic baffle assy.
Then unfasten those screws. When attaching it, face its ter-
minal upward.
The tweeter is attached to the inner baffle by external adhesive
tape. To detach tweeter, first remove cosmetic baffle and
woofer, next remove tweeter cord. Then remove the tweeter
together with adhesive tape. When attaching it, face its cord
downward. Then go it through the hole of the inner buffle board
together with the packing.
background image
2
S-NM3V
SCHEMATIC DIAGRAM
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
NSP
CS Assy(L)(XCN/E Type)
SMW1695
NSP
Model Label(L)
SAN3062
NSP
CS Assy(R)(XCN/E Type)
SMW1696
NSP
Model Label(R)
SAN3063
NSP
CS Assy(L)(XCN/NC Type)
SMW1697
NSP
Model Label(L)
SAN3064
NSP
CS Assy(R)(XCN/NC Type)
SMW1698
NSP
Model Label(R)
SAN3065
Mark No.
Description
Part No.
Connection Cord (025-60002-001)
For Packing
Mark No.
Description
Part No.
Speaker(TW)
B26ZC
Speaker(TW, TONIC No)
029-03000-002
Speaker(WF)
W10DC65-55D
Speaker(WF, TONIC No)
029-10006-444
Grille
NM-SMG1744
Cosmetic BF. Assy
NM-SXB1442
Connection Cord
025-60002-001
Speaker Cord Stopper
130-00000-004
Catch
136-00100-130
Non Skid Pad
136-10010-100
Packing (for TW Cord)
137-11010-100
Screw (for WF)
144-14012-910
Screw (for Cos. BF. Assy)
144-54030-720
Top Protector
149-10053-000
Bottom Protector
149-10054-000
Polyethylene Bag
150-17020-310-01
CS Assy (L), (R)
I N
Woofer
Tweeter
Red
Black
Transparent / Blue
Transparent / Blue
Transparent
Transparent
background image
3
S-NM3V

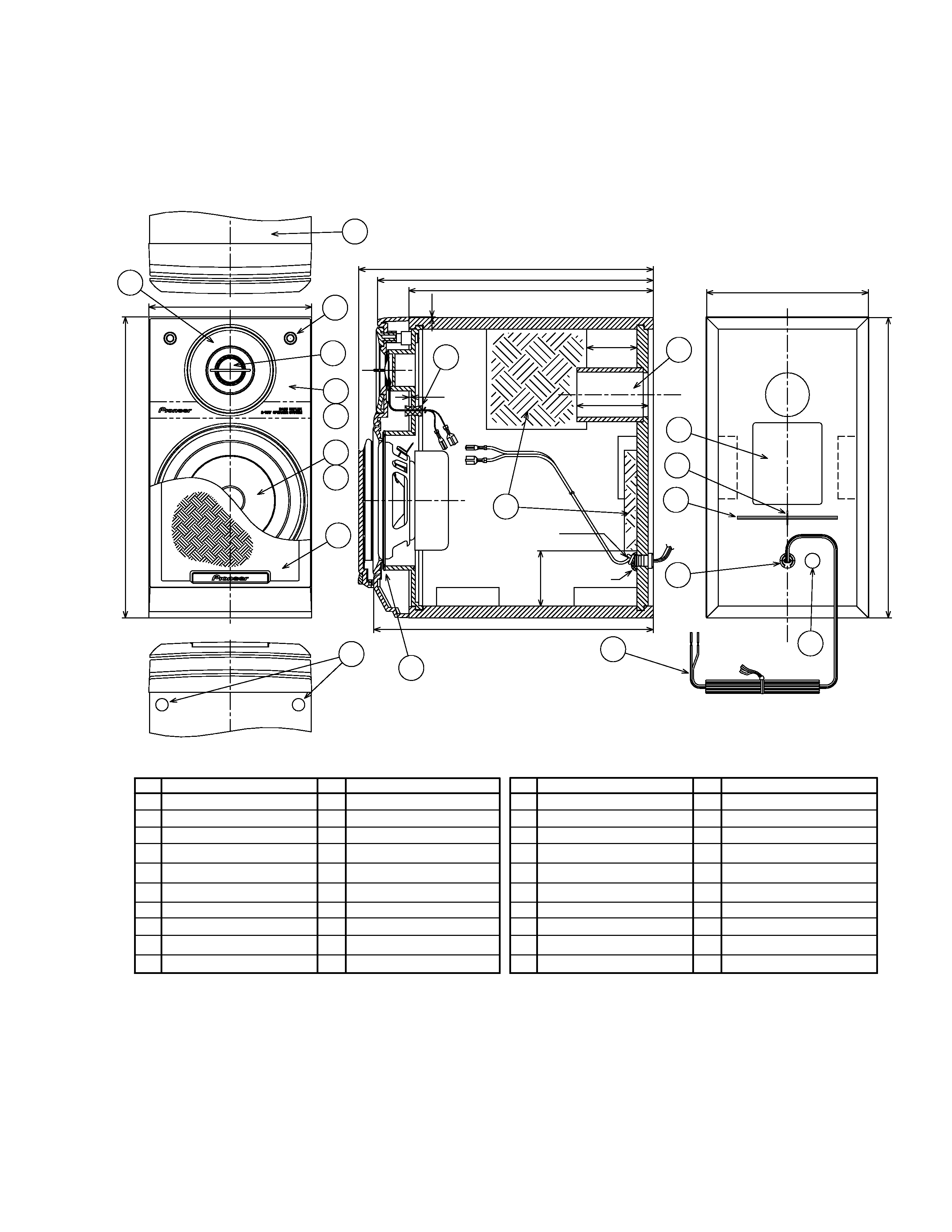

PRODUCT APPEARANCE
129(CABINET)
239.5(CABINET)
0.5
2
57
(40)
(220)
195
(44)
223
(235)
Make a knot
Hot melt
9
7
19
20
16
2
8
11
15
14
6
3
5
1
4
10
13
12
18
17
240(COSMETIC
BAFFLE)
130(COSMETIC BAFFLE)
No.
Num.
1
1
1
1
1
1
1
1
2
1
4
2
3
4
5
6
7
8
9
10
Part Name
Remarks
CABINET
GRILLE
COSMETIC BAFFLE
TWEETER RING
SPEAKER
SPEAKER
MODEL LABEL
SPEAKER CORD STOPPER
ACOUSTIC ABSORBENT
BOSS SCREW
TWEETER : B26ZC
WOOFER : W10DC65-55D
No.
Num.
4
1
1
1
1
1
1
1
4
2
11
12
13
14
15
16
17
18
19
20
Part Name
Remarks
SCREW
CONNECTION CORD
PACKING
PACKING
DAMPER
PAPER TUBE
NON SKID PAD
QC PASS LABEL
TIE
STAPLE
BYC40P120FZB
for WOOFER
for TWEETER CORD
H4x30,Hexagon Socket Screw
