ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
The grille is united with the baffle, therefore cannot be sepa-
rated.
The baffle is attached to the cabinet by 4 external screws.
The speaker is attached to the baffle by 4 internal screws.
To detach it, first remove the baffle. Then remove the speaker.
When attaching it, face its terminal rightward.
The CS ASSY(center) cannot be disassembled.
When exchange the center speaker, do it with the CS
ASSY(center)-S (for service parts).
RRV2081
T-ZZW DEC. 1998 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
SPEAKER SYSTEM
S-A35LRC
XC
This product is component of system.
For the operating instructions, refer to the service manual RRV2065 for XR-A880.
S-A35LRC consists of Center Speaker (1PC) and Surround Speaker (2PCS).
(for Center Speaker)
(for Surround Speaker)
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
The grille is united with the baffle, therefore cannot be sepa-
rated.
The baffle is attached to the cabinet by 4 external screws.
The speaker is attached to the baffle by 4 internal screws.
To detach it, first remove the baffle. Then remove the speaker.
When attaching it, face its terminal rightward.
The CS ASSY(center) cannot be disassembled.
When exchange the center speaker, do it with the CS
ASSY(center)-S (for service parts).
RRV2081
T-ZZW DEC. 1998 Printed in Japan
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
SPEAKER SYSTEM
S-A35LRC
XC
This product is component of system.
For the operating instructions, refer to the service manual RRV2065 for XR-A880.
S-A35LRC consists of Center Speaker (1PC) and Surround Speaker (2PCS).
(for Center Speaker)
(for Surround Speaker)
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
background image
2
CS ASSY-S (Center)
263781
NSP
Stamped Model Label (Center) SME2903
NSP
Model Label (Center)
SAN2689
NSP
CS ASSY (Center)
SMW1550
Speaker
D87DU54-51F
NSP
Connecting Cord
SDF1069
NSP
Grille ASSY
SMG1622
NSP
Badge 38
SAM1442
NSP
Grille Cloth
SAS1441
NSP
Baffle Board
SNK2324
NSP
Sash
SNK2330
Screw (for Speaker)
TTZ40P080FMC
NSP
Stamped Model Label (Surround)
SME2902
NSP
Model Label (Surround)
263865
NSP
CS ASSY (Surround)
SMW1556
Screw (for Baffle)
BYC40P130FZK
Speaker
D87CC45-53K
Connecting Cord
263929
NSP
Cover
SES1018
Grille ASSY
263934
NSP
Badge 38
SAM1442
NSP
Grille Cloth
SAS1440
NSP
Baffle Board
SNK2321
NSP
Cabinet
SNK2322
Screw (for Speaker)
TTZ40P080FMC
Mark No.
Description
Part No.
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:

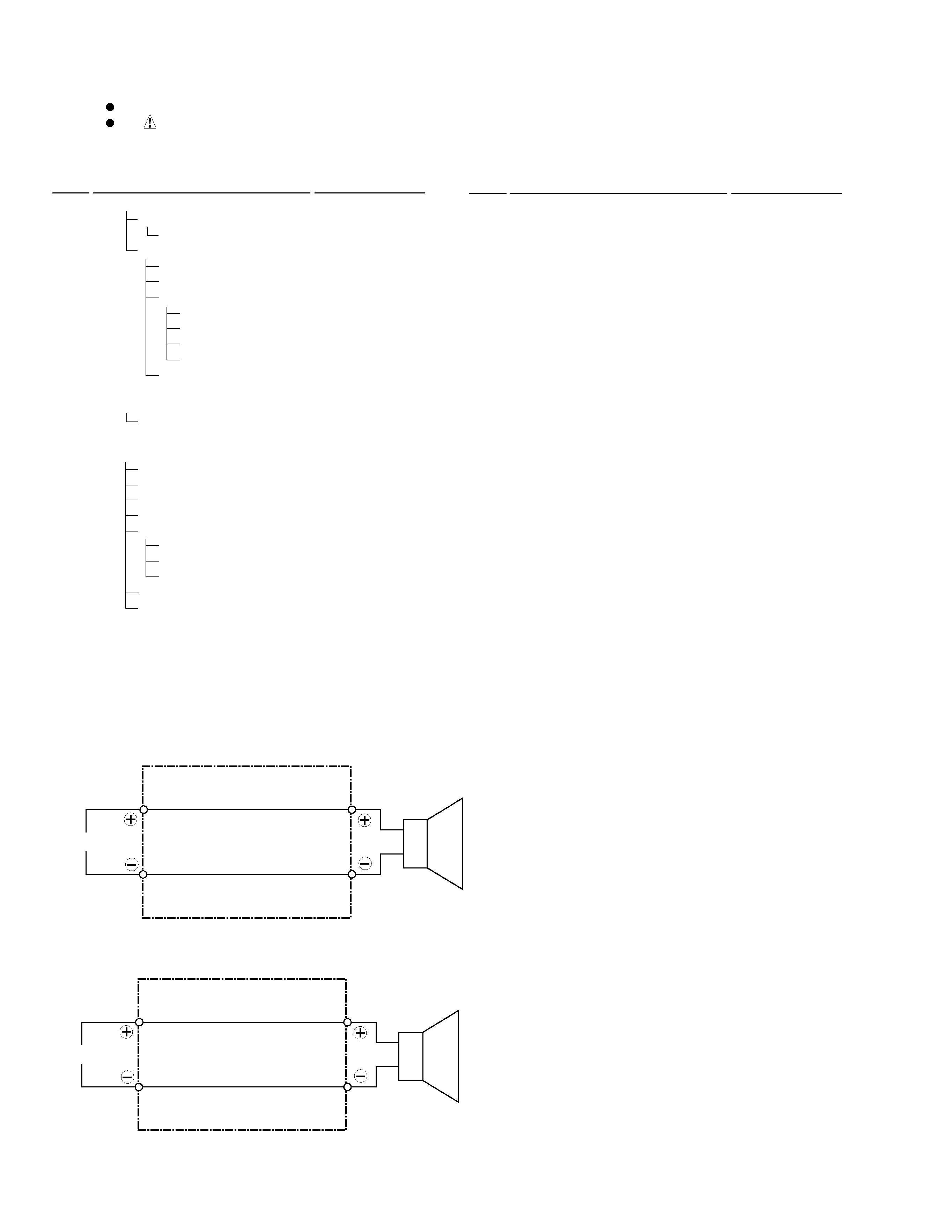

PARTS LIST
Mark No.
Description
Part No.
S-A35LRC
For Packing
Top Protector
263796
Bottom Protector
263805
Protection Mat S4
263810
Packing Case
263825
NSP
Polyethylene Bag S1
263830
Master Carton
263845
SCHEMATIC DIAGRAM
Connecting Cord (SDF1069)
Connecting Cord (263929)
Speaker
INPUT
Black/White
Black
Center
Speaker
INPUT
Gray/Black
Gray
Surround
