background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
PROJECTION SCREEN KIT
ARP3071
T­ZZA MAR. 2000 Printed in Japan
RMS-V4011C2
WL
­­­­­­­­­­
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Remarks
Power Requirement
Type
Model
RMS-V4011C2
SPECIFICATIONS
This product is a projection screen unit comprised of a Pioneer RMA-V4012 screen
attachment and RMF-V4011 projection frame, combined to create a large-screen,
multipurpose system.
Dimensions ............... 844.4 (W) x 629.4 (H) x 84.8 (D) mm
(33.25 (W) x 24.78 (H) x 3.34 (D) inch)
Weight ....................................................................... 5.7 kg
(12 lbs 9.1 oz)
Accessories
Hook fitting (left) ......................................................... 1
Hook fitting (right) ...................................................... 1
Connector .................................................................... 1
Cross-recessed tapping screws
(nominal diameter 4, length 12)
< for anchoring the screen frame > ..................... 1
Cross-recessed small screw (M4, length 25)
< for vertical linkage use,
for left-right linkage use > .................................... 3
Cross-recessed small screw (M6, length 10)
< For height adjustment > .................................... 1
Cross-recessed tapping screws
(nominal diameter 4, length 10)
< for hook fitting, for connector > ...................... 10
Cross-recessed tapping screws
(nominal diameter 4, length 18) ................................ 2
Pin < for positioning > ................................................ 1
¶ The specifications and external appearance may
change without prior notification to improve the
product.
¶ There may be surplus parts depending on the number
of screens provided.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
PROJECTION SCREEN KIT
ARP3071
T­ZZA MAR. 2000 Printed in Japan
RMS-V4011C2
WL
­­­­­­­­­­
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Remarks
Power Requirement
Type
Model
RMS-V4011C2
SPECIFICATIONS
This product is a projection screen unit comprised of a Pioneer RMA-V4012 screen
attachment and RMF-V4011 projection frame, combined to create a large-screen,
multipurpose system.
Dimensions ............... 844.4 (W) x 629.4 (H) x 84.8 (D) mm
(33.25 (W) x 24.78 (H) x 3.34 (D) inch)
Weight ....................................................................... 5.7 kg
(12 lbs 9.1 oz)
Accessories
Hook fitting (left) ......................................................... 1
Hook fitting (right) ...................................................... 1
Connector .................................................................... 1
Cross-recessed tapping screws
(nominal diameter 4, length 12)
< for anchoring the screen frame > ..................... 1
Cross-recessed small screw (M4, length 25)
< for vertical linkage use,
for left-right linkage use > .................................... 3
Cross-recessed small screw (M6, length 10)
< For height adjustment > .................................... 1
Cross-recessed tapping screws
(nominal diameter 4, length 10)
< for hook fitting, for connector > ...................... 10
Cross-recessed tapping screws
(nominal diameter 4, length 18) ................................ 2
Pin < for positioning > ................................................ 1
¶ The specifications and external appearance may
change without prior notification to improve the
product.
¶ There may be surplus parts depending on the number
of screens provided.
background image
RMS-V4011C2
2
6
4
2
1
3
1
2
3
15
7
20
20
21
22
22
22
22
5
17
13
18
14
9
10
12
16
8
21
11
19

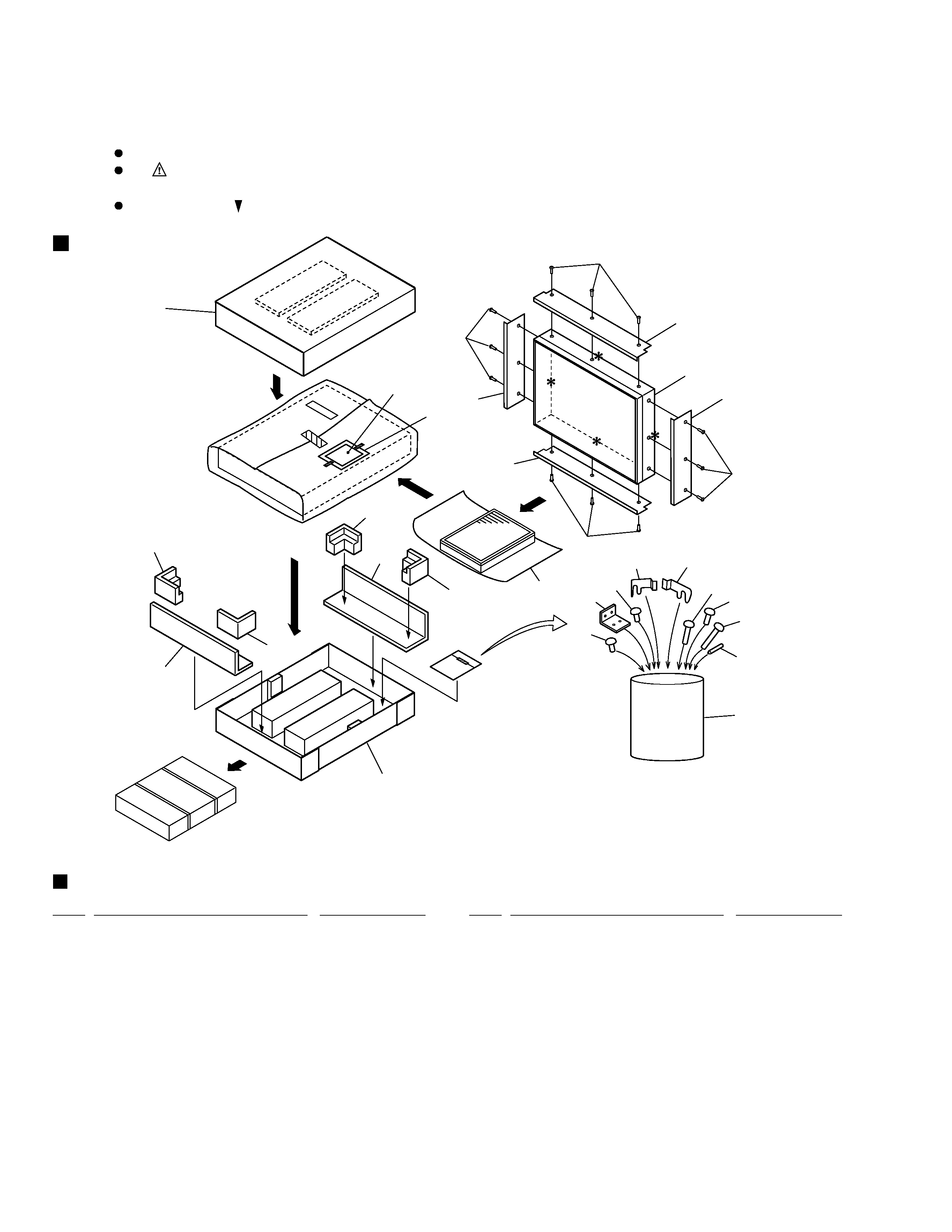

PACKING
PACKING PARTS LIST
2. EXPLODED VIEWS AND PARTS LIST
1
Corner Pad B
AHA2196
2
Corner Pad A
AHA2195
3
Card Board 40
AHB1225
4
Under Carton 40
AHD3076
5
Mirror Mat (50)
AHG1264
6
Upper Carton 40
AHD3075
7
Screen Service Assy 40
AWL1460
8
Joint Holder
ANG2384
9
Hook Holder LH
ANG2406
10
Hook Holder RH
ANG2407
11
Operating Instructions
ARD1038
(Japanese/English/French/
German/Italian/Spanish)
12
Screw (for height adjustment)
BMZ60P100FZK
13
Screw (for vertical linkage use,
BMZ40P250FZK
for left-right linkage use)
14
Screw
BYC40P180FZK
NSP
15
Vinyl Pouch
AHG-155
16
Screw
BYC40P100FZB
(for hook fitting, for connector)
17
Screw
BYC40P120FZK
(for anchoring the screen frame)
18
Pin (for positioning)
ABX1005
NSP
19
Manual Bag
AHG1083
20
Holder H40
ANG2398
21
Holder V40
ANG2399
22
Screw (for holder H40,
BBZ40P100FZK
for holder V40)
NOTES :
Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on the product are used for disassembly.
Mark No.
Description
Part No.
Mark No.
Description
Part No.
Caution:
1. When handling the product, do not hold the frame centers
(marked with
in the figure).
2. To assemble Multi-Sceen display, remove unnecessary holders
(No. 21 & No. 22) from each Screen unit at the sides which will
be hidden by other unit.
