background image
PDP-S58
Operating Instructions
Mode d'emploi
Bedienungsanleitung
Istruzioni di utilizzo
Handleiding
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
background image
PDP-S58
Operating Instructions
Mode d'emploi
Bedienungsanleitung
Istruzioni di utilizzo
Handleiding
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
background image
English
2
Thank you for buying this Pioneer product.
Please read through these operating instructions before using
your speaker system so you will know how to make the
most of its performance. After you have finished reading the
instructions, put them away in a safe place for future
reference.
CAUTION
About compatibility
This product is designed exclusively for use with the Pioneer
plasma television. For more information on compatibility,
please consult with your nearest Pioneer authorized dealer
or service center.
About installation and setting
·
Do not lift up the display by the speakers. A speaker may
come off, so carry the display by holding it by the bottom
and its handle.
Installation
· Consult your dealer if you encounter any difficulties
with this installation.
· Pioneer is not liable for any damage resulting from
improper installation, improper use, modification, or
natural disasters.

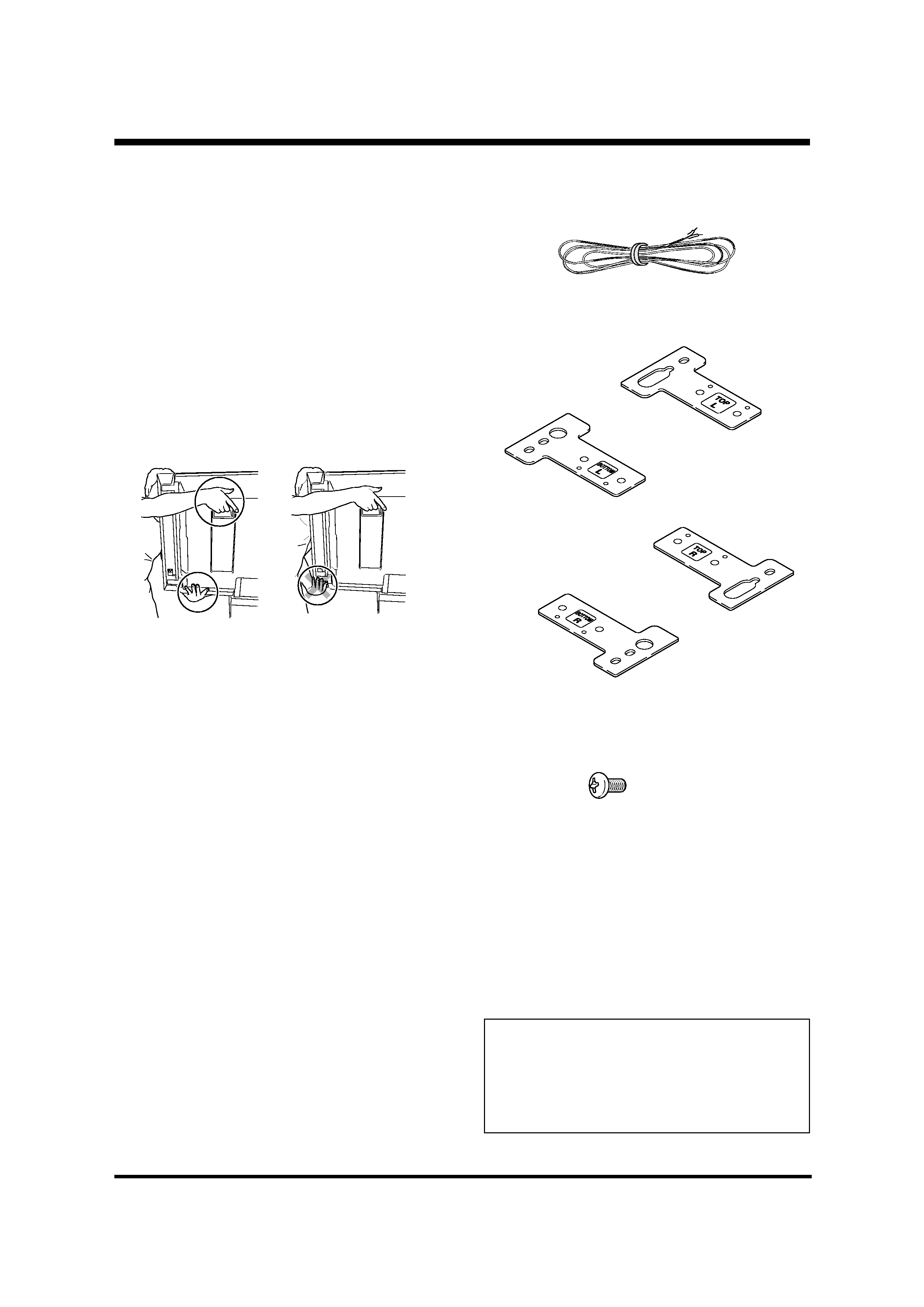

CHECKING THE ACCESSORIES
· Speaker Cables
× 2
· Speaker Mounting Fittings
· Speaker Mounting Screws
(M5
× 10 mm: Black) × 16
· Operating Instructions
·
When installing the speaker, do not use any screws other
than those supplied, otherwise the speaker may come
off from the main unit and fall over.
·
When installing the speaker, tighten the screws firmly.
·
Please handle the speaker with sufficient care, as the
grille net and the cabinet can become damaged or broken
when they are subjected to strong external impacts.
·
Placing a CRT computer screen or CRT monitor near to
the speaker may result in interference or color distortion.
If this happens, distance the monitor from the speaker.
About the input
·
In order to prevent damage to the speaker system
resulting from input overload, please observe the
following precautions:
·
Do not use the speaker with anything other than the
specified Pioneer plasma television. Doing so may result
in damage or fire.
·
Be sure to turn the connected devices off and remove
the power cord from the wall outlet beforehand when
changing the connection or installation method.
·
When using a tone control function to greatly emphasize
treble sounds, do not use excessive amplifier volume.
Bracket for
TOP-LEFT
Bracket for
BOTTOM-LEFT
Bracket for
TOP-RIGHT
Bracket for
BOTTOM-RIGHT
background image
3
English
English
Plasma television with the speaker installed
Speaker mounting fitting
(for TOP-RIGHT)
Speaker mounting fitting
(for TOP-LEFT)
Speaker mounting fitting
(for BOTTOM-RIGHT)
Speaker mounting fitting
(for BOTTOM-LEFT)
Speaker
Speaker
Speaker mounting screw
(M5 x 10 mm)
Speaker mounting screw
(M5 x 10 mm)
Speaker cable
Bead band
(Accessories of the
plasma television)
Speaker mounting
screw (M5 x 10 mm)
Speaker mounting
screw (M5 x 10 mm)
Speaker mounting screw
(M5 x 10 mm)
Speaker mounting screw
(M5 x 10 mm)
Speaker mounting
screw (M5 x 10 mm)
Speaker mounting
screw (M5 x 10 mm)
Speed clamp
Speed clamp

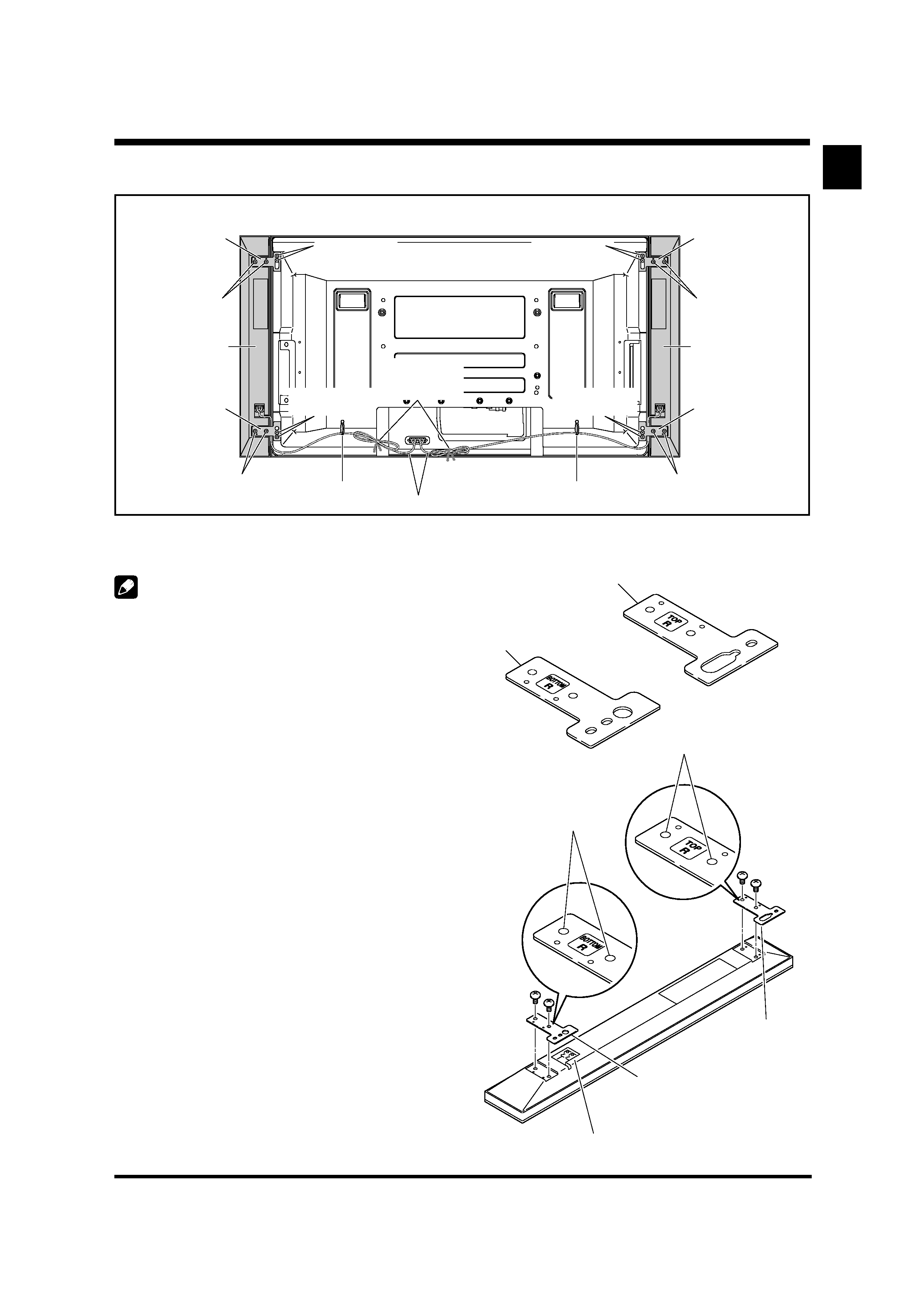

INSTALLATION ON THE PLASMA TELEVISION
When using the table top stand:
NOTE:
Before attaching the speaker, please attach the PDK-TS29
series table top stand (or another Pioneer plasma
television stand) to the plasma television.
1. Attaching the Speaker Mounting
Fittings to the Speakers.
There is a left speaker and a right speaker. When you
are mounting them, check the label on the back to get
them right.
There are top and bottom speaker mounting fittings for
both the left and the right speaker. Attach the
appropriate fittings to the top and the bottom on the
back of the speakers using the supplied screws.
(It shows the attachment of the fitting on the right
side. It is attached on the left side by the same
procedure.)
Speaker mounting fitting (For TOP-RIGHT)
(The skinny slot is used for mounting to the top.)
Screw Holes
Screw Holes
Speaker mounting
fitting
(For TOP-RIGHT)
Speaker mounting fitting
(For BOTTOM-RIGHT)
Place the speaker so its terminals
(bottom) are facing you.
Speaker mounting fitting
(For BOTTOM-RIGHT)
background image
English
4

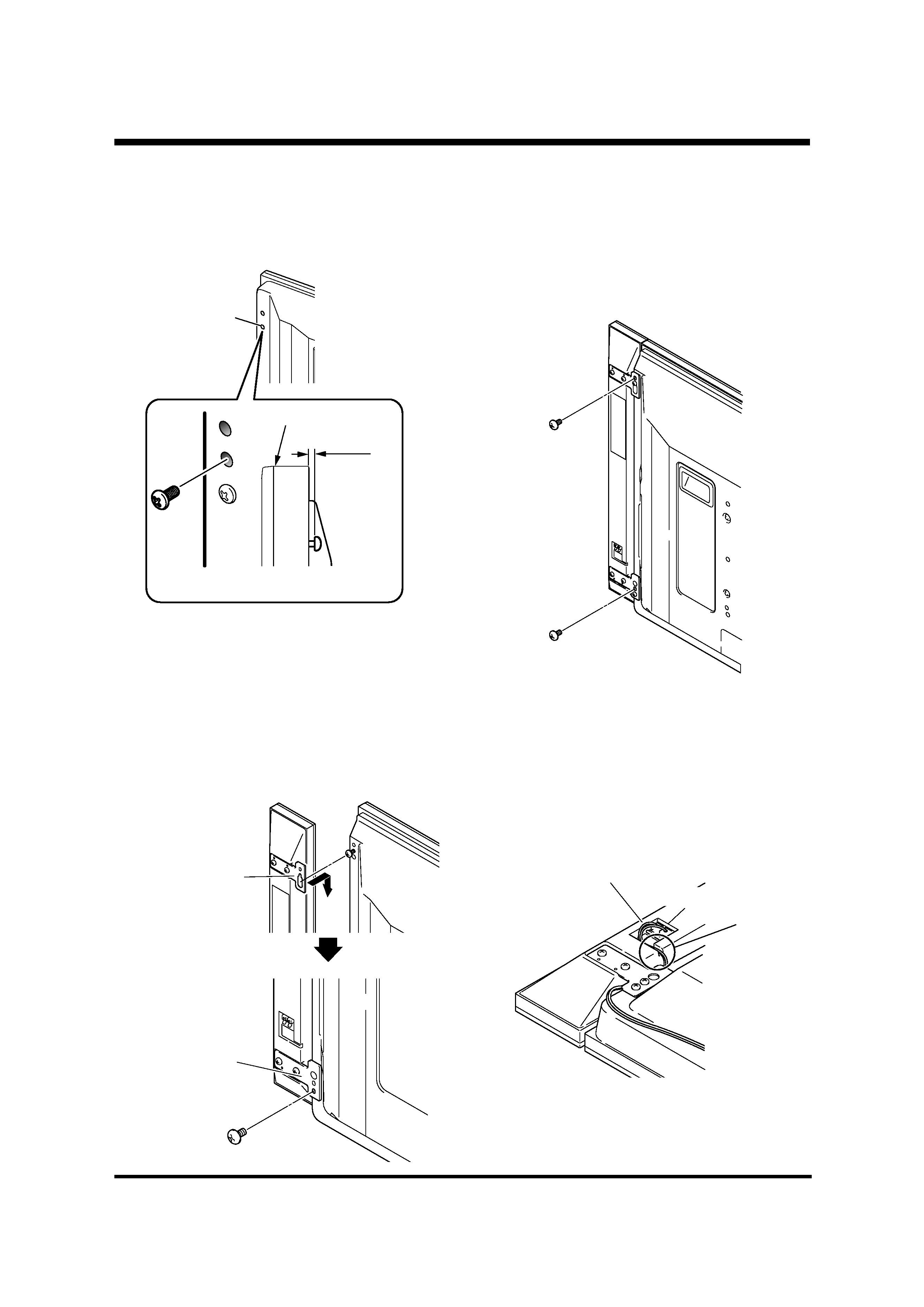

2. Screw an supplied screw into the
speaker mounting hole (lower of the
two) at the top, rear of the display.
Do not tighten it all the way yet. Leave it loose, with
about 5 mm left to tighten.
3. Hang the speaker mounting fitting
on the screw you installed at the top
by passing the wide part over it and
lowering into the slot; screw in the
lower screw temporarily.
After passing the wide part of the hole of the speaker
mounting fitting (top) over the screw, lower the
speaker onto it.
After passing the
wide part of the hole
over the screw, lower
the speaker.
4. Adjust the position of the speaker
and then tighten the upper and
lower screws firmly.
5. Tighten the two screws, at the top
and bottom for each speaker (total of
four screws), thus fixing the
speakers to the display.
6. Pass the supplied speaker cable
between the speaker and the plasma
television (below the speaker
mounting fitting) from below.
7. Connect the speaker cables to the
speaker (see next page).
8. Insert the cable in the groove on the
speaker.
9. Connect the other end of the speaker
cables to the rear of plasma
television (see next page).
Speaker Cable
Speaker Terminal
Insertion in
groove
Speaker
Mounting
Hole
Top, rear of
Display
Top of Display
5 mm
Leave a space of about 5 mm
Tighten with the
provided screw the
bottom speaker
mounting fitting to the
display temporarily
(one place bottom).
background image
5
English
English
NOTE:
·
Press the lever and insert the end of
the cable.
·
When you release the lever, it clamps
onto the speaker cable.
Caution
·
Be sure to turn the connected devices off and remove
the power cord from the wall outlet beforehand when
changing the connection or installation method.
·
If you insert the speaker cable too far so
that the insulation is touching the speaker
terminal, you may not get any sound.
Please insert it with showing the copper
wire.
·
Check if the end of the speaker cables are securely
connected to the terminals by slightly tugging on the
cable after making connections. Loose connections
may result in sound dropouts or noise.
·
If there is a short in the
and
cables caused by an
exposed lead wire, excessive load may be applied to
the plasma television, resulting in interrupted operation
or malfunction.
·
Incorrect connections of the speaker cable to the right
or left of the plasma television terminals with respect
to the polarity may result in insufficient stereo sound
effects, delivering poor bass sounds or unstable sound
image.
·
Bundle the cable without pulling.
For illustrative purposes, the table top stand is not presented here.

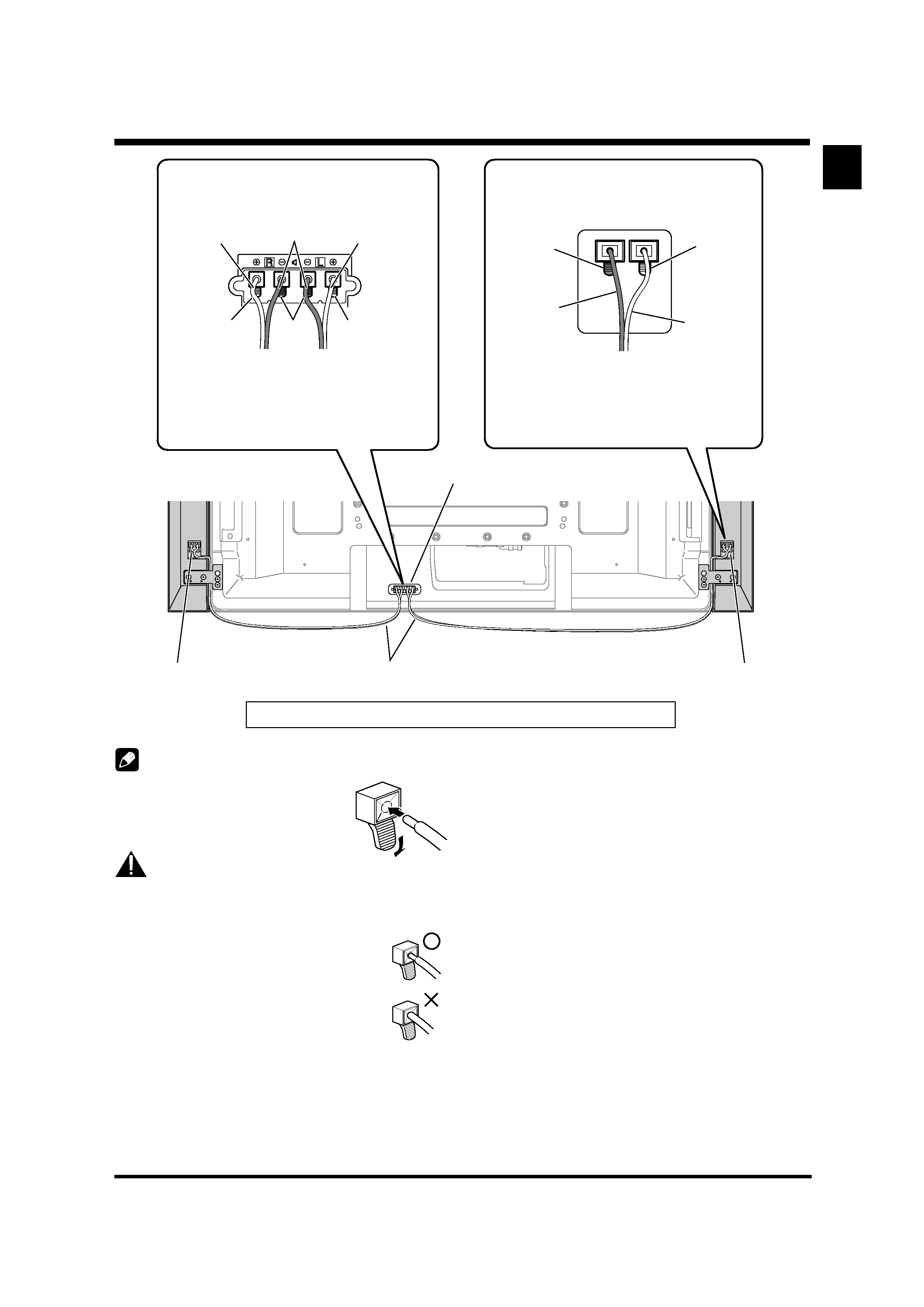

Connecting the speaker cables
to the rear of plasma television.
Connect the cables correctly with respect to
the polarity of the plasma television speaker
terminals, that is,
cable (Gray) to
terminals (Red) and
cable (Black) to
terminals (Black).
Gray
Gray
Black
Black
Red
Red
Connecting the speaker cables
to the speaker.
Connect the cables correctly with respect to
the polarity of the speaker terminals, that is,
cable (Gray) to
terminals (Red) and
cable (Black) to
terminals (Black).
Black
Red
Speaker terminal
Speaker terminal
Speaker cable
Speaker terminal
Black
Gray
