ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
RRV3013
T-ZZE OCT. 2004 Printed in Japan
PDP-S24-LR
SPEAKER SYSTEM
XIN/E
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
PDP-S24-LR
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
RRV3013
T-ZZE OCT. 2004 Printed in Japan
PDP-S24-LR
SPEAKER SYSTEM
XIN/E
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
PDP-S24-LR
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S24-LR

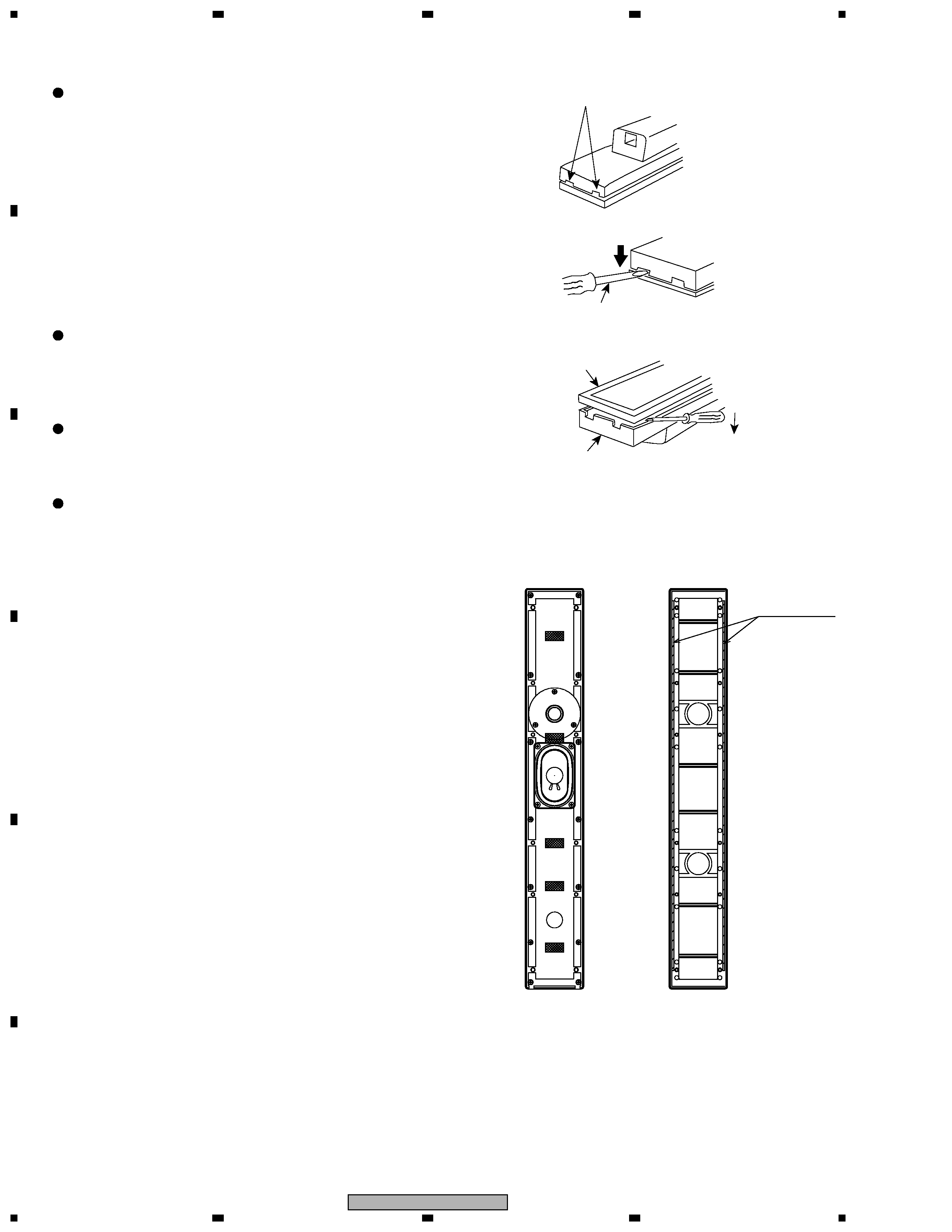

FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the baffle using double-sided self-adhe-
sive tape. To avoid damaging the grille, work with the speaker
on top of a blanket or similar, face up.
There are two slots in the lower part of the speaker. Insert a
screwdriver(-) into each slot and push down detach the lower
part.
Turn the speaker over and insert a screwdriver(-) between the
grille and the baffle. Taking care not to damage the baffle, push
down on the screwdriver(-) to prize the baffle and grille apart.
When reattaching the grille, use double-sided self-adhesive
tape in the locations shown in the diagram and press the grille
assy into place.
The grille is fixed using boss and double-sided self-adhesive
tape(The tape is in the locations indicated in the diagram be-
low). Do not use a dryer to heat the self-adhesive tape when
removing the grille.
The woofer is attached to the baffle by external screws. To de-
tach it, unfasten those screws. When attaching it, face its termi-
nal downward.
The tweeter is attached to the baffle by external screws. To de-
tach it, unfasten those screws.
Slot
GRILLE
Screwdriver(-)
Grille
Baffle
Down
LOCATIONS TO FIX DOUBLE-SIDED
SELF-ADHESIVE TAPE
Tape
(SEH1056 x2)
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S24-LR
Mark No.
Description
Part No.
NSP
Cabinet
SNK2786
NSP
Baffle
SNK2805
Grille ASSY
SMG1817
NSP
Grlle Cloth
SAS1571
NSP
Grille Frame
SMH1087
NSP
Cosmetic Frame
SNK2788
Network ASSY
SWN1736
Input Terminal
KKX1015
NSP
Model Label (L)
SAN3472
NSP
Model Label (R)
SAN3473
NSP
Insert Nut M5
SBN1056
NSP
Gasket (BAO:WF-TW,Top,Bottom)
SEB1250
NSP
Gasket (Input-Side)
SEB1255
NSP
Gasket (WF:Input)
SEB1256
NSP
Gasket (TW:Input)
SEB1271
NSP
Gasket (CAB:Input)
SEB1273
Gasket (Input Terminal Back)
SEC1724
NSP
Gasket (WF:Gasket)
SEC1754
NSP
Gasket (CAB:Long)
SEC1858
NSP
Gasket (CAB:Short)
SEC1859
NSP
Gasket (TW:Side)
SEC1878
NSP
Felt (CAB:Input)
SED1113
NSP
Felt (Duct Inside)
SED1112
Tape (Grille ASSY)
SEH1057
NSP
Paper Tube 26
SMR1380
NSP
Port Tube Ring 26
SMR1382
NSP
Acoustic Absorbent (Roll (Small))
SMT1240
NSP
Acoustic Absorbent (CAB:Roll)
SMT1246
NSP
Acoustic Absorbent (BF:U UN)
SMT1248
NSP
Acoustic Absorbent (CB:U)
SMT1249
NSP
Acoustic Absorbent (CAB:Roll)
SMV2183
NSP
Acoustic Absorbent (BF:L Side)
SMV2205
NSP
Acoustic Absorbent (Roll (Small))
SMV2206
Spacer ASSY
SMX1100
NSP
Gasket
SEC1877
NSP
Tape
SEH1063
NSP
Spacer
SNK2824
Spacer ASSY
SMX1101
NSP
Gasket
SEC1879
NSP
Tape
SEH1064
NSP
Spacer
SNK2825
NSP
Label Serial (Model Label L,R)
SRW1083
Speaker (Woofer)
A101EC65-54F
Speaker (Tweeter)
FADD55-52F
Screw (Tweeter)
BPZ35P080FZK
Screw (Terminal)
BPZ35P140FZK
Screw (BF-CAB,WF)
BPZ40P100FZK
Screw (NW Choke Coil)
BPZ40P300FZK
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
For Packing
Mark No.
Description
Part No.
NSP
Accessorys Set
SME3516
Protection Sheet S1
SHC1815
Spacer
SHD1060
Spacer
SHD1061
Accessory Case
SHF1086
Bracket A ASSY (R)
SNX1167
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (R)
SAK1014
NSP
Gasket
SEC1861
NSP
Gasket
SEC1862
Bracket A
SNA1433
Bracket A ASSY (L)
SNX1168
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (L)
SAK1015
NSP
Gasket
SEC1861
NSP
Gasket
SEC1862
Bracket A
SNA1433
Bracket B ASSY (R)
SNX1169
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (R)
SAK1014
NSP
Gasket
SEC1861
NSP
Gasket
SEC1862
Bracket B
SNA1434
Bracket B ASSY (L)
SNX1170
NSP
Polyethylene Bag S1
KHL1079
NSP
Label (L)
SAK1015
NSP
Gasket
SEC1861
NSP
Gasket
SEC1862
Bracket B
SNA1434
NSP
Installation Manual Set
SME3524
NSP
Polyethylene Bag S2
SHL1309
Operating Instructions
SRD1270
(English / French / Spanish)
NSP
Accessory Set
SME3525
NSP
Polyethylene Bag S1
KHL1079
NSP
Screws Set
SME3510
Screw
BMZ50P100FZK
NSP
Polyethylene Bag S0
KHL1081
Speaker Wire Set
SME3526
Speaker Wire
SDS1166
NSP
Polyethylene Bag S0
KHL1081
Gasket Set
SME3517
NSP
Gasket
SEC1863
NSP
Polyethylene Bag S1
SHL1304
NSP
Bracket ASSY
SME3543
Foam Pad
SHA2451
PS Block 28
SHA2473
Protection Sheet S1
SHC1816
Separator
SHD1062
Accessory Case
SHF1089
NSP
Bracket ASSY (L)
SME3539
Protection Sheet S1
SHC1815
Plyethylene Bag S2
SHL1406
MDF Bar
SHX1037
Bracket ASSY (L)
SXG1081
NSP
Label (L)
SAK1015
Hexagon Socket Screw M4 SBA1234
Wing Bolt M4
SBA1235
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S24-LR
SCHEMATIC DIAGRAM
Network ASSY (SWN1736)
I N
Red
Red
Black
Blue
White
White
2.7
µF/100V
C
L
1.1mH
Woofer
Tweeter
Mark No.
Description
Part No.
Screw 5
SBA1236
Washer 4
SBE1041
Hexagon Lock Nut M4
SBN1057
NSP
Plunger
SBX1003
NSP
Gasket
SEC1861
NSP
Gasket
SEC1864
NSP
Gasket
SEC1866
NSP
Gasket
SEC1882
NSP
Tape
SEH1063
Spacer
SEW1032
Bracket (L Under)
SNA1430
Bracket (L Top)
SNA1429
Fastner (Top)
SNA1439
Fastner (Under)
SNA1440
Bracket
SNA1441
Joint Bracket (L)
SNH1077
NSP
Bracket ASSY (R)
SME3540
Protection Sheet S1
SHC1815
Polyethylene Bag S2
SHL1406
MDF Bar
SHX1037
Bracket ASSY (R)
SXG1082
NSP
Label (R)
SAK1014
Hexagon Socket Screw M4 SBA1234
Wing Bolt M4
SBA1235
Screw 5
SBA1236
Washer 4
SBE1041
Hexagon Lock Nut M4
SBN1057
NSP
Plunger
SBX1003
NSP
Gasket
SEC1861
NSP
Gasket
SEC1864
NSP
Gasket
SEC1866
NSP
Gasket
SEC1882
NSP
Tape
SEH1063
Spacer
SEW1032
Mark No.
Description
Part No.
Bracket (R Under)
SNA1432
Bracket (R Top)
SNA1431
Fastner (Top)
SNA1439
Fastner (Under)
SNA1440
Bracket
SNA1441
Joint Bracket (R)
SNH1078
Cover A Set
SME3541
NSP
Polyethylene Bag S0
KHL1081
Cover A
SNN1027
Cover B Set
SME3542
NSP
Polyethylene Bag S0
KHL1081
Cover B
SNN1028
NSP
Caution Card
SRR1015
Foam Pad
SHA2439
Foam Pad
SHA2440
Packing Case
SHG2579
NSP
Packing Bag S2
SHL1407
NSP
Label Serial
SRW1087
background image
5
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S24-LR
A
A
12
4
1
12
10
5
8
11

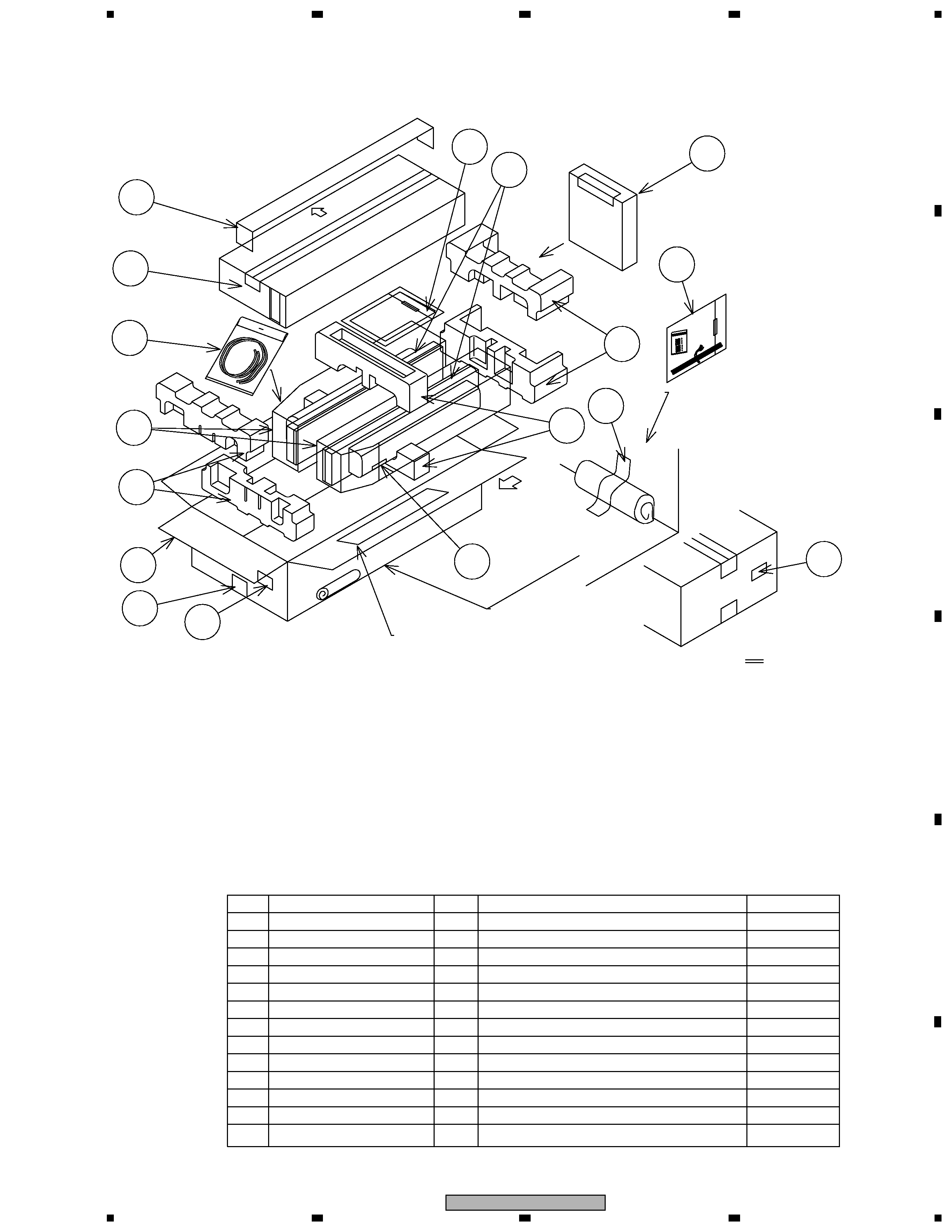

PIONEER LOGO
2
2
3
7
9
6
13
10
12
PART NAME
NUM.
PACKING CASE
2
1
2
1
4
5
2
7
3
8
9
PROTECTOR
PACKING BAG S2
CLEAR TAPE 12mm
1
ACCESSORIES SET
PART NO.
REMARKS
SEREAL BARCORD LABEL
2
SHG2579
SRW1087
DANPRON-TAPE CLEARNESS 50mm
11
13
10
ACCESSORIES SET
1
SME3543
SME3516
SPEAKER SYSTEM L,R
1set
1
PROTECTOR
SHA2440
SHL1407
ACCESSORIES SET
1
SME3525
170cm
8cm
SHA2439
6
GASKET SET
1
SME3517
12
SME3524
1
INST.MANUAL SET
PACKING
