background image
PDP-S11
Operating Instructions
Mode d'emploi
Bedienungsanleitung
Istruzioni per l'uso
Gebruiksaanwijzing
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
background image
PDP-S11
Operating Instructions
Mode d'emploi
Bedienungsanleitung
Istruzioni per l'uso
Gebruiksaanwijzing
Manual de instrucciones
Speaker System
Enceintes acoustiques
Lautsprechersystem
Sistema di diffusori
Luidsprekersysteem
Sistema de altavoces
background image
2
English

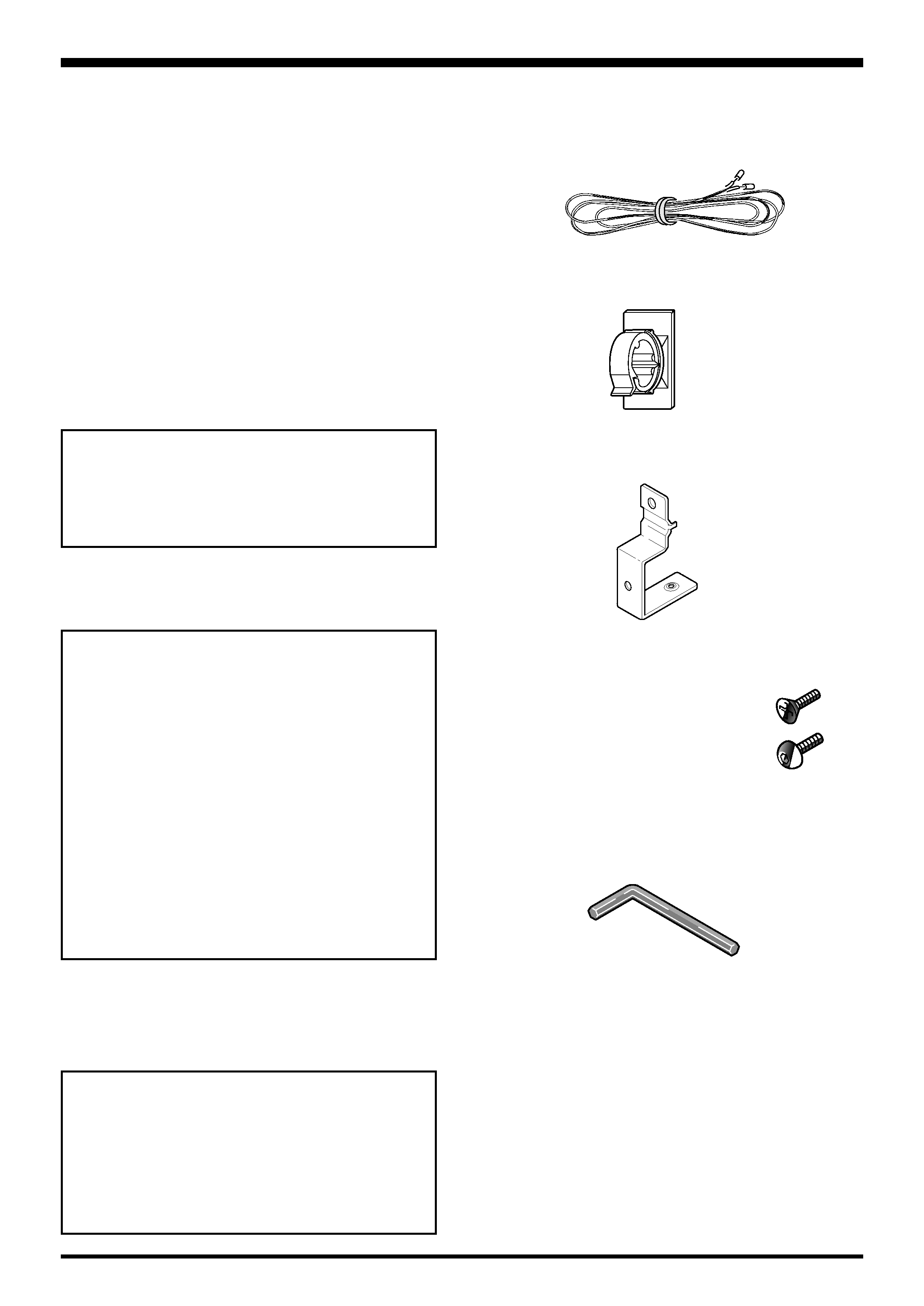

CHECKING THE ACCESSORIES
7 Speaker cable x 2
Thank you for buying this Pioneer product.
Please read through these operating instructions before using
your speaker system so you will know how to make the
most of its performance. After you have finished reading the
instructions, put them away in a safe place for future
reference.
BEFORE USE
The nominal impedance of this speaker system is 8 ohms.
÷ In order to prevent damage to the speaker system
resulting from input overload, please observe the
following precautions:
÷ Do not supply power to the speaker system in
excess of the maximum permissable input. This
can result in damage or a possible fire hazard.
÷ When connecting or disconnecting pin-plugs, be
sure that amplifier power is OFF.
÷ When using a graphic equalizer to emphasize
loud sounds of a high frequency range, do not
use excessive amplifier volume.
÷ Do not force a low-powered amplifier to produce
a loud volume of sound (the amplifier's harmonic
distortion will be increased, and you may
damage the speaker).
÷ Please handle the speakers with sufficient care, as
the grille net and the cabinet can become dam-
aged or broken when they are subjected to strong
external impacts.
Placing a CRT computer screen or CRT monitor near to the
speakers may result in interference or color distortion. If this
happens, distance the monitor from the speakers.
CAUTION
This product is designed exclusively for use with the
PDP-4330HD,PDP-433HDE,PDP-433HDG Pioneer plasma
display.
7 Operating instructions
7 Speaker mounting fittings x 2
7 Speaker mounting bolts
· Flat countersunk head screw x 2
· Hexagon socket head screw x 2
7 Mounting tool (Hex wrench)
NOTE:
· Always use the accessory mounting fittings for
installation.
· When screws other than those enclosed as
accessories are used to install the speakers, the
speakers may drop off or accidents may be caused.
Always use the screws enclosed as accessories.
Notes on Installation Work:
This product is marketed assuming that it is installed
by qualified personnel with enough skill and compe-
tence. Always have an installation specialist or your
dealer install and set up the product.
PIONEER cannot assume liabilities for damage
caused by mistake in installation or mounting,
misuse, modification or a natural disaster.
7 Wire clamp x 2
CAUTION
AFTER THE SPEAKER HAS BEEN INSTALLED, DO
NOT HOLD IT OR USE IT FOR SUPPORT WHEN
MOVING THE DISPLAY. REMOVE THE SPEAKER
BEFORE MOVING.
WARNING: Handling the cord on this product or cords
associated with accessories sold with the product will expose
you to lead, a chemical known to the State of California and
other governmental entities to cause cancer and birth defects
or other reproductive harm.
Wash hands after handling.
background image
3
English
English

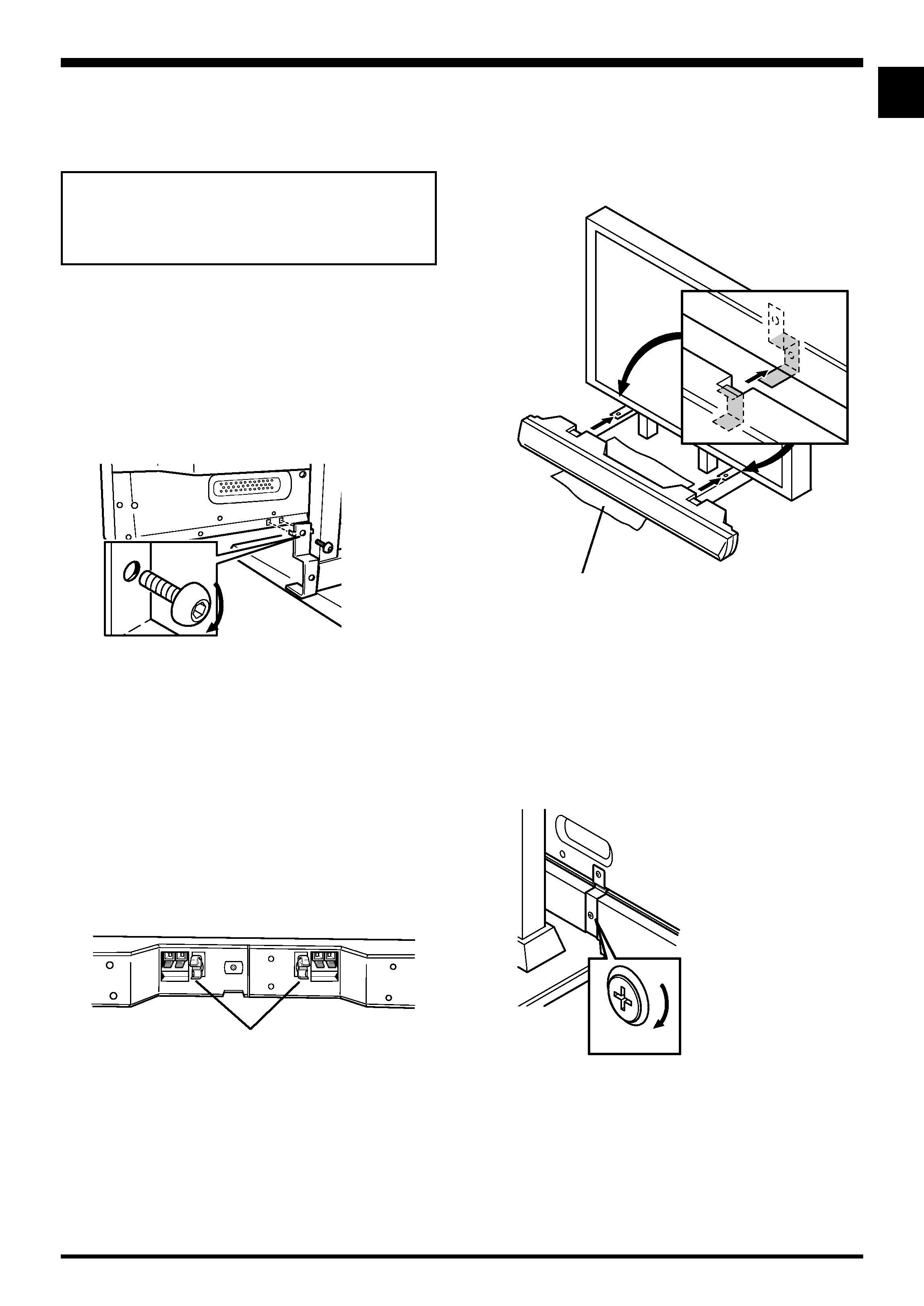

INSTALLATION ON THE
PLASMA DISPLAY
Perform installation according to the following steps 1 to 7.
NOTE:
Before attaching the speaker, please attach the PDK-
TS03 table top stand (or another Pioneer plasma
display stand) to the plasma display unit.
1 Attach the speaker mounting fittings to
the rear of the plasma display.
Using the supplied hexagon socket head screws, fix
the speaker mounting fittings to the left and right
sides of the plasma display. (Use the supplied hex
wrench to tighten the screws.
·
Turn clockwise to tighten.
·
Align the lugs on the speaker mounting fittings
with the holes in the plasma display unit.
2 Connect the supplied speaker cords to
the back of the plasma display.
(Please also see the installation instructions of the
plasma display.)
3 Attach the two supplied wire clamps to
the rear of the speakers, as shown.
· The clamp opening should be pointing downward.
4 Connect the other end of the speaker
cords (see step 2) to the speakers.
See the following page for more detailed information
on connecting speaker cords.
5 Mount the speakers onto the speaker
mounting fittings.
To avoid damaging the stand, cover it with the
protective wrapping that covered the speaker.
Protective wrapping (the PDK-TS03 table top stand
only)
Carefully, mount the speaker onto the mounting
fittings.
6 Fix the speaker to the mounting fittings.
Use the supplied flat countersunk-head screws to fix
both right and left sides of the speaker to the
mounting fittings as shown below.
· Turn clockwise to tighten.
NOTE:
Do not use the screw hole located on the
underside of the mounting fittings to fix the
speaker.
This illustration
shows the PDK-
TS03 table top
stand.
This illustration
shows the PDK-TS03
table top stand.
This illustration shows
the PDK-TS03 table
top stand.
background image
4
English
To the
· terminal
To the
ª terminal
(Speaker output terminals of the plasma display)
· terminal
ª terminal (red)
CABINET MAINTENANCE
·
Use a polishing cloth or dry cloth to wipe off dust
and dirt.
·
When the cabinet is very dirty, wipe with a soft
cloth moistened with water-diluted cleanser; then
wipe again with a dry cloth. Do not use furniture
wax or cleaners. They may damage the surface of
the cabinet.
·
Never use thinner, benzine, insecticide sprays and
other chemicals on or near the cabinets, since
these will corrode the surfaces.
·
When a chemical cloth is used, read the cautions
for the chemical cloth carefully.
The polarity of the input terminals is plus
ª for the
red terminal (the terminal on the right side in the
following figure) and minus
· for the black terminal
(the terminal on the left side in the following figure).
· After connection to the terminals, pull lightly on
the cable to confirm that the tips of the cable are
properly connected to the terminals. An imperfect
connection can cause sound interruptions and
noise.

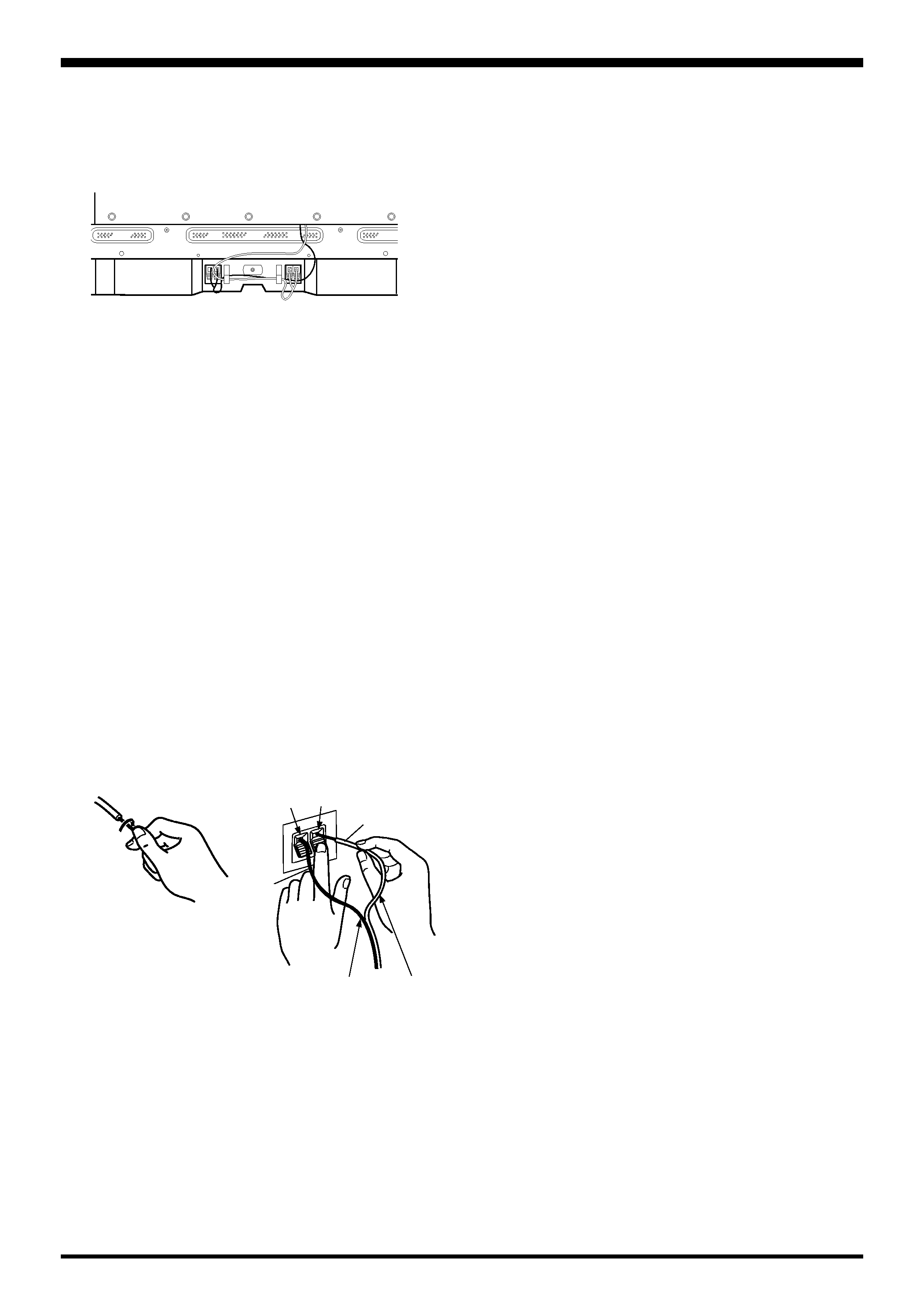

CONNECTION TO A PLASMA
DISPLAY
1 Switch off the power of the plasma
display.
2 Use the supplied speaker cords to
connect the speaker outputs of the
plasma display to the speaker inputs on
the speaker system.
2. Push the lever, insert the
cable into the hole, and
release the lever.
1. Remove the insulation
and twist the core ends
together.
Published by Pioneer Corporation.
Copyright © 2002 Pioneer Corporation.
All rights reserved.
SPECIFICATIONS
Cabinet : Enclosed type
Used speakers (two-way system) :
Woofer (for low tones) .............................. Oval cone type
Tweeter (for high tones) ...................... 2.5 cm dome type
Nominal impedance ..................................................... 8
Frequency Range ..................................... 60 to 20,000 Hz
Sensitivity ................................ 82 dB/W (at 1 m distance)
Permissible input :
Max. input ................................................................. 12 W
Rated input ............................................................. 2.5 W
Crossover frequency ................................................ 3 kHz
External Dimensions ..... 1070 (W) x 74 (H) x 102 (D) mm
Weight ..................................................................... 2.7 kg
Accessory parts
Speaker cable .................................................................. 2
Wire clamp ...................................................................... 2
Flat countersunk head screw .......................................... 2
Hexagon socket head screw ........................................... 2
Mounting tool (Hex wrench) ........................................... 1
Speaker mounting fittings ............................................... 2
Operating Instructions .................................................... 1
NOTE:
Specifications and design subject to possible modification
without notice, due to improvements.
7 Route the speaker cords out of sight
from the front of the unit.
Route as shown in the diagram, using the wire
clamps (step 3) to secure the cords.
NOTE:
If you want to move the plasma display unit, make sure
that you remove the speaker first. In addition, do not
move the display holding on to the mounting fittings. This
can result in injury or damage to the unit.
·
When cable cores stick out and
ª and · lines are
short-circuited, an excessive load will be applied to
the plasma display and the operation will stop or
trouble will be caused.
·
Match the colors on the speaker cable with the
speaker terminals to ensure correct polarity. This
will result in correct stereo sound. Incorrect
polarity will result in poor, unfocused sound.
(black)
Black
Red
background image
5
Françias
Françias

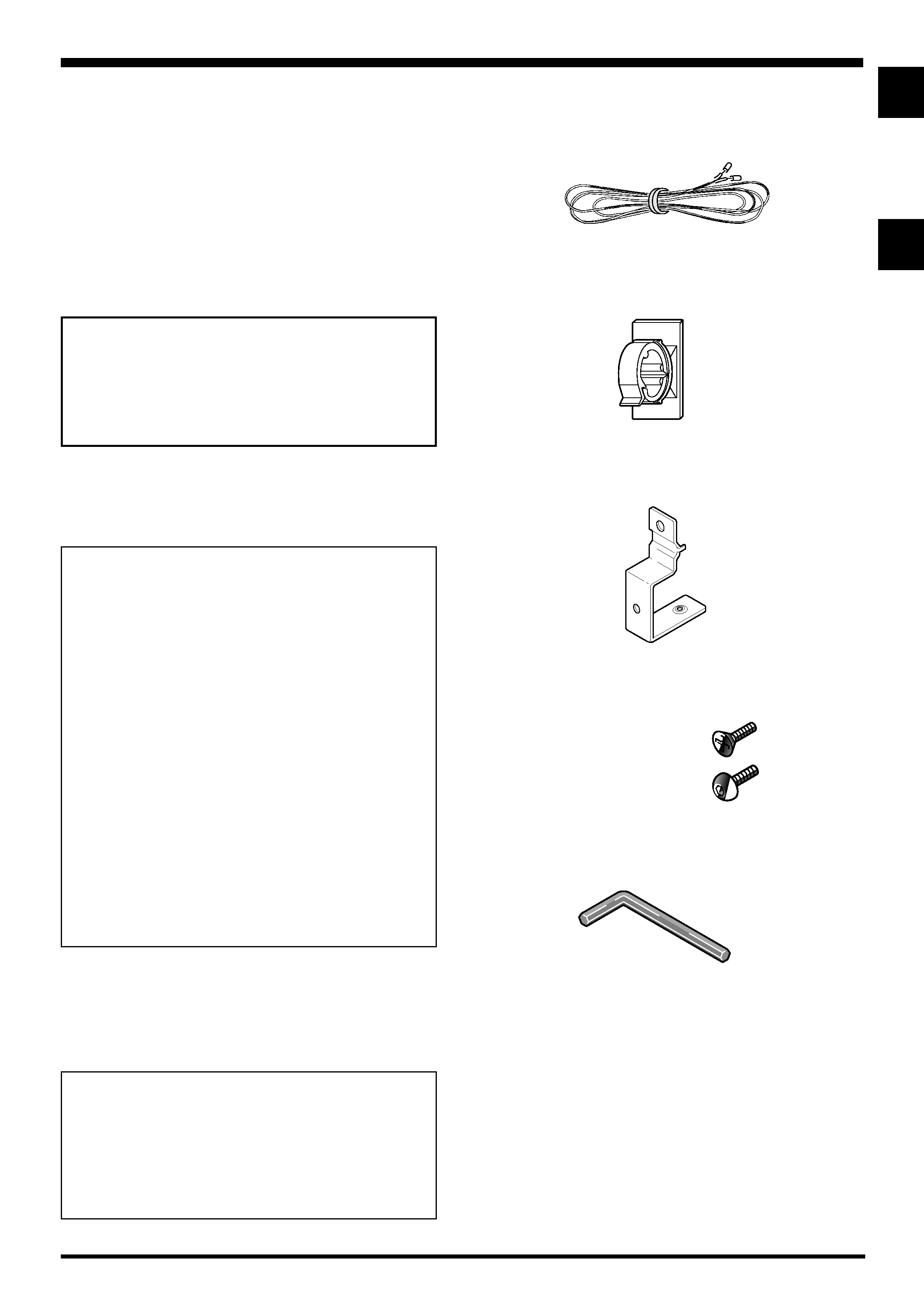

AVANT USAGE
Merci pour votre achat de cet appareil Pioneer.
Veuillez lire attentivement toutes ces instructions de
fonctionnement avant d'utiliser votre enceinte acoustique
de façon à pouvoir en tirer le meilleur profit. Après lecture
complète du livret d'instructions de fonctionnement, le
ranger dans un endroit sûr afin de pouvoir vous y reporter
facilement en cas de besoin lors de l'utilisation de l'enceinte
acoustique.
ATTENTION
÷ L'impédance nominale de cette enceinte acoustique est
de 8
.
÷ Afin d'éviter d'endommager l'enceinte acoustique,
suite à une surcharge à l'entrée, veuillez observer
les précautions suivantes:
÷ Ne pas fournir aux haut-parleurs une alimentation
supérieure à la valeur maximale admise, sinon
l'appareil risque d'être endommagé ou un incendie
pourrait éclater.
÷ En connectant ou en déconnectant les fiches à
plots, s'assurer que l'alimentation de l'amplificateur
est coupée sans faute.
÷ En utilisant un égalisateur graphique pour
accentuer les sons forts dans la plage des hautes
fréquences, ne pas régler l'amplificateur à un
volume excessif.
÷ Ne pas contraindre un amplificateur de faible
puissance à fonctionner à un volume sonore
poussé (la distorsion harmonique de l'amplificateur
sera accrue, ce qui risquerait d'endommager le
haut-parleur).
÷ Manipuler les haut-parleurs avec suffisamment de
soin, car autrement, l'enjoliveur frontal et le coffret
risqueraient d'être endommagés ou hors d'usage en
les soumettant à des chocs externes exagérés.
Ce produit est conçu exclusivement pour l'utilisation
avec un écran d'affichage au plasma Pioneer PDP-4330HD
ou PDP-433HDE.
7 Accessoires de montage de haut parleur x 2
7 Boulons de montage de haut parleur
Vis à tête fraisée plate x 2
Vis à tête hexagonale noyée x 2
7 Outil de montage (Clé hexagonale)
7 Mode d'emploi
V'ERIFICATIONDESACCESSOIRES
REMARQUE:
÷ Utilisez toujours les accessoires de montage pour
l'installation.
÷ Si des vis autres que ceux ci-joints sont utilisés pour in-
staller les haut-parleurs, ceux-ci peuvent se détacher et
tomber, ou des accidents risquent de se produire. Utilisez
toujours les vis ci-joints comme accessoires.
÷ Si un écran d'ordinateur à écran cathodique (CRT) ou un
moniteur à écran cathodique (CRT) est placé à proximité
des haut-parleurs, il risque de présenter des interférences
ou une dénaturation des couleurs. Dans ce cas, éloigner
le moniteur des haut-parleurs.
Remarques sur l'installation:
Ce produit est vendu en assumant qu'il sera installé par
un personnel suffisamment expérimenté et qualifié. Faites
toujours réaliser le montage et l'installation par un
spécialiste ou par votre revendeur.
PIONEER ne peut être tenu responsable pour tout
dommage causé par une erreur d'installation ou de
montage, une mauvaise utilisation ou un désastre naturel.
7 Câbles de haut-parleur x 2
7 Serre-fil x 2
ATTENTION
APRÈS L'INSTALLATION DE L'ENCEINTE
ACOUSTIQUE NE LE TENEZ PAS EN DÉPLAÇANT
L'ÉCRAN D'AFFICHAGE. RETIREZ ENCEINTE
ACOUSTIQUE AVANT DE DÉPLACER L'ÉCRAN
D'AFFICHAGE.
English

Reviews

There are no reviews of this manual yet.
