D-105F
Thank you for your purchase of the Onkyo speaker system.
Please read this manual thoroughly before using it.
Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your
new speaker system.
Please retain this manual for future reference.
Instruction Manual
SPEAKER SYSTEM
1. Read Instructions ­ All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions ­ The safety and operating instructions
should be retained for future reference.
3. Heed Warnings ­ All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions ­ All operating and use instructions
should be followed.
5. Cleaning ­ The appliance should be cleaned only as
recommended by the manufacturer.
6. Attachments ­ Do not use attachments not recommended
by the appliance manufacturer as they may cause hazards.
7. Water and Moisture ­ Do not use the appliance near water
­for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool;
and the like.
8. Accessories ­ Do not place the appliance on an unstable
cart, stand, tripod, bracket, or table. The appliance may fall,
causing serious injury to a child or adult, and serious
damage to the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended
by the manufacturer, or sold with
the appliance. Any mounting of
the appliance should follow the
manufacturer's instructions, and
should use a mounting accessory
recommended by the manufacturer.
9. An appliance and cart combination
should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart
combination to overturn.
PORTABLE CART WARNING
S3125A
Important Safeguards
background image
D-105F
Thank you for your purchase of the Onkyo speaker system.
Please read this manual thoroughly before using it.
Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your
new speaker system.
Please retain this manual for future reference.
Instruction Manual
SPEAKER SYSTEM
1. Read Instructions ­ All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions ­ The safety and operating instructions
should be retained for future reference.
3. Heed Warnings ­ All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions ­ All operating and use instructions
should be followed.
5. Cleaning ­ The appliance should be cleaned only as
recommended by the manufacturer.
6. Attachments ­ Do not use attachments not recommended
by the appliance manufacturer as they may cause hazards.
7. Water and Moisture ­ Do not use the appliance near water
­for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool;
and the like.
8. Accessories ­ Do not place the appliance on an unstable
cart, stand, tripod, bracket, or table. The appliance may fall,
causing serious injury to a child or adult, and serious
damage to the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended
by the manufacturer, or sold with
the appliance. Any mounting of
the appliance should follow the
manufacturer's instructions, and
should use a mounting accessory
recommended by the manufacturer.
9. An appliance and cart combination
should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart
combination to overturn.
PORTABLE CART WARNING
S3125A
Important Safeguards
background image
Attaching and detaching the speaker grilles
This speaker system uses detachable grilles. Use the
following method to attach or detach the grilles.
1. Hold the lower edge of the grille and pull it gently toward
you to remove that edge of the grille.
2. In the same way, gently pull the upper edge of the speaker
grille toward you to remove it.
3. Lastly, gently pull the midsection of the speaker grille
toward you to remove it.
4. To replace the grille, push the projections at the six
locations into the grille plug holes on the speaker cabinet.
· The grille was designed to enhance the sound quality, so
be careful not to tear or damage it when removing or
replacing it.
Before turning on the amplifier's power switch:
· Make sure that the positive (+) and negative (-) speaker
cables do not contact each other. Otherwise, a short-
circuit may occur, causing damage to the amplifier.
· Be sure to connect the speaker cables with correct polarity
(connect the speaker's positive (+) and negative (-) binding
posts with the amplifier's corresponding speaker
terminals). Reversed polarity results in impaired bass-
range reproduction, causing mislocalization of the sound
image. Also, be sure to connect the Right and Left
speakers with the amplifier's corresponding speaker
terminals.
· Pull lightly on the speaker cables to ensure that they are
connected firmly.
Connection
· Turn the sound volume to the minimum and disconnect
the power cord to the amplifier before connecting the
speaker cables.
· The nominal impedance of this speaker system is 6
.
Use only amplifiers capable of handling this impedance.
· Use the supplied speaker cables to connect between
speaker's binding posts and the amplifier's speaker
terminals as illustrated below.
· Connect the binding posts of the Right and Left speakers
(when viewed from the front side) with the amplifier's right
(R) and left (L) speaker terminals, respectively.
Before using this unit
· The speaker cabinet is made of wood and is therefore
sensitive to extreme temperatures and humidity. Avoid
placing the speaker systems in locations subjected to
direct sunlight, or in smoky or in humid places, such as
near an air conditioner, humidifier, bathroom, or kitchen.
Doing so may result in damage to the speaker.
· Place the unit on a rigid, level surface. Placing it on a
slanted surface or weak base not only may cause the unit
to fall, but also results in decreased sound quality.
· Keep water or other liquids away from the unit. If water is
spilled into the unit, not only the unit but also the speakers
themselves may be damaged.
Name and function of each part
Removal
Replacement
FRONT SPEAKERS
­
+
­
+
R
L
A
R
L
B
Connecting the speaker cables directly into the speaker's binding
posts
Speaker's binding posts
1. Peel the insulation off the ends
of the speaker cable.
1. Loosen the terminal
screw.
3. Fasten the terminal
screw.
2. Insert the speaker
cable into the hole
(until the core wires
are inserted fully).
2. Twist the core wires
Minus (-) side is indicated
with a description or a
white line.
Speaker terminals on AV amplifier
Right (R channel)
speaker
Left (L channel)
speaker
Cabinet
Grille
Base
Tweeter
Woofer
Bass-reflex port
Grille plug holes
872
mm
127 mm
200 mm
193 mm
260 mm
background image
Placement
The sound quality a speaker system reproduces varies
greatly depending on the construction and area of the room
where it is installed, as well as the location and size of the
furniture. For better-quality sound, observe the following
precautions.
· It is recommended not to place the speakers on blocks,
but place the speakers on a sturdy floor or surface that
does not transmit vibrations. It is especially important to
refrain from placing the speakers on shag carpeting for
the speakers may tip over and the sound quality will be
adversely affected. Moreover, high-quality bass sound
cannot be obtained if the speakers are not seated stably
on the floor. Insert coins or other thin discs to seat the
speakers stably. As a general rule, having the speakers
resting on a number of points provides better sound than
having it rest completely on one surface. If the bass
sounds are low, place the speakers close to the wall
behind it to prevent the bass sounds from escaping. You
can then obtain the desired bass level by adjusting how
far from the wall the speakers are placed.
· In many rooms, the furniture and wall affect the
reproduced sound quality. For stereo sound reproduction,
placing the Right and Left speakers in the same condition
produces the best results. If they are placed in extremely
different conditions, the Right- and Left-channel balance
will be adversely affected.
· The ideal placement of the speaker system is as follows:
Imagine an equilateral triangle and position the Right and
Left speakers on both ends of the base. The ideal
listening position is at or slightly to the rear of the triangle
apex.
· Glazed doors or surrounding walls in front of the speaker
system may cause the resonance of specific frequency
ranges due to reflected sound. To eliminate this
resonance, place some sound-absorbing material such as
a thick curtain in front of the doors or walls.

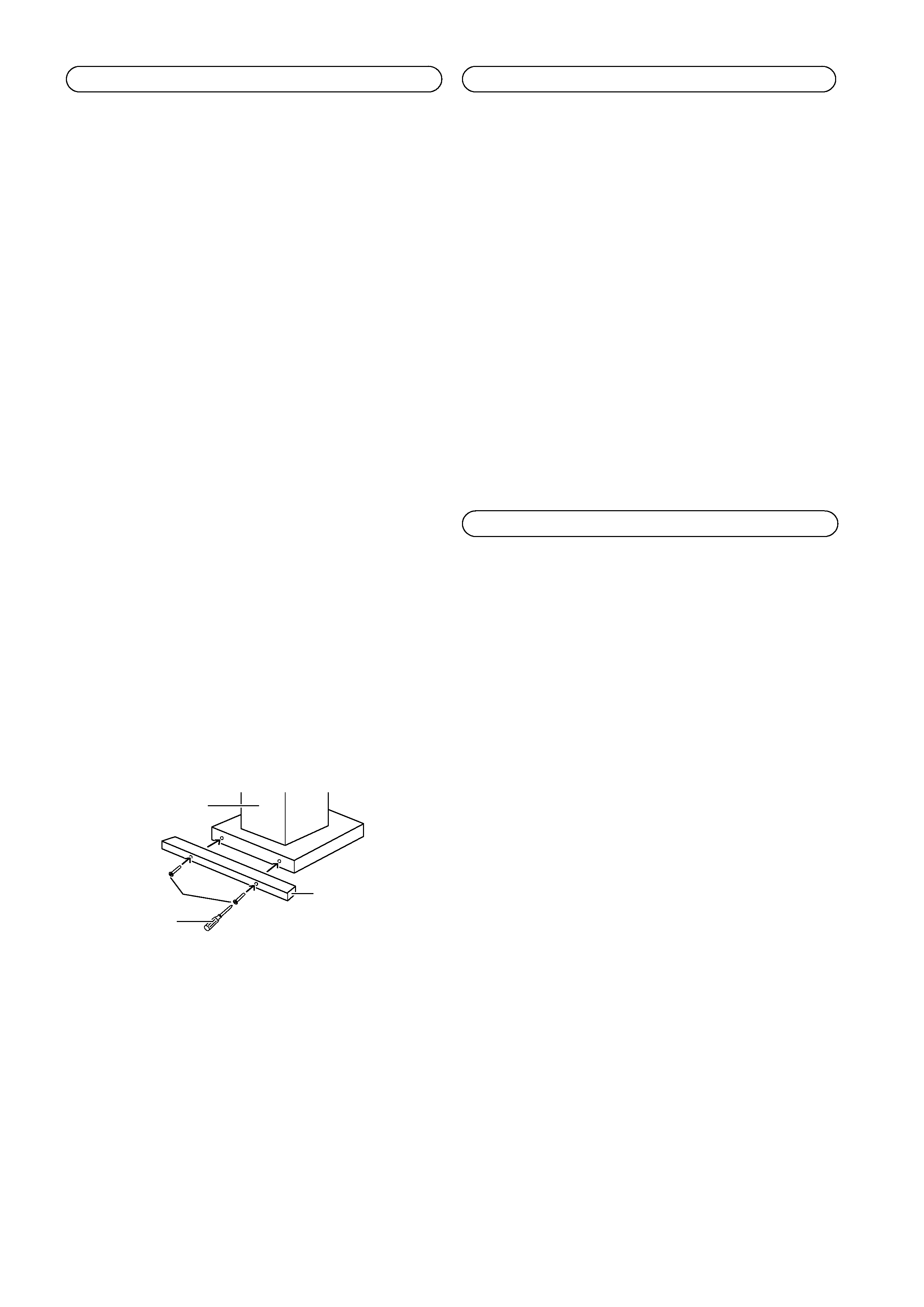

· A base extension is provided with the speakers to prevent
the speakers from being tipped over (base extension: 260
mm (10-1/4") length, M4 x 35 mm (1-3/8") screws). To
install the base extension, align it with the holes located
on the rear of the speaker stand and secure it with the
screws provided.
Precaution on use
· This speaker system can handle the specified input power
when it is used for ordinary music reproduction. If the
following abnormal signals are fed to the speaker,
however, an overcurrent may flow in the internal circuits,
causing burning or breakage of the wires even if the input
power is below the specified rating.
1. Noise produced when FM station is not tuned in
2. Sound produced when fast-forwarding cassette tape
deck
3. High-frequency sound generated by an oscillator, an
electronic musical instruments, etc.
4. Oscillating amplifier signals
5. Special test signals produced by audio checking CD,
etc.
6. Sound produced when connecting or disconnecting
audio connection cables (Always turn off the
amplifier's power before connecting or disconnecting
cables.)
7. Howling when a microphone is used
· Do not place magnetic objects such as screwdrivers and
iron parts near the tweeter since they use speakers with
strong magnets. Otherwise, the objects may be attracted,
causing injury or damaging the diaphragm.
Use with a TV set or computer
In general, Braun tubes used for color television sets and
computers are extremely sensitive and can be affected even
by the magnetism of the earth. If a speaker system is used
near them, therefore, discoloration or distortion of pictures will
occur. To allow use with a color television set or computer,
this speaker system is provided with magnetic shielding.
Even so, discoloration may still result, depending on the
installation environment. If discoloration occurs, turn off the
power of the television set or computer, wait for 15 to 30
minutes and then turn it on again. This activates the self-
demagnetizing function of the television set or computer,
improving the display condition. If discoloration persists even
after performing this remedy, move the speaker apart from
the television set or computer. Discoloration may also be
caused when a magnet or other magnetizing object exists
near the television or computer because of the combined
effect.
Note:
When you use speakers near a television set or computer, a
noise generated by TV's electromagnetic wave may come out
from the speakers even after the power of amplifier is turned
off. If you want to avoid this noise, place speakers apart more
from a television set or computer.
Base extension
Rear of the speaker
Driver
Screw
background image
http://www.onkyo.co.jp/
HOMEPAGE
SN 29343226
D0106-1
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8111 Fax: 072-833-5222
http://onkyo-intl.com
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel:
+49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.onkyochina.com
E
Speaker care
Wipe the cabinet occasionally with a dry silica or soft cloth.
For heavier dirt, after dampening a soft cloth in a weak
solution of mild detergent and water and wringing it out dry,
wipe off the dirt. Then, dry immediately with a clean cloth. Do
not use rough material, thinners, alcohol or other chemical
solvents or cloths since these could damage the finish,
remove the panel lettering, or cause discoloration. If you are
using a chemical cloth, always follow the instructions that
come with the cloth. For dust accumulated on grilles, use a
vacuum cleaner or brush it off.
Specifications
Type:
2-way bass reflex
Impedance:
6
Maximum input power:
70 W
Output sound pressure level: 86 dB/W/m
Frequency response:
50 Hz- 35 kHz
Crossover frequency:
3 kHz
Cabinet capacity:
14.8 L
Speaker:
Woofer: 9-cm (3-9/16") cone x 2
Tweeter: 2.5-cm (1") dome
Dimensions:
193 (W) x 872 (H) x 260 (D) mm
(7-5/8" x 34-5/16" x 10-1/4")
Weight:
7.1 kg (15.7 lbs.)
Accessory:
2.5-m (98-7/16") speaker cable
(2 pcs.)
Base extension (2 pcs.)
Screw (M4 x 35 mm, 4 pcs.)
Instruction manual (this manual)
Others:
Magnetic shielding
Specifications and appearance may subject to change for
improvement without prior notice.

Reviews

There are no reviews of this manual yet.
