AUDIO VIDEO SURROUND RECEIVER
VR-804
KRF-V4080D
KRF-V5580D
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-5444-00 00
MA
(K, P, X, Y)
0311
This instruction manual is for some models. Model availability and features
(functions) may differ depending on the country and sales area.
About the supplied remote control
Compared to standard remote controls, the remote control supplied with this model has several operation
modes. These modes enable the remote control to control other audio/video components. In order to
effectively use the remote control it is important to read the operating instructions and obtain a proper
understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
04.1.22, 9:07 PM
1
background image
AUDIO VIDEO SURROUND RECEIVER
VR-804
KRF-V4080D
KRF-V5580D
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-5444-00 00
MA
(K, P, X, Y)
0311
This instruction manual is for some models. Model availability and features
(functions) may differ depending on the country and sales area.
About the supplied remote control
Compared to standard remote controls, the remote control supplied with this model has several operation
modes. These modes enable the remote control to control other audio/video components. In order to
effectively use the remote control it is important to read the operating instructions and obtain a proper
understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
04.1.22, 9:07 PM
1
background image
2 EN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.

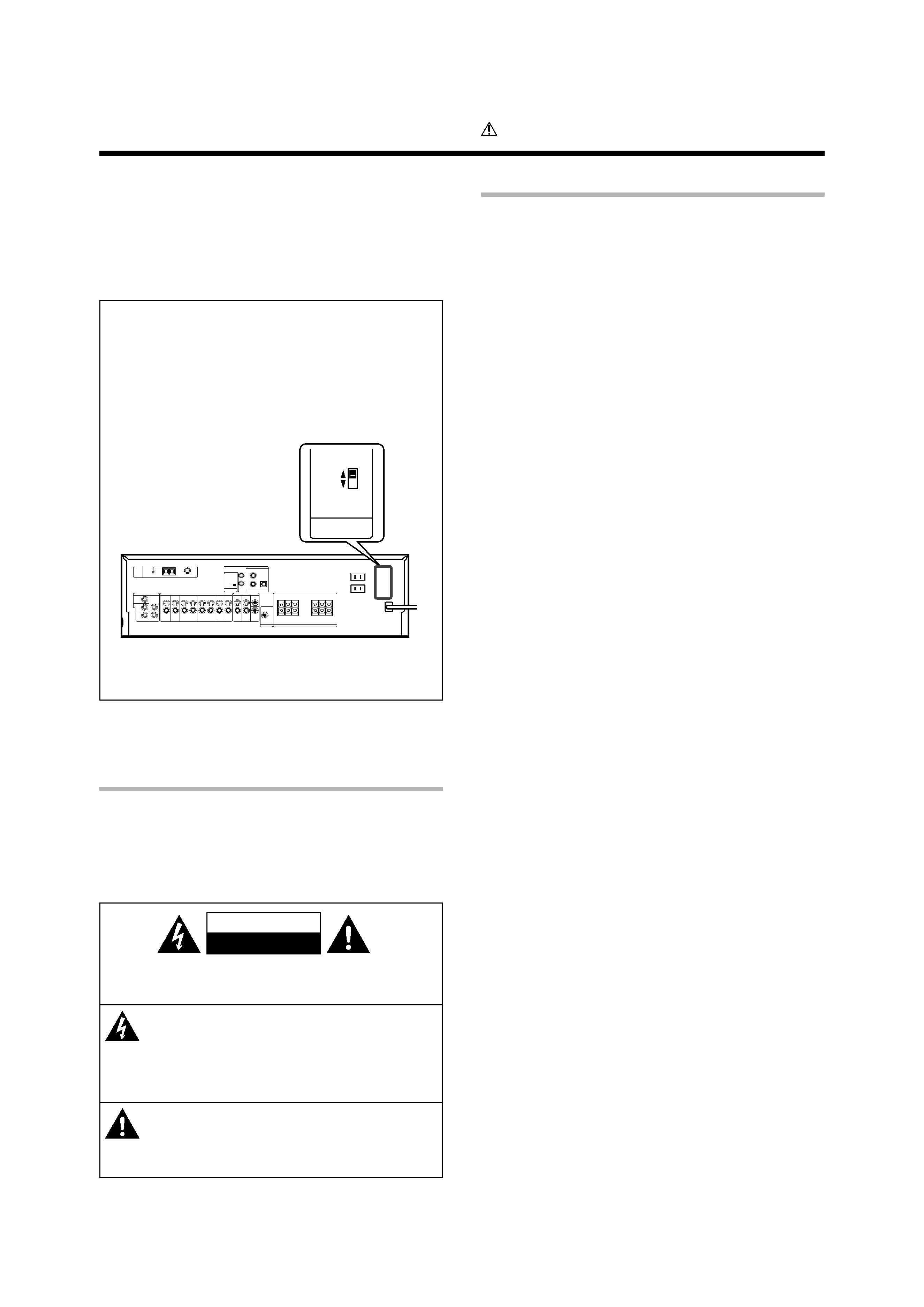

Before applying the power
Caution : Read this page carefully to ensure safe
operation.
+
-
+
-
VOLTAGE
SELECTOR
AC 110-
120V~
AC 220-
240V~
* AC voltage selection
The AC voltage selector switch on the rear panel is set to the voltage
that prevails in the area to which the unit is shipped. Before
connecting the power cord to your AC outlet, make sure that the
setting position of this switch matches your line voltage. If not, it
must be set to your voltage in accordance with the following direction.
AC voltage selector switch
Note :
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC voltage selector switch.
Move switch lever to match
your line voltage with a small
screwdriver or other pointed
tool.
How to use this manual
This manual is divided into four sections, Preparations, Operations,
Remote Control, and Additional Information.
Preparations
Shows you how to connect your audio and video components to this
model and prepare the surround processor.
Since this model works with all of your audio and video components, we
will guide you in setting up your system to be as easy as possible.
Operations
Shows you how to operate the various functions available on this model.
Remote Control
Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations. Once
you have registered your components with the proper setup codes, you'll
be able to operate both this model and your other AV components (TV,
VCR, DVD player, CD player, etc.) using the remote control supplied with
this model.
Additional Information
Shows you additional information such as "In case of difficulty"
(troubleshooting) and "Specifications".
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
Units are designed for operation as follows.
U.S.A. and Canada ........................................... AC 120 V only
Australia ........................................................... AC 240 V only
Europe and U.K. ............................................... AC 230 V only
China and Russia ............................................. AC 220 V only
Other countries .......... AC 110-120 / 220-240 V switchable*
04.1.22, 9:07 PM
2
background image
3 EN

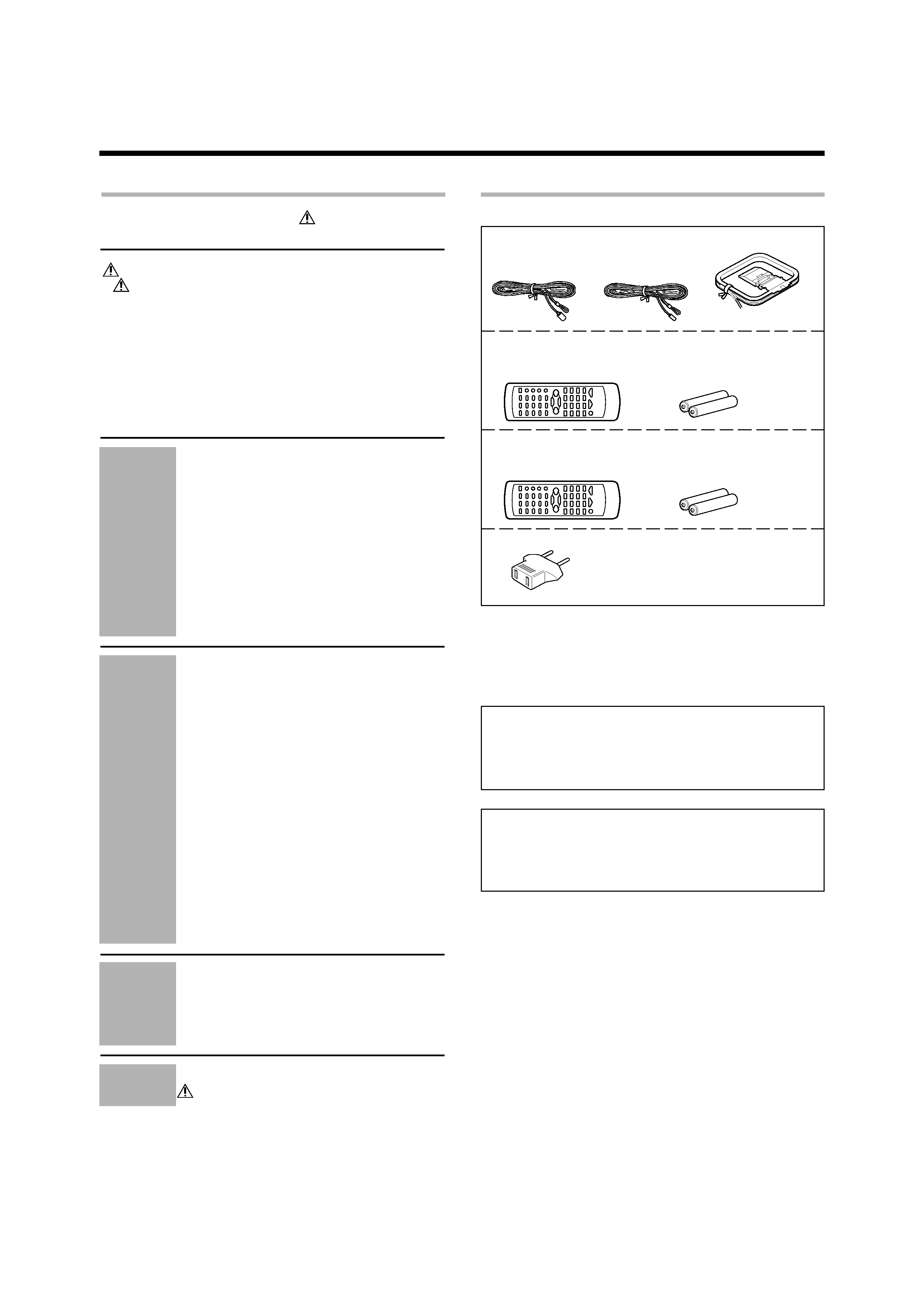

Unpacking
Unpack the unit carefully and make sure that all accessories are present.
FM indoor antenna (1)
AM loop antenna (1)
For VR-804 and KRF-V5580D
Remote control unit (1)
Batteries (R6/AA) (2)
RC-R0626
For KRF-V4080D
Remote control unit (1)
Batteries (R6/AA) (2)
RC-R0625
*AC plug adapter (1)
*Use to adapt the plug on the power
cord to the shape of the wall outlet.
(Accessory only for regions where
use is necessary.)
If any accessories are missing, or if the unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped to you directly,
notify your shipper immediately. Kenwood recommends that you retain
the original carton and packing materials in case you need to move or ship
the unit in the future.
Keep this manual handy for future reference.
Before applying the power ...................................................... 2
Safety precautions ..................................................................... 2
How to use this manual ............................................................. 2
Unpacking .................................................................................. 3
Preparing the remote control ..................................................... 4
Channel space swiching ............................................................ 4
Special features ......................................................................... 5
Names and functions of parts ................................................. 6
Main Unit .................................................................................... 6
Remote control unit (RC-R0626) (VR-804/KRF-V5580D) and
(RC-R0625) (KRF-V4080D) ......................................................... 7
Setting up the system ........................................ 8
Connecting audio components .......................... 9
Connecting video components ........................ 10
Digital connections .......................................... 11
Connecting a DVD player (6-channel input)
(For KRF-V4080D only) .................................... 12
Connecting the speakers ................................. 13
Connecting the terminals ................................ 14
Connecting the antennas ................................. 14
Connecting the system control ....................... 15
Preparing for surround sound ....................... 16
Speaker settings .............................................. 16
Normal playback .............................................. 18
Preparing for playback ..................................... 18
Listening to a source component .................... 18
Adjusting the sound ......................................... 19
Recording .......................................................... 20
Recording audio (analog sources) ................... 20
Recording video ............................................... 20
Recording audio (digital sources) .................... 20
Listening to radio broadcasts ....................... 21
Tuning radio stations ....................................... 21
Presetting radio stations manually .................. 21
Receiving preset stations ................................ 22
Receiving preset stations in order (P.CALL) ... 22
Ambience effects ............................................. 23
Surround modes .............................................. 23
Surround play ................................................... 25
DVD 6-channel playback (For
KRF-V4080D only) ............................................ 26
Convenient functions ....................................... 26
Basic remote control operations for other
components ....................................................... 28
DVD player operation keys .............................. 28
CASSETTE deck, CD player & MD recorder
operations ........................................................ 29
In case of difficulty .......................................... 30
Specifications .................................................. 32
Contents
Caution : Read the pages marked
carefully to ensure
safe operation.
Before applying the power
Preparations
Operations
Additional
Information
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
In regard to contact cleaner
Do not use contact cleaner because it could cause a malfunction. Be
specially careful not to use contact cleaners containing oil, for they
may deform the plastic component.
Remote
Control
For KRF-V4080D
and KRF-V5580D
For VR-804
04.1.22, 9:07 PM
3
background image
4 EN
Operation
When the STANDBY indicator is lit, the power turns ON when you press
the POWER
key on the remote control. When the power comes ON,
press the key you want to operate.
· When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Before applying the power

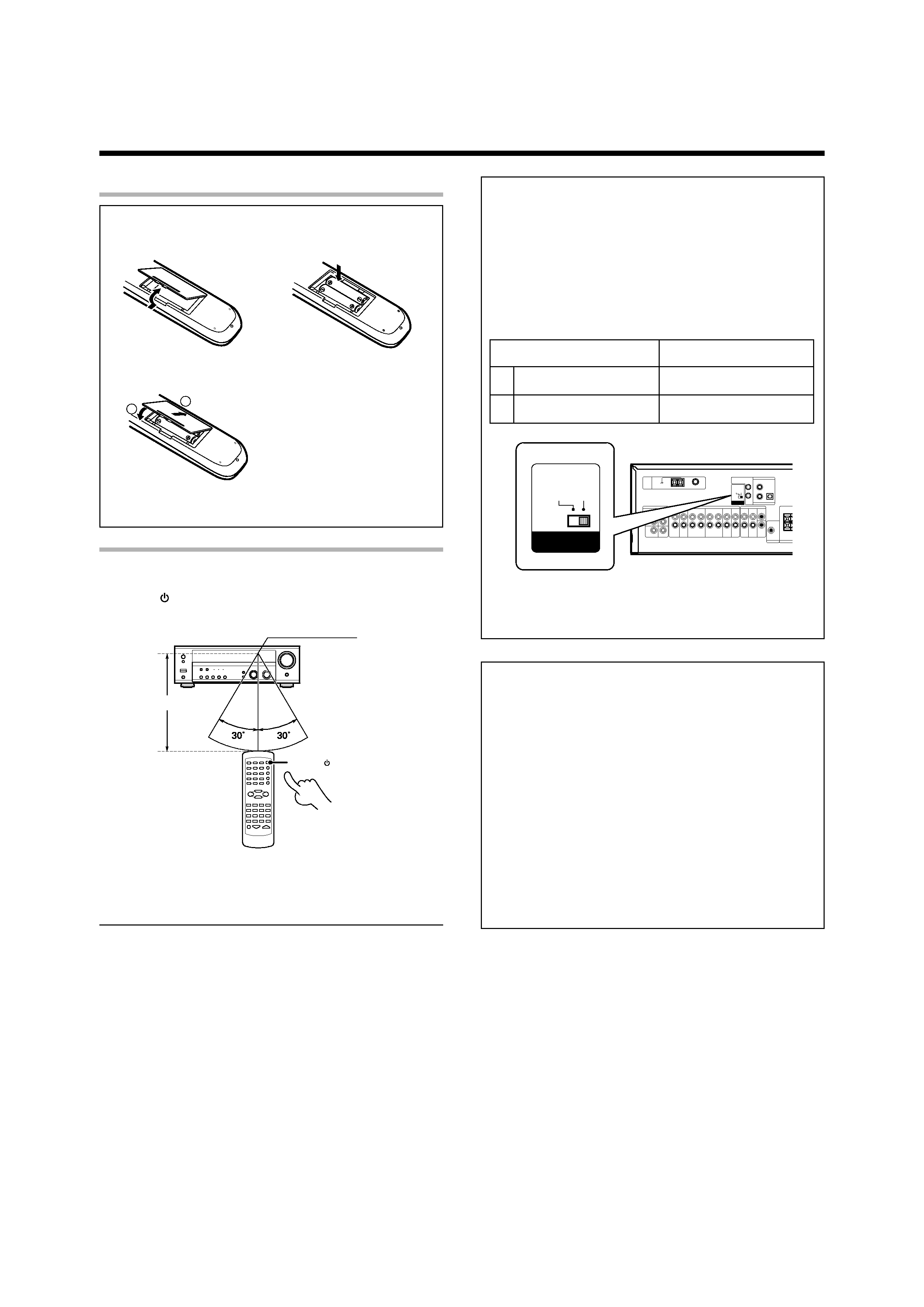

Preparing the remote control
Loading the batteries
1 Remove the cover.
2 Insert the batteries.
3 Close the cover.
· Insert two AA-size (R6) batteries as indicated by the polarity markings.
Channel space switching
(Except for the U.S.A., Canada and Australia)
The space between radio channels has been set to the one that
prevails in the area to which the system is shipped. However, if the
current channel space setting does not match the setting in the area
where the system is to be used, for instance when you move from
area 1 or area 2 shown in the following table or vice versa, proper
reception of AM/FM broadcasts cannot be expected. In this case,
change the channel space setting in accordance with your area by
referring to the following table.
Turn the power OFF by pressing the POWER key before moving the
switch level. Move the switch lever to match your area with a small
screwdriver or other pointed tool, then turn the power ON again.
1.
2.
CHANNEL
Space Frequency
Area
U.S.A., Canada and South
American countries
Other countries
FM: 100 kHz
AM: 10 kHz
FM: 50 kHz
AM: 9 kHz
DE-EMPHASIS
CHANNEL SPACE
50us
AM 9kHz
FM50kHz
75us
AM 10kHz
FM100kHz
50us
AM 9kHz
FM50kHz
75us
AM 10kHz
FM100kHz
DE-EMPHASIS
CHANNEL SPACE
1
2
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.
· Power mode.
· SUBWOOFER ON/OFF.
· Input selector settings.
· SW RE-MIX ON/OFF.
· Picture output.
· Distance setting.
· Speaker ON/OFF.
· Input mode setting.
· Volume level.
· Midnight mode setting.
· BASS, TREBLE, INPUT level.
· PRO LOGIC II mode setting.
· TONE ON/OFF.
· Broadcast band.
· LOUDNESS ON/OFF.
· Frequency setting.
· Dimmer level.
· Preset stations.
· MD/TAPE settings.
· Tuning mode.
·Listen mode setting.
· ACTIVE EQ mode.
· SP SYSTEM.
· DSP mode.
· Speaker settings.
6 m
POWER
Infrared ray system
Operation range
(Approx.)
Remote sensor
04.1.22, 9:07 PM
4
background image
5 EN
Before applying the power
For the U.S.A.
Note to CATV system installer
This reminder is provided to call the CATV system installer's attention
to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the
point of cable entry as practical.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment
if an unauthorized change or modification is made.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment may
cause harmful interference to radio communications, if it is not
installed and used in accordance with the instructions. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
­ ­ Reorient or relocate the receiving antenna.
­ ­ Increase the separation between the equipment and this model.
­ ­ Connect the equipment into an outlet on a circuit different from
that to which this model is connected.
­ ­ Consult the dealer or an experienced radio / TV technician for
help.
For the U.S.A.
Special features
True home theater sound
This model incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy!
£
Dolby Digital
The DOLBY DIGITAL mode lets you enjoy full digital surround from
software processed in the Dolby Digital format. Dolby Digital provides up
to 5.1 channels of independent digital audio for better sound quality and
more powerful presence than conventional Dolby Surround.
Dolby PRO LOGIC II
DOLBY PRO LOGIC II, whilst totally compatible with its predecessor
PRO LOGIC, provides greater advantages in surround sound. It allows
user to enjoy the conventional stereo or Dolby Surround with a convincing
"5.1 like" presentation. PRO LOGIC II offers special features for controlling
the overall spatial, dimensionality and frontal sound field imaging. PRO
LOGIC II produces an impressive surround sound from video software
marked
and three-dimensional space from music CD.
When listening to music, you will be able to enjoy the experience of sheer
STEREO surround sound.
DTS
DTS (Digital Theater System) is a 5.1 channel digital audio format that
provides five full-spectrum channels and one low-frequency (subwoofer)
channel for unprecedented clarity, optimum channel separation and a
(wide) dynamic range.
In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD
disc (carrying the "DTS" marking) can be played in Digital Surround.
Important:
When a DTS disc is played on a CD, LD or DVD player, noise may be
output from the analog output. It is recommended that you connect the
digital output of the player to the digital input of this unit.
DSP surround modes
The DSP (Digital Signal Processor) used for this model incorporates a
variety of high quality adjustable sound fields, like "ARENA", "JAZZ
CLUB", THEATER", STADIUM" and "DISCO". It is compatible with
almost any kind of program source.
DVD 6-channel input (For KRF-V4080D only)
If you own a DVD player equipped with 6-channel output, this model
allows you to obtain the full surround sound impact of DVD source
material featuring multi-channel encoding. Since the source signals are
digital and each channel is input independently, the resulting ambience
is far superior to what can be achieved with conventional surround sound
systems.
ACTIVE EQ
ACTIVE EQ mode will produce a more dynamic sound quality in any
condition. You can enjoy a more impressive sound effect when ACTIVE
EQ is turned on during Dolby Digital and DTS playback.
IR (InfraRed) remote control
In addition to the basic opeations of this model, this IR remote control
supplied can also operate Kenwood cassette deck, MD recorder or CD
player which are connected using the system control cords.
This remote control can also control Kenwood DVD players directly
without using the DVD players' remote control.
As an
ENERGY STAR® Partner, Kenwood
Corporation has determined that this
product meets the
ENERGY STAR®
guidelines for energy efficiency.This
product can save energy. Saving energy
reduces air pollution and lowers utility bills.
04.1.22, 9:07 PM
5

Reviews

There are no reviews of this manual yet.
