KENWOOD SW-505D-W Service Manual

Cover page of KENWOOD SW-505D-W Service Manual

Service Manual for KENWOOD SW-505D-W, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 8 pages
  • File size: 0.71 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
Type ..........................Subwoofer system with built-in amplifier
(Magnetically shielded)
[Amplifier]
Rated Output Power .........150 W RMS, 30 Hz ~ 200 Hz, 4
Phase Switching ....................................NORMAL, REVERSE
Input Sensitivity & Input Impedance
RCA-type pin-plug jack ..............................100 mV /12 k
200 mV /12 k
(MONO Input)
Push-type terminals ......................................1.7 V (15 k
)
[Speaker]
Enclosure ...........................Bass-Reflex, Floor Standing Type
Speaker Unit .....................................250 mm (10") Cone type
Nominal Impedance ...........................................................4
[General]
Rated Power Consumption .............................................50 W
Dimensions ....................................Width : 294 mm (11-9/16")
Height:
457 mm (18")
Depth: 415 mm (16-5/16")
Net Weight .....................................................15.2 kg (33.5 lb)
70%
POWER SUBWOOFER
SW-505D-S/505D-W
SERVICE MANUAL
© 2000-10/B51-5676-00 (K/K) 1907
LINE
(MONO)
FROM
AMPLIFIER
INPUT
OUTPUT
TO
SPEAKERS
+ R -
- L +
+ R -
- L +
L
R
L
L
R
R
L
R
VOLUME CONTROL
POWER
ON/STANDBY
PEAK INDICATOR
MODE
PHASE
MUSIC
NORMAL
CINEMA
MIN
- ON ­ OFF
SLOPE
CROSSOVER
12dB
24dB
60Hz
200Hz
MAX
REVERSE
0
* Refer to parts list on page 9.
Grille ass'y
(B06-1497-08): B
(B06-1498-08): W
AC power cord *
(E30-)
Button(POWER)
(K29-0585-08): B
(K29-0589-08): W
Sensor lens
(B19-1289-08)
Knob(VOLUME)
(K29-0586-08): B
(K29-0591-08): W
Control panel
(A21-3341-08): B
(A21-3343-08): W
B : Black
W: White
Lens
(B19-1290-08)
Lens
(B19-1291-08)
Knob(CONTROL)
(K23-0542-08): B
(K23-0546-08): W
Button(CONTROL)
(K29-0587-08): B
(K29-0588-08): W
SPECIFICATIONS
KENWOOD follows a policy of continuous advancements in
development. For this reason specifications may be
changed without notice.
· Sufficient performance may not be exhibited at extremely
cold locations (where water freezes).
Notes
background image
Type ..........................Subwoofer system with built-in amplifier
(Magnetically shielded)
[Amplifier]
Rated Output Power .........150 W RMS, 30 Hz ~ 200 Hz, 4
Phase Switching ....................................NORMAL, REVERSE
Input Sensitivity & Input Impedance
RCA-type pin-plug jack ..............................100 mV /12 k
200 mV /12 k
(MONO Input)
Push-type terminals ......................................1.7 V (15 k
)
[Speaker]
Enclosure ...........................Bass-Reflex, Floor Standing Type
Speaker Unit .....................................250 mm (10") Cone type
Nominal Impedance ...........................................................4
[General]
Rated Power Consumption .............................................50 W
Dimensions ....................................Width : 294 mm (11-9/16")
Height:
457 mm (18")
Depth: 415 mm (16-5/16")
Net Weight .....................................................15.2 kg (33.5 lb)
70%
POWER SUBWOOFER
SW-505D-S/505D-W
SERVICE MANUAL
© 2000-10/B51-5676-00 (K/K) 1907
LINE
(MONO)
FROM
AMPLIFIER
INPUT
OUTPUT
TO
SPEAKERS
+ R -
- L +
+ R -
- L +
L
R
L
L
R
R
L
R
VOLUME CONTROL
POWER
ON/STANDBY
PEAK INDICATOR
MODE
PHASE
MUSIC
NORMAL
CINEMA
MIN
- ON ­ OFF
SLOPE
CROSSOVER
12dB
24dB
60Hz
200Hz
MAX
REVERSE
0
* Refer to parts list on page 9.
Grille ass'y
(B06-1497-08): B
(B06-1498-08): W
AC power cord *
(E30-)
Button(POWER)
(K29-0585-08): B
(K29-0589-08): W
Sensor lens
(B19-1289-08)
Knob(VOLUME)
(K29-0586-08): B
(K29-0591-08): W
Control panel
(A21-3341-08): B
(A21-3343-08): W
B : Black
W: White
Lens
(B19-1290-08)
Lens
(B19-1291-08)
Knob(CONTROL)
(K23-0542-08): B
(K23-0546-08): W
Button(CONTROL)
(K29-0587-08): B
(K29-0588-08): W
SPECIFICATIONS
KENWOOD follows a policy of continuous advancements in
development. For this reason specifications may be
changed without notice.
· Sufficient performance may not be exhibited at extremely
cold locations (where water freezes).
Notes
background image
SW-505D-S/505D-W
2
CONTENTS / ACCESSORIES
SPECIFICATIONS ......................................Front cover
CONTENTS / ACCESSORIES .................................. 2
ADJUSTMENT ............................................................2
PC BOARD ................................................................ 3
SCHEMATIC DIAGRAM ............................................ 5
EXPLODED VIEW ......................................................8
PARTS LIST................................................................9
Contents
ADJUSTMENT
No.
ITEM
INPUT
SETTINGS
OUTPUT
SETTINGS
AMPLIFIER
SETTINGS
ALIGNMENT
POINT
ALIGN FOR
FIG.
1
OFF SET
Connect a DC volt-
meter to speaker ter-
minal.
VOLUME: 0
VR201
0 mV
­
POWER
VOLUME
PHASE
MUSI
C/CI
NEMA
REMOTE
CONTROL
UNIT
RC-W0502
Pin-plug cord (1)
(E30-5860-08)
Remote control unit (1)
(A70-0409-08)
Batteries (R03/ AAA)
AC plug adaptor (1)
(E03-0115-05)
* Use to adapt the plug on the
power cord to the shape of
the wall outlet.
(Accessory only for regions
where use is necessary)
Accessories
background image
ACE
G
I
BD
F
H
J
2
1
3
5
7
4
6
Refer to the schematic diagram for the value of resistors and capacitors.

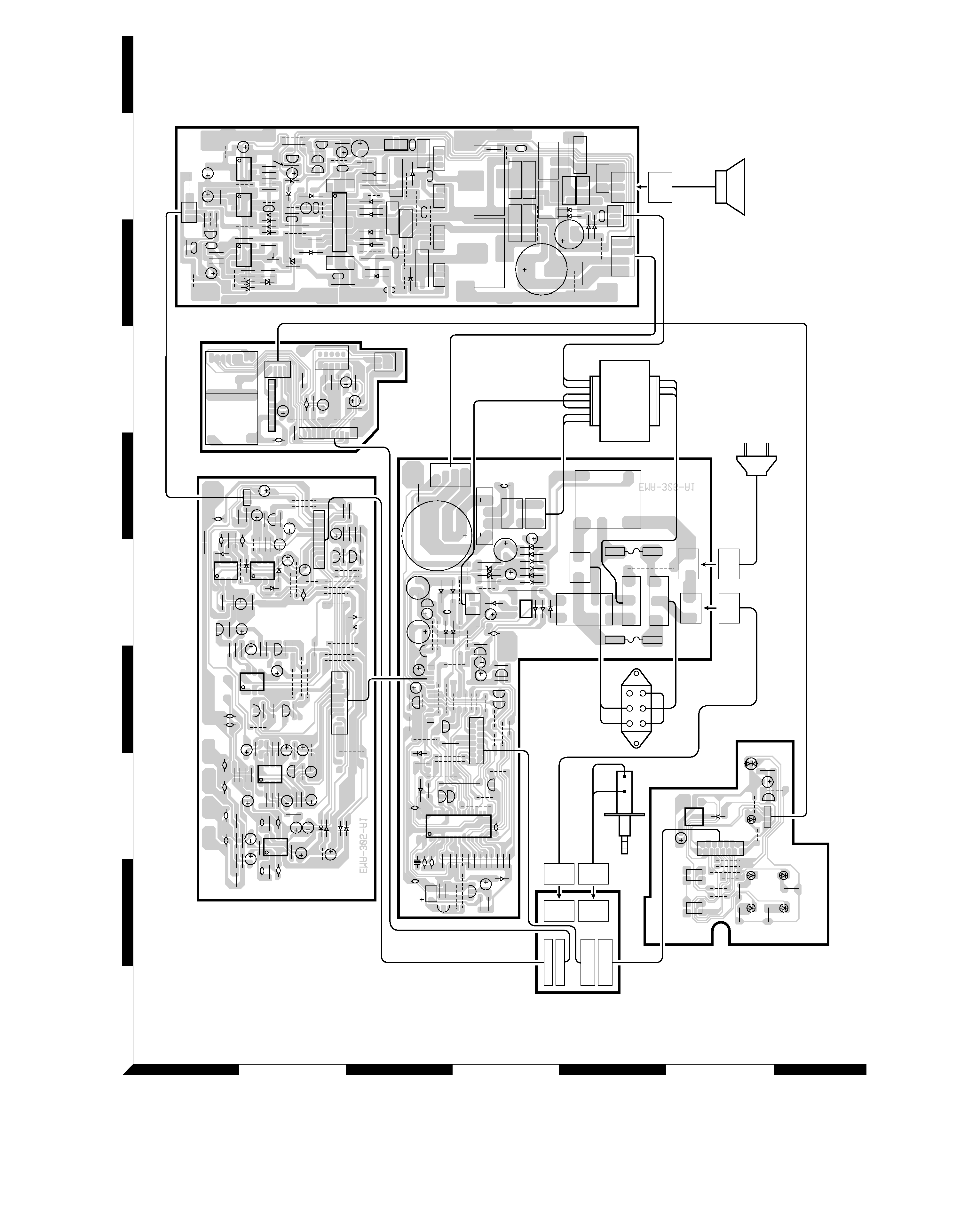

PC BOARD (Component side view)
