background image
KRC-669
KRC-669G
©B64-2713-00/00 (MW)
CASSETTE RECEIVER
INSTRUCTION MANUAL
KRC-669(M)_Cover
10/6/03
5:13 PM
Page 1
background image
KRC-669
KRC-669G
©B64-2713-00/00 (MW)
CASSETTE RECEIVER
INSTRUCTION MANUAL
KRC-669(M)_Cover
10/6/03
5:13 PM
Page 1
background image
-- 2 --
English
Contents
Safety precautions .........................3
About Cassette tape ......................4
General features.............................5
Power
Selecting the Source
Volume
System Q
Audio Control
Speaker Setting
Switching Display
Station/Disc Naming (SNPS/DNPS)
Auxiliary Input Display Setting
Theft Deterrent Faceplate
Tuner features .............................10
Tuning Mode
Tuning
Direct Access Tuning
Station Preset Memory
Auto Memory Entry
Preset Tuning
Frequency Step Setting
Cassette player features ..............12
Playing Cassette Tapes
Fast Forwarding and Rewinding
Dolby B NR
Selecting the Tape type
DPSS (Direct Program Search System)
DPSS with the Remote
Blank Skip
Music Repeat
External disc control features .....15
Playing External Disc
Fast Forwarding and Reversing
Track Search
Disc Search
Direct Track Search
Direct Disc Search
Track/Disc Repeat
Scan Play
Random Play
Magazine Random Play
Text/Title Scroll
DNPP (Disc Name Preset Play)
Menu system ................................18
Menu System
Security Code
Touch Sensor Tone
Manual Clock Adjustment
DSI (Disabled System Indicator)
Switching Display Type
Contrast Adjustment
CRSC (Clean Reception System Circuit)
Text Scroll
Basic Operations of remote.........21
Accessories ..................................24
Installation Procedure..................24
Connecting Wires to Terminals ...25
Installation....................................26
Troubleshooting Guide.................28
Specifications...............................31
KRC-669(M)_U.S
03.10.7
9:04 PM
Page 2
background image
-- 3 --
To prevent injury or fire, take the
following precautions:
· Insert the unit all the way in until it is fully
locked in place. Otherwise it may fall out of
place when jolted.
· When extending the ignition, battery, or
ground wires, make sure to use automotive-
grade wires or other wires with a 0.75mm2
(AWG18) or more to prevent wire
deterioration and damage to the wire
coating.
·To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
·If the unit starts to emit smoke or strange
smells, turn off the power immediately and
consult your Kenwood dealer.
· Make sure not to get your fingers caught
between the faceplate and the unit.
· Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it
contains glass parts.
· Do not touch the liquid crystal fluid if the
LCD is damaged or broken due to shock. The
liquid crystal fluid may be dangerous to your
health or even fatal.
If the liquid crystal fluid from the LCD
contacts your body or clothing, wash it off
with soap immediately.
2WARNING
To prevent damage to the machine,
take the following precautions:
· Make sure to ground the unit to a negative
12V DC power supply.
· Do not open the top or bottom covers of the
unit.
· Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
· Do not set the removed faceplate or the
faceplate case in areas exposed to direct
sunlight, excessive heat or humidity. Also
avoid places with too much dust or the
possibility of water splashing.
·To prevent deterioration, do not touch the
terminals of the unit or faceplate with your
fingers.
· Do not subject the faceplate to excessive
shock, as it is a piece of precision
equipment.
· When replacing a fuse, only use a new one
with the prescribed rating. Using a fuse with
the wrong rating may cause your unit to
malfunction.
·To prevent a short circuit when replacing a
fuse, first disconnect the wiring harness.
· Do not place any object between the
faceplate and the unit.
· Do not use your own screws. Use only the
screws provided. If you use the wrong
screws, you could damage the unit.
2CAUTION
IMPORTANT INFORMATION
About CD players/disc changers
connected to this unit
KENWOOD disc changers/ CD players
released in 1998 or later can be connected to
this unit.
Refer to the catalog or consult your Kenwood
dealer for connectable models of disc
changers/ CD players.
Note that any KENWOOD disc changers/ CD
players released in 1997 or earlier and disc
changers made by other makers cannot be
connected to this unit.
Unsupported connection may result in
damage.
Setting the "O-N" Switch to the "N" position for
the applicable KENWOOD disc changers/ CD
players.
The functions that can be used and the
information that can be displayed will differ
depending on the models being connected.
You can damage both your unit and the CD
changer if you connect them incorrectly.
Safety precautions
Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
KRC-669(M)_U.S
03.10.7
9:04 PM
Page 3
background image
-- 4 --
English
· If you experience problems during
installation, consult your Kenwood dealer.
· If the unit does not seem to be working
right, try pressing the reset button first. If
that does not solve the problem, consult
your Kenwood dealer.
·Press the reset button if the Disc auto
changer fails to operate correctly. Normal
operation should be resloved.
· Characters in the LCD may become difficult
to read in temperatures below 41 °F (5 °C).
· The illustrations of the display and the panel
appearing in this manual are examples used
to explain more clearly how the controls are
used. Therefore, what appears on the display
in the illustrations may differ from what
appears on the display on the actual
equipment, and some of the illustrations on
the display may represent something
impossible in actual operation.
NOTE
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get
dirty, wipe them with a dry, soft cloth.
Cleaning the Unit
If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain
off with a cloth moistened with neutral
cleaner, then wipe neutral detergent off.
Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch
the surface or erases characters.
Safety precautions
Cleaning the tape head
When there's noise or the sound quality is bad
during tape play the tape head maybe dirty,
clean the tape head.
About Cassette tape
· If the tape is slack tighten it.
· If the cassette tape label is peeling off glue it
on again.
· Don't use deformed cassette tape.
· Don't place cassette tape on the dashboard
etc. where the temperature is high.
· Don't use cassette tape that's 100 minutes
long or longer.
About Cassette tape
SCAN
B.S/RDM
REP
B NR
FM
AM
AUD
MENU
38
PROG
Reset button
KRC-669(M)_U.S
03.10.7
9:04 PM
Page 4
background image

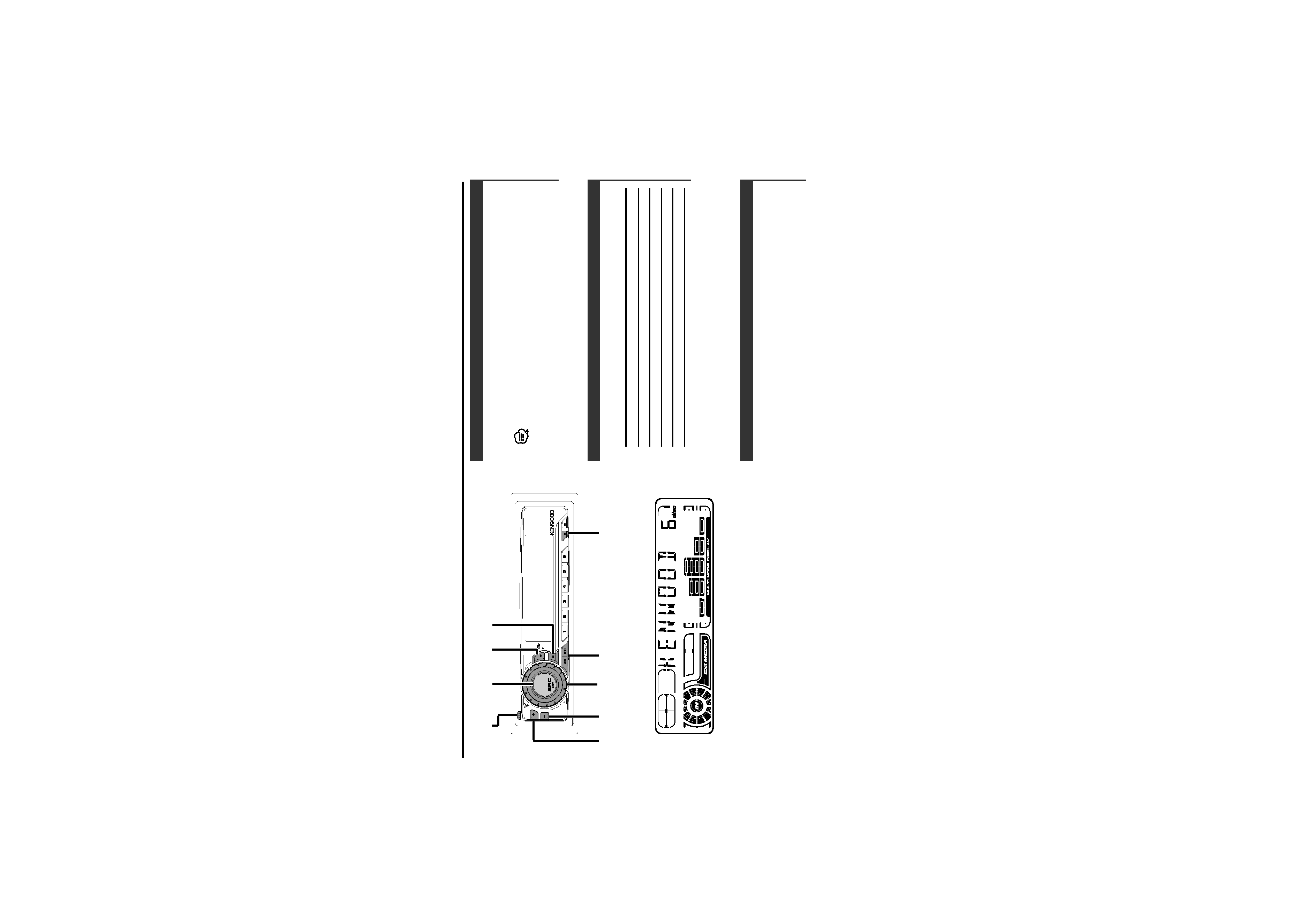

Increasing Volume
Turn the [VOL] knob clockwise.
Decreasing Volume
Turn the [VOL] knob counterclockwise.
Volume
Press the [SRC] button.
Source required
Display
Tuner
"TUNER"
Tape
"TAPE"
External disc (Optional accessory)
"DISC CH"/"CD"
Auxiliary input (Optional accessory)
"AUX1"
Standby (Illumination only mode)
"ALL OFF"
Selecting the Source
Turning ON the Power
Press the [SRC] button.
When the power is ON, the <Security Code> (page 19) is displayed
as "CODE ON" or "CODE OFF".
Turning OFF the Power
Press the [SRC] button for at least 1 second.
Power
General features
-- 5 --
FM
AM
AUD
MENU
38
SCAN
B.S/RDM
REP
B NR
MTL/M.RDM DISP
7NAME.S
AUTO
7AME
PROG
DISP/
NAME.S
VOL
SRC
FM
AM
4/¢
Q/
AUD
38
Release button
KRC-669(M)_U.S
03.10.7
9:04 PM
Page 5
