© PRINTED IN JAPAN B64-2838-00/00 (E)(AI)
DDX7025
MONITOR WITH DVD RECEIVER
INSTRUCTION MANUAL
DDX7025_E(En)v3.6 04.4.18 5:16 PM 1
background image
© PRINTED IN JAPAN B64-2838-00/00 (E)(AI)
DDX7025
MONITOR WITH DVD RECEIVER
INSTRUCTION MANUAL
DDX7025_E(En)v3.6 04.4.18 5:16 PM 1
background image
Before Use ..............................................................4
About discs ............................................................6
Notes on playing MP3/WMA ................................7
DDX7025 Basic operations ....................................8
Basic Operations of Remote Controller ............10
Switch Screen Mode............................................12
Control during DVD Video or Video CD
Playback ............................................................14
· Displaying the DVD/VCD Playback screen
· Displaying the Easy Control Panel
· Displaying the DVD/VCD Control screen
· DVD Disc Menu
· VCD Zoom Control
· Information Display
· Direct Search
Tuner Control........................................................20
· Displaying the Easy Control Panel
· Displaying the Tuner Control screen
· Displaying the Tuner Menu screen
· Seek Mode
· Auto Memory
· Manual Memory
· Preset Select
· Direct Search
· Traffic Information
· Search for Program Type
· Radio Text
CD/MP3/WMA/Disc Changer Play Control........26
· Displaying the Easy Control Panel
· Displaying the CD/MP3/WMA/Disc Changer
Control screen
· Displaying the CD/MP3/WMA/Disc Changer
Menu screen
· Set Disc Name
· Directory List (during MP3/WMA play)
· ID3/WMA TAG Display (during MP3/WMA play)
· Disc Select (during play by disc changer)
· Direct Search
Mute Telephone ..................................................33
· Mute Telephone
TV Control ............................................................34
· Displaying the TV Picture screen
· Displaying the Easy Control Panel
· Displaying the TV Control screen
· Displaying the TV Menu screen
· Seek Mode
· Auto Memory
· Manual Memory
· Preset Select
· Set Station Name
DAB Tuner control................................................38
· Displaying the Easy Control Panel
· Displaying the DAB Tuner Control screen
· Displaying the DAB Tuner Menu screen
· Seek Mode
· Auto Ensemble Memory
· Service Preset Memory
· Service Select
· Language Filter
· Search for Program Type
· DAB Information
· DAB Announcement
Character Entry ....................................................44
· How To Use the Character Entry screen
Source Select........................................................45
· Displaying the Control screen
· Displaying the Source Select screen
Adjusting the Monitor Display Position and
Quality................................................................46
· Displaying the Screen Control screen
· Displaying the Tilt Adjust screen
Setup Menu
Setup Menu ......................................................47
· Displaying the Control screen
· Displaying the Setup Menu screen
Audio Set Up ....................................................48
· Displaying the Audio Set Up screen
· Crossover Network Setup
Audio Set Up ....................................................50
· Displaying the Car Type Set Up screen
· Displaying the Speaker Set Up screen
· Displaying the Channel Level screen
· Channel Level
· DTA Setup
· High Pass Filter Setup
· Low Pass Filter Setup
DVD Setup ........................................................56
· Displaying the DVD SETUP 1 screen
· Displaying the DVD SETUP 2 screen
· Language Setup
· Parental Level Setup
System Setup ..................................................60
· Displaying the System Set Up 1 screen
· Displaying the System Set Up 2 screen
AV Interface ......................................................62
· Displaying the AV I/F 1 screen
· Displaying the AV I/F 2 screen
User Interface ..................................................64
· Displaying the User I/F 1 screen
· Displaying the User I/F 2 screen
· Touch Panel Adjust
· Clock
· Security Code Setup
Contents
2 English
English
DDX7025_E(En)v3.6 04.4.18 5:16 PM 2
background image
English 3
TV Setup ..........................................................70
· Displaying the TV1 Area Set Up screen
· Displaying the TV2 Area Set Up screen
RDS Setup ........................................................71
· Displaying the RDS Set Up 1 screen
· Displaying the RDS Set Up 2 screen
DAB Set Up ......................................................72
· Displaying the DAB Set Up screen
· Announcement Selection
AMP Control ....................................................74
· Displaying the AMP Control screen
Sound Effects Menu
Sound Effects Menu ........................................76
· Displaying the Control screen
· Displaying the Sound Effects Menu screen
Audio Control ..................................................77
· Displaying the Audio Control 1 screen
· Displaying the Audio Control 2 screen
Equalizer ..........................................................78
· Displaying the Equalizer screen
· Tone curve setup
· Parametric Equalizer
Zone Control ....................................................82
· Displaying the Zone Control screen
Digital Effect ....................................................83
· Displaying the Digital Effect screen
Position ..............................................................84
· Displaying the Position screen
Hands-Free Unit Control......................................86
GSM control ....................................................86
· Displaying the Control screen
· When called
· When dialing
· Calling by Phone Book
· Addition to Phone Book
· Editing the Phone Book
· Quick Dialing
· Hands Free Setup
· Reading the SMS (Short Message Service)
messages
· Creating an SMS (Short Message Service)
message
Glossary ................................................................94
Troubleshooting Guide........................................95
Specifications
..................................................100
DDX7025_E(En)v3.6 04.4.18 5:16 PM 3
background image
4 English
English
To prevent injury and/or fire, take the following
precautions:
· Ensure that the unit is securely installed. Otherwise it
may fly out of place during collisions and other jolts.
· When extending the ignition, battery or ground wires,
make sure to use automotive-grade wires or other wires
with an area of 0.75mm2 (AWG18) or more to prevent
cable deterioration and damage to the cable coating.
· To prevent short circuits, never put or leave any metallic
objects (e.g., coins or metal tools) inside the unit.
· If the unit starts to emit smoke or strange smells, turn
off the power immediately and consult your Kenwood
dealer.
· Do not touch the liquid crystal fluid if the LCD is
damaged or broken due to shock. The liquid crystal fluid
may be dangerous to your health or even fatal.
If the liquid crystal fluid from the LCD contacts your body
or clothing, wash it off with soap immediately.
To prevent damage to the machine, take the
following precautions:
· Make sure to ground the unit to a negative 12V DC
power supply.
· Do not open the top or bottom covers of the unit.
· Do not install the unit in a spot exposed to direct sunlight
or excessive heat or humidity. Also avoid places with too
much dust or the possibility of water splashing.
· Do not subject the faceplate to excessive shock, as it is
a piece of precision equipment.
· When replacing a fuse, only use a new one with the
prescribed rating. Using a fuse with the wrong rating
may cause your unit to malfunction.
· To prevent short circuits when replacing a fuse, first
disconnect the wiring harness.
· Do not use any screws except for the ones provided.
The use of improper screws might result in damage to
the main unit.
· You cannot view video pictures whilst the vehicle is
moving. To enjoy TV/video pictures, find a safe place to
park and engage the parking brake.
· If you experience problems during installation, consult
your Kenwood dealer.
· If the unit does not seem to be working right, try
pressing the reset button first. If that does not solve the
problem, consult your Kenwood dealer.
Screen brightness during low temperatures
When the temperature of the unit falls such as during
winter, the liquid crystal panel's screen will become darker
than usual. Normal brightness will return after using the
monitor for a whilst.
Audio units you can control from the
DDX7025 Receiver (in November of 2003):
KDC-CPS89, KDC-CPS87, KDC-CPS85, KDC-C719,
KDC-C717, KDC-C715, KDC-C669, KDC-C667, KDC-C665,
KDC-C469, KDC-C467, KDC-C465, KDC-D301, KMD-D401,
KTC-9090DAB, KDV-C820, KDC-C719MP, KCA-HF521,
KPA-CP100, KTC-V500N/P/E (Set the "O-N" switch to "N"
position if provided.)
Navigation units you can control from the
DDX7025 Receiver (in November of 2003):
KNA-DV3200, KNA-DV2200
Loading and Replacing the battery
Use one lithium battery
(CR2025).
Insert the batteries with
the + and - poles aligned
properly, following the
illustration inside the case.
Store unused batteries out of the reach of children. Contact
a doctor immediately if the battery is accidentally
swallowed.
Do not set the remote on hot places such as above the
dashboard.
· The provided batteries are intended for use in operation
checking, and their service life may be short.
· When the remote controllable distance becomes short,
replace both of the batteries with new ones.
Cleaning the panel and monitor
When the operator panel and monitor panels are dirty, wipe
and clean them using a soft cloth (such as a commercially
available silicon coated cloth). When contaminated
excessively, clean them using a cloth dipped in a neutral
detergent first, then remove the detergent using a dry cloth.
Do not use a hard cloth and a volatile chemical (such as an
alcohol). If used, the panel surface may be scratched or
printed letters may be erased.
Cleaning the disc slot
As dust can accumulate in the disc slot, clean it
occasionally. Your discs can get scratched if you put them
in a dusty disc slot.
Lens Fogging
Right after you turn on the car heater in cold weather, dew
or condensation may form on the lens in the disc player of
the unit. Called lens fogging, discs may be impossible to
play. In such a situation, remove the disc and wait for the
condensation to evaporate. If the unit still does not operate
normally after a whilst, consult your Kenwood dealer.
This Product is not installed by the manufacturer of a
vehicle on the production line, nor by the professional
importer of a vehicle into an EU Member State.
2WARNING
NOTE
2CAUTION
2WARNING
Before Use
Reset button
Keep on slide
Pull out
DDX7025_E(En)v3.6 04.4.18 5:16 PM 4
background image
Region codes in the world

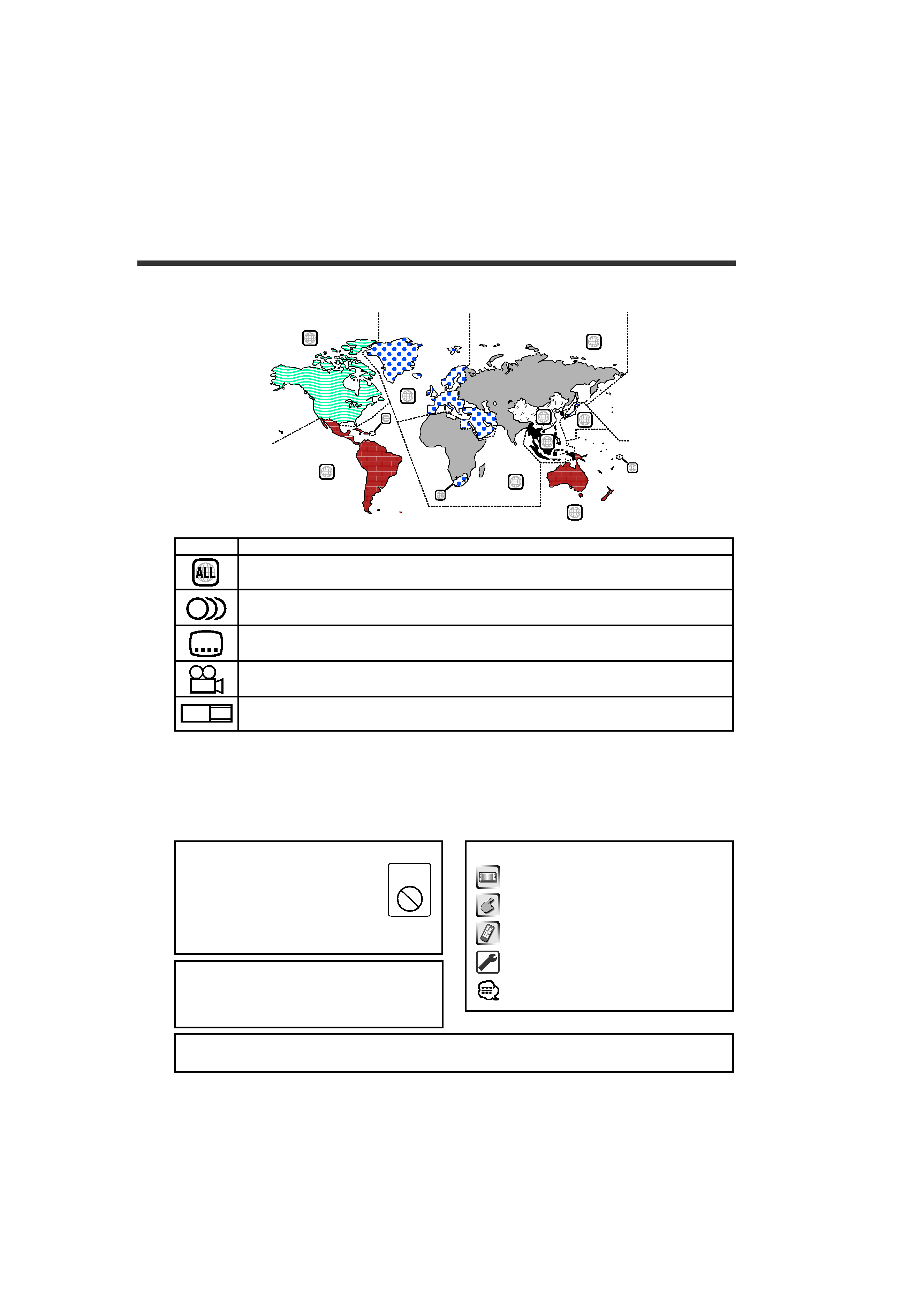

The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.
Icons on the DVD discs
Unplayable discs
This player cannot play back any of the following discs.
· DVD-ROM/DVD-RAM discs
· HQ-VCD discs
· CDV discs (Only the audio part can be reproduced)
· CD-G/CD-EG/CD-EXTRA discs (Only the audio can be reproduced)
· Photo CD discs
· DVD-Audio
Also, you cannot play back the DVD-R/RW and DVD+R/RW discs if not recorded in the DVD-Video format.
English 5
1
2
4
1
5
4
5
2
1
2
6
3
The illustrations of the display and the panel appearing in this
manual are examples used to explain more clearly how the
controls are used. Therefore, what appears on the display in the
illustrations may differ from what appears on the display on the
actual equipment, and some of the illustrations on the display
may represent something impossible in actual operation.
Explanation of icons used on this manual
Indicates the key operation on the receiver.
Indicates the button you must touch.
Indicates the key or joystick operation on the remote
controller.
The initial value of each setup is shown.
Gives an additional information or an operation advice.
Restrictions due to difference between discs
Some DVD and VCD discs can be played only in
certain playback modes according to the intentions
of the software producers. As this player plays
discs according to their intentions, some functions
may not work as intended by you. Please be sure
to read the instructions provided with each disc.
When an inhibition icon is displayed on the
monitor, it indicates that the disc being played is
under the restriction as described above.
Inhibition
icon
Icon
Description
Indicates the region code where the disc can be played.
Number of voice languages recorded with the audio function. The number in the icon indicates the number
of voice languages. (Max. 8 languages)
Number of subtitle languages recorded with the subtitle function. The number in the icon indicates the
number of subtitle languages. (Max. 32 languages)
Number of angles provided by the angle function. The number in the icon indicates the number of angles.
(Max. 9 angles)
Aspect ratios that can be selected. "LB" stands for Letter Box and "PS" for Pan/Scan. In the example on the
left, the 16:9 video can be converted into letter box video.
8
32
9
16:9 LB
Time is displayed on each control screen in the 12 hour clock display type (with AM/PM displayed) or in the 24 hour clock display type
(without AM/PM displayed) depending on the sales area. The display type cannot be changed. In this instruction manual, screens of the
24 hour display type are used as examples.
DDX7025_E(En)v3.6 04.4.18 5:16 PM 5

Reviews

There are no reviews of this manual yet.
