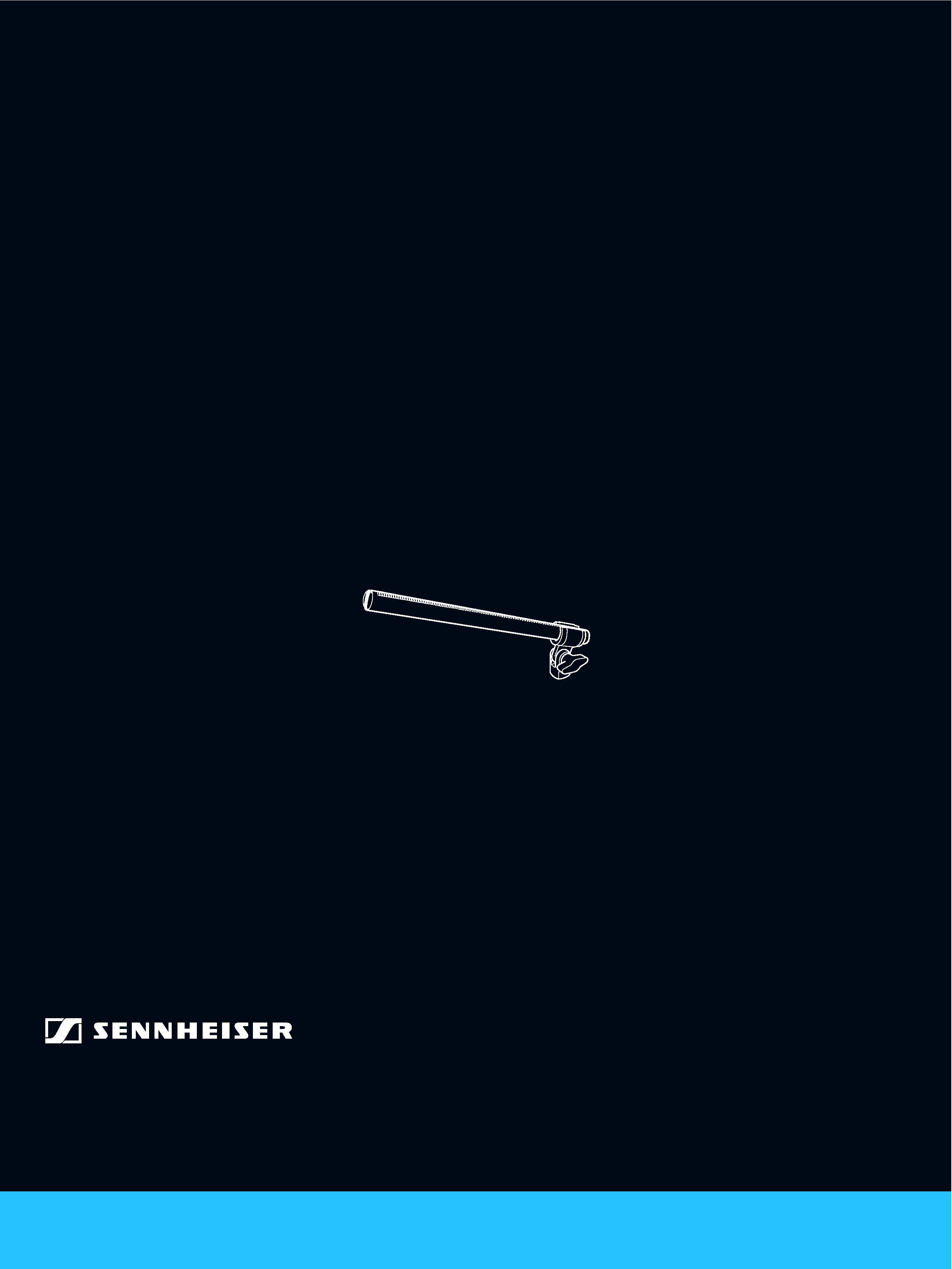

Cover page of SENNHEISER MKH 8070 Service Manual

Service Manual for SENNHEISER MKH 8070, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 4 pages
  • File size: 1 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
background image
TOUCHDOWN.
MKH 8070 Long Gun Microphone
MKH_8070.indd 1
25.03.11 13:47
background image
TOUCHDOWN.
MKH 8070 Long Gun Microphone
MKH_8070.indd 1
25.03.11 13:47
background image
MKH RF Microphones
Sennheiser`s MKH Line has constantly set
new standards in broadcast and recording.
The microphones operate on the RF principle
which Sennheiser has used for more than
50 years and brought to the highest level of
perfection.
Among the many advantages of this
principle are an extremely low inherent self-
noise, the capability to handle high sound
pressure levels without distortion and a high
resistance to adverse climatic conditions.
Sennheiser has recently updated its classic
MKH Line with the new MKH 8070 long gun
microphone which combines the strengths
of the legendary MKH 816 with new
developments in sound characteristics.
MKH 8070
The new MKH 8070 is in a league of its own.
Its excellent directivity and off-axis linearity
make it your ideal team member for major
broadcast and sporting events.
Due to its excellent directivity and
pronounced lobar pick-up pattern it will
reliably capture that magic moment from a
distance, offering a true and natural sound
­ even under the toughest sonic and climatic
conditions.
The MKH 8070`s special design ensures
attenuation of off-axis sound without
coloration.
Part of the flexible MKH 8000 series, just add
the MZD 8000 and it is a digital mic.
Features
Lobar pick-up pattern
Enhanced directivity
Very natural sound
Uncolored off-axis sound
Exceptionally low inherent self-noise
Extremely low distortion
Transformerless and fully floating
balanced output
High output signal
Rugged metal housing
non-reflective Nextel coating
Extremely weather-proof due to RF circuit
incl. MZD 8000 fully AES 42 digital
microphone
Capturing the Moment
at Major Sporting Events and Broadcast.
MKH 8070 Long Gun Microphone.
MKH_8070.indd 2
25.03.11 13:47
background image
MKH RF Microphones
Sennheiser`s MKH Line has constantly set
new standards in broadcast and recording.
The microphones operate on the RF principle
which Sennheiser has used for more than
50 years and brought to the highest level of
perfection.
Among the many advantages of this
principle are an extremely low inherent self-
noise, the capability to handle high sound
pressure levels without distortion and a high
resistance to adverse climatic conditions.
Sennheiser has recently updated its classic
MKH Line with the new MKH 8070 long gun
microphone which combines the strengths
of the legendary MKH 816 with new
developments in sound characteristics.
MKH 8070
The new MKH 8070 is in a league of its own.
Its excellent directivity and off-axis linearity
make it your ideal team member for major
broadcast and sporting events.
Due to its excellent directivity and
pronounced lobar pick-up pattern it will
reliably capture that magic moment from a
distance, offering a true and natural sound
­ even under the toughest sonic and climatic
conditions.
The MKH 8070`s special design ensures
attenuation of off-axis sound without
coloration.
Part of the flexible MKH 8000 series, just add
the MZD 8000 and it is a digital mic.
Features
Lobar pick-up pattern
Enhanced directivity
Very natural sound
Uncolored off-axis sound
Exceptionally low inherent self-noise
Extremely low distortion
Transformerless and fully floating
balanced output
High output signal
Rugged metal housing
non-reflective Nextel coating
Extremely weather-proof due to RF circuit
incl. MZD 8000 fully AES 42 digital
microphone
Capturing the Moment
at Major Sporting Events and Broadcast.
MKH 8070 Long Gun Microphone.
MKH_8070.indd 2
25.03.11 13:47
Technical data
MKH 8070
Transducer principle
RF condenser microphone
Pick-up pattern
lobar
Frequency response
45­20,000 Hz
Sensitivity
-19 dBV/Pa (112 mV/Pa)
Max. sound pressure level
124 dB SPL
Phantom powering
48 ± 4 V (P48, IEC 61938)
Current consumption
3.3 mA
Nominal impedance
25
Min. terminating impedance
2 K
Equivalent noise level
8 dB(A) (DIN-IEC 651),
21 dB (CCIR 268-3)
Weight
300 g (332 g with XLR module MZX 8000)
Dimensions
Length: 432 mm (465 mm with XLR module MZX 8000)
Diameter: 19 mm
Operating temperatur
-10 °C to 60 °C
Microphone frequency response curve
Polar diagram
low frequencies
125 Hz
250 Hz
500 Hz
1 kHz
high frequencies
2 kHz
4 kHz
8 kHz
16 kHz
30°
60°
90°
150°
120°
10
20
30
40
50
dB
0
30°
60°
90°
120°
150°
180°
Delivery includes
The MKH 8070 comes with a threaded transport tube,
MZQ 8060 microphone clamp and a MZW 8070 foam windshield.
The microphone system consists of the microphone head and the
MZX 8000 XLR module.
Recommended Accessories
MZS 20-1 pistol grip suspension for use with basket windshields
MZW 80-1 basket windshield
MZW 80-1 hairy cover providing
MKH 8070
03
02
MKH_8070.indd 3
25.03.11 13:47
background image
54
25
56
03
/1
1
Pr
in
te
d
in
G
er
m
an
y
Se
nn
he
is
er
is
a
re
gi
st
er
ed
tr
ad
em
ar
k
of
Se
nn
he
is
er
el
ec
tr
on
ic
G
m
bH
&
Co
.K
G
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
MKH_8070.indd 4
25.03.11 13:47
