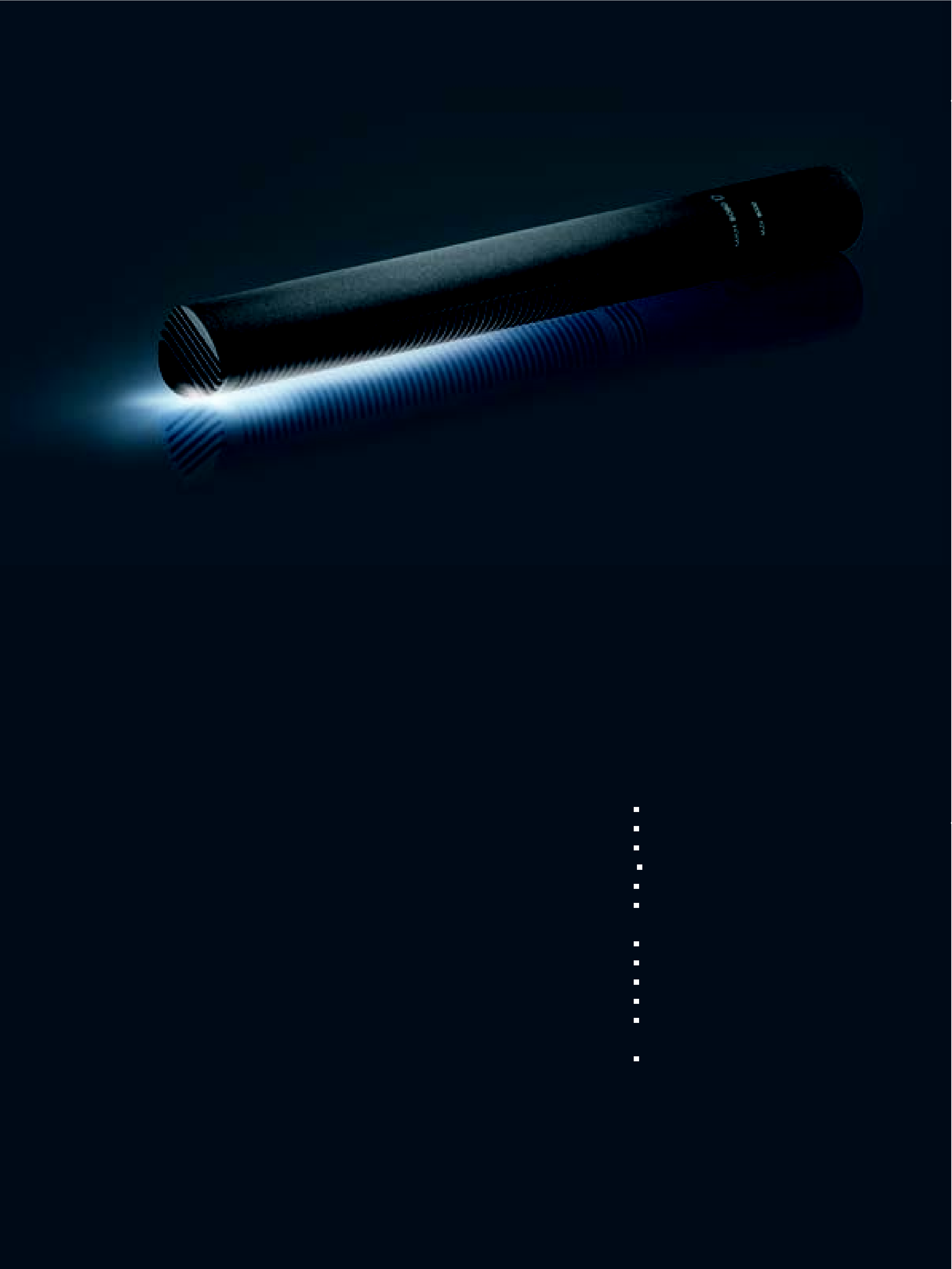

background image
ACTION.
MKH 8060 Short Gun Microphone
MKH_8060.indd 1
25.03.11 13:43
background image
ACTION.
MKH 8060 Short Gun Microphone
MKH_8060.indd 1
25.03.11 13:43
background image
MKH RF Microphones
Sennheiser`s MKH Line has constantly set
new standards in broadcast and recording.
The microphones operate on the RF principle
which Sennheiser has used for more than
50 years and brought to the highest level of
perfection.
Among the many advantages of this
principle are an extremely low inherent self-
noise, the capability to handle high sound
pressure levels without distortion and a high
resistance to adverse climatic conditions.
Sennheiser has recently updated its classic
MKH Line with the new MKH 8060 short
gun microphone which incorporates the
advantages of the renowned MKH 416
and suits all the needs of a modern film
production
MKH 8060
Whether it`s a feature film, documentary
or ENG, the new MKH 8060 will give you
the quality sound to match your exciting
pictures.
It's very small dimensions are especially
surprising when it shows its strengths as
a professional gun microphone.
Its excellent directivity and improved off-
axis linearity ensure a clear and natural
sound recording, whether you are in the
studio or outdoors.
Its special design ensures attenuation of
off-axis sound without coloration.
Part of the flexible MKH 8000 series, just
add the MZD 8000 and it is a digital mic.
Features
Super-cardioid/lobar pick-up pattern
Very natural sound
Uncolored off-axis sound
Exceptionally low inherent self-noise
Extremely low distortion
Transformerless and fully floating
balanced output
High output signal
Rugged metal housing
non-reflective Nextel coating
Extremely weather-proof due to RF circuit
Ideal for camera mounting due to
compact design
incl. MZD 8000 fully AES 42 digital
microphone
Capturing the Moment
By Adding Perfect Sound to Your Exciting Pictures.
MKH 8060
Gun Microphone.
MKH_8060.indd 2
25.03.11 13:43
Short
background image
MKH RF Microphones
Sennheiser`s MKH Line has constantly set
new standards in broadcast and recording.
The microphones operate on the RF principle
which Sennheiser has used for more than
50 years and brought to the highest level of
perfection.
Among the many advantages of this
principle are an extremely low inherent self-
noise, the capability to handle high sound
pressure levels without distortion and a high
resistance to adverse climatic conditions.
Sennheiser has recently updated its classic
MKH Line with the new MKH 8060 short
gun microphone which incorporates the
advantages of the renowned MKH 416
and suits all the needs of a modern film
production
MKH 8060
Whether it`s a feature film, documentary
or ENG, the new MKH 8060 will give you
the quality sound to match your exciting
pictures.
It's very small dimensions are especially
surprising when it shows its strengths as
a professional gun microphone.
Its excellent directivity and improved off-
axis linearity ensure a clear and natural
sound recording, whether you are in the
studio or outdoors.
Its special design ensures attenuation of
off-axis sound without coloration.
Part of the flexible MKH 8000 series, just
add the MZD 8000 and it is a digital mic.
Features
Super-cardioid/lobar pick-up pattern
Very natural sound
Uncolored off-axis sound
Exceptionally low inherent self-noise
Extremely low distortion
Transformerless and fully floating
balanced output
High output signal
Rugged metal housing
non-reflective Nextel coating
Extremely weather-proof due to RF circuit
Ideal for camera mounting due to
compact design
incl. MZD 8000 fully AES 42 digital
microphone
Capturing the Moment
By Adding Perfect Sound to Your Exciting Pictures.
MKH 8060
Gun Microphone.
MKH_8060.indd 2
25.03.11 13:43
Short
Delivery includes
The MKH 8060 comes with a threaded transport tube,
MZQ 8060 microphone clamp and a MZW 8060 foam windshield.
The microphone system consists of the microphone head and the
MZX 8000 XLR module.
Recommended Accessories
MZS 20-1 pistol grip suspension for use with basket windshields
MZW 20-1 basket windshield
MZH 20-1 hairy cover providing protection from wind noise
Technical data
MKH 8060
Transducer principle
RF condenser microphone
Pick-up pattern
super-cardioid/lobar
Frequency response
50­25,000 Hz
Sensitivity
-24 dBV/Pa (63mV/Pa)
Max. sound pressure level
129 dB SPL
Equivalent noise level
11 dB (A) (DIN-IEC 651)
23 dB (CCIR 268-3)
Phantom powering
48 ± 4 V Phantom (P48, IEC 61938)
Current consumption
3.3 mA
Nominal impedance
25
Min. terminating impedance
2 K
Weight
80 g (112 g with XLR module MZX 8000)
Dimensions
Length: 145 mm (178 mm with XLR module MZX 8000)
Diameter: 19 mm
Operating temperatur
-10 °C to 60 °C
Microphone frequency response curve
Polar diagram
low frequencies
125 Hz
250 Hz
500 Hz
1 kHz
high frequencies
2 kHz
4 kHz
8 kHz
16 kHz
30°
60°
90°
150°
120°
30°
60°
90°
120°
150°
180°
5
10
15
20
25
dB
0
MKH 8060
03
02
MKH_8060.indd 3
25.03.11 13:43
background image
54
25
58
03
/1
1
Pr
in
te
d
in
G
er
m
an
y
Se
nn
he
is
er
is
a
re
gi
st
er
ed
tr
ad
em
ar
k
of
Se
nn
he
is
er
el
ec
tr
on
ic
G
m
bH
&
Co
.K
G
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
MKH_8060.indd 4
25.03.11 13:43
