background image
BF 521-II
GEBRAUCHSANLEITUNG
INSTRUCTIONS FOR USE
NOTICE D`EMPLOI
ISTRUZIONI PER L`USO
INSTRUCCIONES PARA EL USO
GEBRUIKSAANWIJZING
background image
BF 521-II
GEBRAUCHSANLEITUNG
INSTRUCTIONS FOR USE
NOTICE D`EMPLOI
ISTRUZIONI PER L`USO
INSTRUCCIONES PARA EL USO
GEBRUIKSAANWIJZING
background image
BF 521-II
Dynamisches Richtmikrofon mit Nierencharakteristik. Geeignet für Gesangs-/
Sprachübertragung und Instrumentenabnahme in allen Bereichen der Ton-
übertragungstechnik.
Merkmale
· Gute Rückkopplungs- und Körperschalldämpfung
· Transparente Klangwiedergabe
· Ausgeprägte Richtcharakteristik mit weitem Öffnungswinkel
· Robust
· Verriegelbare Stativhalterung 3/8"
Empfohlenes Zubehör
Tischfüße: MZT 441, (Art.-Nr. 00799); MZT 100 (Art.-Nr. 01883).
Windschutze: MZW 40 (Art.-Nr. 01794); MZW 421: grau (Art.-Nr. 00536);
blau (Art.-Nr. 01527); gelb (Art.-Nr. 01528); grün (Art.-Nr. 01529); rot (Art.-Nr. 01530)
Technische Daten
Übertragungsbereich
30 - 17.000 Hz
Akustische Arbeitsweise
Druckgradientenempfänger
Richtcharakteristik
Niere
Max. Auslöschung bei 180º
18 dB - 2 dB
Feldleerlauf-Übertragungsfaktor
2 mV / Pa (= -54 dBV)
± 2,5 dB
Elektrische Impedanz
200
Minimale Abschlußimpedanz
200
Magnetfeldstörfaktor 50 Hz
< 5
µV / 5 µT
Abmesungen in mm
203 x 46 x 49
Gewicht
ca. 385 g
Lieferumfang
1 Mikrofon,
1 Stativhalterung 3/8"
Änderungen vorbehalten.
background image
BF 521-II

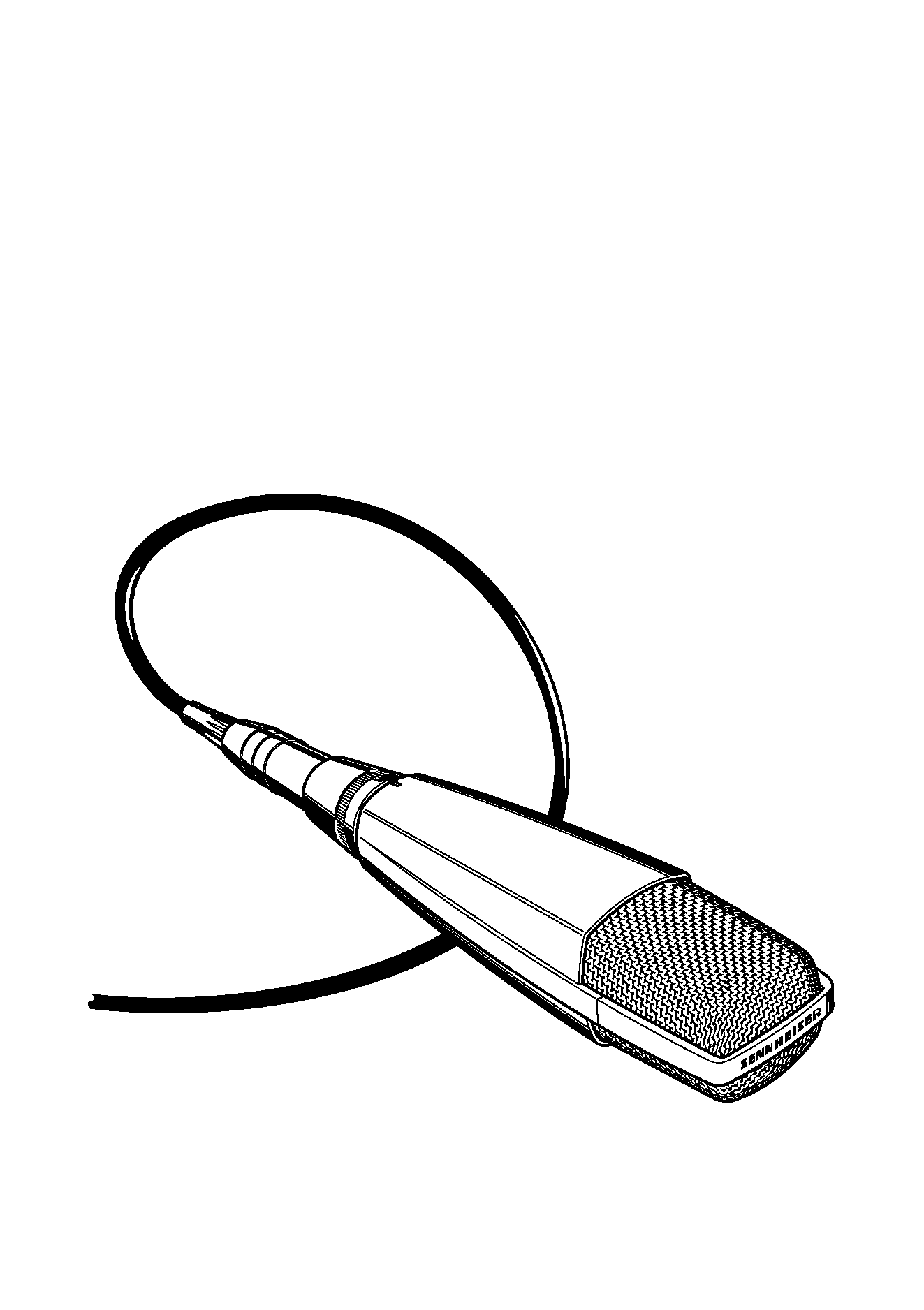

Dynamic microphone with cardioid-shaped directional characteristic. Suitable
for vocal transmission and miking up instruments in all fields of live sound
transmission.
Its features
· Good feedback and handling noise rejection
· Transparent sound reproduction
· Pronounced directional characteristik
· Robust
· Lockable stand holder 3/8"
Recommended accessories
Desk stands: MZT 441, (art.-no. 00799); MZT 100 (art.-no. 01883).
Windscreens: MZW 40 (art.-no. 01794); MZW 421: grey(art.-no. 00536); blue
(art.-no. 01527); yellow (art.-no. 01528); green (art.-no. 01529); red (art.-no. 01530)
Technical Data
Frequency response
30 - 17,000 Hz
Acoustical mode of poeration
pressure gradient transducer
Directional characteristic
cardioid
Max. rejection at 180º
18 dB - 2 dB
Open circuit output level
2 mV / Pa (= -54 dBV)
± 2,5 dB
Electrical impedance
200
Minimum load impedance
200
Insentivity to magnetic field at 50 Hz < 5
µV / 5 µT
Dimensions in mm
203 x 46 x 49
Weight
approax. 385 g
Delivery
1 microphone,
1 stand holder 3/8"
Subject to alterations.
background image
BF 521-II
Microphone directional dynamique à directivité cardioide. Prévu pour la
transmission vocale et instrumentale dans tous les domaines de la technique de
transmission de sons en direct.
Ses caractéristiques
· Suppression de bruits de maniement et de réaction acoustique efficance
· Reproduction du son transparente
· Directivité prononcé avec un angle d'ouverture large
· Robuste
· Fixation sur pied à verrouiller 3/8"
Accessoires recommandés
Pieds de table: MZT 441, (no. d'art. 00799); MZT 100 (no. d'art. 01883).
Bonnettes anti-vent: MZW 40 (no. d'art. 01794); MZW 421: gris (no. d'art.
00536); bleu (no. d'art. 01527); jaune (no. d'art. 01528); vert (no. d'art. 01529);
rouge (no. d'art. 01530)
Caractéristiques techniques
Bande passante
30 - 17 000 Hz
Principe acoustique
capteur de gradient
Directivité
cardioide
Degré de directivité max. 180º
18 dB - 2 dB
Facteur de transmission à vide
2 mV / Pa (= -54 dBV)
± 2,5 dB
Impédance
200
Impédance minimale de charge
200
magnétiques à 50 Hz
< 5
µV / 5 µT
Dimensions en mm
203 x 46 x 49
Poids
env. 385 g
Livraison
1 microphone,
1 fixation sur pied 3/8"
Modifications réservées.
background image
BF 521-II
Microfono direttivo dinamico con caratteristica a cardioide; di impiego univer-
sale in tutti i campi della trasmissione sonora (vocale, instumentale).
Caratteristiche
· Ottime caratteristiche anti-Larsen e di attenuazione dei rumori da contattofisico
· Suono trasparente
· Accentuata caratteristica direttiva con ampio angolo di apertura
· Robusto
· Supporto stativo lucchettabile 3/8"
Accessori consigliati
Base da tavolo: MZT 441, (art. n. 00799); MZT 100 (art. n. 01883).
Cuffie antivento: MZW 40 (art. n. 01794); MZW 421: grigio (art. n. 00536);
azzuro (art. n. 01527); giallo (art. n. 01528); verde (art. n. 01529); rosso (art. n. 01530)
Dati tecnici
Gamma di frequenza
30 - 17 000 Hz
Caratteristica acustica
transduttore a gradiente di pressione
Direttività
cardioide
Cancellazione max. a 180º
18 dB - 2 dB
Coefficiente di trasmissione a vuoto
2 mV / Pa (= -54 dBV)
± 2,5 dB
Impedanza elettrica
200
Impedanza min. d'uscita
200
Coefficiente di disturbo in campo
magnetico a 50 Hz
< 5
µV / 5 µT
Dimensioni in mm
203 x 46 x 49
Peso
ca. 385 g
Dotatione di fornitura
1 microfono,
1 supporto stativo 3/8"
Con riserva di modifiche.
