Cover page of PIONEER S-STP600/XTW/E Service Manual

Service Manual for PIONEER S-STP600/XTW/E, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 6 pages
  • File size: 0.41 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3244
T ­ ZZK AUG. 2005 Printed in Japan
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Front Speaker / Surround Speaker )
The grille assy is attached to the cabinet by 4 screws. To detach
it, unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
CS Assy ( Center Speaker )
The grille assy is attached to the cabinet by 8 screws. To detach
it, unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the cable.
When attaching it, face its terminal toward the input terminal.
Center
Front
Surround
S-STP600
XTW/E
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3244
T ­ ZZK AUG. 2005 Printed in Japan
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Front Speaker / Surround Speaker )
The grille assy is attached to the cabinet by 4 screws. To detach
it, unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
CS Assy ( Center Speaker )
The grille assy is attached to the cabinet by 8 screws. To detach
it, unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the cable.
When attaching it, face its terminal toward the input terminal.
Center
Front
Surround
S-STP600
XTW/E
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-STP600
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:

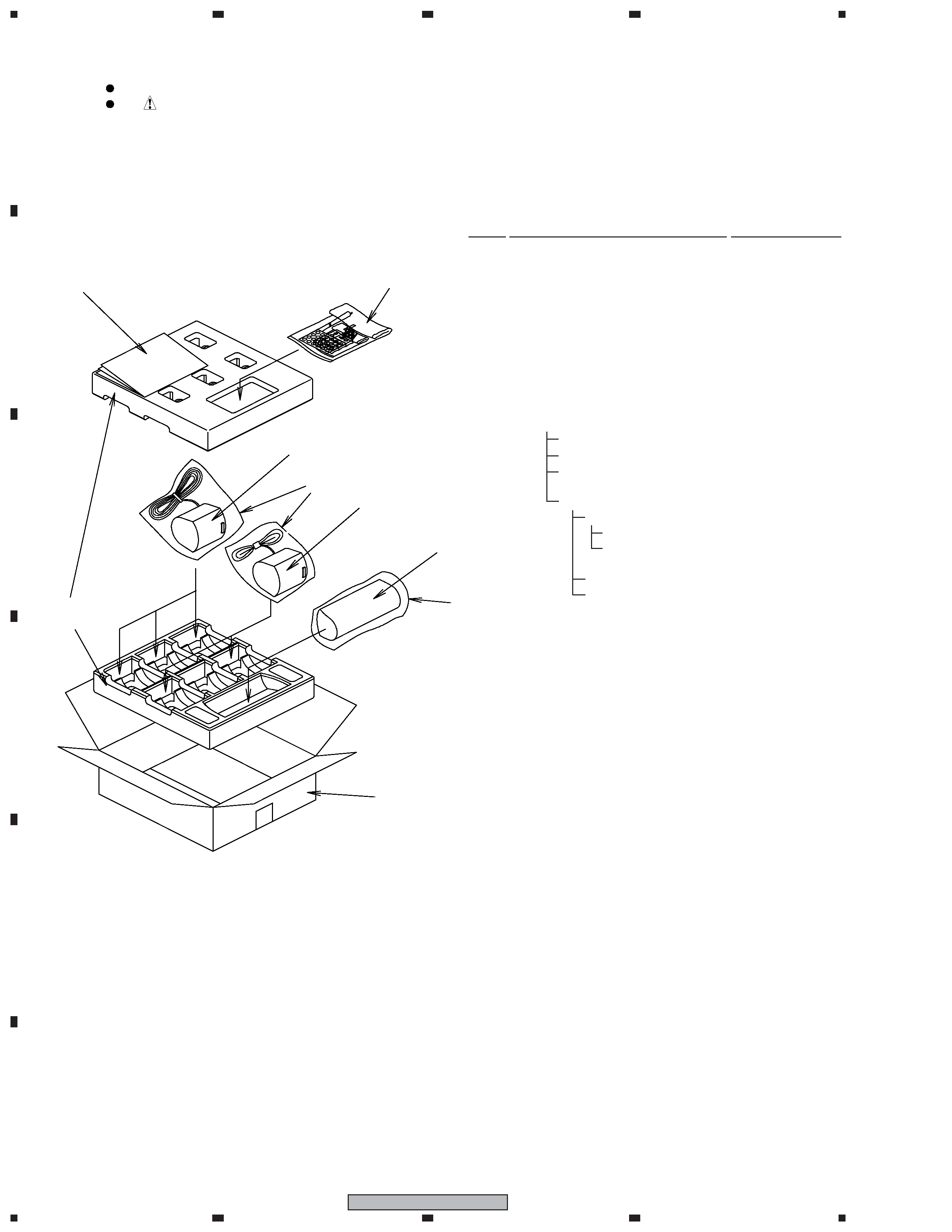

PARTS LIST
For Packing
NSP
1 CS Assy (Front)
SMW1868
NSP
2 CS Assy (Surround)
SMW1898
NSP
3 CS Assy (Center)
SMW1900
NSP
Model Label (FL)
SAN3751
NSP
Model Label (FR)
SAN3752
NSP
Model Label (SL)
SAN3754
NSP
Model Label (SR)
SAN3755
NSP
Model Label (C)
SAN3753
NSP
Model Label (SB)
SAN3756
NSP
4 Accessary Set
SEA1713
Speaker Wire
SDS1173
Non Skid Pads
SEP1350
Polyethylene Bag S1
SHL1312
NSP
Bracket Set
SEA1714
NSP
Screw Set
SEA1715
Screw
BMZ50P120FNC
Polyethylene Bag S0
SHL1314
Polyethylene Bag S1
SHL1429
Mounting Bracket
SNN1047
5 Operating Instructions (English)
SRD1304
6 Protector
SHA2525
7 Packing Case
SHG2689
8 Polyethylene Bag S2
SHL1417
9 Polyethylene Bag S1
SHL1419
Mark No.
Description
Part No.
9
7
3
6
2
4
5
8
1
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
S-STP600

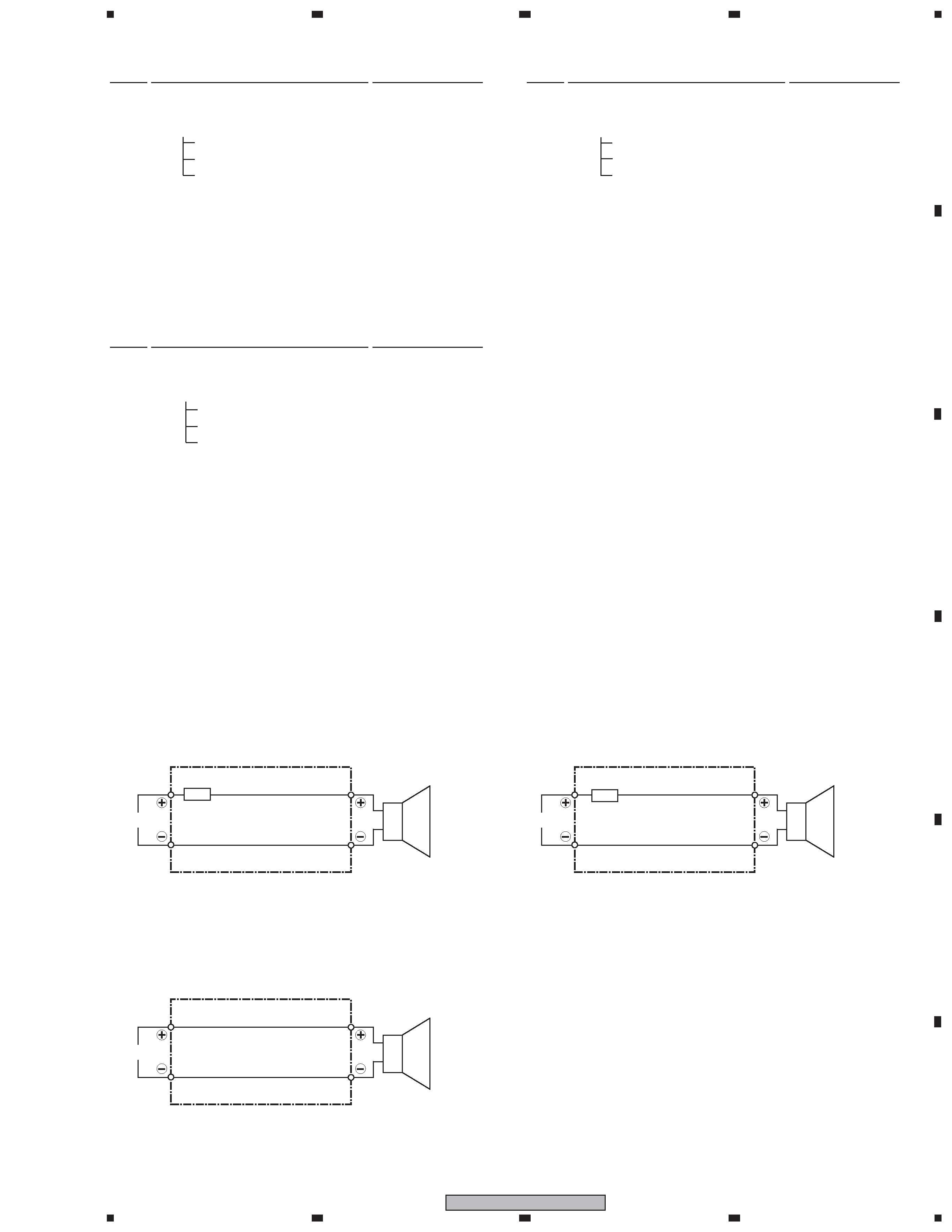

SCHEMATIC DIAGRAM
Connecting Cord (SDD1342, SDD1343, SDD1349)
2. CS Assy (Surround)
Connecting Cord (SDD1340, SDD1341)
1. CS Assy (Front)
Tube color
SDD1340: White (for Left channel)
SDD1341: Red (for Right channel)
Tube color
SDD1342: Blue (for Left channel)
SDF1343: Gray (for Right channel)
SDF1349: Brown (for Back channel)
INPUT
Speaker
White
White with Gray Line
Tube
Connecting Cord (SDD1345)
3. CS Assy (Center)
INPUT
Speaker
White
Red
INPUT
Speaker
White
White with Gray Line
Tube
CS Assy (Center)
NSP
Cabinet
SNK2851
Grille
SMG1840
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1591
NSP
Baffle
SNK2852
Connecting Cord
SDD1345
Packing (size 4 x 75 mm)
SEC1913
Input Terminal
SKX1096
NSP
Acoustic Absorbent (White)
SMT1293
NSP
Acoustic Absorbent (Black)
SMV2198
Speaker
K77DU55-55D
Screw (for Input Terminal)
BPZ35P080FNI
Screw (for Cabinet)
BPZ35P120FNI
CS Assy (Surround)
NSP
Cabinet
SNK2840
Grille
SMG1835
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1588
NSP
Baffle
SNK2843
Connecting Cord (Blue)
SDD1342
Connecting Cord (Gray)
SDD1343
Connecting Cord (Brown)
SDD1349
Speaker
K77DU55-54D
Screw (for Cabinet)
BPZ35P120FNI
CS Assy (Front)
NSP
Cabinet
SNK2840
Grille
SMG1835
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1588
NSP
Baffle
SNK2843
Connecting Cord (White)
SDD1340
Connecting Cord (Red)
SDD1341
Speaker
K77DU55-54D
Screw (for Cabinet)
BPZ35P120FNI
Mark No.
Description
Part No.
Mark No.
Description
Part No.
Mark No.
Description
Part No.
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
S-STP600
1
2
3
4
5
6
Cabinet
Gr
ille
Speak
er
Model
Label
Connecting
Cord
Scre
w
1
1
1
1
1
4
No
.
Num.
Pa
rt
Name
4
6
1
3
2
5

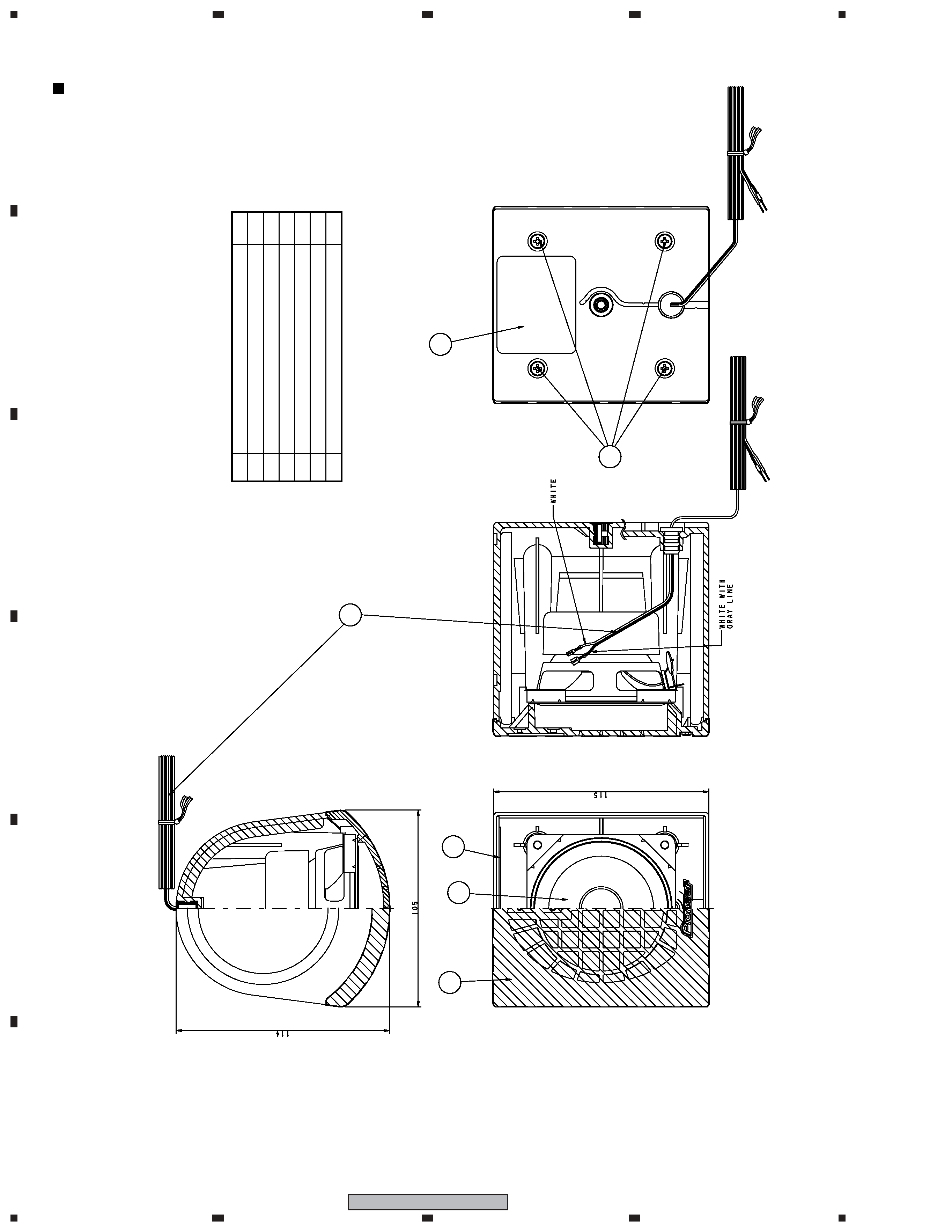

PRODUCT APPEARANCE
CS Assy (Front)
background image
5
1
23
4
1
2
3
4
C
D
F
A
B
E
S-STP600
1
2
3
4
5
6
Cabinet
Gr
ille
Speak
er
Model
Label
Connecting
Cord
Scre
w
1
1
1
1
1
4
No
.
Num.
Pa
rt
Name
4
6
5
1
3
2

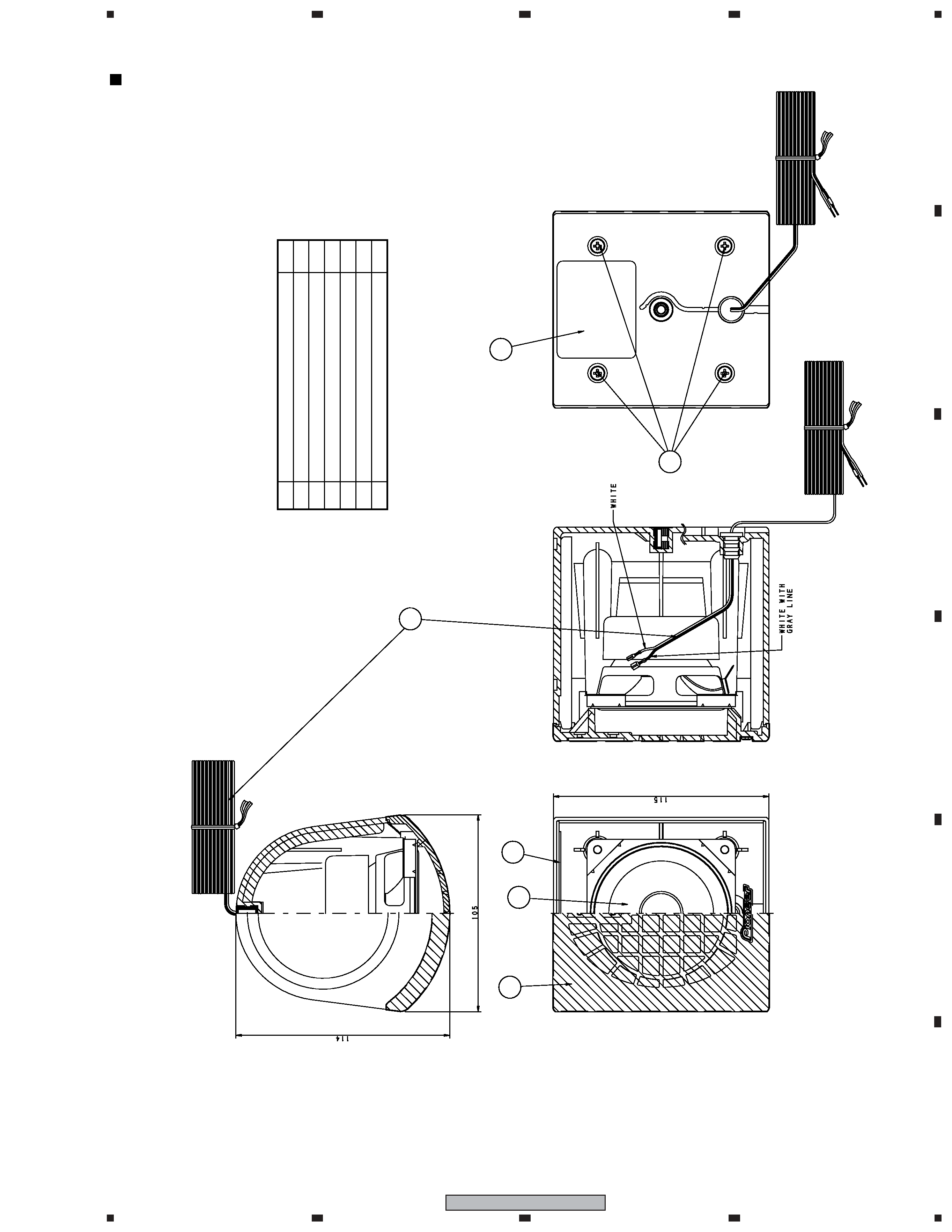

CS Assy (
Surround)
