ACCESSORY ITEMS
·Power cable
Taiwan, Mexico, Middle Latin America models x 2
All other models x 1
·RCA plug cord x 1
· Operating instructions
FEATURES
n 150 W (Taiwan model)/180 W (all other models) (RMS) power with AB
class amplifier that serves audio and video software playback such
as Dolby Digital with a wide dynamic range.
n Equipped with 30 cm driver
n Crossover frequency can be set to 50 Hz to 200 Hz.
IN COMBINATION WITH SPEAKERS
The frequency characteristics of the S-RS3SW combined with small-
size speakers are shown below. As shown in these figures, the low
frequency range is improved.
· These special characteristics are obtained in an echoless chamber.
The effect of an additional S-RS3SW in an ordinary listening room is
better than the chart indicates when positioned adequately.
· With playback of Dolby Digital, establishment of a special channel
for the subwoofer is recommended; and with playback of LFE (Low
Frequency Effect: sound effect like the rumbling of the earth, whose
purpose is to intensify the force of the video), the S-RS3SW is
especially effective.
INSTALLATION
Speaker Installation
·
Subwoofer Installation Criteria
1 Left speaker
2 Right speaker
3 Recommended
installation range
for the subwoofer
4 Listening position
The subwoofer plays back the bass in monaural, making use of the fact
that the human ear is not very sensitive to the direction of low-pitched
sound. Because of this, the subwoofer can be installed almost
anywhere. If it is installed too far away, however, the sound from the
other speakers may become unnatural.
·
An example of speaker positioning
1
Front left speaker
2
Center speaker
3
Front right speaker
4Subwoofer
5
Listening area
6
Rear left speaker
7
Rear right speaker
NOTES:
· Position the left and right channel speakers at equal distances from
the TV set and approximately 1.8 meters from each other.
· Install the center speaker above or below the TV so that the sound of
the center channel is localized at the TV screen.
· The rear (surround) speakers are most effective when installed in
parallel locations directly to the side, or slightly behind, the listener,
at a level about 1 meter above the listener's ears.
Installation Precautions
· Do not attach the subwoofer to the wall or ceiling. They may fall off
and cause injury.
· Install the unit in a well-ventilated location where it will not be
exposed to high temperatures and high humidity.
· Do not place the unit near stoves or other heating equipment or at
locations exposed to direct sunlight, as these can have an adverse
effect on the cabinet and internal components. Also, do not install
the unit where there is too much dust or high humidity, as these can
cause malfunctioning or breakdowns. (Avoid cooking tables and
other locations where the unit would be exposed to heat, steam and
soot.)
· Do not place heavy or large objects on top of the speaker. Doing so
could provoke the speaker to fall, causing damages or bodily injury.
If speakers fall from their installation locations, they may suffer
irreparable cracks in their finish.
· Keep the unit away from devices such as cassette decks which are
sensitive to magnetic fields.
· Do not place the speaker on an unstable surface, as doing so may
cause the speaker to fall and cause damage or bodily injury.
· Do not place cups, glasses, or other containers with fluids on top of
the units, since the units may be damaged if the liquid spills.
· The installation location selected should have a sturdy floor surface.
Mounting the speaker on a long-pile carpet should be avoided, since
the carpet may touch the driver's diaphram, causing distorted
sound.
· Please install this unit away from the antenna cable of the tuner, as
noise can be caused with installation close to the antenna cable. In
such a case, use this unit at a position away from the antenna and
the antenna cable, or when playback of extra bass is not required,
switch off the power for this unit.
Small-size speakers + S-RS3SW
Small-size speaker
FREQUENCY (Hz)
RESPONCE
(dB)
3
12
4
1
4
2
3
67
5
CAUTION:
When installing the center speaker on top of the TV, be sure to
secure it with tape or some other suitable means.
Otherwise, the speaker may fall from the TV due to external shocks
such as earthquakes, and it may lead to endangering those nearby
or damaging the speaker.
The subwoofer is not magnetically shielded and so should not be
placed near a TV or monitor. Magnetic storage media (such as
floppy discs and tape or video cassettes) should also not be kept
close to the subwoofer.
MAINTENANCE OF EXTERNAL SURFACES:
· Clean the surface by wiping with a soft, dry cloth.
· When the surfaces are very dirty, wipe with a soft cloth dipped in
some neutral cleanser diluted five or six times with water, and
wrung out well, and then wipe again with a dry cloth. Do not use
furniture wax or cleaners.
· Never use thinners, benzine, insecticide sprays and other
chemicals on or near this unit, since these will corrode the
surfaces.
PANEL FACILITIES
FRONT PANEL
REAR PANEL
1 Power Indicator (POWER ON)
Lights green when the power has been switched ON.
NOTE:
· If you are planning on switching the unit OFF for a long period of
time, make sure to check that the indicator light has gone out after
switching OFF.
2 Power switch (POWER)
Switches the subwoofer between ON and OFF.
3 Volume knob (VOLUME)
Sets the subwoofer volume.
· Turn the knob slowly from the MIN position.
· With this unit, the bass level can be independently set, so do not
turn up the bass on the AV amplifier.
4 Crossover knob (CROSSOVER)
When using the subwoofer, set the upper frequency limit for the
subwoofer (
50 Hz to 200 Hz) so that it complements the output from
your other speakers.
When using the bass management features of an AV receiver, set to
BYPASS ON in order to use the low-pass filter of the AV receiver for
high quality sound.
5 Bypass switch (BYPASS)
When set to
ON, the audio signal is routed directly to the woofer unit,
bypassing the amplifier's filter.
6 Phase switch (PHASE 0º /180º)
When set to
180º, the output phase becomes the reverse of the input
signal, and when set to
0º, it is in the same phase as the input signal.
· Normally, the switch is set to
0º.
But when the sound connection between the subwoofer and the
left and right speakers sounds unnatural, try switching to
180º
and set the switch in the position where the sound is natural.
· When using two or more subwoofers together, make sure that the
phase switch of all of them are set to the same position.
7 Line Level Input terminal (LINE LEVEL INPUT)
Connect to the SUBWOOFER PREOUT terminal of an amplifier or
receiver, with the specially provided RCA plug cord.
8 Line Level Output terminal (LINE LEVEL OUTPUT)
Used for connecting other equipment through the amplifier. The
signal output from this jack is not affected in any way by the settings
of the various controls on the unit.
9AC IN
· Connect the power cord to the powered subwoofer unit's AC IN.
· Connect the power cord to a AC socket.
CONNECTIONS
Before making or changing any connections, switch off the power
and disconnect both this unit and the amplifier/receiver from the
AC outlet.
LINE LEVEL CONNECTION
This connection is for an amplifier or receiver equipped with a
SUBWOOFER PREOUT terminal. Connect to the LINE LEVEL INPUT
terminal on this unit, using the specially provided RCA plug cord.
NOTE:
· When connected to the
PREOUT terminal for surround center
channel on the amplifier or receiver, the bass is heard only on the
center channel, so it will be insufficient.
OPERATION
For details regarding operating part functions, refer to PANEL
FACILITIES above.
1. Turn the POWER switch (2) ON.
· If the unit's power cord is connected to a switched AC outlet on
the amplifier or receiver and the switch is left ON, the unit can be
turned ON/OFF together with the amplifier or receiver.
· If the unit cannot be connected to the amplifier or receiver, turn
the power to the amplifier or receiver ON before turning the power
to the unit ON. When turning the power OFF, turn the power to the
unit OFF before turning the power to the amplifier or receiver OFF.
2. Operate the amplifier or receiver and adjust the volume of the
other speakers.
3. Adjust the volume of the bass with the VOLUME knob (3).
· When necessary, operate the
CROSSOVER knob (4) and PHASE
switch (
6), and then adjust with the VOLUME knob (3).
4. Turn the POWER switch (2) OFF.
·The power indicator disappears.
1
POWER ON
POWER
VOLUME
MAX
MIN
AC IN
ON
OFF
200 Hz
50 Hz
CROSSOVER
BYPASS
PHASE
LINE LEVEL
INPUT
OUTPUT
3
5
7
4
6
8
9
2
Rear Panel
Supplied RCA plug cord
TROUBLESHOOTING
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the
points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the
trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your dealer to carry
out repair work.
SPECIFICATIONS
Cabinet ............................................................Bass-reflex, floor-standing type
Speaker..................................................................................... 30 cm cone type
Power Amplifier Continuous Power Output (RMS)
Taiwan................................................................................150 W/6
(100 Hz)
All other models................................................................200 W/6
(100 Hz)
Input (sensitivity at 100 Hz/impedance)
LINE LEVEL (RCA jack) ..............................................................175 mV/50 k
Output (Level at 100 Hz/impedance)
LINE LEVEL (RCA jack) ................................................................175 mV/1 k
Selectable CROSSOVER Frequencies ..................................... 50 Hz to 200 Hz
Outline Dimension ..........................360 mm (W) x 437 mm (H) x 455 mm (D)
Weight (without package)....................................................................... 15.2 kg
Power Requirements
Taiwan, Mexico, Middle Latin America models
........................................................................... 110 V to 127 V~, 50 Hz/60 Hz
All other models............................................... 220 V to 240 V~, 50 Hz/60 Hz
Power Consumption
Taiwan, Mexico, Middle Latin America models ...................................155 W
All other models......................................................................................184 W
Accessories
Power cable: Taiwan, Mexico, Middle Latin America models ................ x 2
All other models ...................................................................x 1
RCA plug cord...............................................................................................x 1
Operating instructions
Specifications and design subject to possible modification without
notice, due to improvements.
Published by Pioneer Corporation.
Copyright © 2008 Pioneer Corporation.
All rights reserved.
SYMPTOM
CAUSE
REMEDY
1 No power is being supplied
(Indicator does not light up when
power switch is turned on.)
· Power supply plug is not correctly
inserted.
· Insert plug securely.
2No sound
(Indicator is lit.)
· Connection of accessory RCA plug
cord is wrong or disconnected.
·
VOLUME knob is set to MIN.
· Check again and connect correctly.
· Turn clockwise slowly.
3 Sound is distorted.
· Level is too high.
· Input level is too high.
· Turn the
VOLUME knob counter-clockwise to lower the level.
· Turn the amplifier's output level (volume, bass control, bass
boost) counter-clockwise to lower the level.
4 Howling noise occurs.
· No power supplied to the amplifier.
· Subwoofer level is set too high.
· Connect an amplifier and supply power.
· Place the subwoofer a good distance from speakers. Turn the
VOLUME knob counter-clockwise to lower the volume.
5 Much noise when listening to
AM or FM broadcasts.
· The AM loop antenna or the FM indoor
antenna is close to this unit.
· Increase the distance between the AM or FM antenna (for
indoor use) and this unit.
Operating Instructions
Manual de instrucciones
S-RS3SW
POWERED SUBWOOFER
ALTAVOCES DE GRAVES SECUNDARIOS ENERGIZADOS
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_En-A
WARNING
This equipment is not waterproof. To prevent a fire
or shock hazard, do not place any container filled
with liquid near this equipment (such as a vase or
flower pot) or expose it to dripping, splashing, rain
or moisture.
D3-4-2-1-3_B_En
WARNING
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel.
D3-4-2-1-4_A_En
Before plugging in for the first time, read the following
section carefully.
WARNING
To prevent a fire hazard, do not place any naked
flame sources (such as a lighted candle) on the
equipment.
D3-4-2-1-7a_A_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
radiation (at least 25 cm at top, 15 cm at rear, and
10 cm at each side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
prevent fire hazard, the openings should never be
blocked or covered with items (such as newspapers,
table-cloths, curtains) or by operating the
equipment on thick carpet or a bed.
D3-4-2-1-7b_A_En
Operating Environment
Operating environment temperature and humidity:
+5 ºC to +35 ºC (+41 ºF to +95 ºF); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c_A_En
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-1a_A_En
CAUTION
The POWER switch on this unit will not completely
shut off all power from the AC outlet. Since the
power cord serves as the main disconnect device for
the unit, you will need to unplug it from the AC outlet
to shut down all power. Therefore, make sure the
unit has been installed so that the power cord can
be easily unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-2a_A_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement. S002*_En
Thank you for buying this PIONEER product. Please read through these operating instructions so you will know how to operate your model properly. After
you have finished reading the instructions, put them away in a safe place for future reference.
In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings.
However, the method of connecting and operating the unit is the same.
For Taiwan and Mexico exclusively
Taiwanese two pin flat-bladed plug
WARNING:
Do not climb or sit on this unit. Be especially
careful when children are around. The unit may be
damaged, or may fall over causing injury.
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which
requires repair will be charged for even during the
warranty period.
K041_En
English
XRC3384B_En_S-RS3SW.fm
1
background image
ACCESSORY ITEMS
·Power cable
Taiwan, Mexico, Middle Latin America models x 2
All other models x 1
·RCA plug cord x 1
· Operating instructions
FEATURES
n 150 W (Taiwan model)/180 W (all other models) (RMS) power with AB
class amplifier that serves audio and video software playback such
as Dolby Digital with a wide dynamic range.
n Equipped with 30 cm driver
n Crossover frequency can be set to 50 Hz to 200 Hz.
IN COMBINATION WITH SPEAKERS
The frequency characteristics of the S-RS3SW combined with small-
size speakers are shown below. As shown in these figures, the low
frequency range is improved.
· These special characteristics are obtained in an echoless chamber.
The effect of an additional S-RS3SW in an ordinary listening room is
better than the chart indicates when positioned adequately.
· With playback of Dolby Digital, establishment of a special channel
for the subwoofer is recommended; and with playback of LFE (Low
Frequency Effect: sound effect like the rumbling of the earth, whose
purpose is to intensify the force of the video), the S-RS3SW is
especially effective.
INSTALLATION
Speaker Installation
·
Subwoofer Installation Criteria
1 Left speaker
2 Right speaker
3 Recommended
installation range
for the subwoofer
4 Listening position
The subwoofer plays back the bass in monaural, making use of the fact
that the human ear is not very sensitive to the direction of low-pitched
sound. Because of this, the subwoofer can be installed almost
anywhere. If it is installed too far away, however, the sound from the
other speakers may become unnatural.
·
An example of speaker positioning
1
Front left speaker
2
Center speaker
3
Front right speaker
4Subwoofer
5
Listening area
6
Rear left speaker
7
Rear right speaker
NOTES:
· Position the left and right channel speakers at equal distances from
the TV set and approximately 1.8 meters from each other.
· Install the center speaker above or below the TV so that the sound of
the center channel is localized at the TV screen.
· The rear (surround) speakers are most effective when installed in
parallel locations directly to the side, or slightly behind, the listener,
at a level about 1 meter above the listener's ears.
Installation Precautions
· Do not attach the subwoofer to the wall or ceiling. They may fall off
and cause injury.
· Install the unit in a well-ventilated location where it will not be
exposed to high temperatures and high humidity.
· Do not place the unit near stoves or other heating equipment or at
locations exposed to direct sunlight, as these can have an adverse
effect on the cabinet and internal components. Also, do not install
the unit where there is too much dust or high humidity, as these can
cause malfunctioning or breakdowns. (Avoid cooking tables and
other locations where the unit would be exposed to heat, steam and
soot.)
· Do not place heavy or large objects on top of the speaker. Doing so
could provoke the speaker to fall, causing damages or bodily injury.
If speakers fall from their installation locations, they may suffer
irreparable cracks in their finish.
· Keep the unit away from devices such as cassette decks which are
sensitive to magnetic fields.
· Do not place the speaker on an unstable surface, as doing so may
cause the speaker to fall and cause damage or bodily injury.
· Do not place cups, glasses, or other containers with fluids on top of
the units, since the units may be damaged if the liquid spills.
· The installation location selected should have a sturdy floor surface.
Mounting the speaker on a long-pile carpet should be avoided, since
the carpet may touch the driver's diaphram, causing distorted
sound.
· Please install this unit away from the antenna cable of the tuner, as
noise can be caused with installation close to the antenna cable. In
such a case, use this unit at a position away from the antenna and
the antenna cable, or when playback of extra bass is not required,
switch off the power for this unit.
Small-size speakers + S-RS3SW
Small-size speaker
FREQUENCY (Hz)
RESPONCE
(dB)
3
12
4
1
4
2
3
67
5
CAUTION:
When installing the center speaker on top of the TV, be sure to
secure it with tape or some other suitable means.
Otherwise, the speaker may fall from the TV due to external shocks
such as earthquakes, and it may lead to endangering those nearby
or damaging the speaker.
The subwoofer is not magnetically shielded and so should not be
placed near a TV or monitor. Magnetic storage media (such as
floppy discs and tape or video cassettes) should also not be kept
close to the subwoofer.
MAINTENANCE OF EXTERNAL SURFACES:
· Clean the surface by wiping with a soft, dry cloth.
· When the surfaces are very dirty, wipe with a soft cloth dipped in
some neutral cleanser diluted five or six times with water, and
wrung out well, and then wipe again with a dry cloth. Do not use
furniture wax or cleaners.
· Never use thinners, benzine, insecticide sprays and other
chemicals on or near this unit, since these will corrode the
surfaces.
PANEL FACILITIES
FRONT PANEL
REAR PANEL
1 Power Indicator (POWER ON)
Lights green when the power has been switched ON.
NOTE:
· If you are planning on switching the unit OFF for a long period of
time, make sure to check that the indicator light has gone out after
switching OFF.
2 Power switch (POWER)
Switches the subwoofer between ON and OFF.
3 Volume knob (VOLUME)
Sets the subwoofer volume.
· Turn the knob slowly from the MIN position.
· With this unit, the bass level can be independently set, so do not
turn up the bass on the AV amplifier.
4 Crossover knob (CROSSOVER)
When using the subwoofer, set the upper frequency limit for the
subwoofer (
50 Hz to 200 Hz) so that it complements the output from
your other speakers.
When using the bass management features of an AV receiver, set to
BYPASS ON in order to use the low-pass filter of the AV receiver for
high quality sound.
5 Bypass switch (BYPASS)
When set to
ON, the audio signal is routed directly to the woofer unit,
bypassing the amplifier's filter.
6 Phase switch (PHASE 0º /180º)
When set to
180º, the output phase becomes the reverse of the input
signal, and when set to
0º, it is in the same phase as the input signal.
· Normally, the switch is set to
0º.
But when the sound connection between the subwoofer and the
left and right speakers sounds unnatural, try switching to
180º
and set the switch in the position where the sound is natural.
· When using two or more subwoofers together, make sure that the
phase switch of all of them are set to the same position.
7 Line Level Input terminal (LINE LEVEL INPUT)
Connect to the SUBWOOFER PREOUT terminal of an amplifier or
receiver, with the specially provided RCA plug cord.
8 Line Level Output terminal (LINE LEVEL OUTPUT)
Used for connecting other equipment through the amplifier. The
signal output from this jack is not affected in any way by the settings
of the various controls on the unit.
9AC IN
· Connect the power cord to the powered subwoofer unit's AC IN.
· Connect the power cord to a AC socket.
CONNECTIONS
Before making or changing any connections, switch off the power
and disconnect both this unit and the amplifier/receiver from the
AC outlet.
LINE LEVEL CONNECTION
This connection is for an amplifier or receiver equipped with a
SUBWOOFER PREOUT terminal. Connect to the LINE LEVEL INPUT
terminal on this unit, using the specially provided RCA plug cord.
NOTE:
· When connected to the
PREOUT terminal for surround center
channel on the amplifier or receiver, the bass is heard only on the
center channel, so it will be insufficient.
OPERATION
For details regarding operating part functions, refer to PANEL
FACILITIES above.
1. Turn the POWER switch (2) ON.
· If the unit's power cord is connected to a switched AC outlet on
the amplifier or receiver and the switch is left ON, the unit can be
turned ON/OFF together with the amplifier or receiver.
· If the unit cannot be connected to the amplifier or receiver, turn
the power to the amplifier or receiver ON before turning the power
to the unit ON. When turning the power OFF, turn the power to the
unit OFF before turning the power to the amplifier or receiver OFF.
2. Operate the amplifier or receiver and adjust the volume of the
other speakers.
3. Adjust the volume of the bass with the VOLUME knob (3).
· When necessary, operate the
CROSSOVER knob (4) and PHASE
switch (
6), and then adjust with the VOLUME knob (3).
4. Turn the POWER switch (2) OFF.
·The power indicator disappears.
1
POWER ON
POWER
VOLUME
MAX
MIN
AC IN
ON
OFF
200 Hz
50 Hz
CROSSOVER
BYPASS
PHASE
LINE LEVEL
INPUT
OUTPUT
3
5
7
4
6
8
9
2
Rear Panel
Supplied RCA plug cord
TROUBLESHOOTING
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the
points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the
trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your dealer to carry
out repair work.
SPECIFICATIONS
Cabinet ............................................................Bass-reflex, floor-standing type
Speaker..................................................................................... 30 cm cone type
Power Amplifier Continuous Power Output (RMS)
Taiwan................................................................................150 W/6
(100 Hz)
All other models................................................................200 W/6
(100 Hz)
Input (sensitivity at 100 Hz/impedance)
LINE LEVEL (RCA jack) ..............................................................175 mV/50 k
Output (Level at 100 Hz/impedance)
LINE LEVEL (RCA jack) ................................................................175 mV/1 k
Selectable CROSSOVER Frequencies ..................................... 50 Hz to 200 Hz
Outline Dimension ..........................360 mm (W) x 437 mm (H) x 455 mm (D)
Weight (without package)....................................................................... 15.2 kg
Power Requirements
Taiwan, Mexico, Middle Latin America models
........................................................................... 110 V to 127 V~, 50 Hz/60 Hz
All other models............................................... 220 V to 240 V~, 50 Hz/60 Hz
Power Consumption
Taiwan, Mexico, Middle Latin America models ...................................155 W
All other models......................................................................................184 W
Accessories
Power cable: Taiwan, Mexico, Middle Latin America models ................ x 2
All other models ...................................................................x 1
RCA plug cord...............................................................................................x 1
Operating instructions
Specifications and design subject to possible modification without
notice, due to improvements.
Published by Pioneer Corporation.
Copyright © 2008 Pioneer Corporation.
All rights reserved.
SYMPTOM
CAUSE
REMEDY
1 No power is being supplied
(Indicator does not light up when
power switch is turned on.)
· Power supply plug is not correctly
inserted.
· Insert plug securely.
2No sound
(Indicator is lit.)
· Connection of accessory RCA plug
cord is wrong or disconnected.
·
VOLUME knob is set to MIN.
· Check again and connect correctly.
· Turn clockwise slowly.
3 Sound is distorted.
· Level is too high.
· Input level is too high.
· Turn the
VOLUME knob counter-clockwise to lower the level.
· Turn the amplifier's output level (volume, bass control, bass
boost) counter-clockwise to lower the level.
4 Howling noise occurs.
· No power supplied to the amplifier.
· Subwoofer level is set too high.
· Connect an amplifier and supply power.
· Place the subwoofer a good distance from speakers. Turn the
VOLUME knob counter-clockwise to lower the volume.
5 Much noise when listening to
AM or FM broadcasts.
· The AM loop antenna or the FM indoor
antenna is close to this unit.
· Increase the distance between the AM or FM antenna (for
indoor use) and this unit.
Operating Instructions
Manual de instrucciones
S-RS3SW
POWERED SUBWOOFER
ALTAVOCES DE GRAVES SECUNDARIOS ENERGIZADOS
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_En-A
WARNING
This equipment is not waterproof. To prevent a fire
or shock hazard, do not place any container filled
with liquid near this equipment (such as a vase or
flower pot) or expose it to dripping, splashing, rain
or moisture.
D3-4-2-1-3_B_En
WARNING
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel.
D3-4-2-1-4_A_En
Before plugging in for the first time, read the following
section carefully.
WARNING
To prevent a fire hazard, do not place any naked
flame sources (such as a lighted candle) on the
equipment.
D3-4-2-1-7a_A_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
radiation (at least 25 cm at top, 15 cm at rear, and
10 cm at each side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
prevent fire hazard, the openings should never be
blocked or covered with items (such as newspapers,
table-cloths, curtains) or by operating the
equipment on thick carpet or a bed.
D3-4-2-1-7b_A_En
Operating Environment
Operating environment temperature and humidity:
+5 ºC to +35 ºC (+41 ºF to +95 ºF); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c_A_En
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-1a_A_En
CAUTION
The POWER switch on this unit will not completely
shut off all power from the AC outlet. Since the
power cord serves as the main disconnect device for
the unit, you will need to unplug it from the AC outlet
to shut down all power. Therefore, make sure the
unit has been installed so that the power cord can
be easily unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-2a_A_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement. S002*_En
Thank you for buying this PIONEER product. Please read through these operating instructions so you will know how to operate your model properly. After
you have finished reading the instructions, put them away in a safe place for future reference.
In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings.
However, the method of connecting and operating the unit is the same.
For Taiwan and Mexico exclusively
Taiwanese two pin flat-bladed plug
WARNING:
Do not climb or sit on this unit. Be especially
careful when children are around. The unit may be
damaged, or may fall over causing injury.
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which
requires repair will be charged for even during the
warranty period.
K041_En
English
XRC3384B_En_S-RS3SW.fm
1

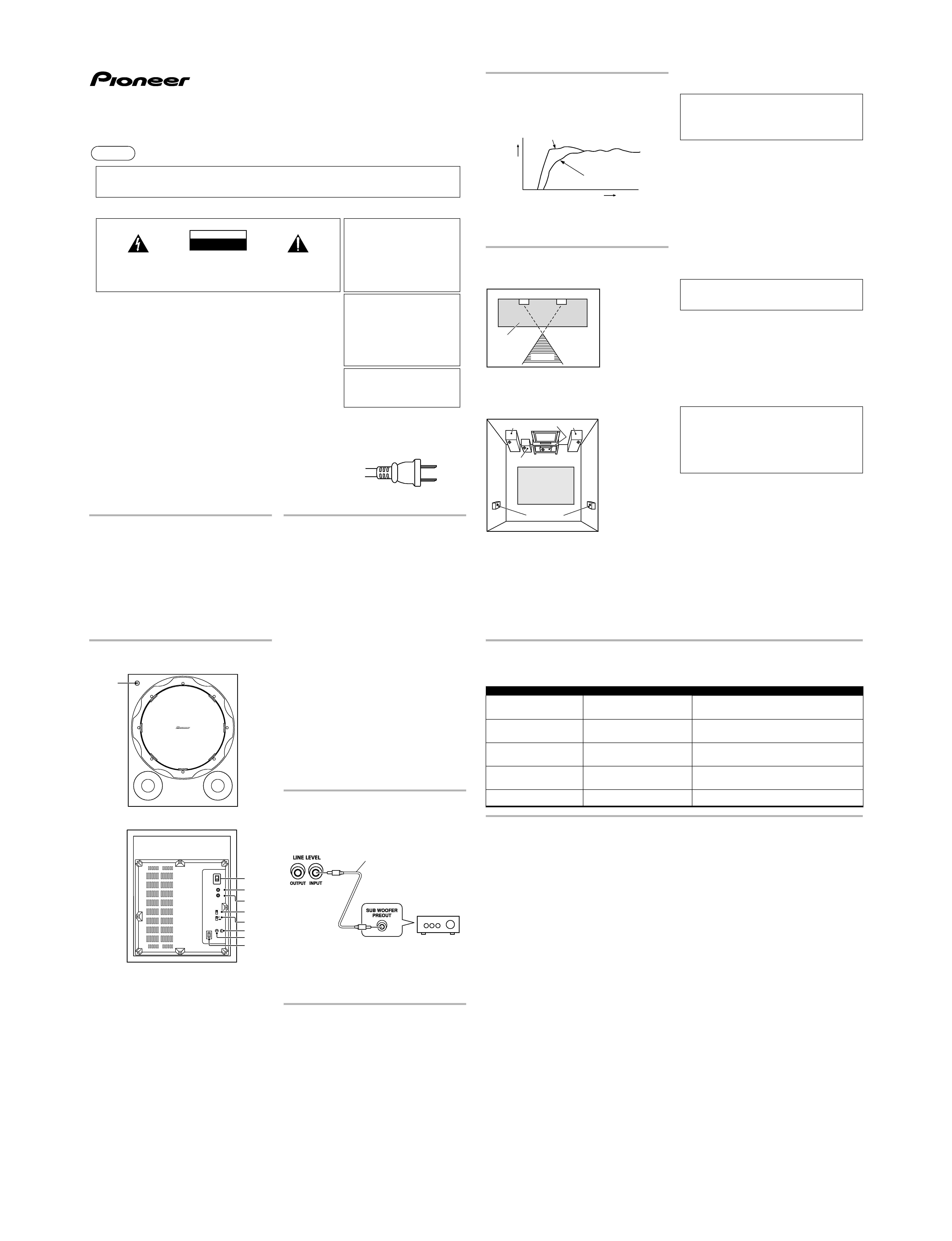

background image
ACCESORIOS INCLUIDOS
·Cable de alimentación
Taiwán, México, Latinoamérica central x 2
Todos los otros modelos x 1
· Cable de clavija RCA x 1
· Manual de instrucciones
CARACTERÍSTICAS
n 150 W (Taiwán)/180 W (Todos los otros modelos) (RMS) de potencia
con amplificador de clase AB que reproduce programas de audio y
vídeo tales como los de Dolby Digital con una amplia gama
dinámica.
n Está provisto de un excitador de 30 cm.
n La frecuencia de cruce puede ajustarse de 50 Hz a 200 Hz.
EN COMBINACIÓN CON ALTAVOCES
A continuación se muestran las características de frecuencia del
S-RS3SW combinado con altavoces de tamaño pequeño. Como se
muestra en estas figuras, la gama de frecuencias bajas es mejorada.
· Estas características especiales se obtienen en una cámara sin eco.
El efecto de un S-RS3SW en una sala de audición normal es major
que la que indica la gráfica cuando se ubica adecuadamente.
· Con la reproducción de Dolby Digital, se recomienda el establecimiento
de un canal especial para el altavoz de subgraves, y con la
reproducción de LFE (efecto de bajas frecuencias: efecto de sonido
similar al retumbar de la tierra, cuyo propósito es el de intensificar la
fuerza del vídeo), el S-RS3SW es especialmente efectivo.
INSTALACIÓN
Insalación de altavoz
·
Criterio de instalación del altavoz de subgraves
1 Altavoz izquierdo
2Altavoz derecho
3 Espacio recomendado
para la instalación
del altavoz de
subgraves
4 Posición de audición
El altavoz de subgraves reproduce los graves con sonido monofónico,
empleando el hecho de que el oído humano no es muy sensible a la
dirección de los sonidos de tono bajo. Por este motivo, el altavoz de
subgraves puede instalarse casi en cualquier lugar. Sin embargo, si se
instala demasiado alejado, el sonido de los otros altavoces puede
perder naturalidad.
·
Un ejemplo de ubicación de los altavoces
1 Altavoz izquierdo
delantero
2 Altavoz central
3 Altavoz derecho
delantero
4 Altavoz de subgraves
5 Area de audición
6 Altavoz izquierdo
trasero
7 Altavoz derecho
trasero
NOTAS:
· Ubique los altavoces de los canales izquierdo y derecho
equidistantes del televisor, y aproximadamente a 1,8 metros entre sí.
· Instale el altavoz central encima o debajo del televisor, de forma que
el sonido del canal central quede ubicado a la altura de la pantalla.
· Los altavoces traseros (envolvente) son más efectivos cuando se
instalan en ubicaciones paralelas directamente al lado, o
ligeramente detrás del oyente, en un nivel de aproximadamente
1 metro por encima de los oídos del oyente.
Precauciones de instalación
· No instale el subwoofer en la pared o en el techo. Podría caerse y
causar daños.
· Instale la unidad en un lugar bien ventilado en donde no quede
expuesta a altas temperaturas ni alta humedad.
· No coloque la unidad cerca de estufas u otros equipos de
calefacción ni en lugares expuestos a la luz directa del sol, ya que
puede tener un efecto adverso sobre la caja y los componentes
internos. No instale tampoco la unidad en donde haya mucho polvo
o alta humedad, ya que pueden ocasionarse fallas de
funcionamiento o averías. (Evite las cocinas y otros lugares en donde
la unidad quede expuesta al calor, vapor y humedad.)
· No ponga objetos pesados ni grandes sobre el altavoz. De lo
contrario podría ocasionar la caída del altavoz y sufrir daños
materiales o heridas personales. Si los altavoces se caen de las
posiciones en las que están instalados, pueden sufrir roturas
irreparables en su acabado.
· Mantenga la unidad alejada de dispositivos tales como platinas de
cassettes que son sensibles a los campos magnéticos.
· No ponga el altavoz sobre una superficie inestable, porque, de lo
contrario, el altavoz podría caerse y causar daños materiales o
heridas personales.
· No ponga tazas, vasos, ni otros tipos de recipientes con líquidos
encima de las unidades, porque si se derramase el líquido podrían
dañarse las unidades.
· El lugar de instalación seleccionado deberá tener una superficie del
piso que sea dura. Deberá evitarse el montaje del altavoz sobre una
alfombra de pelo largo, porque la alfombra podría tocar el diafragma
del excitador, y causar distorsión del sonido.
· Instale esta unidad alejada del cable de la antena del sintonizador, ya
que pueden ocasionarse ruidos con la instalación cercana al cable
de antena. En tal caso, utilice esta unidad en una posición alejada de
la antena y del cable de antena, o cuando la reproducción de sonidos
graves extras no son requeridos, deconecte la alimentación de esta
unidad.
Altavoces de tamaño pequeño + S-RS3SW
Altavoz de tamaño pequeño
Frecuencia (Hz)
RESPUEST
A
(dB)
3
12
4
1
4
2
3
67
5
ATENCIÓN:
Al instalar el altavoz central sobre el TV, procure asegurarlo con
algún medio que evite su posible caída.
De lo contrario, podría caer debido a sacudidas externas como
temblores de tierra, provocando daños a las personas próximas o el
propio altavoz.
El subwoofer no incorpora protección magnética y, por lo tanto, no
se debe colocar cerca de un televisor o monitor. Tampoco se deben
dejar cerca del subwoofer soportes de almacenamiento
magnéticos tales como los disquetes, casetes y cintas de vídeo.
MANTENIMIENTO DE LAS SUPERFICIES EXTERNAS:
· Limpie la superficie frotándola con un paño suave y seco.
· Cuando la superficie esté muy sucia, limpie con un paño
humedecido en agente limpiador neutro diluido cinco o seis
veces en agua, exprima bien, y luego vuelva a frotar con un paño
seco. No utilice ceras o agentes limpiadores para muebles.
· No utilice diluyentes, bencinas, rociadores de insecticidas ni
otros agentes químicos sobre ni cerca de esta unidad, ya que
pueden corroer las superficies.
ELEMENTOS DEL PANEL
PANEL DELANTERO
PANEL TRASERO
1 Indicador de la alimentación (POWER ON)
Se enciende en verde cuando se conecta la alimentación.
NOTA:
· Si se propone desconectar la alimentación de la unidad durante
períodos largos de tiempo, verifique que se haya apagado la luz del
indicador después de desconectar la alimentación.
2 Interruptor de alimentación (POWER)
Para conectar y desconectar la alimentación del altavoz de
subgraves.
3 Perilla de volumen (VOLUME)
Ajusta el volumen del altavoz de subgraves.
· Gire la perilla lentamente desde la posición MIN.
· Con esta unidad, podrá ajustar independientemente el nivel de los
graves para no tener que incrementar los graves en el
amplificador audiovisual.
4 Perilla de cruce (CROSSOVER)
Cuando emplee el altavoz de subgraves, ajuste el límite de
frecuencia superior para el altavoz de subgraves (
50 Hz a 200 Hz) de
modo que complemente la salida de los otros altavoces.
Cuando emplee las características de gestión de graves de un
receptor audiovisual, ajústelo en
BYPASS ON para emplear el filtro
de paso bajo del receptor audiovisual y obtener sonido de alta
calidad.
5 Interruptor de paso directo (BYPASS)
Cuando se ajusta en
ON, la señal de audio pasa directamente a la
unidad del altavoz de graves, pasando por alto el filtro del
amplificador.
6 Interruptor de fase (PHASE 0º /180º)
Cuando se ajusta a
180º, la fase de salida pasa a ser la inversa que
la de la señal de entrada, y cuando se ajusta a
0º, está en la misma
fase que la señal de entrada.
· Normalmente, el interruptor se ajusta a
0º.
Pero cuando la conexión de sonido entre el altavoz de subgraves
y los sonidos de los altavoces derecho e izquierdo no son
naturales, trate de cambiar a
180º, y ajuste el interruptor en la
posición en donde el sonido sea natural.
· Cuando se emplean dos o más altavoces de subgraves al mismo
tiempo, asegúrese de que el selector de fase de todos ellos esté
ajustado en la misma posición.
7 Terminal de entrada de nivel de línea (LINE LEVEL INPUT)
Conéctelo al terminal de salida de preamplificador de altavoz de
subgraves (SUBWOOFER PREOUT) de un amplificador o receptor,
con el cable con clavija RCA especialmente suministrado.
8 Terminal de salida de nivel de línea (LINE LEVEL OUTPUT)
Utilizado para contectar otros equipos a través del amplificador. La
salida de la señal desde esta toma no se ve afectada de ningún modo
por los ajustes de los distintos controles del aparato.
9 Entrada de CA (AC IN)
· Conecte el cable de alimentación a la entrada AC IN de la unidad
de altavoz de subgraves alimentada.
· Conecte el cable de alimentación a una toma de corriente de CA.
CONEXIONES
Antes de realizar o cambiar cualquier conexión, desconecte la
alimentación y desenchufe esta unidad y el amplificador/receptor
de la toma de corriente de CA.
CONEXIÓN DEL NIVEL DE LÍNEA
Esta conexión es para un amplificador o receptor provisto de un
terminal
SUBWOOFER PREOUT. Conecte al terminal LINE LEVEL
INPUT de esta unidad, usando el cable de clavija RCA provisto
especialmente.
NOTA:
· Cuando se conecta al terminal
PREOUT para el canal central de
sonido Surround del amplificador o receptor, los graves sólo se oirán
por el canal central, por lo que serán insuficientes.
OPERACIÓN
Para los detalles respecto a la operación de las funciones de las partes,
refiérase al apartado ELEMENTOS DEL PANEL anterior.
1. Conecte la alimentación poniendo el interruptor POWER (2) en
ON.
· Si se conecta el cable de alimentación de la unidad a una toma de
CA activa del amplificador o receptor y se deja el interruptor en la
posición ON, la unidad podrá conectarse/desconectarse al mismo
tiempo que el amplificador o receptor.
· Si la unidad no puede conectarse al amplificador o receptor,
conecte la alimentación del amplificador o receptor antes de
conectar la alimentación de la unidad. Para desconectar la
alimentación desconecte la alimentación de la unidad antes de
desconectar la alimentación del amplificador o receptor.
2. Opere el amplificador o receptor y ajuste el volumen de los
otros altavoces.
3. Ajuste el volumen de los graves con la perilla VOLUME (3).
· Cuando sea necesario, opere la perilla
CROSSOVER (4) e
interruptor
PHASE (6), y luego ajuste con la perilla VOLUME (3).
4. Desconecte la alimentación poniendo el interruptor POWER (2)
en OFF.
· Desaparecerá el indicador de la alimentación.
1
POWER ON
POWER
VOLUME
MAX
MIN
AC IN
ON
OFF
200 Hz
50 Hz
CROSSOVER
BYPASS
PHASE
LINE LEVEL
INPUT
OUTPUT
3
5
7
4
6
8
9
2
Panel trasero
Cable de clavija RCA suministrado
SOLUCIÓN DE PROBLEMAS
Las operaciones incorrectas son a menudo confundidas por averías o fallas en el funcionamiento. Si piensa que algo está fallando con este
componente, compruebe los puntos siguientes. Algunas veces el problema puede estar en otro componente. Revise los otros componentes y
aparatos eléctricos que se están usando, si el problema no puede resolverse aun luego de realizar las comprobaciones listadas a continuación,
solicite a su concesionario o centro de servicio autorizado PIONEER para que lleve a cabo el trabajo de reparación.
ESPECIFICACIONES
Caja acústica ........ Reflejo de graves, tipo de colocación vertical en el suelo
Altavoz ................................................................................. Tipo cono de 30 cm
Salida de potencia continua (eficaz) del amplificador de potencia
Taiwán................................................................................150 W/6
(100 Hz)
Todos los otros modelos ..................................................200 W/6
(100 Hz)
Entrada (sensibilidad en 100 Hz/impedancia)
Nivel de línea (LINE LEVEL) (toma RCA)..................................175 mV/50 k
Salida (nivel a 100 Hz/impedancia)
Nivel de línea (LINE LEVEL) (toma RCA)....................................175 mV/1 k
Frecuencias de cruce (CROSSOVER) seleccionables ............ 50 Hz a 200 Hz
Dimensiones exteriores ............... 360 mm (An) x 437 mm (Al) x 455 mm (Pr)
Peso (sin embalaje) ................................................................................. 15,2 kg
Alimentación
Taiwán, México, Latinoamérica central
............................................................................ 110 V a 127 V~, 50 Hz/60 Hz
Todos los otros modelos .................................. 220 V a 240 V~, 50 Hz/60 Hz
Consumo de energía
Taiwán, México, Latinoamérica central ................................................155 W
Todos los otros modelos ........................................................................184 W
Accesorios
Cable de alimentación: Taiwán, México, Latinoamérica central ............ x 2
Todos los otros modelos .....................................x 1
Cable de clavija RCA ...................................................................................x 1
Manual de instrucciones
Las especificaciones y diseño están sujetos a posibles cambios sin
previo aviso, debido a mejoras en el producto.
Publicado por Pioneer Corporation.
Copyright © 2008 Pioneer Corporation.
Todos los derechos reservados.
Síntoma
Causa
Solución
1 No hay suministro de
alimentación
(el indicador no se ilumina
cuando se conecta el interruptor
de alimentación.)
· El enchufe de suministro de energía no
está correctamente insertado.
· Inserte correctamente el enchufe.
2No hay sonido
(indicador iluminado)
· La conexión del cable con clavija RCA
es incorrecta o está desconectado.
· La perilla
VOLUME está fijada en MIN.
· Compruebe de nuevo y conecte correctamente.
· Gire hacia la derecha lentamente.
3 Sonido distorsionado.
· El nivel está muy alto.
· El nivel de entrada está muy alto.
· Gire la perilla
VOLUME hacia la izquierda para disminuir el
nivel.
· Gire el nivel de salida del amplificador (volumen, control de
graves, refuerzo de graves) hacia la izquierda para disminuir
el nivel.
4 Se produce sonidos de alta
frecuencia.
· No se suministra alimentación al
amplificador.
· El nivel de altavoz de subgraves está
ajustado demasiado alto.
· Conecte un amplificador y conecte la alimentación.
· Coloque el altavoz de subgraves a una buena distancia de los
altavoces. Gire la perilla
VOLUME hacia la izquierda para
disminuir el volumen.
5 Demasiado ruido cuando se
escucha emisiones de AM o FM.
· La antena de cuadro de AM o la antena
interior de FM está muy cerca de la
unidad.
· Aumente la distancia entre la antena de AM o FM (para uso
interior) y esta unidad.
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901, 905-479-4411
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: (03) 9586-6300
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270
K002_B_En
Printed in
<XRC3384-B>
Gracias por la adquisición de este producto PIONEER. Para saber cómo utilizar correctamente su modelo, lea cuidadosamente este manual de
instrucciones. Después de haber finalizado su lectura, guárdelo en un lugar seguro para futuras referencias.
En algunos países o regiones, la forma de la clavija de alimentación y de la toma de corriente pueden ser diferentes a la indicada en las ilustraciones
explicatorias, sin embargo el método de conexión y operación de la unidad es idéntico.
Exclusivamente para Taiwán y México
Clavija de dos cuchillas planas de Taiwán
El punto exclamativo dentro un triángulo
equilátero convenido para avisar el usuário
de la presencia de importantes
instrucciones sobre el funcionamiento y la
manutención en la libreta que acompaña el
aparato.
La luz intermitente con el símbolo de punta
de flecha dentro un triángulo equilátero.
Está convenido para avisar el usuario de la
presencia de "voltaje peligrosa" no aislada
dentro el producto que podría constituir un
peligro de choque eléctrico para las
personas.
IMPORTANTE
ATENCIÓN:
PARA PREVENIR EL PELIGRO DE CHOQUE
ELÉCTRICO NO REMOVER LA TAPA NI LAS
PARTES DENTRO NO UTILIZADAS,
LLAMAR UNA PERSONA CUALIFICADA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
D3-4-2-1-1_Sp
ADVERTENCIA
La tensión de la red eléctrica es distinta según el
país o región. Asegúrese de que la tensión de la
alimentación de la localidad donde se proponga
utilizar este aparato corresponda a la tensión
necesaria (es decir, 230 V ó 120 V) indicada en el
panel posterior.
D3-4-2-1-4_A_Sp
Antes de enchufar el aparato a la corriente, lea la
sección siguiente con mucha atención.
PRECAUCIÓN PARA LA VENTILACIÓN
Cuando instale este aparato, asegúrese de dejar
espacio en torno al mismo para la ventilación con el
fin de mejorar la disipación de calor (por lo menos
25 cm encima, 15 cm detrás, y 10 cm en cada lado).
ADVERTENCIA
Las ranuras y aberturas de la caja del aparato sirven
para su ventilación para poder asegurar un
funcionamiento fiable del aparato y para protegerlo
contra sobrecalentamiento. Para evitar el peligro de
incendio, las aberturas nunca deberán taparse ni
cubrirse con nada (como por ejemplo, periódicos,
manteles, cortinas) ni ponerse en funcionamiento el
aparato sobre una alfombra gruesas o una cama.
D3-4-2-1-7b_A_Sp
Entorno de funcionamiento
Temperatura y humedad del entorno de funcionamiento
+5 ºC a +35 ºC ; menos del 85 % de humedad relativa
(rejillas de refrigeración no obstruidas)
No instale este aparato en un lugar mal ventilado, ni en
lugares expuestos a alta humedad o a la luz directa del
sol (o de otra luz artificial potente).
D3-4-2-1-7c_A_Sp
PRECAUCIONES CONCERNIENTES A LA
MANIPULACIÓN DEL CABLE DE
ALIMENTACIÓN
Tome el cable de alimentación por la clavija. No
extraiga la clavija tirando del cable. Nunca toque el
cable de alimentación cuando sus manos estén
mojadas, ya que esto podría causar cortocircuitos o
descargas eléctricas. No coloque la unidad, algún
mueble, etc., sobre el cable de alimentación. Asegúrese
de no hacer nudos en el cable ni de unirlo a otros
cables. Los cables de alimentación deberán ser
dispuestos de tal forma que la probabilidad de que
sean pisados sea mínima. Una cable de alimentación
dañado podrá causar incendios o descargas eléctricas.
Revise el cable de alimentación está dañado, solicite el
reemplazo del mismo al centro de servicio autorizado
PIONEER más cercano, o a su distribuidor.
S002*_Sp
ADVERTENCIA
Este aparato no es impermeable. Para evitar el
riesgo de incendio y de descargas eléctricas, no
ponga ningún recipiente lleno de líquido (como
pueda ser un vaso o un florero) cerca del aparato ni
lo exponga a goteo, salpicaduras, lluvia o
humedad.
D3-4-2-1-3_A_Sp
ADVERTENCIA
No se suba ni se siente sobre esta unidad. Tenga
cuidado especialmente cuando haya niños en el
lugar. La unidad podría sufrir daños o podría caerse
y ocasionar heridas.
ADVERTENCIA
Para evitar el peligro de incendio, no ponga nada
con fuego encendido (como pueda ser una vela)
encima del aparato.
D3-4-2-1-7a_A_Sp
Si la clavija del cable de alimentación de CA de este
aparato no se adapta a la toma de corriente de CA
que usted desea utilizar, deberá cambiar la clavija
por otra que se adapte apropiadamente. El
reemplazo y montaje de una clavija del cable de
alimentación de CA sólo deberá realizarlos personal
de servicio técnico cualificado. Si se enchufa la
clavija cortada a una toma de corriente de CA,
puede causar fuertes descargas eléctricas.
Asegúrese de que se tira de la forma apropiada
después de haberla extraído.
El aparato deberá desconectarse desenchufando la
clavija de la alimentación de la toma de corriente
cuando no se proponga utilizarlo durante mucho
tiempo (por ejemplo, antes de irse de vacaciones).
D3-4-2-2-1a_A_Sp
PRECAUCIÓN
El interruptor de la alimentación POWER de este
aparato no corta por completo toda la alimentación
de la toma de corriente de CA. Puesto que el cable
de alimentación hace las funciones de dispositivo de
desconexión de la corriente para el aparato, para
desconectar toda la alimentación del aparato deberá
desenchufar el cable de la toma de corriente de CA.
Por lo tanto, asegúrese de instalar el aparato de
modo que el cable de alimentación pueda
desenchufarse con facilidad de la toma de corriente
de CA en caso de un accidente. Para evitar correr el
peligro de incendio, el cable de alimentación
también deberá desenchufarse de la toma de
corriente de CA cuando no se tenga la intención de
utilizarlo durante mucho tiempo seguido (por
ejemplo, antes de irse de vacaciones).
D3-4-2-2-2a_A_Sp
Este producto es para tareas domésticas generales.
Cualquiera avería debida a otra utilización que
tareas domésticas (tales como el uso a largo plazo
para motivos de negocios en un restaurante o el uso
en un coche o un barco) y que necesita una
reparación hará que cobrarla incluso durante el
período de garantía.
K041_Sp
Español
XRC3384B_Sp_S-RS3SW.fm
1

Reviews

There are no reviews of this manual yet.
