ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
RRV3361
T ­ ZZS FEB. 2006 Printed in Japan
S-FCRW2700
XTW/UC
SPEAKER SYSTEM
Sub Woofer
Center
Front
Surround
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to
properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
Front Speaker, Surround Speaker
The grille assy is attached to the cabinet by 4 screws.
To detach it, unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
Center Speaker
The grille assy is attached to the cabinet by 8 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the cable.
When attaching it, face its terminal toward the input terminal.
Subwoofer
The subwoofer is attached to the rear baffle by 4 external
screws. To detach it, unfasten those screws.
When attaching it, face its terminal rightward.
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
RRV3361
T ­ ZZS FEB. 2006 Printed in Japan
S-FCRW2700
XTW/UC
SPEAKER SYSTEM
Sub Woofer
Center
Front
Surround
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to
properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
Front Speaker, Surround Speaker
The grille assy is attached to the cabinet by 4 screws.
To detach it, unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
Center Speaker
The grille assy is attached to the cabinet by 8 external screws.
To detach it, unfasten those screws.
The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the cable.
When attaching it, face its terminal toward the input terminal.
Subwoofer
The subwoofer is attached to the rear baffle by 4 external
screws. To detach it, unfasten those screws.
When attaching it, face its terminal rightward.
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-FCRW2700
2.1 Packing
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
2. PARTS LIST
Mark No.
Description
Part No.
Packing Parts List
4
9
8
7
3
13
11
1
10
2
5
12
6
NSP
1
Front Speaker
SMW1938
NSP
2
Surround Speaker
SMW1939
NSP
3
Center Speaker
SMW1940
NSP
4
Subwoofer
SMW1941
NSP
Model Label (FL)
SAN3849
NSP
Model Label (FR)
SAN3850
NSP
Model Label (SL)
SAN3851
NSP
Model Label (SR)
SAN3852
NSP
Model Label (C)
SAN3853
NSP
Model Label (SW)
SAN3854
NSP
5
Accessary Set
SEA1719
Speaker Cord (for center)
SDS1173
Non Skid Pad
SEP1240
(for Front, Surround, Center)
Non Skid Pad (for Subwoofer)
SEC1912
Polyethylene Bag S1
SHL1296
NSP
Bracket Set
SEA1720
NSP
Screw Set
SEA1721
Screw
BMZ50P120FNC
Polyethylene Bag S0
SHL1314
Bracket
SNN1047
Polyethylene Bag S1
SHL1429
6
Operating Guide
SRD1317
(English, French)
7
Top Protector
SHA2489
8
Middle Protector
SHA2490
9
Bottom Protector
SHA2491
10
Protection Sheet
SHC1821
11
Packing Case
SHG2739
12
Polyethylene Bag S2
SHL1417
13
Polyethylene Bag S1
SHL1419
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2700
Model Label
26
21
25
22
23 or 24
< BACK VIEW >
White with
Gray Line
White
Front Speaker Parts List
NSP
21
Cabinet
SNK2840
22
Grille
SMG1875
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1614
NSP
Baffle
SNK2843
23
Connecting Cord (White)
SDD1340
24
Connecting Cord (Red)
SDD1341
25
Speaker
K77DC55-52F
26
Screw
BPZ35P120FTB
2.2 Front Speaker
Mark No.
Description
Part No.
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
S-FCRW2700
Model Label
36
33 or 34
31
35
32
< BACK VIEW >
White
White with
Gray Line
2.3 Surround Speaker
Surround Speaker Parts List
NSP
31
Cabinet
SNK2840
32
Grille
SMG1875
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1614
NSP
Baffle
SNK2843
33
Connecting Cord (Blue)
SDD1342
34
Connecting Cord (Gray)
SDD1343
35
Speaker
K77DC55-52F
36
Screw
BPZ35P120FTB
Mark No.
Description
Part No.
background image
5
1
23
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2700
NSP
41
Cabinet
SNK2851
42
Grille
SMG1876
NSP
43
Badge 28
SAM1506
NSP
Grille Cloth
SAS1615
NSP
Baffle
SMK2852
44
Connecting Cord
SDD1345
45
Packing (size: 4 x 75)
SEC1913
46
Input Terminal
SKX1096
NSP
47
Acoustic Absorbent (White)
SMT1293
NSP
48
Acoustic Absorbent (Black)
SMV2198
49
Speaker
K77DC55-53F
50
Screw
BPZ35P080FTC
51
Screw
BPZ35P120FTB
Center Speaker Parts List

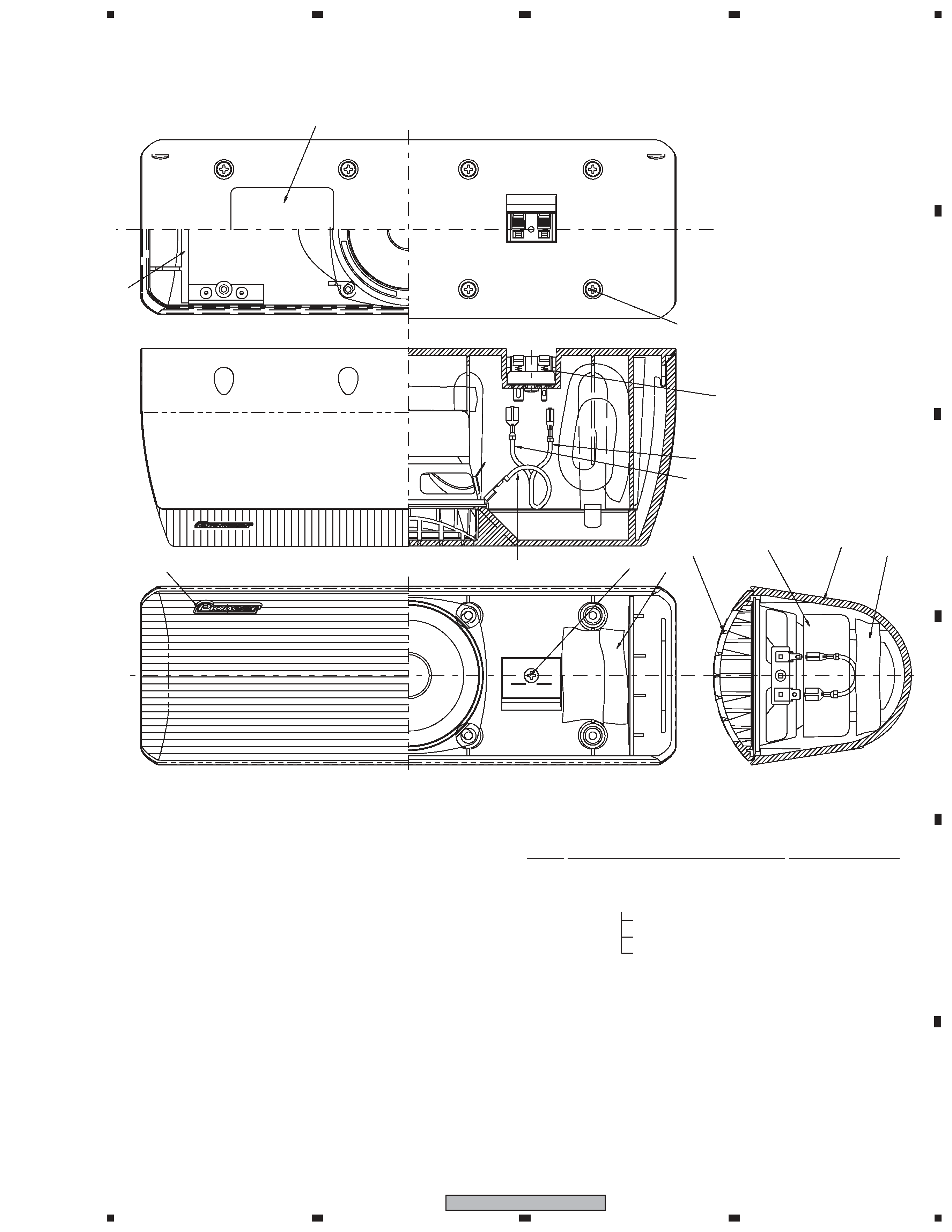

2.4 Center Speaker
48
41
49
42
46
Model Label
51
(x8)
47
(x2)
44
50
45
(x2)
43
White
Red
Mark No.
Description
Part No.
