This product is component of system.
System
Service Manual
Remarks
RRV2319
RRV2321
RRV2330
Component
XC-F10
M-F10
S-F10-LRW
S-F10-LR
S-F10-W
STEREO CD TUNER
STEREO POWER AMPLIFIER
SPEAKER SYSTEM
This service manual
(2 pieces)
(1 piece)
S-F10-LRW
XMD/EW
SPEAKER SYSTEM
SATELLITE
SUBWOOFER
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

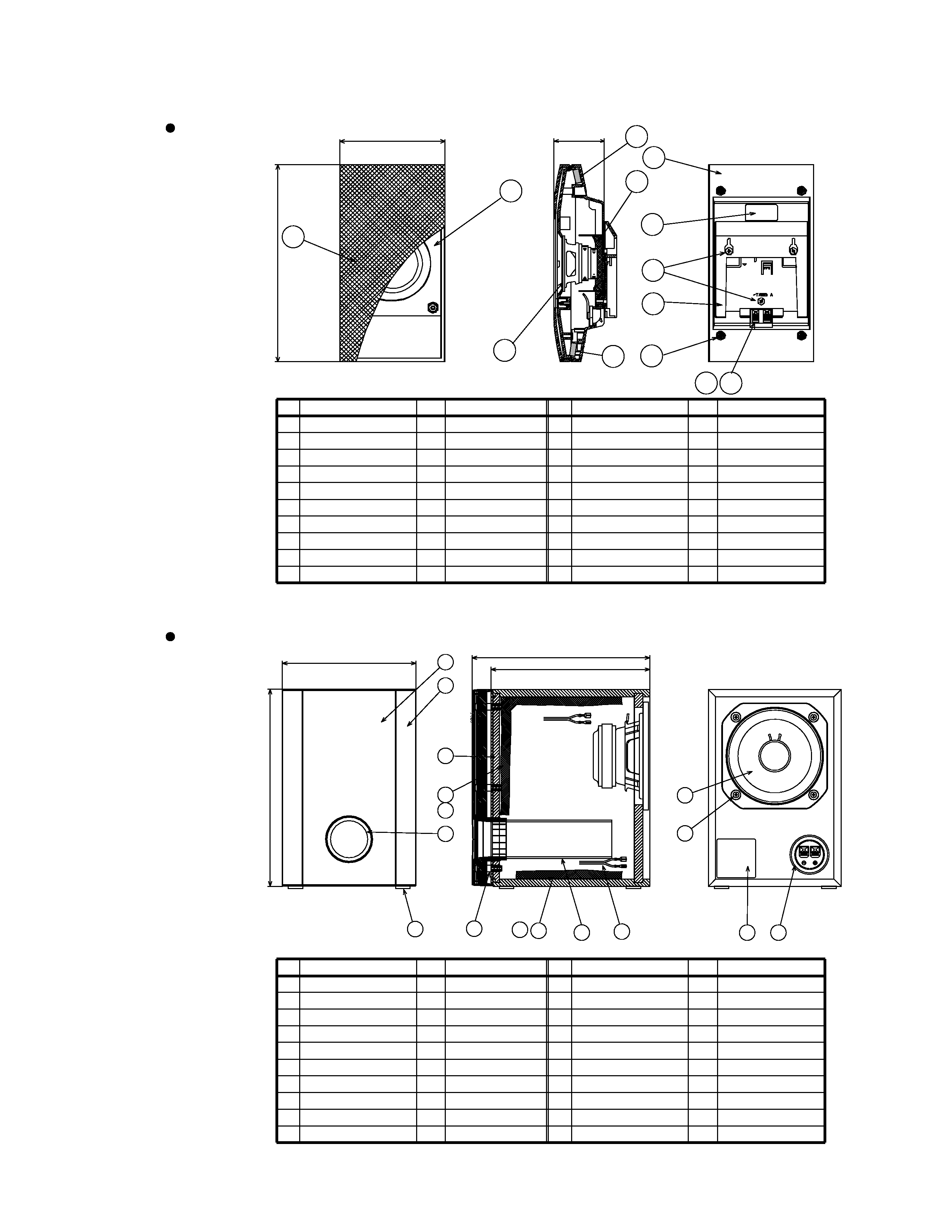

The grille is attached to the cabinet by catches.
To detach it, pull it toword you.
The speaker element is attached to the baffle by 2 external
screws. To detach it, first remove the stand. The stand is at-
tached the cabinet by 3 external screws.To detached it unfasten
those screws. Next remove the cabinet. The cabinet is attached
the baffle by 6 external screws. To detached it unfasten those
screws. Then remove the speaker element.When attaching it,
face its terminal upward.
The input terminal is attached to the cabinet by 2 internal
screws. To detach it, first remove the cabinet. Then remove the
input terminal.
The woofer is attached to the back board by 4 external screws.
To detach it, unfasten those screws. When attaching it, face its
terminal downward.
The cosmetic baffle is attached to the baffle by press-fitting.
To detach it, pry it open by inserting a flat blade screwdriver
into the lower side.
The input terminal is attached to the back board by press-fit-
ting. To detach it, pry it open by inserting a flat blade screw-
driver.

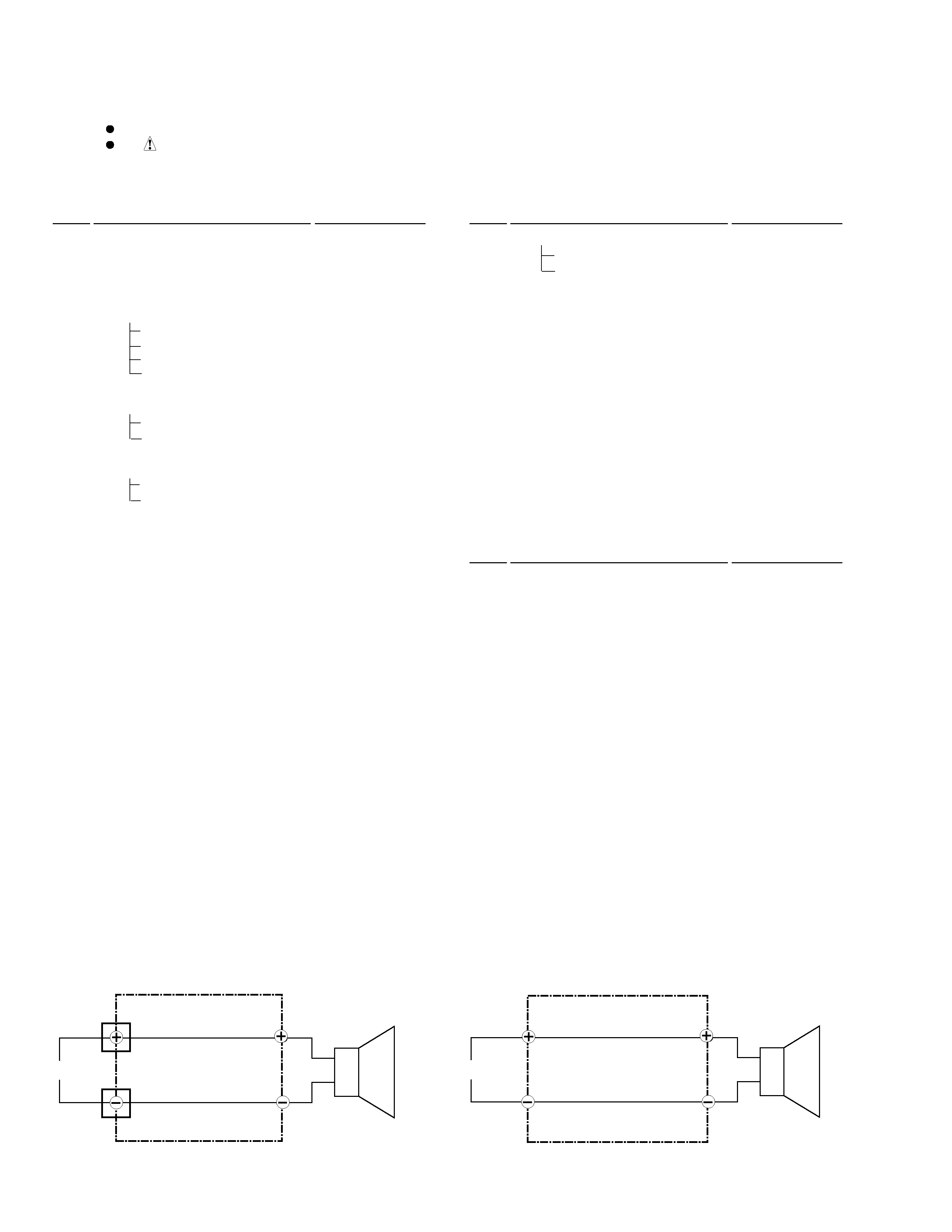

[ S-F10-W ] ( Subwoofer )
[ S-F10-LR ] ( Satellite Speaker )
