SPEAKER SYSTEM
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The grille assy is attached to the cosmetic baffle by catches.
Detach by pulling it toward you.
The catch is attached to the cosmetic baffle by press-fitting. To
detach it, insert a sharp-pointed tool like an eyeleteer into each
of side. To attach it, insert the holes of the cosmetic baffle assy
by press-fitting.
The cosmetic baffle is attached to the inner baffle by its bosses.
To detach it, pry it open by inserting a flat blade screwdriver
into lower side.
The woofer is attached to the inner baffle by 4 screws with the
screw heads facing the baffle. To detach it, first remove the cos-
metic baffle, next disconnect the cord to tweeter. Then unfasten
those screws. When attaching it, face its terminal upward.
The tweeter is attached to the cosmetic baffle by 2 internal
screws. To detach it, first remove the cosmetic baffle, next dis-
connect the cord to tweeter. Then unfasten those screws. When
attaching it, face its terminal downward.
S-EV5V
XJM/E
S-EV5V XJM/NC
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
RRV3420
T ­ ZZS JUNE 2006 Printed in Japan
SPEAKER SYSTEM
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
The grille assy is attached to the cosmetic baffle by catches.
Detach by pulling it toward you.
The catch is attached to the cosmetic baffle by press-fitting. To
detach it, insert a sharp-pointed tool like an eyeleteer into each
of side. To attach it, insert the holes of the cosmetic baffle assy
by press-fitting.
The cosmetic baffle is attached to the inner baffle by its bosses.
To detach it, pry it open by inserting a flat blade screwdriver
into lower side.
The woofer is attached to the inner baffle by 4 screws with the
screw heads facing the baffle. To detach it, first remove the cos-
metic baffle, next disconnect the cord to tweeter. Then unfasten
those screws. When attaching it, face its terminal upward.
The tweeter is attached to the cosmetic baffle by 2 internal
screws. To detach it, first remove the cosmetic baffle, next dis-
connect the cord to tweeter. Then unfasten those screws. When
attaching it, face its terminal downward.
S-EV5V
XJM/E
S-EV5V XJM/NC
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
S-EV5V
1
3 (1/2)
3 (1/2)
3 (2/2)
3 (2/2)
5
2
4

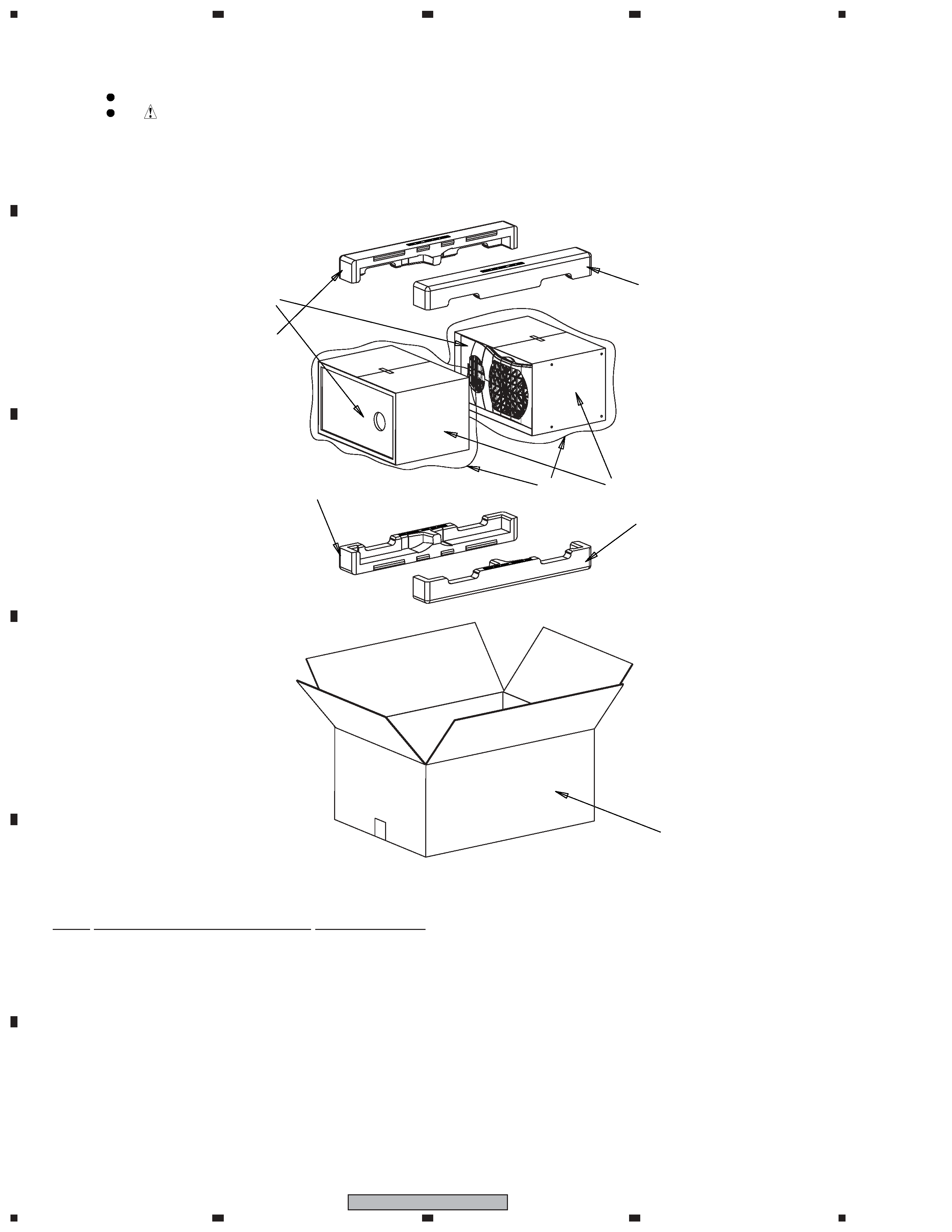

2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
Mark No.
Description
Part No.
NSP
1
Front Speaker
SMW1964
2
Protection Sheet S2
SHC1826
3
Protector
439929364105
NSP
4
Polyethylene Bag S5
SHL1430
for XJM/E type
5
Packing Case
439929334123
for XJM/NC type
5
Packing Case
439929334136
PACKING Parts List
2. EXPLODED VIEWS AND PARTS LIST
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
S-EV5V
Duct
Model Label
4
Gasket
9
8
Inner Baffle
1
5
3
2
6
Acoustic Absorbent
7
FRONT SPEAKER Parts List
Mark No.
Description
Part No.
3. SCHEMATIC DIAGRAM
Network Assy (439929113175)
2.2
µF/63 V
Long Leg
C
INPUT
Woofer
Black
Red
Black
Red
Tweeter
Short Leg
1
Speaker
A14LU80-53D
2
Screw
BRZ35P080FTC
3
Screw
BRZ40P100FTC
4
Speaker
E52AP39-63D
5
Catch
SNK2915
6
Rubber Foot
VEB1349
7
Network Assy
439929113175
8
Cosmetic Baffle
439929418935
9
Grille Assy
829929752290
2.2 FRONT SPEAKER
