ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV1988
T-ZZW AUG. 1998 Printed in Japan
SPEAKER SYSTEM
S-CR606
EW
S-CR606-H EW
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach by pull-
ing it toward you.
When replacing the woofer, do it with the product.
The tweeter is attached to the baffle by 2 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the acoustic absorbent. To detach the
cabinet, unfasten 7 external screws.
When attaching it, fit the boss on the baffle into the hollow of
the flange. When attaching it, face its large terminal forward
the woofer.
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV1988
T-ZZW AUG. 1998 Printed in Japan
SPEAKER SYSTEM
S-CR606
EW
S-CR606-H EW
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach by pull-
ing it toward you.
When replacing the woofer, do it with the product.
The tweeter is attached to the baffle by 2 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the acoustic absorbent. To detach the
cabinet, unfasten 7 external screws.
When attaching it, fit the boss on the baffle into the hollow of
the flange. When attaching it, face its large terminal forward
the woofer.
background image
2
Mark No.
Description
Part No.
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark No.
Description
Part No.
S-CR606, S-CR606-H
Network ASSY (SWN1584)

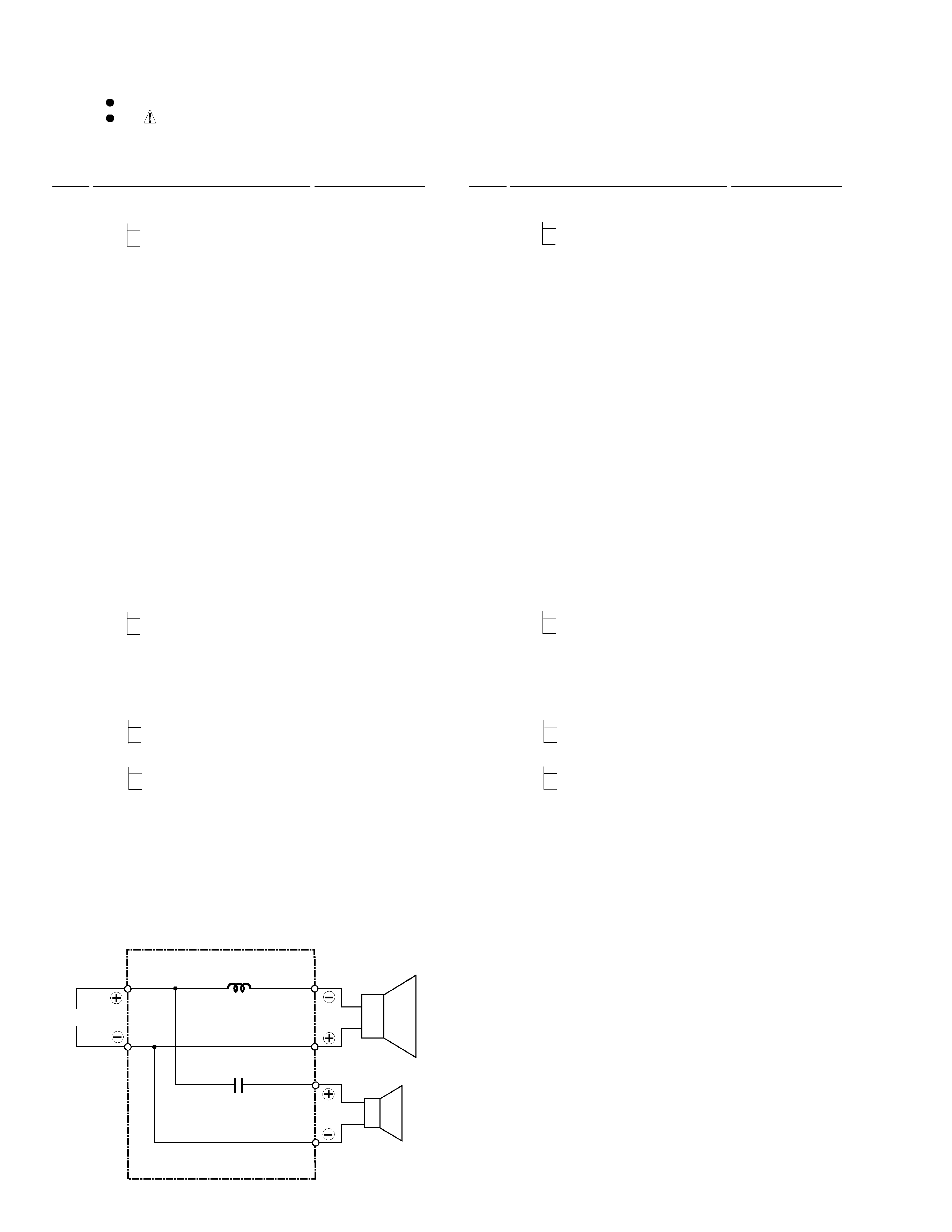

SCHEMATIC DIAGRAM FOR S-F606 AND S-F606-H
Woofer
1.0
µF
Tweeter
INPUT
Red
White
Blue
White
0.88mH
Blue
White
For Packing
PARTS LIST FOR S-CR606
PARTS LIST FOR S-CR606-H
For Packing
NSP
Cabinet
SNK2294
Grille ASSY
SMG1625
NSP
Grille Cloth
SAS1444
NSP
Grille Frame
SNK2295
NSP
Network ASSY
SWN1584
NSP
Label Back
SAN2624
Flanged Anchor Bolt
SBA1091
Serrated Flange Nut M8
SBN1002
Gasket (for Input Terminal)
SEC1392
NSP
Cushion
SEC1403
NSP
Plate
SEE1065
Input Terminal
SKX1055
NSP
Acoustic Absorbent
SMV1909
Catch
SNK1261
Felt
SED1095
NSP
Speaker (Woofer)
SWM1057
Speaker (Tweeter)
FK26AP02-53F
Screw (for Tweeter)
ATZ40P080FMC
Screw (for Terminal)
BPZ40P120FMC
Screw (for Baffle-Cabinet)
BTZ40P140FZK
NSP
Warranty Card
ARY7022
NSP
Screw ASSY
SEA1518
Screw
PMF40P250FZK
NSP
Polyethylene Bag
SHL-051
Operating Instructions
SRD1204
(English/ French/ German/ Italian/
Dutch/ Swedish/ Spanish/ Portuguese)
NSP
Speaker Wire ASSY
SEA1519
Speaker Wire
SDS1055
NSP
Polyethylene Bag S1
SHL-137
Stand ASSY
SXK1042
Spacer
SEP1193
Stand
SNK2296
Protector (Top)
SHA2118
Protector (Bottom)
SHA2119
Protection Mat S5
SHC1395
Packing Case
SHG2131
NSP
Cereal No Label
TAL-099
NSP
Cabinet
SNK2355
Grille ASSY
SMG1626
NSP
Grille Cloth
SAS1445
NSP
Grille Frame
SNK2295
NSP
Network ASSY
SWN1584
NSP
Label Back
SAN2625
Flanged Anchor Bolt
SBA1091
Serrated Flange Nut
SBN1002
Gasket (for Input Terminal)
SEC1392
NSP
Cushion
SEC1403
NSP
Plate
SEE1065
Input Terminal
SKX1055
NSP
Acoustic Absorbent
SMV1909
Catch
SNK1261
Felt
SED1096
NSP
Speaker (Woofer)
SWM1058
Speaker (Tweeter)
FK26AP02-53F
Screw (for Tweeter)
ATZ40P080FMC
Screw (for Terminal)
BPZ40P120FMC
Screw (for Baffle-Cabinet)
BTZ40P140FZK
NSP
Warranty Card
ARY7022
NSP
Screw ASSY
SEA1518
Screw
PMF40P250FZK
NSP
Polyethylene Bag
SHL-051
Operating Instructions
SRD1204
(English/ French/ German/ Italian/
Dutch/ Swedish/ Spanish/ Portuguese)
NSP
Speaker Wire ASSY
SEA1519
Speaker Wire
SDS1055
NSP
Polyethylene Bag S1
SHL-137
Stand ASSY
SXK1043
Spacer
SEP1193
NSP
Stand
SNK2357
Protector (Top)
SHA2118
Protector (Bottom)
SHA2119
Protection Mat S5
SHC1395
Packing Case
SHG2132
NSP
Cereal No Label
TAL-099
