ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
RRV2333
T-ZZM JULY 2000 Printed in Japan
This product is component of system.
S-A6800
XJI/EW
SPEAKER SYSTEM
System
Service Manual
Remarks
RRV2328
RRV2333
Component
X-A6800
XR-A6800
S-A6800
COMPACT MINI CONPONENT
STEREO CD CASSETTE DECK RECIEVER
SPEAKER SYSTEM
This service manual
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY

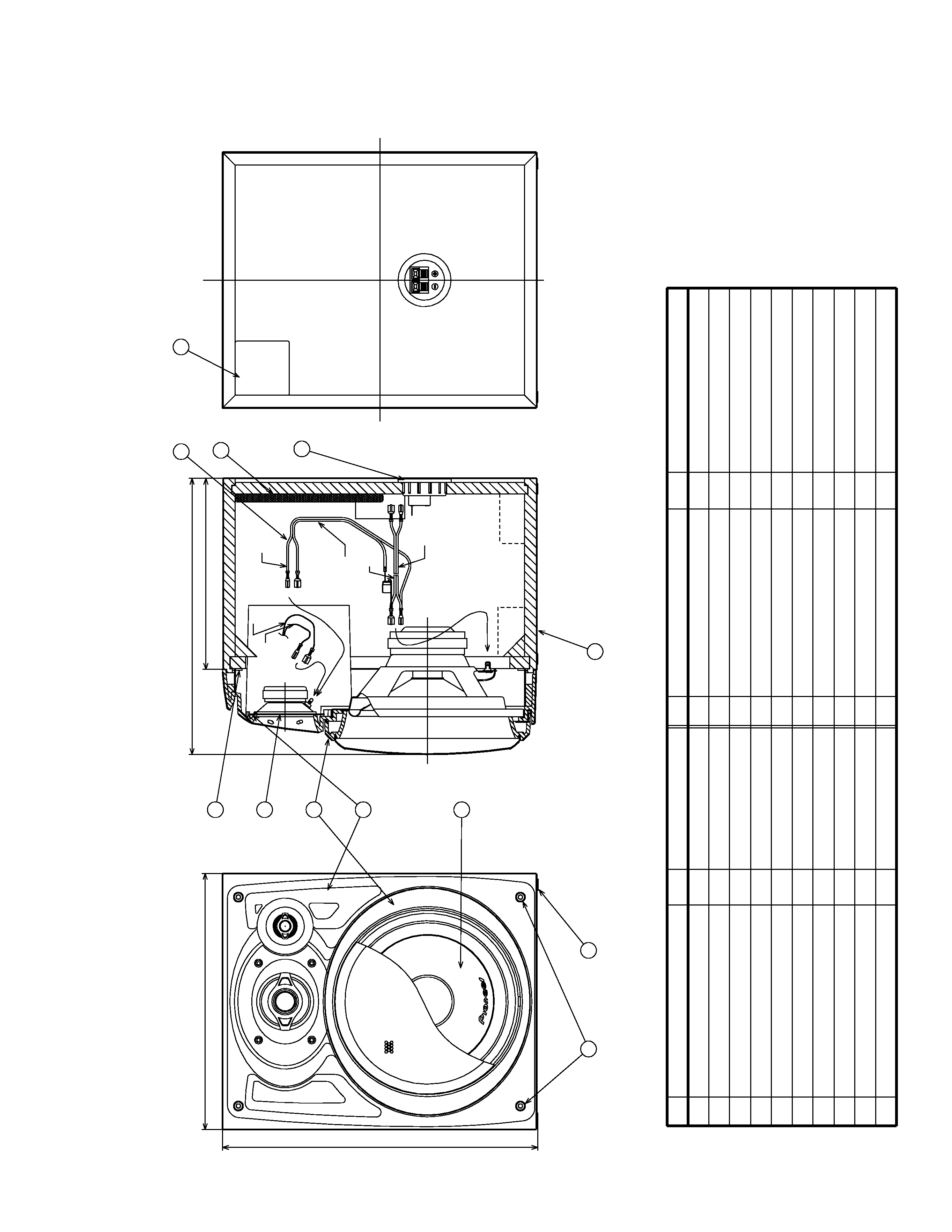

The cosmetic baffle assy is attached to the cabinet by 4 external
hexagon socket screws. To detach the cosmetic baffle assy,
loosen these screws by the hexagon screw driver. Then care-
fully disconnect the wires of the woofer and mid-range
mounted on the cosmetic baffle assy. To attach the cosmetic
baffle assy, replace it on the cabinet correctly and secure with 4
screws.
The woofer is attached to the cosmetic baffle assy together with
the cosmetic ring assy by 4 internal screws. To detach the
woofer (cosmetic ring assy), loosen these screws. To attach the
cosmetic ring assy, fit the notch of the cosmetic ring to the pro-
jection of the cosmetic baffle assy. To attach the woofer, face
its terminal downward, and fit the hole of the frame to the boss
of the cosmetic baffle assy. To attach the cosmetic ring assy
and woofer, replace it on the cosmetic baffle assy correctly and
secure with 4 screws.
The mid-range is attached to the cosmetic baffle assy by 2 in-
ternal screws. To detach the mid-range, loosen these screws.
Then carefully disconnect the wires of the tweeter mounted on
the cosmetic baffle assy by adhesion. To attach the mid-range,
replace it on the cosmetic baffle assy correctly and secure with
2 screws.

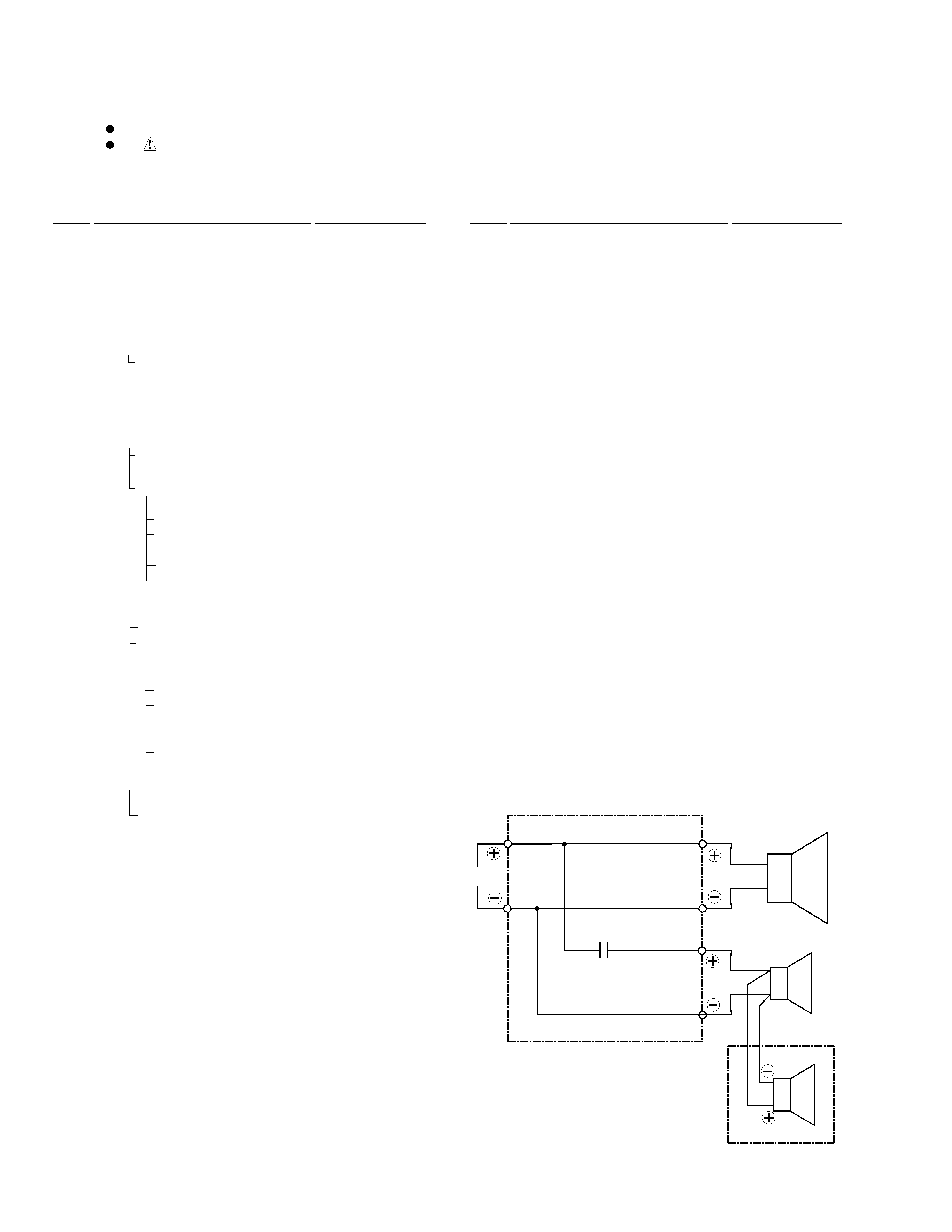

The network assy is attached to the back board of the cabinet
by press-fitting. To detach the network assy, strike the cord-
stopper of the network assy with a hammer from inside of the
cabinet. To attach the network assy, replace it on the back
board of the cabinet correctly by press-fitting.
When exchange the tweeter, do it with the cosmetic baffle
assy.
