background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
ARP3130
T ­ ZZK JUNE 2002 Printed in Japan
MULTIPROJECTION UNIT
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model No.
Order No.
Remarks
RM-V2500NA/LU/CA
ARP2913
¶ This service manual should be used together with the following manual(s):
Type
Model
Power Requirement
Remarks
RM-V2500NAS
LU/CA
AC100-120V
RM-V2500NAS
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
ARP3130
T ­ ZZK JUNE 2002 Printed in Japan
MULTIPROJECTION UNIT
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model No.
Order No.
Remarks
RM-V2500NA/LU/CA
ARP2913
¶ This service manual should be used together with the following manual(s):
Type
Model
Power Requirement
Remarks
RM-V2500NAS
LU/CA
AC100-120V
RM-V2500NAS
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
RM-V2500NAS
1. CONTRAST OF MISCELLANEOUS PARTS
jp
f
y
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
·When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560
56
× 101
561 ........................................................ RD1/4PU 5 6 1 J
47k
47
× 103
473 ........................................................ RD1/4PU 4 7 3 J
0.5
R50 ..................................................................................... RN2H R 5 0 K
1
1R0 ..................................................................................... RS1P 1 R 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k
562
× 101
5621 ...................................................... RN1/4PC 5 6 2 1 F
CONTRAST TABLE
RM-V2500NAS/LU/CA and RM-V2500NA/LU/CA are constructed the same except for the following :
Notes : For PCB ASSEMBLIES, Refer to "CONTRAST OF PCB ASSEMBLIES" and "2. SCHEMATIC DIAGRAM".
Part No.
Ref. No. Mark
Symbol and Description
RM-V2500NA
RM-V2500NAS
Remarks
/LU/CA
/LU/CA
PCB ASSEMBLIES
P5 - 3
H.V.&DEFLECTION ASSY
BWV1041
AWV1554
H.V.&DEFLECTION BLOCK
V1041A
V1554A
COMPLEX ASSY
BWV1043
AWV1555
P5 - 11
CONV.AMP ASSY
BWZ1650
AWZ6097
PACKING SECTION
P6 - 111
OPERATING INSTRUCTIONS
ARD1028
Not used
(Japanese/English/French)
P6 - 111
OPERATING INSTRUCTIONS
Not used
ARE1363
(English/French)
EXTERIOR BLOCK
NSP
NAME PLATE
AAL2302
AAL2410
NSP
UPC Code Label
AAX2704
AAX2916
CRT BLOCK
P6 - 107
CRT SERVICE ASSY(R)
BWY1014
AWY1375
NSP
CRT ASSY (R)
BWL1006
AWL1373
P6 - 108
CRT SERVICE ASSY(G)
BWY1015
AWY1373
NSP
CRT ASSY (G)
BWL1014
AWL1374
P6 - 109
CRT SERVICE ASSY(B)
BWY1016
AWY1374
NSP
CRT ASSY (B)
BWL1008
AWL1375
TUBE
Not used
BDN1001
·Parts marked by are important parts which relate in X-rays radiation.
If any of these parts need to be replaced, always replace with specified parts.
·Parts marked by " ×" are important parts which relate in X-rays radiation. If a failure occurs in any of these parts, replace
the printed
circuit board assembly where the relevant part has already been adjusted as a working component. Do not
replace the actual part itself.
If any part marked by "
×" is replaced, there is danger of being exposed to X-rays.
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
RM-V2500NAS
CONTRAST OF PCB ASSEMBLIES
AWZ6097 and BWZ1650 are constructed the same except for the following :
CONV.AMP ASSY
Mark
Symbol and Description
Part No.
Remarks
BWZ1650
AWZ6097
R4519
RN1/4PC1301F-TP
RN1/4PC1201F-TP
R4526
RS2LMF1R0J
ACN1113
(2 /1W)
R4586
Not used
ACN1113
(2 /1W)
NSP
Y4501-Y4506
Not used
YJ5HA0-06-5/5
AWV1554 and BWV1041 are constructed the same except for the following :
H.V.&DEFLECTION ASSY
Mark
Symbol and Description
Part No.
Remarks
BWV1041
AWV1554
H.V.& DEFLECTION BLOCK
V1041A
V1554A
C6023
CQPA562G2A
ACE1109
(5600pF/50V)
R6002
ACN1134
RS3LMF103J
(2.2k /5W)
R6176
ACN1135
RS3LMF222J
(1.8k /5W)
R6200
Not used
RS3LMF103J
NSP
Y6103, Y6104
Not used
YJ5HA0-14-T/T
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
RM-V2500NAS
Note : For the schematic diagram, only
the differences compared with
RM-V2500NA/LU/CA.
CONV. AMP ASSY (1/2)
(AWZ6097)
· CONV. AMP BLOCK
2. SCHEMATIC DIAGRAM
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST"
2.1 CONV.AMP ASSY
background image
5
1
23
4
1
2
3
4
C
D
F
A
B
E
RM-V2500NAS

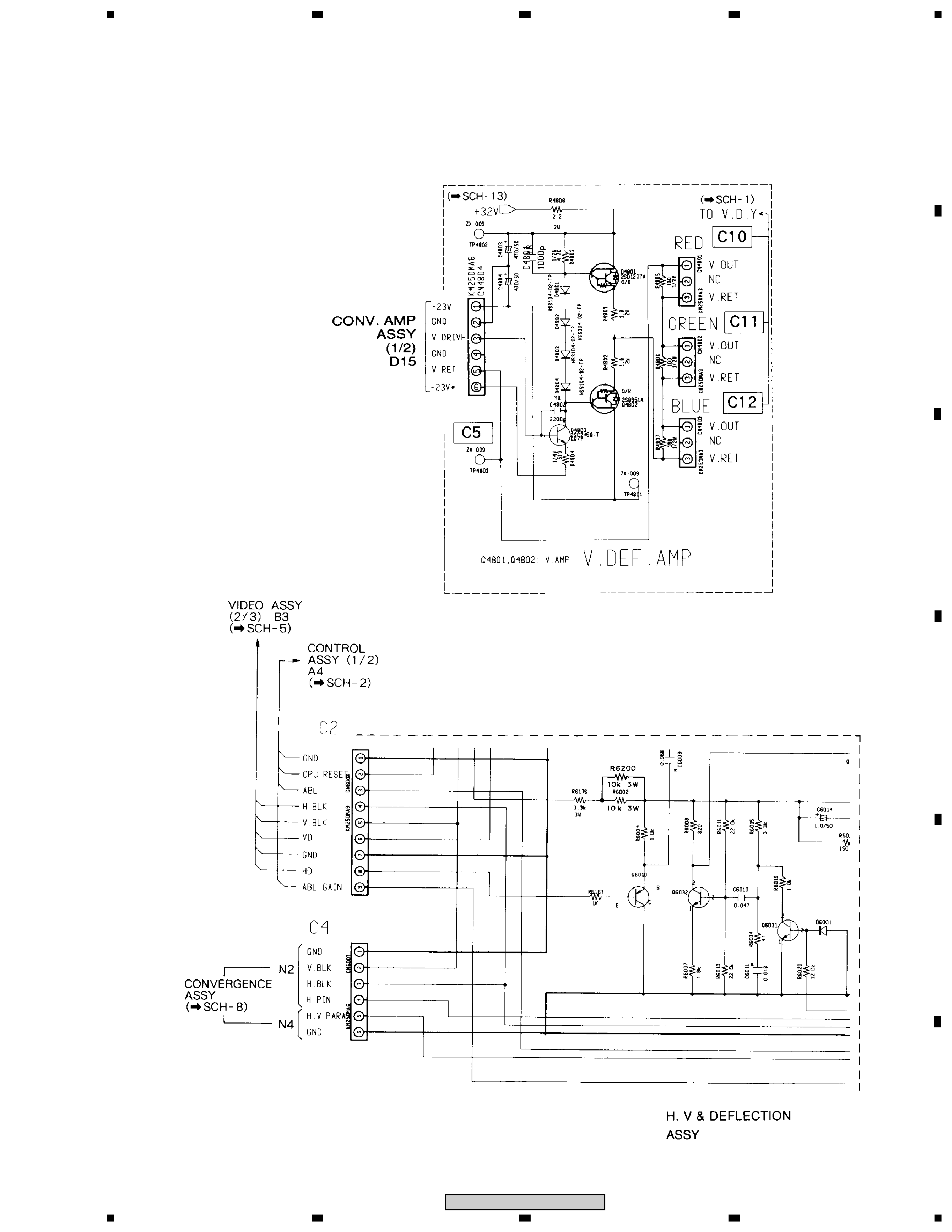

2.2 H.V.&DEFLECTION ASSY
Note : For the schematic diagram, only
the differences compared with
RM-V2500NA/LU/CA.
H.V & DEFLECTION ASSY (1/2)
(AWV1554)
· V. OUTPUT BLOCK
H.V & DEFLECTION ASSY (2/2)
(AWV1554)
· H.V & DEFLECTION BLOCK
