See the description below for details of the installation.
÷ If you install the speakers flush/air, you cannot use the
buttons on the right side of the display. Please use the
CHECKING THE ACCESSORIES
7 Speaker cable x 2
Thank you for buying this Pioneer product.
Please read through these operating instructions before
using your speaker system so you will know how to make
the most of its performance. After you have finished reading
the instructions, put them away in a safe place for future
÷ The nominal impedance of this speaker system is 8 ohms.
÷ In order to prevent damage to the speaker system
resulting from input overload, please observe the
÷ Do not supply power to the speaker system in
excess of the maximum permissable input. This
can result in damage or a possible fire hazard.
÷ When connecting or disconnecting pin-plugs, be
sure that amplifier power is OFF.
÷ When using a graphic equalizer to emphasize loud
sounds of a high frequency range, do not use
excessive amplifier volume.
÷ Do not force a low-powered amplifier to produce a
loud volume of sound (the amplifier's harmonic
distortion will be increased, and you may damage
÷ Please handle the speakers with sufficient care, as
the grille net and the cabinet can become damaged
or broken when they are subjected to strong external
÷ Placing a CRT computer screen or CRT monitor near to
the speakers may result in interference or color distortion.
If this happens, distance the monitor from the speakers.
7 Operating Instructions
7 Speaker mounting fittings (Used when installing the
speakers flush with the display)
Bracket for flush mounting (RIGHT) x 2
7 Speaker mounting fittings (used when mounting
the speaker so as to allow angle adjustment)
7 Speakers mounting screws
÷ Always use the accessory mounting fittings for
÷ When screws other than those enclosed as accessories
are used to install the speakers, the speakers may drop
off or accidents may be caused. Always use the screws
enclosed as accessories.
Notes on Installation Work:
This product is marketed assuming that it is installed by
qualified personnel with enough skill and competence.
Always have an installation specialist or your dealer install
and set up the product.
PIONEER cannot assume liabilities for damage caused
by mistake in installation or mounting, misuse,
modification or a natural disaster.

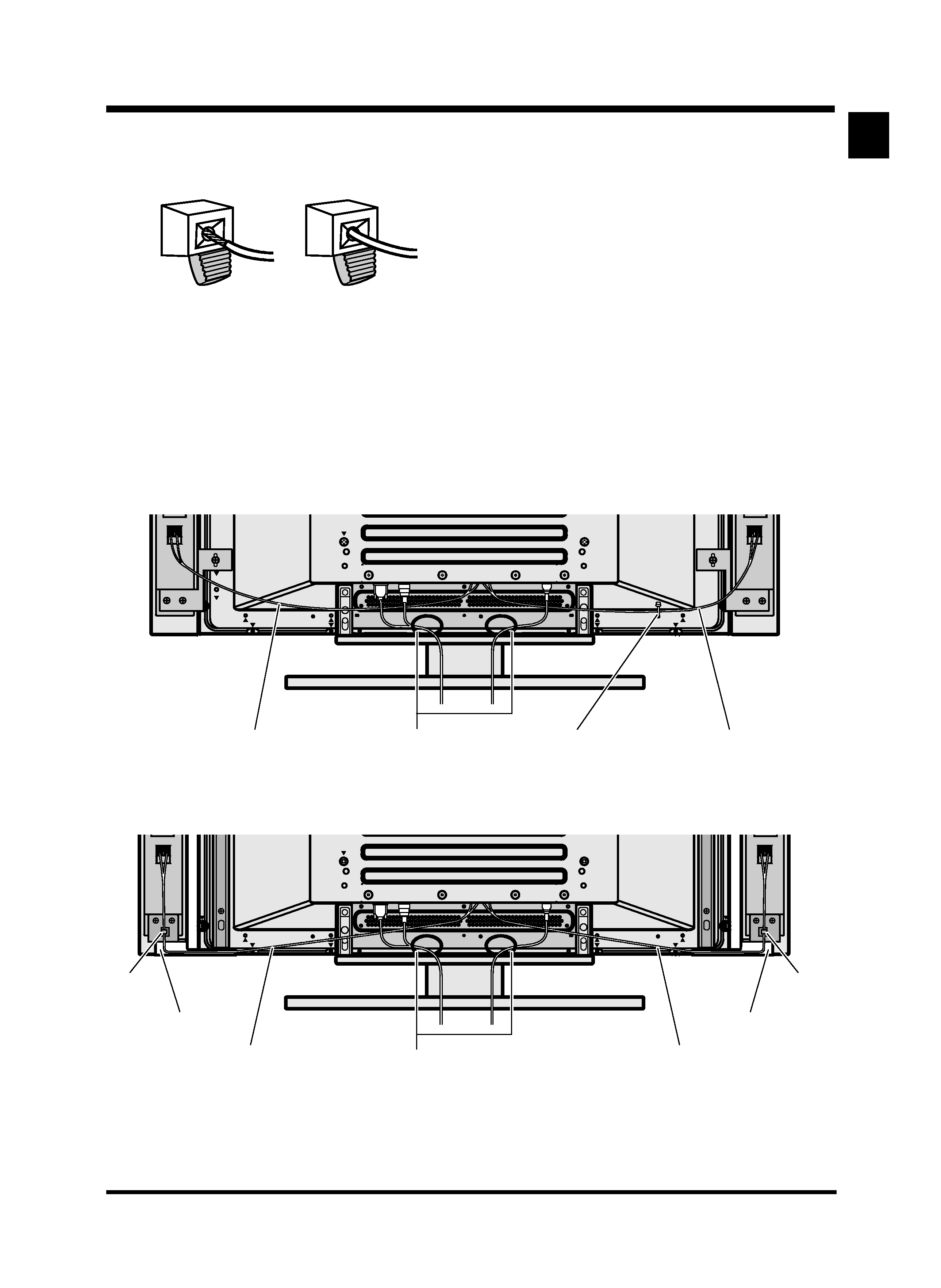

Speakers are designed to allow the two methods of
installation shown, in accordance with the user's preference:
1. Flush: Speakers are mounted flat against the sides of
the display, and fixed in position (non-adjustable).
2. Air: Speakers are mounted apart from the sides of the
display, so as to allow adjustment of their angles.
Bracket for air
mounting (R) x 1
Handling the power cord on this product or cords
associated with accessories sold with the product will
expoes you to lesd, a chemical known to the State of
California and other governmental entities to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
Bracket for flush mounting (LEFT) x 2
Bracket for air
mounting (L) x 1
Padding strip x 2
Covers (upper) x 2
Covers (lower) x 2
