Cover page of PIONEER PDP-S17-LR/XIN/WL5 Service Manual

Service Manual for PIONEER PDP-S17-LR/XIN/WL5, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 3 pages
  • File size: 0.2 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
RRV2926
T ­ ZZP APR. 2004 Printed in Japan
PDP-S17-LR
SPEAKER SYSTEM
XIN/WL
PDP-S17-LR
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the baffle by press-fitting. It is not able
to detach it.
The woofer is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws. When attaching the
woofer, face its small terminal upward.
Exchanging the woofer for a new one,attach it after applying a
new cushion [SEB1231] to woofer magnetic circut. Refer to "
PRODUCT APPEARANCE ".
The tweeter is attached to the baffle by 2 internal screws.
To detach it, unfasten those screws. When attaching it, face its
downward.
The choke coil of the Network Assy is attached to the cabinet
by an internal screw with adhesive. To detach it, unfasten its
screw.
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
RRV2926
T ­ ZZP APR. 2004 Printed in Japan
PDP-S17-LR
SPEAKER SYSTEM
XIN/WL
PDP-S17-LR
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the baffle by press-fitting. It is not able
to detach it.
The woofer is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws. When attaching the
woofer, face its small terminal upward.
Exchanging the woofer for a new one,attach it after applying a
new cushion [SEB1231] to woofer magnetic circut. Refer to "
PRODUCT APPEARANCE ".
The tweeter is attached to the baffle by 2 internal screws.
To detach it, unfasten those screws. When attaching it, face its
downward.
The choke coil of the Network Assy is attached to the cabinet
by an internal screw with adhesive. To detach it, unfasten its
screw.
65S
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other
reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDP-S17-LR
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark No.
Description
Part No.
Mark No.
Description
Part No.
For Packing
NSP
Cabinet
SNK2766
Baffle
SNK2767
Grille Assy
SMG1803
NSP
Grille Cloth
SAS1561
NSP
Grille Frame
SMH1045
Network Assy
SWN1725
Input Terminal
KKX1015
NSP
Model Label
SAN3334
Flanged Anchor Bolt
SBA1209
Serrated Flange Nut
SBN1052
Packing (for Baffle, Terminal)
SEB1228
NSP
Packing (for Baffle, Cabinet )
SEB1230
Cushion (for WooferMagnet)
SEB1231
NSP
Packing (for Cabinet)
SEB1233
Packing (for Baffle)
SEC1565
Packing (for Cabinet)
SEC1572
NSP
Acoustic Absorbent
SMV2097
Metal Reinforce
SNA1404
NSP
Label Serial (for Model Label)
SRW1083
Speaker
A142CU61-53F
Tw
FK26AP02-69F
Screw (for Tweeter)
APZ30P080FMC
Screw (for Input Terminal)
BBZ35P140FMC
Screw (for Woofer)
BPZ40P100FMC
Screw (for Baffle-Cabinet)
BPZ40P160FZB
Screw (for Choke Coil)
BPZ40P350FMC
NSP
Accessory Set
SEA1574
Sheet
SHC1779
NSP
Polyethylene Bag S0
SHL1305
Installation Board (R)
SNK2582
Installation Board (L)
SNK2583
NSP
Accessory Set
SME3272
Speaker Wire
SDS1128
NSP
Screws Set
SEA1563
Screw
CMZ50P120FZK
Bolt
SBA1210
Hexagon Wrench
SEX1021
NSP
Polyethylene Bag S1
SHL1304
NSP
Washer Set
SEA1567
NSP
Polyethylene Bag S0
KHL1081
Washer
WA80F230K200
Bracket Set
SEA1575
NSP
Polyethylene Bag S1
KHL1079
Bracket
SNA1401
Bracket (R) Set
SEA1576
NSP
Polyethylene Bag S1
KHL1079
Bracket (R)
SNA1402
Bracket (L) Set
SEA1577
NSP
Polyethylene Bag S1
KHL1079
Bracket (L)
SNA1403
NSP
Polyethylene Bag S2
SHL1309
NSP
Warranty Card Set
SME3457
NSP
Warranty Card
ARY1093
NSP
Poly Bag S1
KHL1079
NSP
Operating Instructions Set
SME3458
NSP
Poly Bag S2
SHL1309
Operating Instructions
SRD1264
(Japanese/English/French/German/Italian/Spanish/Dutch)
Protector
SHA2324
Inner Partition
SHD1049
Packing Case
SHG2534
NSP
Poly Bag S2
SHL1307
NSP
Label Serial
SRW1087
Network Assy (SWN1725)

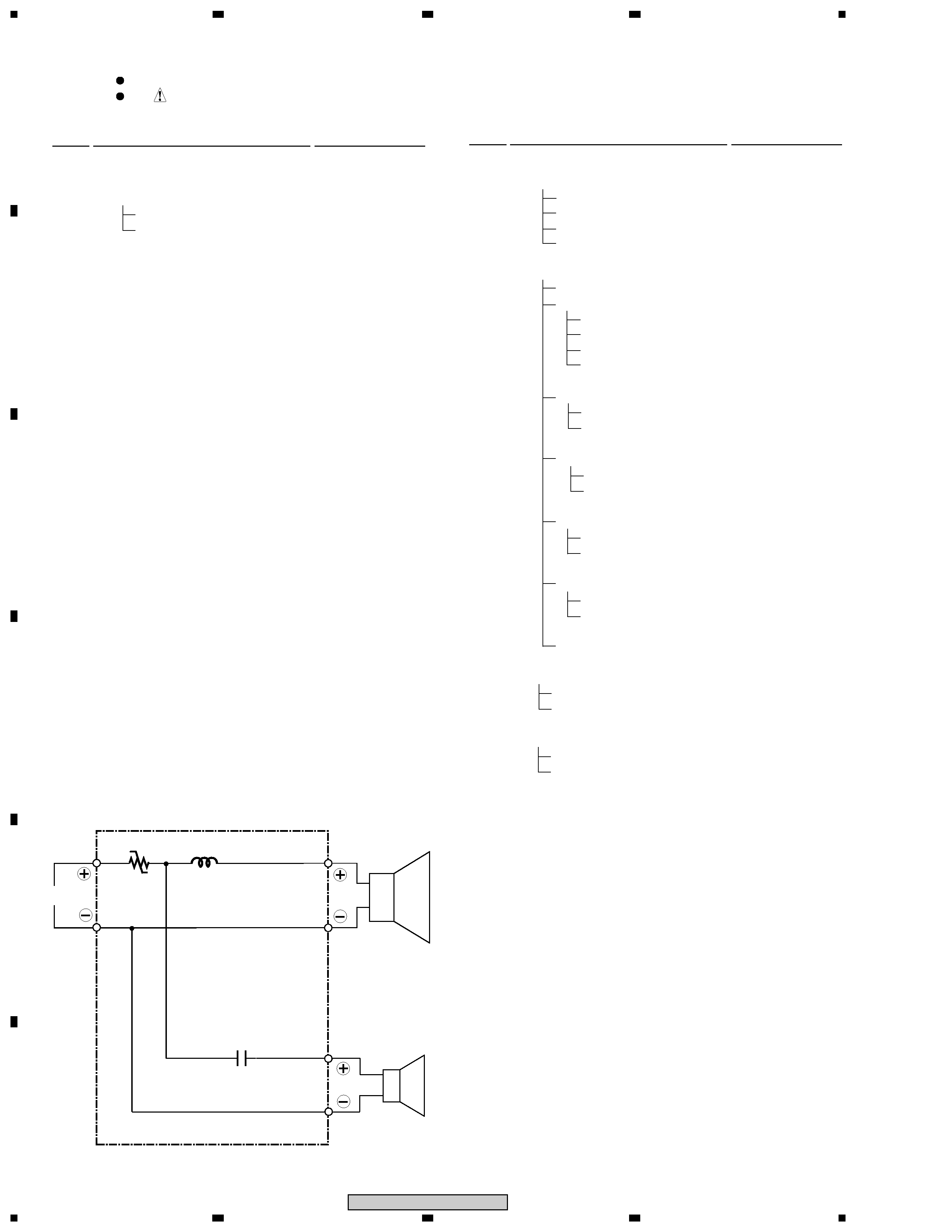

SCHEMATIC DIAGRAM
P.SW
P.SW has extreme positive resistance-temperature characteristics. (Less than 0.3ohm
at the normal temperature). If an abnormal current flows to P.SW due to an excessive
input or unusual signal, P.SW heats up and the resistance rapidly increases. With this
function, the speakers are protected from excessive input or unusual signal. The
resistance value increases even when using a soldering iron for repairing, so allow it to
cool before using.
Woofer
0.65A
I N
Red
Red
Black
Blue
White
White
Tweeter
1.8
µF/100V
P.SW
1.0mH
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
PDP-S17-LR

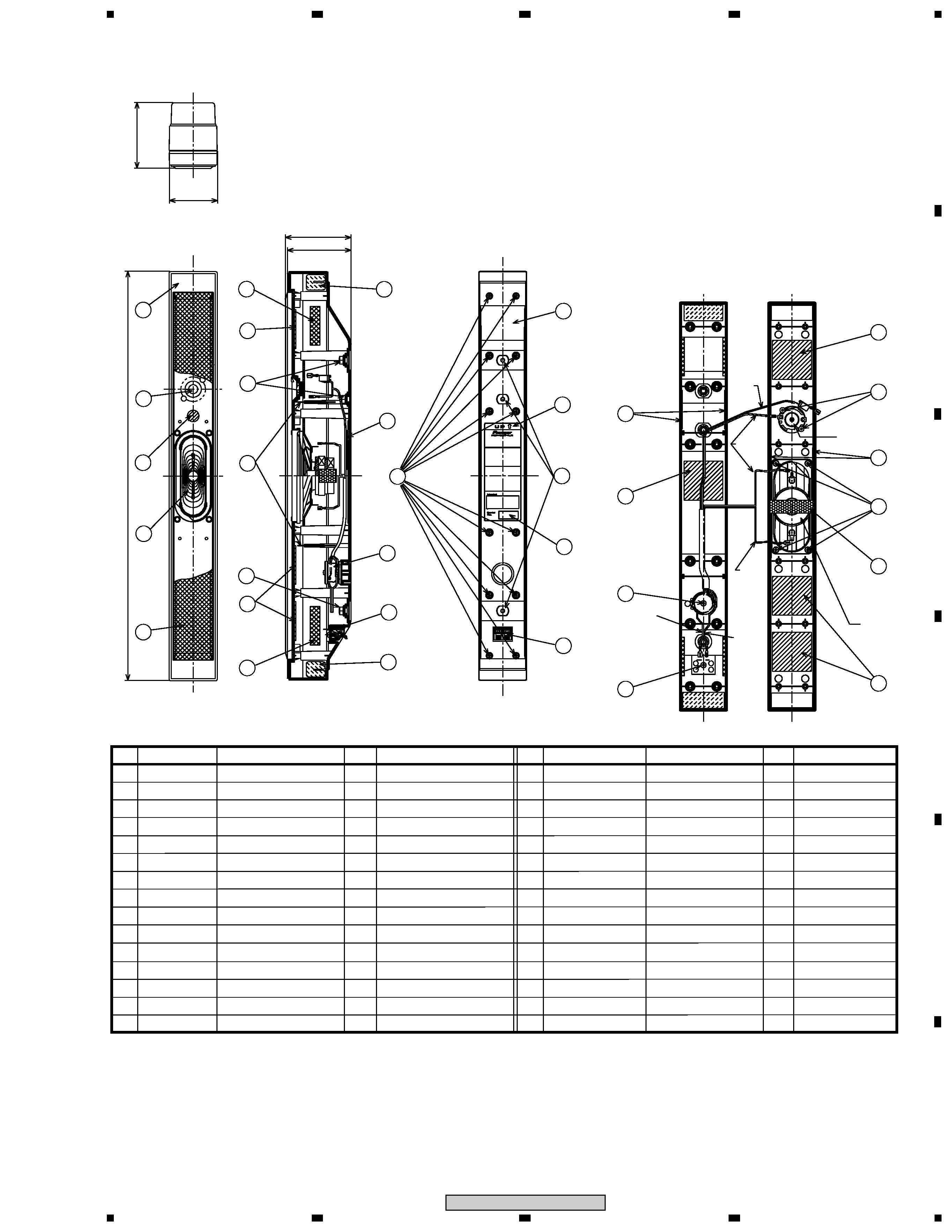

PRODUCT APPEARANCE
630
98
101
74
101
RED
RED
TWEETER
WOOFER
BLACK
WHITE
BLUE
10
20
13
21
11
10
14
16
12
10
10
18
19
16
12
10
10
23
24
1
7
8
6
9
4
5
2
3
9
5
17
22
15
No.
No.
Num.
Part name
Part No.
Num.
Part name
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1
2
1
2
1
1
3
3
4
1
4
2
2
1
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
2
1
1
1
2
4
12
1
1
Cabinet
Baffle
Metal Rinforce
Grille Assy
Packing
Network Assy
Model Label
Franged Anchor Bolt
Serrated Flange Nut
Packing
Packing
Packing
Packing
Packing
Terminal
SMV2097
SRW1083
A142CU61-53F
FK26AP02-69F
APZ30P080FMC
BPZ40P100FMC
BPZ40P160FZB
BPZ40P350FMC
BBZ35P140FMC
Acoustic Absorbent
Label Serial
Speaker
Speaker
Screw
Screw
Screw
Screw
Screw
SNK2766
SNK2767
SNA1404
SMG1803
SEB1228
SWN1725
SAN3334
SBA1209
SBN1052
SEB1230
SEB1231
SEB1233
SEC1565
SEC1572
KKX1015
Woofer
Tweeter
Tweeter
Woofer
Baffle-Cabinet
Choke Coil
Input Terminal
Baffle, Terminal
Baffle, Cabinet
Woofer
Cabinet
Baffle
Cabinet
