background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
ARP3418
T ­ ZZM SEPT. 2006 Printed in Japan
PDK-5005
PDK-5005
PDP BRACKET
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
PDP
PDP BRACKET
Model
Type
Power Requirement
Remarks
PDK-5005
WL5
­
Serial No. : FH
~
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
ARP3418
T ­ ZZM SEPT. 2006 Printed in Japan
PDK-5005
PDK-5005
PDP BRACKET
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
PDP
PDP BRACKET
Model
Type
Power Requirement
Remarks
PDK-5005
WL5
­
Serial No. : FH
~
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDK-5005
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:

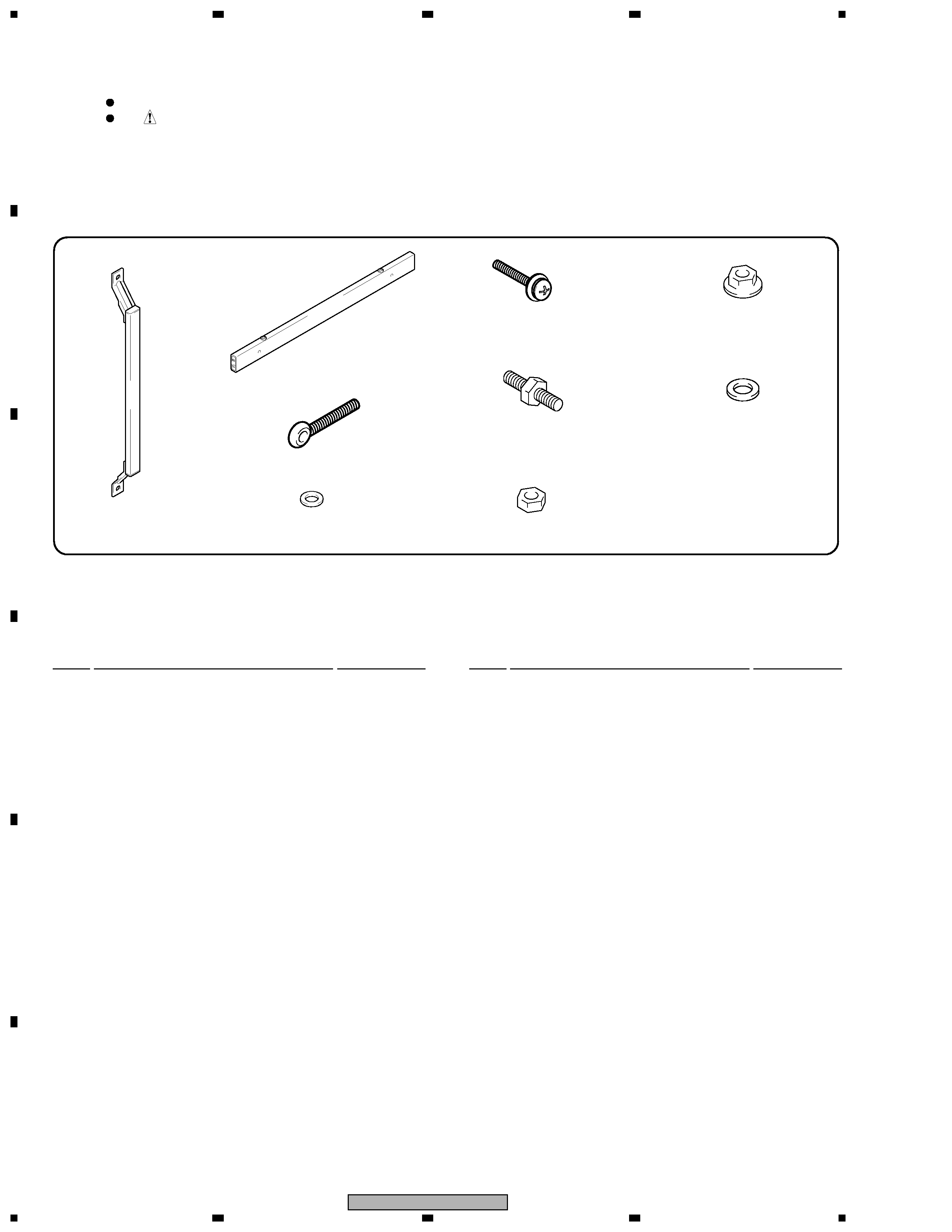

7 Confirming the Parts Provided
Prior to assembly, confirm the parts that have been provided. (Quantities are indicated in parentheses)
5 Screw with washer
M5 x 50 (8)
6 Monitor mounting bolt (4)
1 Vertical frame (2)
2 Horizontal frame (2)
3 Special eye bolt (4)
7 M8 hexagonal nut (8)
8 M8 hexagonal nut with
spring washer (8)
9 Large M8 flat washer (8)
4 Small M8 flat washer (4)
PARTS LIST
Mark No.
Description
Part No.
1
Vertical frame
AZN2405
2
Horizontal frame ASSY (UH)
AZN2403
2
Horizontal frame
AZN2404
3
Special eye bolt
AZB1513
4
Small M8 flat washer
WC80FTB
5
Screw with washer M5 x 50
AZB1515
6
Monitor mounting bolt
AZB1511
7
M8 hexagonal nut
AZB1512
8
M8 hexagonal nut with spring washer AZB1514
9
Large M8 flat washer
AZB1516
Packing Set
AZH1218
Operating Instructions
AZR1147
(Japanese, English, French,
German, Italian, Dutch, Spanish)
Document for contacting handling agent BZR1069
Warning Label
BZR1150
Mark No.
Description
Part No.
1.EXPLODED VIEW
