background image
15
Ch
English
Operating Instructions
'
POWER ON DEMO display
POWER ON DEMO display mode allows
you to see variations of the display. To
enter the POWER ON DEMO display mode,
press STANDBY/ON and then
4 1
within 1 second after turning on the power.
To cancel the POWER ON DEMO display
mode, press any button.
41
Set the line voltage selector switch to the
position of your area before connecting
the power cord. (Refer to page 2.)
Û¿X.?
Û¿X¯?
÷ This player is for consumer use. If the player is used in a
business (for example, used for a long period at a restaurant),
the player will not be covered under warranty.
÷ CD Video, VIDEO CD, CD graphics, DVD and CD-ROM discs
cannot be played with this player.
Thank you for buying this Pioneer product.
Please read through these operating instructions so you
will know how to operate your model properly. After you
have finished reading the instructions, put them away in a
safe place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings.
However, the method of
connecting and operating the unit is the same.
FILE-TYPE COMPACT DISC PLAYER
K041_En
background image
15
Ch
English
Operating Instructions
'
POWER ON DEMO display
POWER ON DEMO display mode allows
you to see variations of the display. To
enter the POWER ON DEMO display mode,
press STANDBY/ON and then
4 1
within 1 second after turning on the power.
To cancel the POWER ON DEMO display
mode, press any button.
41
Set the line voltage selector switch to the
position of your area before connecting
the power cord. (Refer to page 2.)
Û¿X.?
Û¿X¯?
÷ This player is for consumer use. If the player is used in a
business (for example, used for a long period at a restaurant),
the player will not be covered under warranty.
÷ CD Video, VIDEO CD, CD graphics, DVD and CD-ROM discs
cannot be played with this player.
Thank you for buying this Pioneer product.
Please read through these operating instructions so you
will know how to operate your model properly. After you
have finished reading the instructions, put them away in a
safe place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings.
However, the method of
connecting and operating the unit is the same.
FILE-TYPE COMPACT DISC PLAYER
K041_En
background image
2
En
CAUTION
This product contains a laser diode of higher class
than 1. To ensure continued safety, do not remove any
covers or attempt to gain access to the inside of the
product.
Refer all servicing to qualified personnel.
The following caution label appears on your unit.
CLASS 1
LASER PRODUCT
D3-4-2-1-8_En
CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. D6-8-2-1_En
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
IMPORTANT
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
D3-4-2-1-1_En
D3-4-2-1-5_En
Voltage selector
You can find the voltage selector switch on the rear
panel of multi-voltage models.
The factory setting for the voltage selector is 220-
240V. Please set it to the correct voltage for your
country or region.
· For Taiwan, please set to 110-127V before using.
Before changing the voltage, disconnect the AC power
cord. Use a medium size screwdriver to change the
voltage selector switch.
220-240V
110-127V
WARNING: Slot and openings in the cabinet are
provided for ventilation and to ensure reliable
operation of the product and to protect it from
overheating, to prevent fire hazard, the openings
should never be blocked and covered with items,
such as newspapers, table-cloths, curtains, etc. Also
do not put the apparatus on the thick carpet, bed,
sofa, or fabric having a thick pile.
D3-4-2-1-7b_En
WARNING:
BEFORE PLUGGING IN THE UNIT FOR THE FIRST
TIME, READ THE FOLLOWING SECTION CAREFULLY.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230V
or 120V) written on the rear panel.
D3-4-2-1-4_En
WARNING: The apparatus is not waterproofs, to
prevent fire or shocks hazard, do not expose this
apparatus to rain or moisture and do not put any
water source near this apparatus, such as vase,
flower pot, cosmetics container and medicine
bottle etc.
D3-4-2-1-3_En
PRE1297-A/En/02-08
04.1.6, 11:29 AM
2
background image
3
En
Information to User
Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate
the equipment.
D8-10-2_En
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
­ Reorient or relocate the receiving antenna.
­ Increase the separation between the equipment and receiver.
­ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
­ Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_En
The STANDBY/ON switch is secondary connected
and therefore, does not separate the unit from mains
power in STANDBY position. Therefore install the
unit suitable places easy to disconnect the MAINS
plug in case of the accident. The MAINS plug of unit
should be unplugged from the wall socket when left
unused for a long period of time.
D3-4-2-2-2a_En
Operating Environment
Operating environment temperature and humidity:
+5 ºC ­ +35 ºC (+41 ºF ­ +95 ºF); less than 85 %RH
(cooling vents not blocked)
Do not install in the following locations
· Location exposed to direct sunlight or strong artificial
light
· Location exposed to high humidity, or poorly
ventilated location
D3-4-2-1-7c_En
WARNING: No naked flame sources, such as
lighted candle, should be placed on the apparatus.
If naked flame sources accidentally fall down, fire
spread over the apparatus then may cause fire.
D3-4-2-1-7a_En
CONTENTS
BEFORE YOU USE THE PLAYER ....................................... 4
CAUTIONS REGARDING HANDLING ................................. 5
CONNECTIONS .................................................................. 6
NAMES OF PARTS ............................................................. 7
HOW TO LOAD THE DISCS ............................................... 8
BASIC OPERATIONS
To listen in order from the first track ............................... 9
To select the disc and track ............................................ 9
To select a play mode ..................................................... 9
VARIOUS OPERATIONS
To program and play only the discs you want to hear ... 10
To start playback from a specific disc ........................... 11
To play a track you want to hear ................................... 11
To repeat playback ........................................................ 11
To playback tracks/discs at random .............................. 11
To program tracks/discs in a desired order ................... 12
To store your favorite tracks ......................................... 13
To find out which discs you've listened to recently ...... 13
To scan quickly through tracks on a disc ....................... 14
To use the TIME button ................................................ 14
TROUBLESHOOTING ....................................................... 15
SPECIFICATIONS .............................................................. 15
CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the
unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and
televisions, use shielded cables and connectors for connections.
D8-10-3a_En
PRE1297-A/En/02-08
04.1.6, 11:29 AM
3
background image

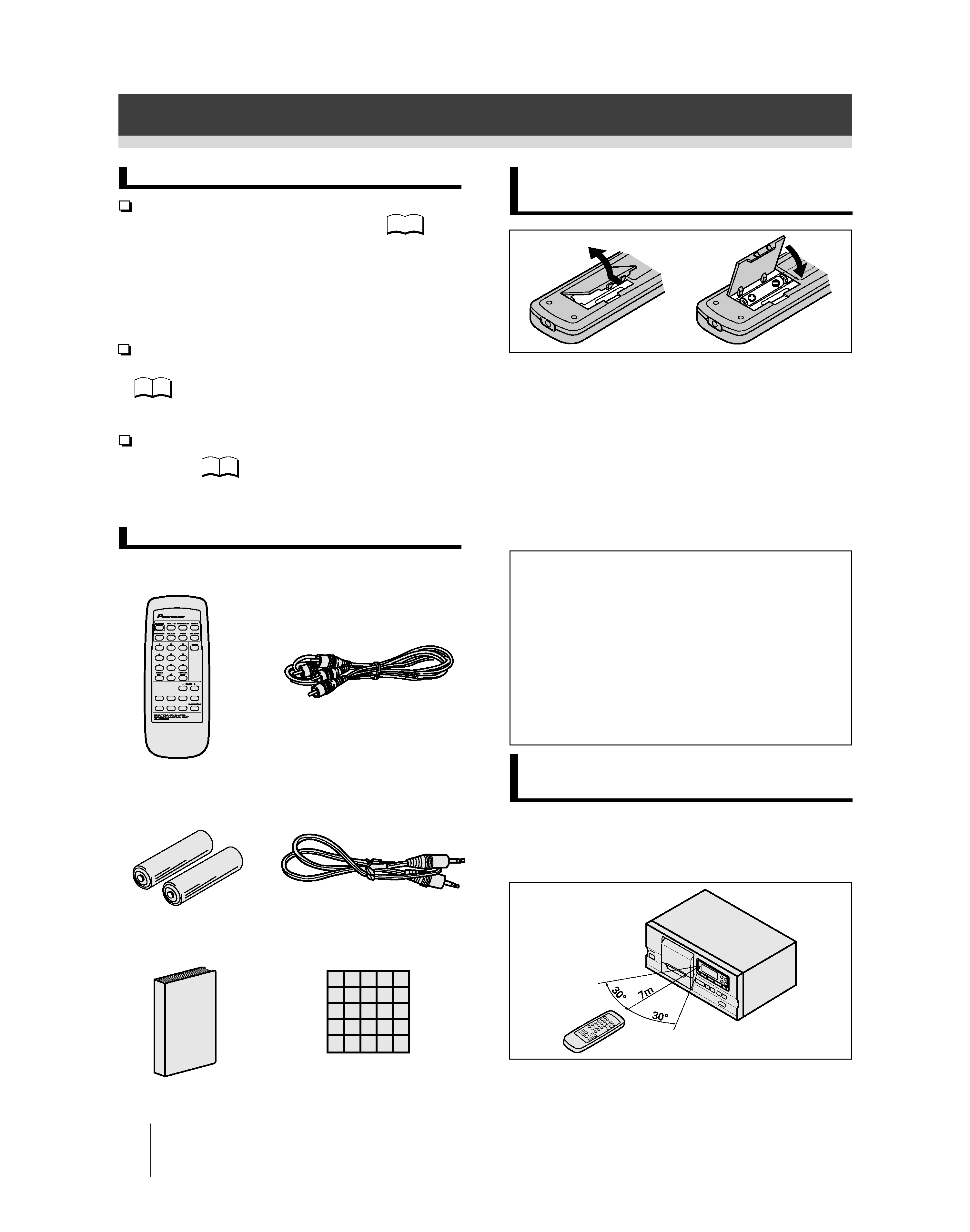

4
En
HERE'S WHAT YOU CAN DO!
Up to 25 CDs can be registered by classifying
them into 3 categories (CUSTOM). P. 10
For example, if you register you own discs in CUSTOM I, your
mother's discs in CUSTOM II and your father's discs in CUSTOM
III or if you select three kinds of music genres or artists and
register them in the three CUSTOM banks, you can play all of the
discs classified under one of the three CUSTOM banks. Addition
of discs to already-registered discs is also possible. Each of the
three CUSTOM banks can register up to 25 discs.
Immediately access and play your favorite tracks
from among the 25 discs loaded in the player.
P. 13
The Best Selection Memory function lets you store and play
favorite tracks with the touch of a single button (up to 15 tracks).
Easy access to the disc(s) you've listened to
recently. P. 13
The Previous Disc Scan function recalls the last disc you played
and then moves one by one through the previously played discs
(auto-memory of last 15 discs played).
CONFIRM SUPPLIED ACCESSORIES
Open the lid of the battery compartment on the rear of the remote
control unit, and insert the batteries, taking care to align the
ª and
· polarities correctly.
NOTES:
÷ In order to prevent battery leakage, remove the batteries when
not using the remote control unit for an extended period (one
month or more). If leakage occurs, carefully wipe away any
battery fluid inside the compartment, and replace the batteries
with new ones.
÷ Do not allow books or other objects to rest on top of the re-
mote control unit, since the buttons may be depressed, causing
faster exhaustion of the batteries.
PUT BATTERIES INTO THE REMOTE
CONTROL UNIT (PD-F507 only)
REMOTE CONTROL OPERATIONS
(PD-F507 only)
When operating the remote control unit, point the unit's infrared
signal transmitter at the remote control receiver (Remote Sensor) on
the front panel of the player. The remote control unit can be used
within a range of about 7 meters from the remote sensor, and within
angles of up to about 30 degrees.
BEFORE YOU USE THE PLAYER
NOTE:
If the remote control sensor window is in a position where it receives
strong light such as sunlight or fluorescent light, control may not be
possible.
BEFORE YOU USE THE PLAYER
Incorrect use of batteries may cause leakage or rupture.
Always be sure to follow these guidelines:
A. Always insert batteries into the battery compartment
correctly matching the positive
ª and negative ·
polarities, as shown by the display inside the
compartment.
B. Never mix new and used batteries.
C. Batteries of the same size may have different voltages,
depending on brand.
Do not mix different brands of
batteries.
D. When disposing of used batteries, please comply with
governmental regulations or environmental public
instruction's rules that apply in your country/area.
CD liner notes file x 1
Index label sheet x 1
1
2
345
678
9 10
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
÷ Please use the index label sheet
with the CD liner notes file.
SizeAA/R6P dry cell batteries x 2
(PD-F507 only)
Control cable x 1
(PD-F407 only)
Remote control
unit x 1(PD-F507 only)
Output cable x 1
78
3
4
¢
Î
PRE1297-A/En/02-08
04.1.6, 11:29 AM
4
background image
5
En
Record
cleaning
sprays
Thinner
Benzene
Storing discs
÷ Discs are made of the same kinds of plastic used for conventional
analog audio records. Be careful not to allow discs to warp;
always store discs in their cases vertically, avoiding locations
with high heat or humidity, or extremely low temperatures.
Avoid leaving discs in cars, since the seat of a car in direct
sunlight can become unbelievably hot.
÷ Always read and abide by the precautionary notes listed on disc
labels.
Cleaning the player
To clean the PLAYER wipe with a soft, dry cloth. For stubborn dirt,
wet a soft cloth with a mild detergent solution made by diluting
one part detergent to 5 or 6 parts water, wring well, then wipe off
the dirt. Also use a dry cloth to wipe the surface dry. Do not use
volatile liquids such as benzene and thinner which are harmful to
the unit.
CD lens cleaner
The player's pickup lens should not become dirty in normal use, but
if for some reason it should malfunction due to soiling, consult your
nearest PIONEER authorized service center. Lens cleaners for CD
players are commercially available, but special care should be exercised
in their use since some may cause damage to the lens.
Condensation
When this unit is brought into a warm room from previously cold
surroundings or when the room temperature rises sharply,
condensation may form inside, and the unit may not be able to
attain its full performance. If this occurs, allow the unit to stand for
about an hour or raise the room temperature gradually.
Cleaning and handling compact discs
÷ The presence of fingerprints or smudges on the surface of the
disc will not directly affect the recorded signals, but depending
on the degree of contamination, the brightness of the light
reflected from the signal surfaces may be reduced, causing
degradation of sound quality. Always keep your discs clean by
wiping them gently with a soft cloth from the inner edge toward
the outer periphery.
÷ If a disc becomes very dirty, dip a soft cloth in water, and after
wringing it out well, wipe the dirt away gently, and then remove
any water drops with another soft, dry cloth.
÷ Do not use record cleaning sprays or anti-static agents on discs.
Also, never clean discs with benzene, thinner, or other volatile
solvents, since damage to the disc surface may result.
Location
Install the unit in a well-ventilated location where it will not be
exposed to high temperatures or humidity.
Do not install the unit in a location which is exposed to direct rays
of the sun, or near hot appliances or radiators. Excessive heat can
adversely affect the cabinet and internal components. Installation
of the unit in a damp or dusty environment may also result in a
malfunction or an accident. (Avoid installation near cookers etc.,
where the unit may be exposed to oily smoke, steam or heat.)
Do not install the unit on a tottered stand, nor in an unstable or
inclined surface.
Precautions regarding installation
÷ Placing and using the compact disc player for long periods on
heat-generating sources such as amplifiers will affect
performance. Avoid placing the player on heat-generating
sources.
÷ Install this compact disc player as far as possible from tuners
and TV sets. A compact disc player installed in close proximity
to such equipment may cause noise or degradation of the picture.
÷ Such noise may be particularly noticeable when an indoor
antenna is used. In such cases, make use of an outdoor antenna,
or turn off power to the compact disc player.
÷ Please place this unit on a level surface.
CAUTIONS REGARDING HANDLING
CAUTIONS REGARDING HANDLING
With this unit, use a Compact Disc carrying the mark shown
below. Do not use other disc, for this may result in malfunction
or damage.
÷ When holding discs, do not touch their signal surfaces. Hold by
the edges, or by one edge and the center hole.
÷ Do not affix gummed labels or tape to the label surfaces. Also,
do not scratch or damage the label.
÷ Discs rotate at high speed inside the player. Do not use damaged
(cracked or warped) discs.
÷ Do not play a CD with a special shape (having other shape than a
circular disc, such as a heart shaped disc). Otherwise malfunction
may occur.
Re-transporting
When re-transporting this unit in the future, remove all discs from the
rack. Turn off the STANDBY/ON switch, wait for "OFF" to go out from
the display, and unplug the power cord.
'
PRE1297-A/En/02-08
04.1.6, 11:29 AM
5

Reviews

There are no reviews of this manual yet.
