PIONEER PD-F27/KU/CA Service Manual

Cover page of PIONEER PD-F27/KU/CA Service Manual

Service Manual for PIONEER PD-F27/KU/CA, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 60 pages
  • File size: 6.05 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
FILE-TYPE COMPACT DISC PLAYER
RRV2262
T­ZZR JAN. 2000 Printed in Japan
PD-F1009
FILE­TYPE COMPACT DISC PLAYER
MODE
4 1 ¡ ¢
DISC
PUSH ENTER
RANDOM
STANDBY
ACCESS
CDFILE
CD TEXT
PLAY
OPEN/
CLOSE
UNLOAD
DIRECT LINEAR CONVERSION
STANDBY/ON
SINGLE LOADER
FILE­TYPE CD MECHANISM
Î
CLEAR
PROGRAM
DISC
TRACK
MIN
SEC
REPEAT
DISPLAY
1-BIT DLC
67
9
8
7
0
6
5
4
3
2
1
TRACK
DISC
Û¿X,??/
1. SAFETY INFORMATION .................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............. 4
3. BLOCK DIAGRM AND SCHEMATIC DIAGRAM ... 14
4. PCB CONNECTION DIAGRAM ....................... 22
5. PCB PARTS LIST ............................................. 38
6. ADJUSTMENT .................................................. 44
7. GENERAL INFORMATION .............................. 48
7.1 DIAGNOSIS ................................................ 48
7.1.1 DISASSEMBL .................................... 48
CONTENTS
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
PD-F1009
Type
Power Requirement
Remarks
KU/CA
AC120V
MY
AC220-230V
7.1.2 ERROR CHECK DISPLAY ................... 51
7.1.3 EXPLANATION OF DISC DEECTION .. 54
7.1.4 OPERATION FLOWCHART ................ 54
7.2 PARTS ....................................................... 55
7.2.1 IC ....................................................... 55
7.2.2 DISPLAY ........................................... 58
8. PANEL FACILITIES AND SPECIFICATIONS
....................................................... 59
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
FILE-TYPE COMPACT DISC PLAYER
RRV2262
T­ZZR JAN. 2000 Printed in Japan
PD-F1009
FILE­TYPE COMPACT DISC PLAYER
MODE
4 1 ¡ ¢
DISC
PUSH ENTER
RANDOM
STANDBY
ACCESS
CDFILE
CD TEXT
PLAY
OPEN/
CLOSE
UNLOAD
DIRECT LINEAR CONVERSION
STANDBY/ON
SINGLE LOADER
FILE­TYPE CD MECHANISM
Î
CLEAR
PROGRAM
DISC
TRACK
MIN
SEC
REPEAT
DISPLAY
1-BIT DLC
67
9
8
7
0
6
5
4
3
2
1
TRACK
DISC
Û¿X,??/
1. SAFETY INFORMATION .................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............. 4
3. BLOCK DIAGRM AND SCHEMATIC DIAGRAM ... 14
4. PCB CONNECTION DIAGRAM ....................... 22
5. PCB PARTS LIST ............................................. 38
6. ADJUSTMENT .................................................. 44
7. GENERAL INFORMATION .............................. 48
7.1 DIAGNOSIS ................................................ 48
7.1.1 DISASSEMBL .................................... 48
CONTENTS
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
PD-F1009
Type
Power Requirement
Remarks
KU/CA
AC120V
MY
AC220-230V
7.1.2 ERROR CHECK DISPLAY ................... 51
7.1.3 EXPLANATION OF DISC DEECTION .. 54
7.1.4 OPERATION FLOWCHART ................ 54
7.2 PARTS ....................................................... 55
7.2.1 IC ....................................................... 55
7.2.2 DISPLAY ........................................... 58
8. PANEL FACILITIES AND SPECIFICATIONS
....................................................... 59
background image
PD-F1009
2
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols
(fast operating fuse) and/or
(slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible
(fusible de type rapide) et/ou
(fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a
on the schematics and on the parts list
in this Service Manual.
The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.

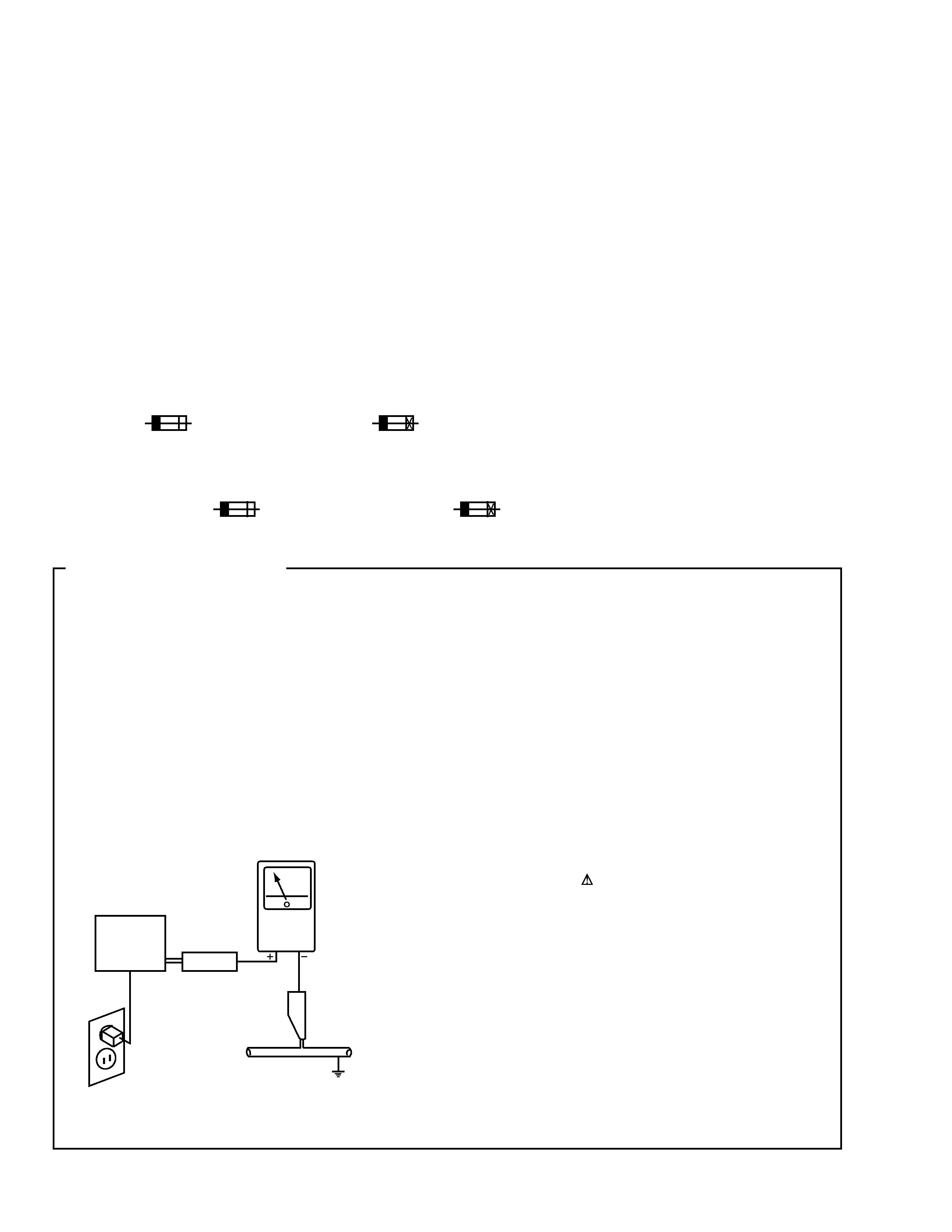

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC 60Hz outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.
(FOR USA MODEL ONLY)
Leakage
current
tester
Reading should
not be above
0.5mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
background image
PD-F1009
3

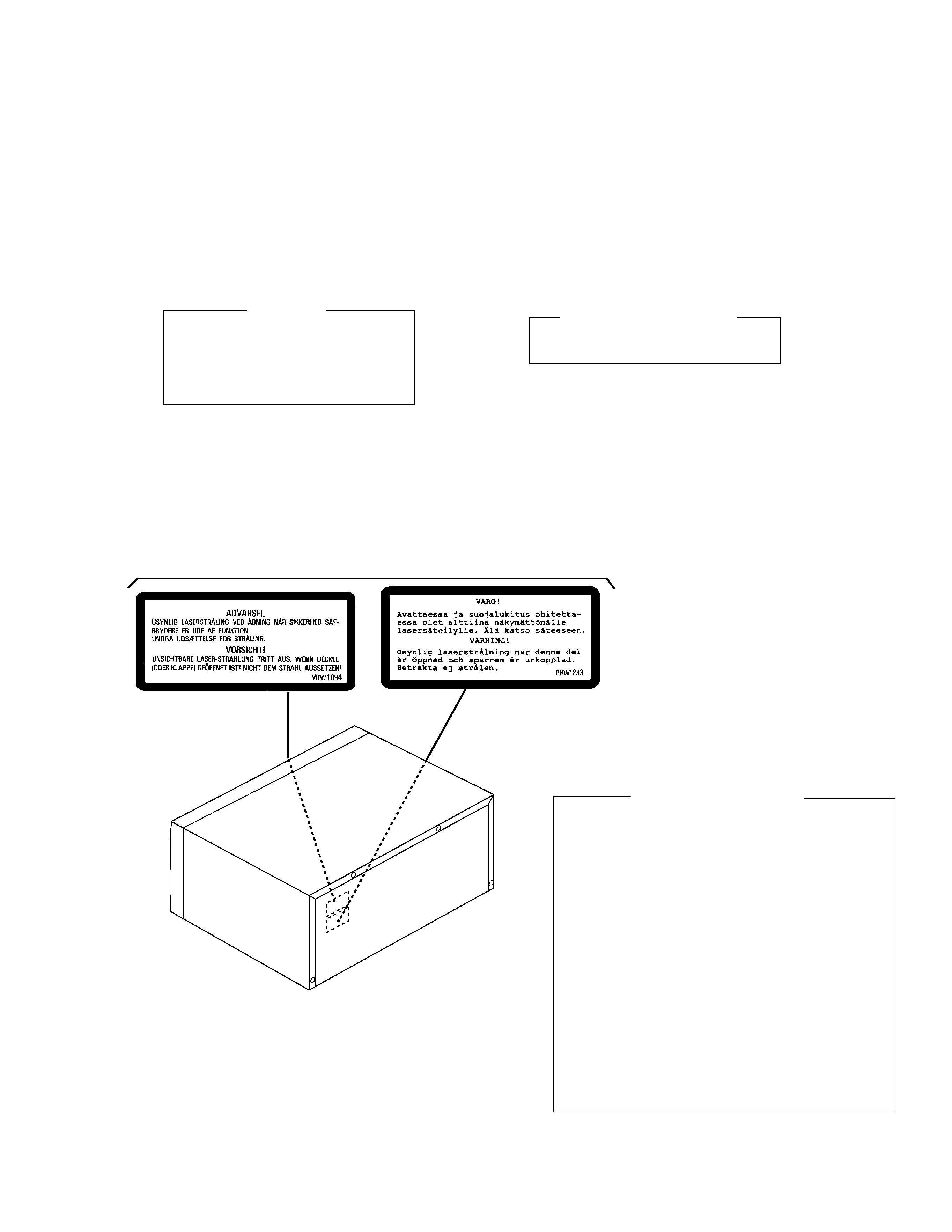

Additional Laser Caution
1. Laser Interlock Mechanism
The position of the switch (VSK1011) for detecting
loading state is detected by the system microprocessor,
and the design prevents laser diode oscillation when
the switch (VSK1011) is not on CLMP terminal side
(CLMP signal is OFF or high level).
Thus, the interlock will no longer function if the switch
(VSK1011) is deliberatery set to CLMP terminal side. (low
level)
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 1 of CXA2570N
(IC151) on the MAIN BOARD ASSY is connected to
GND, or pin 14 of IC301 (LDON) is connected to low
level (ON), or else the terminals of Q151 are shorted to
each other (fault condition).
2. When the cover is opened, close viewing of the
objective lens with the naked eye will cause exposure
to a Class 1 laser beam.
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
REAR
PD-F1009/MY : Only
LABEL CHECK
Refer to page 45 .
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 7 mW
WAVELENGTH: 780 ­ 785 nm
background image
PD-F1009
4
1
6
7
8
9
10
11
KU/CA:Only
4
5
3
2
12

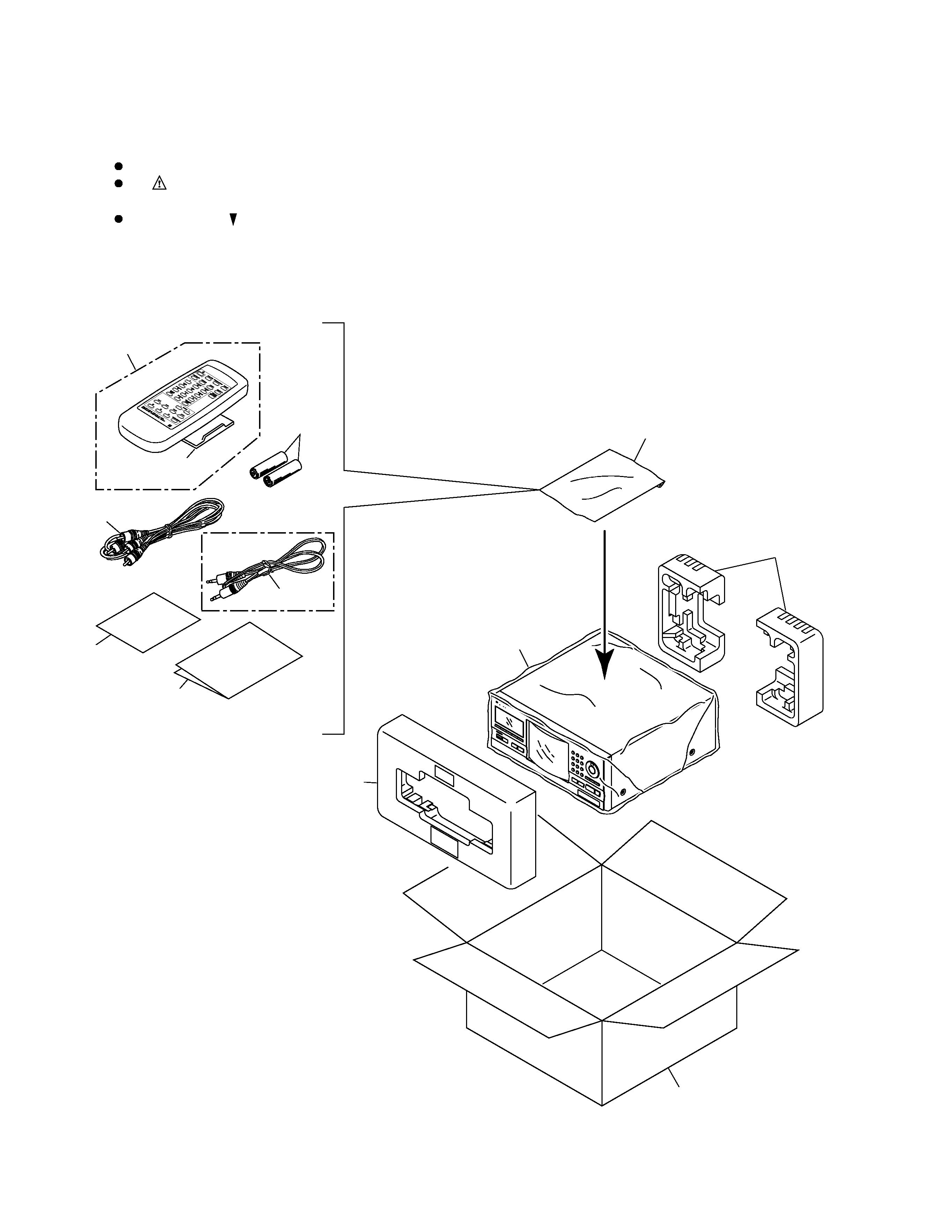

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
NOTES :
Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screw adjacent to
mark on the product are used for disassembly.
background image
PD-F1009
5
(1) PACKING PARTS LIST
1
Styrol Protector F
PHA1325
2
Styrol Protector R
PHA1326
3
Packing Case
See Contrast table (2)
4
Packing Sheet
RHC1023
5
Polyethylene Bag
Z21­038
(0.03
× 230 × 340)
6
Operating Instructions
See Contrast table (2)
7
Remote Control Unit
PWW1168
8
Battery Cover
AZA7204
NSP
9
Dry Cell Batteries (R6P, AA)
VEM­013
10
Control Cable (L=1 m)
See Contrast table (2)
11
Audio Cable (L=1 m)
PDE1248
NSP
12
Warranty Card
See Contrast table (2)
Mark No.
Description
Part No.
(2) CONTRAST TABLE
PD-F1009/KU/CA and PD-F1009/MY are constructed the same except for the following:
Mark
PD-F1009
PD-F1009
/KU/CA
/MY
3
Packing Case
PHG2397
PHG2398
6
Operating Instructions (English)
PRB1300
Not used
6
Operating Instructions
Not used
PRE1288
(English/French/German/Italian
/Dutch/Swedish/Spanish/Portuguese)
10
Control Cable (L=1 m)
PDE1247
Not used
NSP
12
Warranty Card
ARY7045
ARY7022
Part No.
Remarks
Symbol and Description
No.
