Operating Instructions
PD-D6-S
Super Audio CD Player
D6
PD-D6-J_RLF.book
1
background image
Operating Instructions
PD-D6-S
Super Audio CD Player
D6
PD-D6-J_RLF.book
1
background image

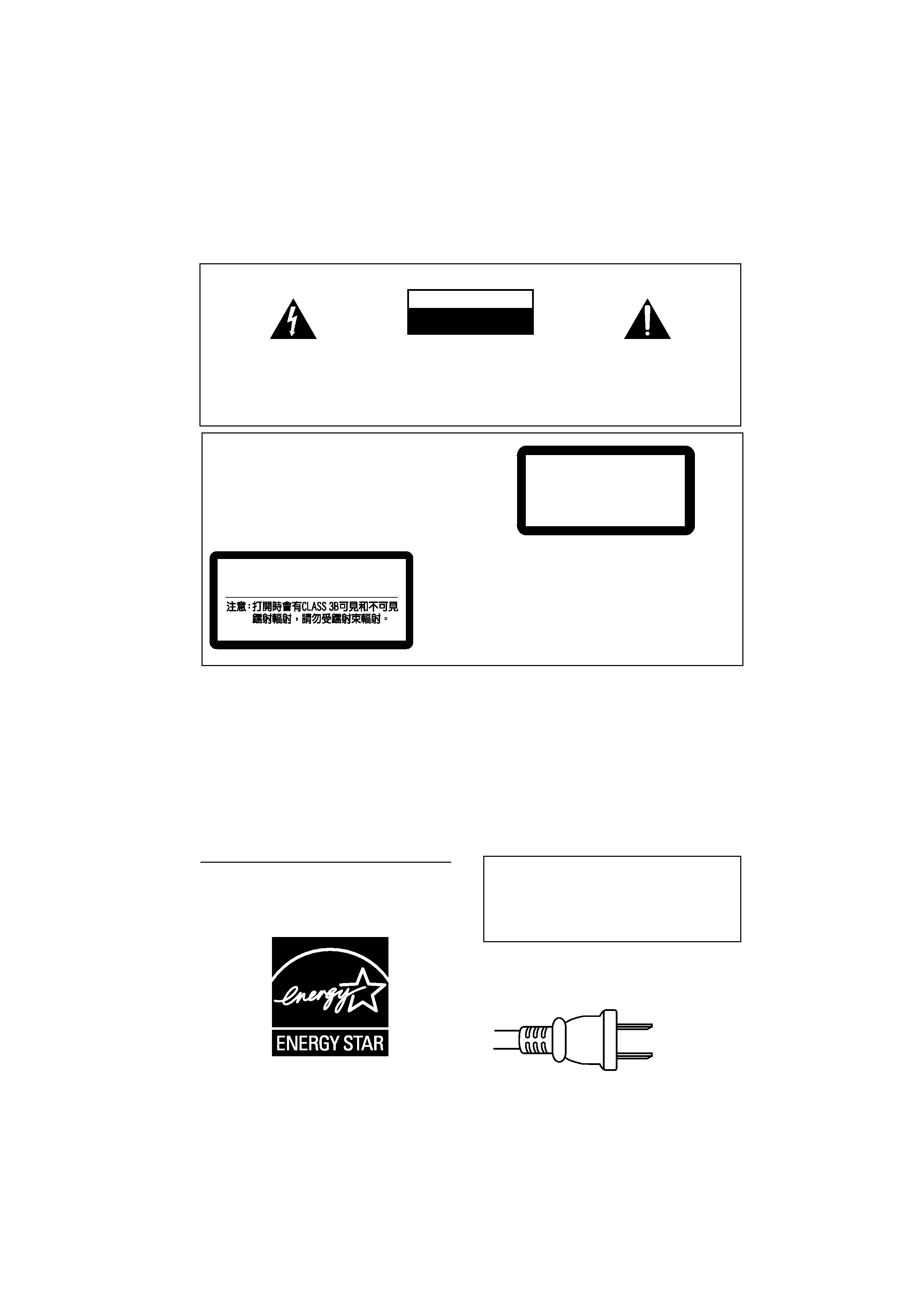

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_En-A
CAUTION
This product is a class 1 laser product, but this
product contains a laser diode higher than Class 1.
To ensure continued safety, do not remove any covers
or attempt to gain access to the inside of the product.
Refer all servicing to qualified personnel.
The following caution label appears on your unit.
Location: top of the unit
CLASS 1
LASER PRODUCT
D3-4-2-1-8_B_En
CAUTION : CLASS 3B VISIBLE AND INVISIBLE LASER
VRW2159
EXPOSURE TO THE BEAM.
RADIATION WHEN OPEN, AVOID
WARNING
This equipment is not waterproof. To prevent a fire
or shock hazard, do not place any container filed
with liquid near this equipment (such as a vase or
flower pot) or expose it to dripping, splashing, rain
or moisture.
D3-4-2-1-3_A_En
WARNING
To prevent a fire hazard, do not place any naked
flame sources (such as a lighted candle) on the
equipment.
D3-4-2-1-7a_A_En
Operating Environment
Operating environment temperature and humidity:
+5 ºC to +35 ºC (+41 ºF to +95 ºF); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c_A_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
radiation (at least 5 cm at top, 10 cm at rear, and
5 cm at each side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
prevent fire hazard, the openings should never be
blocked or covered with items (such as newspapers,
table-cloths, curtains) or by operating the
equipment on thick carpet or a bed.
D3-4-2-1-7b_A_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which
requires repair will be charged for even during the
warranty period.
K041_En
Location: rear of the unit
For Taiwan exclusively
Taiwanese two pin flat-bladed plug
For Australia Model
C67-7-3_En
PD-D6-J_RLF.book
2
background image
WARNING
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel.
D3-4-2-1-4_A_En
Before plugging in for the first time, read the following
section carefully.
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-1a_A_En
CAUTION
The POWER switch on this unit will not completely
shut off all power from the AC outlet. Since the
power cord serves as the main disconnect device for
the unit, you will need to unplug it from the AC outlet
to shut down all power. Therefore, make sure the
unit has been installed so that the power cord can
be easily unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation).
D3-4-2-2-2a_A_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
S002_En
D3-4-2-1-5_En
Voltage selector
You can find the voltage selector switch on the rear
panel of multi-voltage models.
The factory setting for the voltage selector is
220 _ 240 V. Please set it to the correct voltage for
your country or region.
· For Taiwan, please set to 110 V before using.
Before changing the voltage, disconnect the AC power
cord. Use a medium size screwdriver to change the
voltage selector switch.
VOLTAGE SELECTOR
110 V
220 - 240 V
Medium size
screwdriver
Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified
service personnel.
D3-4-2-1-2-2_B_En

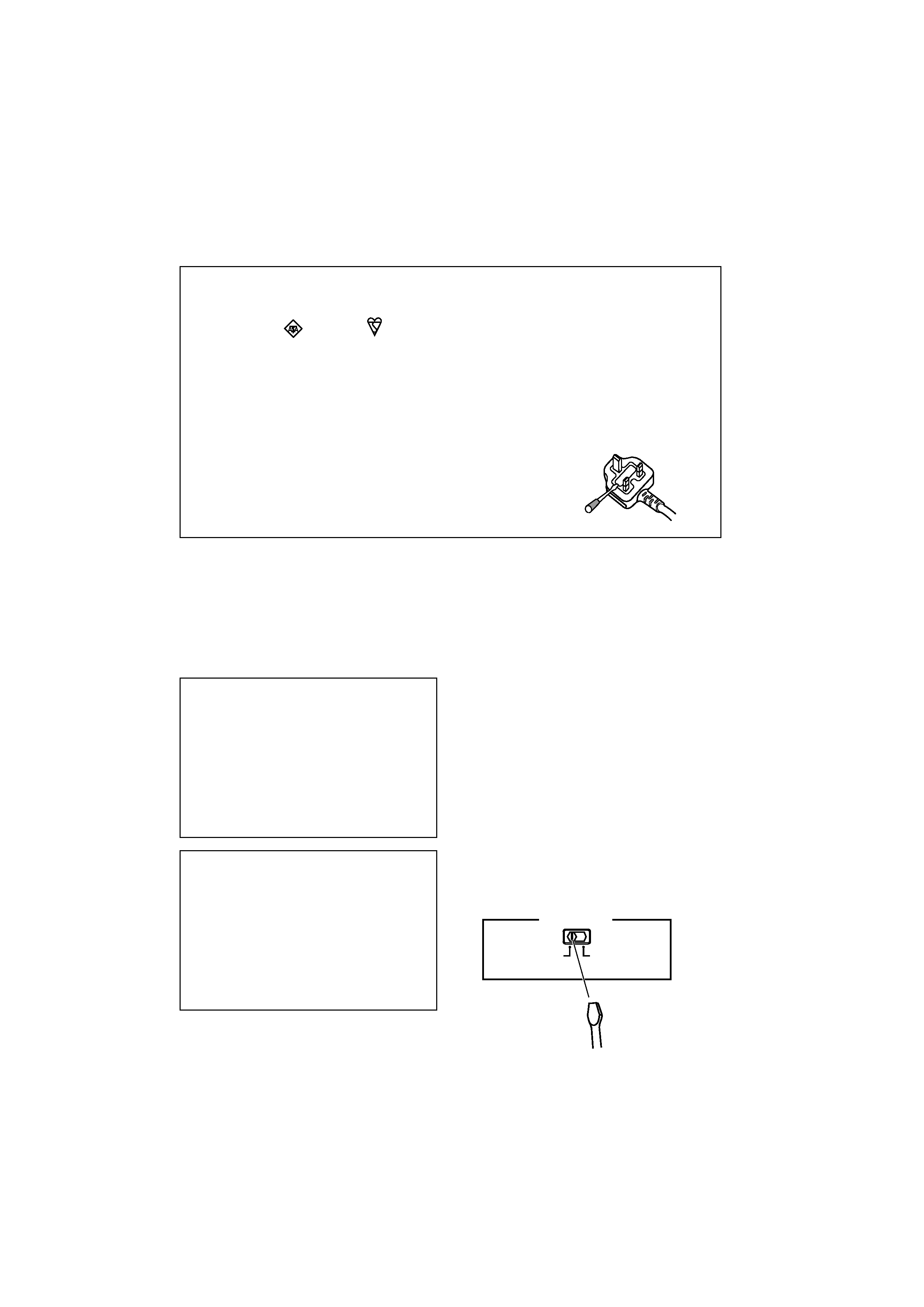

IMPORTANT: THE MOULDED PLUG
This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Should
the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to
BS1362.
Check for the ASTA mark
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug
must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.
If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of
safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.
If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows ;
The wire which is coloured BLUE must be connected to the terminal which is marked with the
letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the
letter L or coloured RED.
How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.
PD-D6-J_RLF.book
3
background image
4
En
Thank you for buying this Pioneer product.
Please read through these operating instructions so that you will know how to operate your
model properly. After you have finished reading the instructions, put them in a safe place for
future reference.
Contents
01 Before you start
Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
What's in the box
. . . . . . . . . . . . . . . . . . . . 6
Disc / content format playback
compatibility
. . . . . . . . . . . . . . . . . . . . . . . 7
02 Connecting up
Connecting to an amplifier
. . . . . . . . . . . . . 8
Using the remote sensor of another Pioneer
component
. . . . . . . . . . . . . . . . . . . . . . . . . 8
Plugging in
. . . . . . . . . . . . . . . . . . . . . . . . 9
03 Controls and displays
Front panel
. . . . . . . . . . . . . . . . . . . . . . . . 10
Remote control
. . . . . . . . . . . . . . . . . . . . 11
Display
. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
04 Getting started
Switching on
. . . . . . . . . . . . . . . . . . . . . . . 12
Playing discs
. . . . . . . . . . . . . . . . . . . . . . . 12
Other playback features
. . . . . . . . . . . . . . 13
05 Other settings and features
Listening to Pure Audio
. . . . . . . . . . . . . . . 14
Using the SACD Setup
. . . . . . . . . . . . . . . 14
Using Legato Link Pro
. . . . . . . . . . . . . . . . 14
Dimming the display
. . . . . . . . . . . . . . . . . 14
Displaying disc information
. . . . . . . . . . . . 14
06 Additional information
Hints on installation
. . . . . . . . . . . . . . . . . 15
Taking care of your player and discs
. . . . . 15
Troubleshooting
. . . . . . . . . . . . . . . . . . . . 17
Glossary
. . . . . . . . . . . . . . . . . . . . . . . . . . 18
Specifications
. . . . . . . . . . . . . . . . . . . . . . 18
PD-D6-J_RLF.book
4
background image
Before you start
01
5
En
English
Français
Nederlands
Italiano
Español
Chapter 1
Before you start
Features
·
Quick response power supply circuit
The superior power supply circuit adopted by
this unit achieves vastly improved response by
employing `no feedback' circuitry and low
impedance parallel main capacitors character-
isticly used in professional audio monitoring.
·
Low jitter clock
This unit provides extremely stable, low jitter
clock streams through the use of an integrated
circuit with a high performance oscillator.
·
Legato Link Conversion Pro and Hi-Bit
Pioneer's unique Legato Link Conversion
system restores high-frequency dynamics lost
in the digital recording process, to fully
reproduce all the shading and detail of the
original musical performance. This results in a
minimum amount of phase shift across the
entire hearable audio spectrum.
·
Twin D/A converter 192 kHz/24-bit
The on-board Twin Burr Brown 192 kHz/24-bit
DAC means that this player is fully capable of
delivering exceptional sound quality in terms of
dynamic range, low-level resolution and high-
frequency detail.
·
Pure Audio listening
The Pure Audio feature allows you to listen to
analog audio sources with the digital outputs
disabled, and the front panel display switched
off.
·
Fine-tuned to world-class standards
With the cooperation of the world-class studio
engineers at AIR Studios, this player has been
AIR Studios certified.
PD-D6-J_RLF.book
5

Reviews

There are no reviews of this manual yet.
