BRIDGEABLE TWO-CHANNEL
POWER AMPLIFIER
AMPLIFICATEUR DE PUISSANCE
PONTABLE A DEUX VOIES
Owner's Manual
GM-3300T
Mode d'emploi
background image
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
êìëëäàâ
BRIDGEABLE TWO-CHANNEL
POWER AMPLIFIER
AMPLIFICATEUR DE PUISSANCE
PONTABLE A DEUX VOIES
Owner's Manual
GM-3300T
Mode d'emploi
background image
1
Before Using This Product ...................... 1
Visit our website ................................................ 1
In case of trouble .............................................. 2
CAUTION ........................................................ 2
CAUTION ........................................................ 2
WARNING ........................................................2
Setting the Unit .......................................... 3
Power Indicator ................................................ 3
Gain Control ...................................................... 3
BFC (Beat Frequency Control) Switch ............ 4
LPF (Low-Pass Filter) Select Switch ................ 4
Connecting the Unit .................................. 5
Connection Diagram ........................................ 6
Connecting the Power Terminal ........................ 7
Connecting the Speaker Output Terminals ...... 8
Using the Speaker Input .................................... 8
Connecting the Speaker Wires .......................... 9
Installation ................................................ 10
Example of installation on the floor mat
or on the chassis ...................................... 10
Specifications .......................................... 11
Thank you for purchasing this PIONEER
product. Before attempting operation, be
sure to read this manual.
Private households in the 25 member
states of the EU, in Switzerland and
Norway may return their used electronic
products free of charge to designated col-
lection facilities or to a retailer (if you
purchase a similar new one).
For countries not mentioned above,
please contact your local authorities for
the correct method of disposal.
By doing so you will ensure that your dis-
posed product undergoes the necessary
treatment, recovery and recycling and thus
prevent potential negative effects on the
environment and human health.
Visit our website
Visit us at the following site:
· Register your product. We will keep the
details of your purchase on file to help
you refer to this information in the event
of an insurance claim such as loss or
theft.
· We offer the latest information about
Pioneer Corporation on our website.
If you want to dispose this
product, do not mix it with
general household waste. There
is a separate collection system
for used electronic products in
accordance with legislation that
requires proper treatment,
recovery and recycling.
Contents
Before Using This Product
background image
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
êìëëäàâ
2
In case of trouble
When the unit does not operate properly,
contact your dealer or the nearest autho-
rized PIONEER Service Station.
CAUTION
Never replace the fuse with one of greater
value or rating than the original fuse. Use
of an improper fuse could result in over-
heating and smoke and could cause dam-
age to the product and injury including
burns.

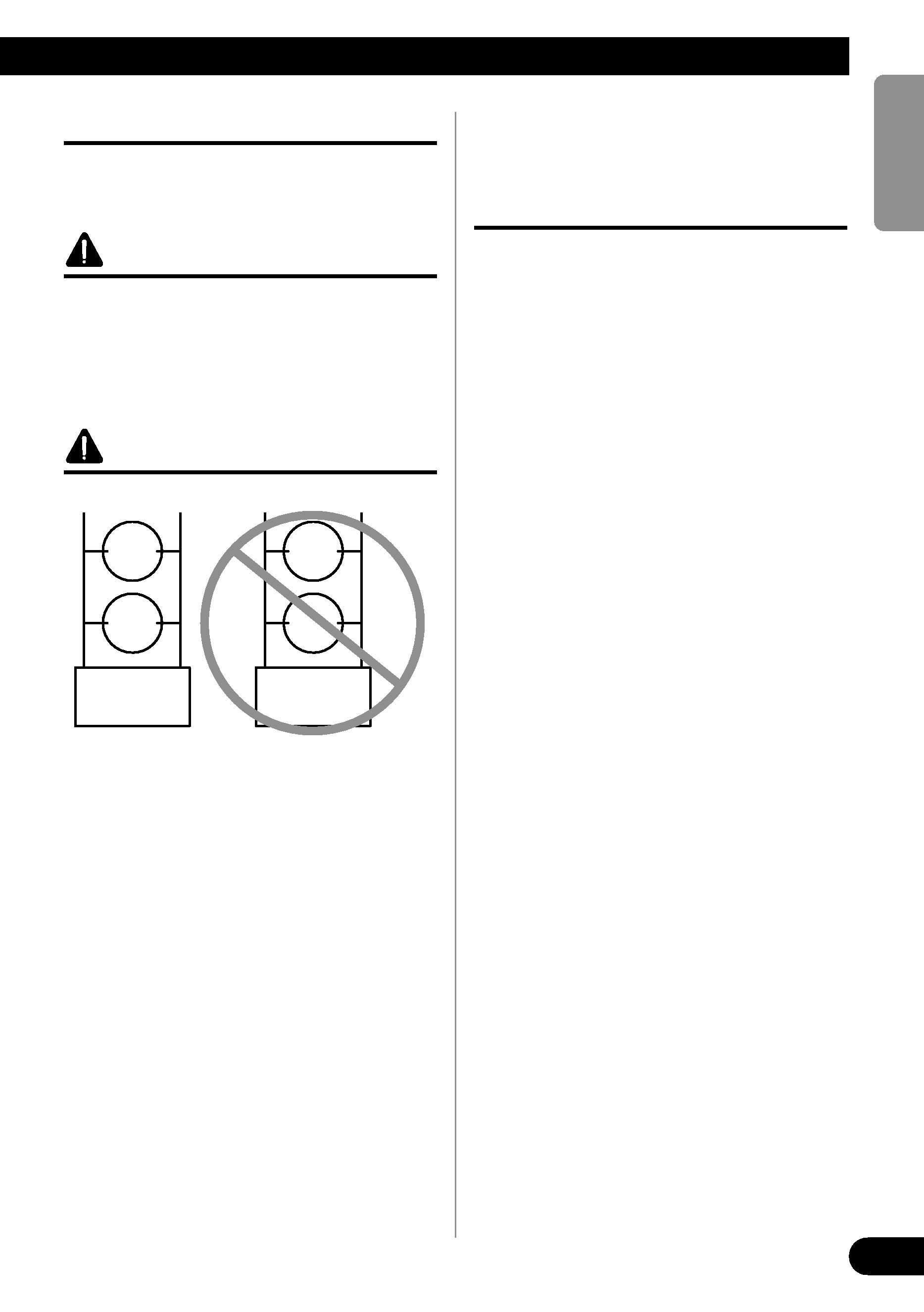

CAUTION
Do NOT install or use your Pioneer ampli-
fier by wiring speakers rated at 4
(or
lower) in parallel to achieve a 2
(or
lower) bridged mode (Diagram B).
Amplifier damage, smoke, and overheat-
ing could result from improper bridging.
The amplifier surface could also become
hot to the touch and minor burns could
result.
To properly install or use a bridged mode
for a two-channel amplifier and achieve a
4
load, wire two 8 speakers in paral-
lel with Left + and Right ­ (Diagram A) or
use a single 4
speaker. For a four-chan-
nel amplifier, follow the speaker output
connection diagram for bridging as shown
on the back of your amplifier, and wire
two 8
speakers in parallel to achieve a 4
load or use a single 4 speaker per
channel.
If you have any questions or concerns,
please contact your local authorized
Pioneer dealer or call Pioneer customer
service.
WARNING
· Always use the special red battery and ground
wire [RD-223], which is sold separately. Connect
the battery wire directly to the car battery positive
terminal (+) and the ground wire to the car body.
· Do not touch the amplifier with wet hands.
Otherwise you may get an electric shock. Also,
do not touch the amplifier when it is wet.
· For traffic safety and to maintain safe driving
conditions, keep the volume low enough so that
you can still hear normal traffic sound.
· Check the connections of the power supply and
speakers if the fuse of the separately sold battery
wire or the amplifier fuse blows. Detect the cause
and solve the problem, then replace the fuse with
another one of the same size and rating.
· To prevent malfunction of the amplifier and
speakers, the protective circuit will cut the power
supply to the amplifier (sound will stop) when an
abnormal condition occurs. In such a case, switch
the power to the system OFF and check the
connection of the power supply and speakers.
Detect the cause and solve the problem.
· Contact the dealer if you cannot detect the cause.
· To prevent an electric shock or short-circuit
during connection and installation, be sure to
disconnect the negative (­) terminal of the battery
beforehand.
· Confirm that no parts are behind the panel when
drilling a hole for installation of the amplifier. Be
sure to protect all cables and important equipment
such as fuel lines, brake lines and the electrical
wiring from damage.
· DO NOT allow amplifier to come into contact
with liquids due to, for example, the location
where the amplifier is installed. Electrical shock
could result. Also, amplifier and speaker damage,
smoke, and overheating could result from contact
with liquids. In addition, the amplifier surface
and the surface of any attached speakers could
become hot to the touch and minor burns could
result.
Diagram A - Proper
8
Speaker
8
Speaker
+
-
Pioneer
Amplifier
4
Bridged Mode
+
L+
R-
-
Diagram B - Improper
4
Speaker
+
-
Pioneer
Amplifier
2
Bridged Mode
+
L+
R-
-
4
Speaker
background image
3
Setting the Unit

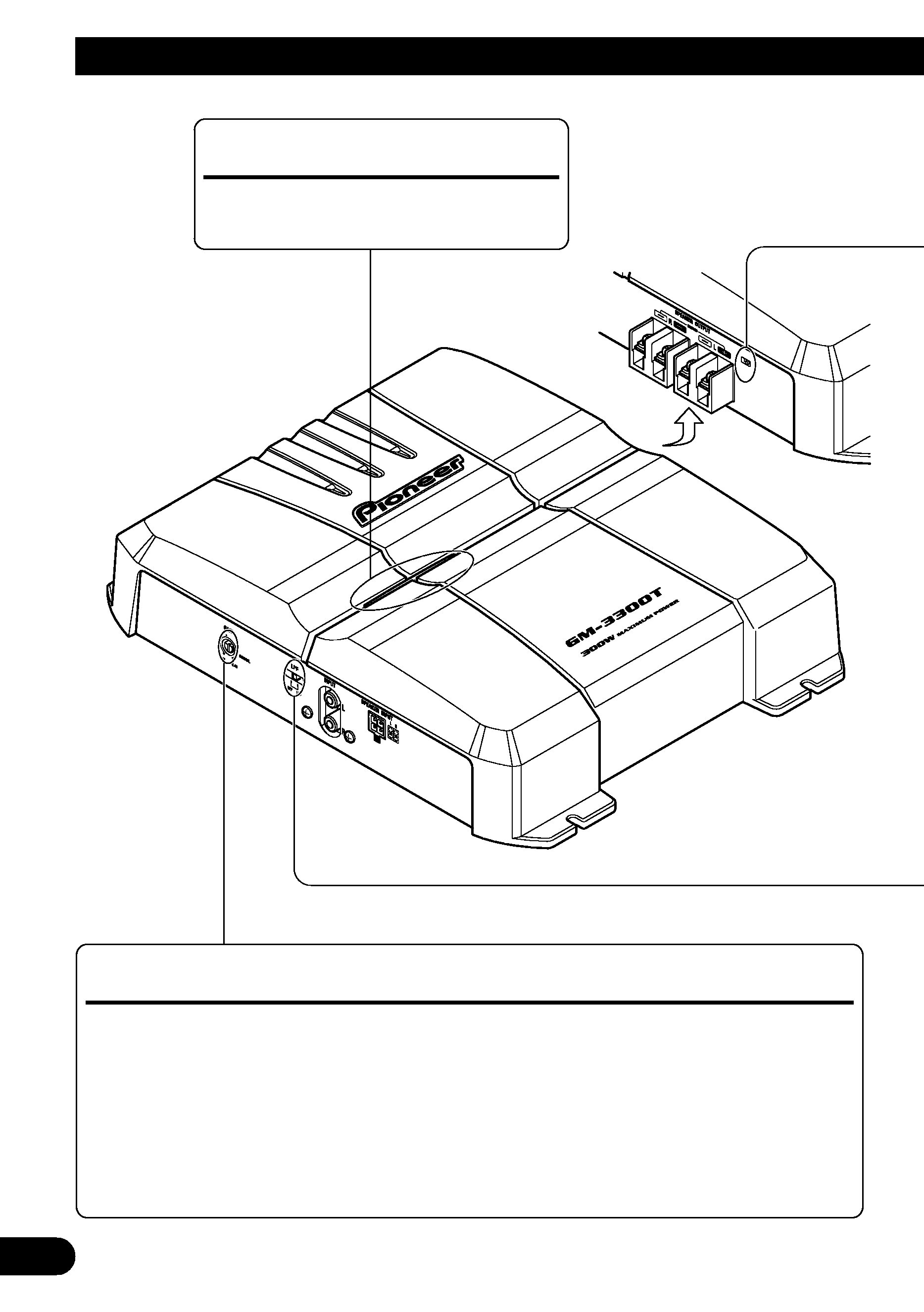

Gain Control
If the sound level is too low, even when the volume of the car stereo used along with this
power amplifier is turned up, turn gain control on the front of the power amplifier clock-
wise. If the sound distorts when the volume is turned up, turn the gain control counter-
clockwise.
· When using with an RCA equipped car stereo (standard output of 500 mV), set to the NORMAL
position. When using with an RCA equipped Pioneer car stereo with max. output of 4 V or more,
adjust level to match the car stereo output level.
· If you hear too much noise when using the speaker input terminals, turn the gain control counter-
clockwise.
Power Indicator
The power indicator lights when the
power is switched on.
background image
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
êìëëäàâ
4
LPF (Low-Pass Filter) Select Switch
Set the LPF select switch as follows according to the type of speaker that is connected to the
speaker output connector and the car stereo system:
LPF Select
Audio frequency range
Speaker
Remarks
Switch
to be output
Type
LPF (right)
80 Hz and below with
Subwoofer
Connect a subwoofer.
­12 dB/oct. cut off slope
OFF (left)
Full range
Full range
BFC (Beat Frequency Control) Switch
If you hear a beat while listening to an MW/LW broadcast with your car stereo, change the
BFC switch using a small standard tip screwdriver.
