PIONEER FH-P8800/ES Service Manual

Cover page of PIONEER FH-P8800/ES Service Manual

Service Manual for PIONEER FH-P8800/ES, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 111 pages
  • File size: 9.34 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V.
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 1999
K-ZZS. OCT. 1999 Printed in Japan
ORDER NO.
CRT2413
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
FH-P8800
UC,ES
Service
Manual
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-631
CRT1640
2L
Cassette Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-916
CRT2300
S8
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14
4. PCB CONNECTION DIAGRAM ................................38
5. ELECTRICAL PARTS LIST ........................................60
6. ADJUSTMENT..........................................................73
7. GENERAL INFORMATION .......................................78
7.1 DIAGNOSIS ........................................................78
7.1.1 TEST MODE ..............................................78
7.1.2 DISASSEMBLY .........................................82
7.1.3 PCB LOCATIONS ......................................89
7.2 PARTS .................................................................90
7.2.1 IC................................................................90
7.2.2 DISPLAY ..................................................104
8. OPERATIONS AND SPECIFICATIONS...................105
- Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V.
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 1999
K-ZZS. OCT. 1999 Printed in Japan
ORDER NO.
CRT2413
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
FH-P8800
UC,ES
Service
Manual
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-631
CRT1640
2L
Cassette Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-916
CRT2300
S8
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14
4. PCB CONNECTION DIAGRAM ................................38
5. ELECTRICAL PARTS LIST ........................................60
6. ADJUSTMENT..........................................................73
7. GENERAL INFORMATION .......................................78
7.1 DIAGNOSIS ........................................................78
7.1.1 TEST MODE ..............................................78
7.1.2 DISASSEMBLY .........................................82
7.1.3 PCB LOCATIONS ......................................89
7.2 PARTS .................................................................90
7.2.1 IC................................................................90
7.2.2 DISPLAY ..................................................104
8. OPERATIONS AND SPECIFICATIONS...................105
- Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
background image
2
FH-P8800
- CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(Page 82).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 76).
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and
refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
1. SAFETY INFORMATION
background image
3
FH-P8800
8
9
19
11
13
1
2
4
3
12
10
17
18
14
5
16
15
7
6

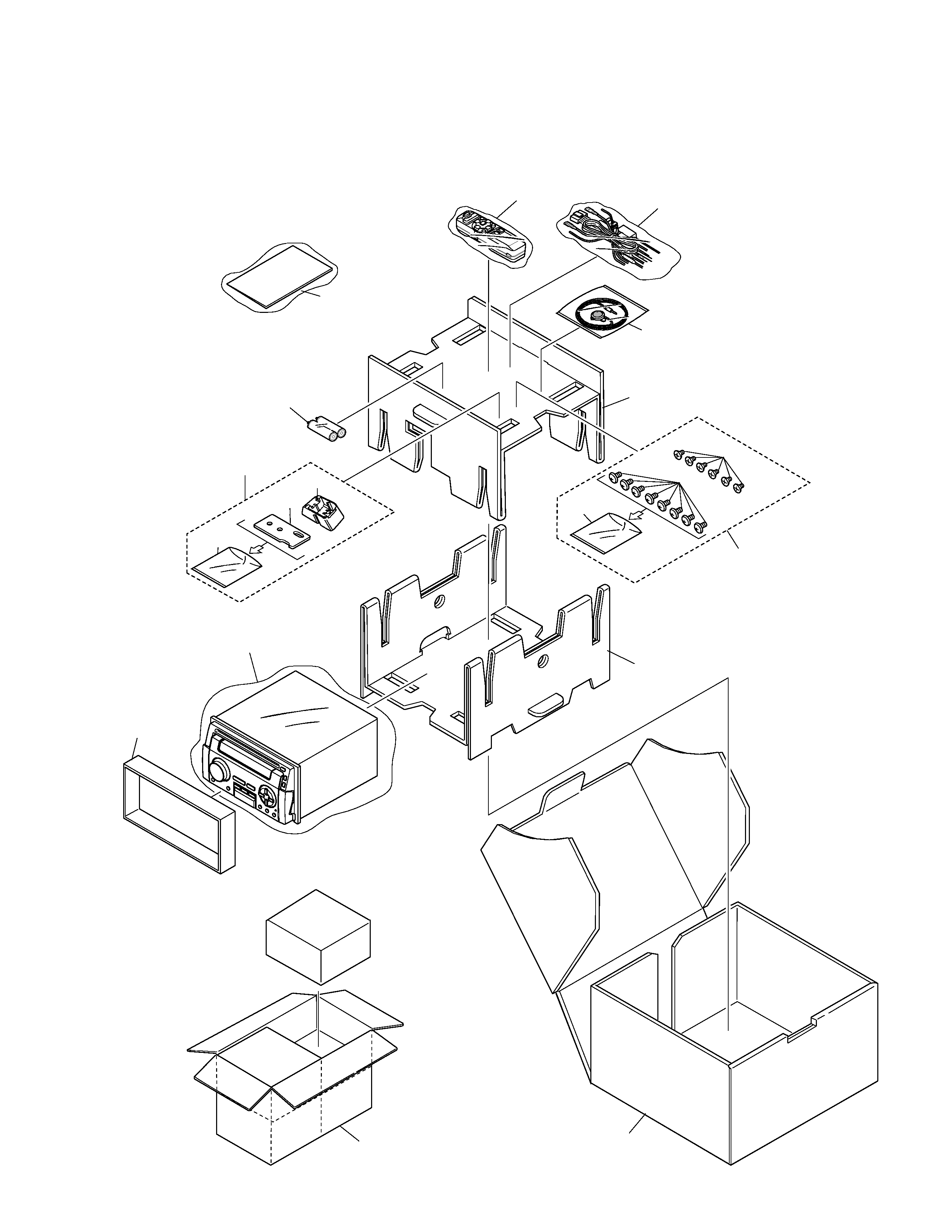

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
background image
4
FH-P8800
- Owner's Manual,Installation Manual
Model
Part No.
Language
FH-P8800/UC
CRD3127
English,French
CRD3128
English,French
FH-P8800/ES
CRD3129
English,Korean
CRD3130
English,Korean
Part No.
Mark No. Symbol and Description FH-P8800/UC
FH-P8800/ES
6-1 Owner's Manual
CRD3127
CRD3129
6-2 Installation Manual
CRD3128
CRD3130
*
6-3 Card
ARY1048
Not used
6-5 Panel
CAH1543
Not used
8 Carton
CHG4022
CHG4023
9 Contain Box
CHL3992
CHL3993
19 Cover
CEG1177
CEG1074
(2) CONTRAST TABLE
FH-P8800/UC and FH-P8800/ES are constructed same except for the following:
(1) PACKING SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
NOTE:
- Parts marked by "*"are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
1 Screw Assy
CEA2189
2 Screw
BMZ50P060FMC
*
3 Polyethylene Bag
CEG-127
4 Screw
CMZ50P060FMC
5 Polyethylene Bag
CZE3188
6-1 Owner's Manual
See Contrast table(2)
6-2 Installation Manual
See Contrast table(2)
*
6-3 Card
See Contrast table(2)
6-4 Polyethylene Bag
CEG1116
6-5 Panel
See Contrast table(2)
7 Battery
CEX1006
8 Carton
See Contrast table(2)
9 Contain Box
See Contrast table(2)
10 Microphone Assy
CPM1022
11 Protector(front)
CHP2229
12 Protector(upper)
CHP2227
13 Protector(lower)
CHP2228
14 Base Assy
CEA2426
*
15 Base
CNS5031
*
16 Sheet
CZA3371
17 Cord Assy
CDE6179
18 Remote Control Assy
CXB3877
19 Cover
See Contrast table(2)
background image
FH-P8800
5

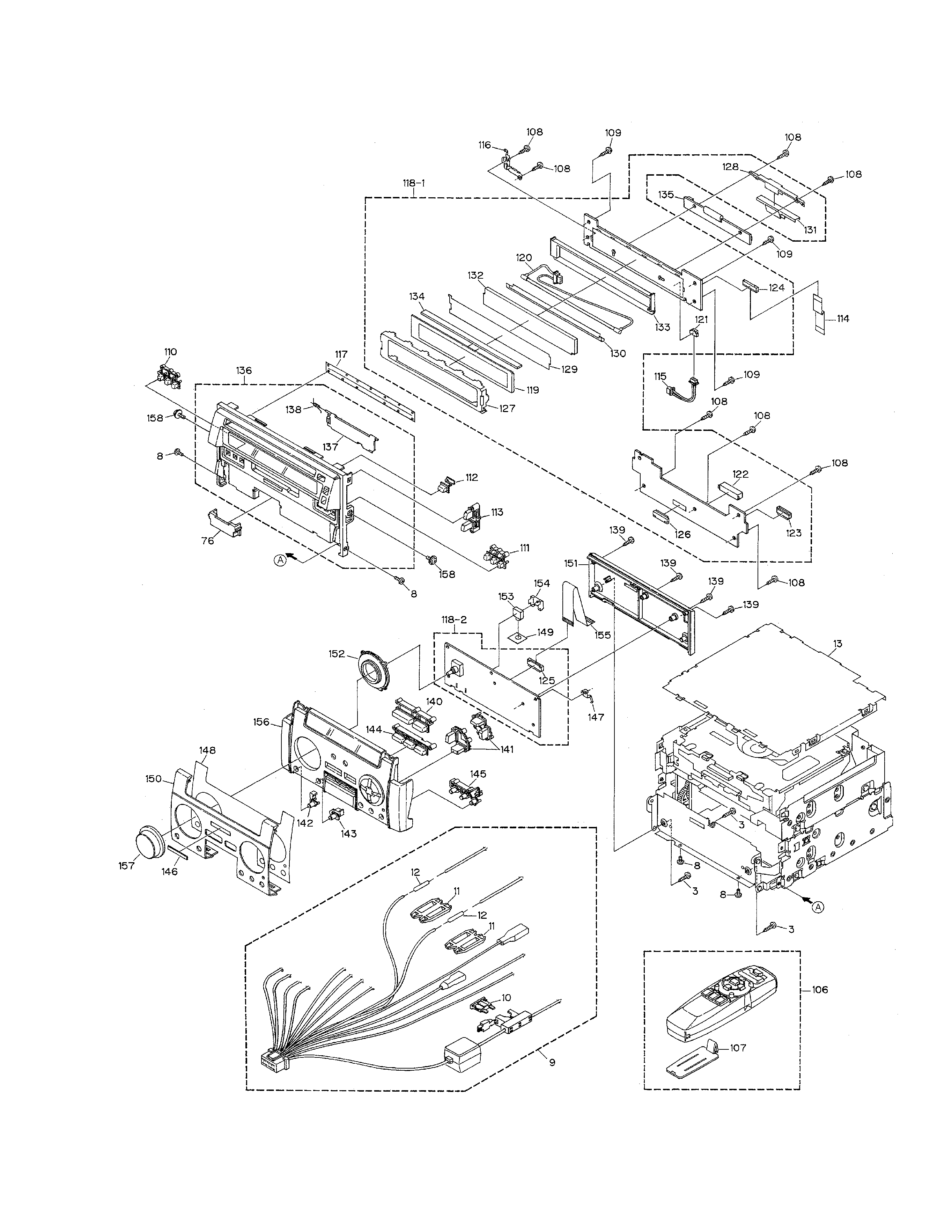

2.2 EXTERIOR
