PIONEER DV-444-S Owner's Manual

Cover page of PIONEER DV-444-S Owner's Manual

Owner's Manual for PIONEER DV-444-S, downloadable as a PDF file.

We also have service manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 124 pages
  • File size: 8.43 MB
  • Available language versions: Danish, Italian, Turkish, Norwegian, Portuguese, French, Swedish, English, Russian, Spanish, Dutch, German, Finnish
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9

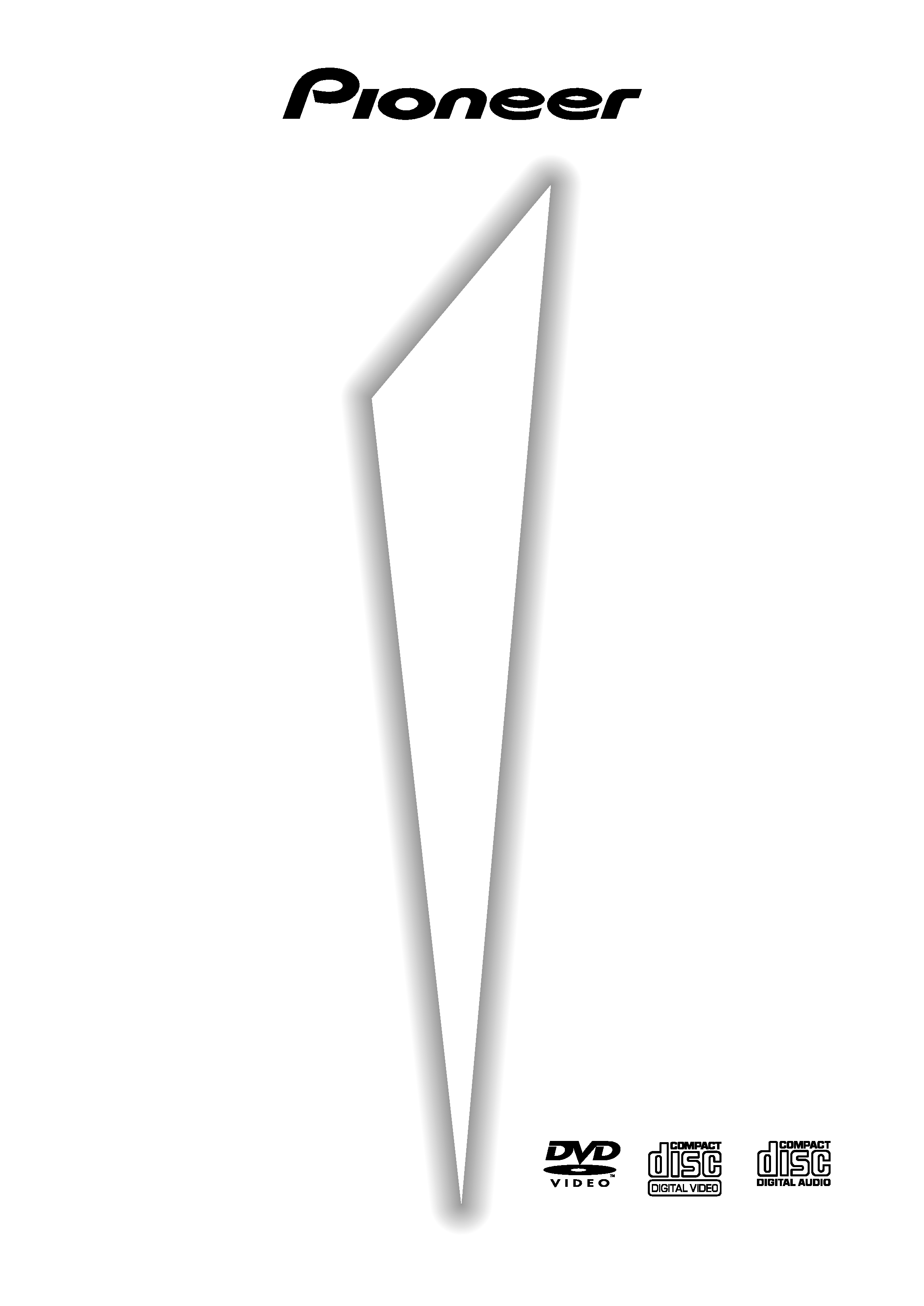

background image
DV-444-K
DV-444-S
Operating Instructions
Istruzioni per l'uso
DVD PLAYER
LETTORE PER DVD
background image
DV-444-K
DV-444-S
Operating Instructions
Istruzioni per l'uso
DVD PLAYER
LETTORE PER DVD
background image

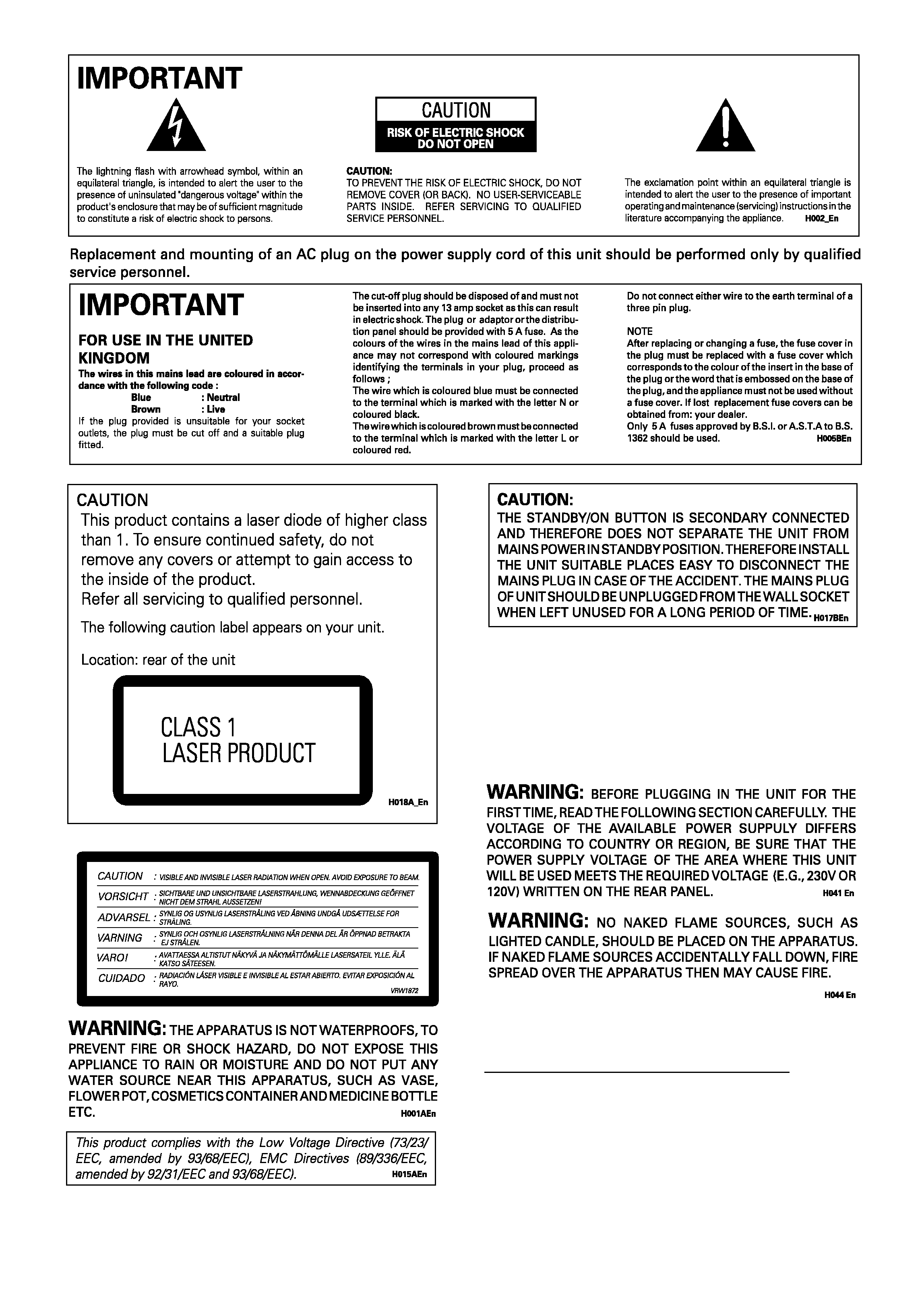

En
WARNING: Slot and openings in the cabinet are pro-
vided for ventilation and to ensure reliable operation
of the product and to protect it from overheating, to
prevent fire hazard, the openings should never be
blocked and covered with items, such as newspapers,
table-cloths, curtains, etc. Also do not put the appara-
tus on the thick carpet, bed, sofa, or fabric having a
thick pile.
H040 En
Operating Environment
Operating environment temperature and humidity:
+5ºC ­ +35ºC (+41ºF ­ +95ºF); less than 85%RH (cooling
vents not blocked)
Do not install in the following locations
÷ Location exposed to direct sunlight or strong artifi-
cial light
÷ Location exposed to high humidity, or poorly venti-
lated location
H045 En
On the bonnet of the player
background image

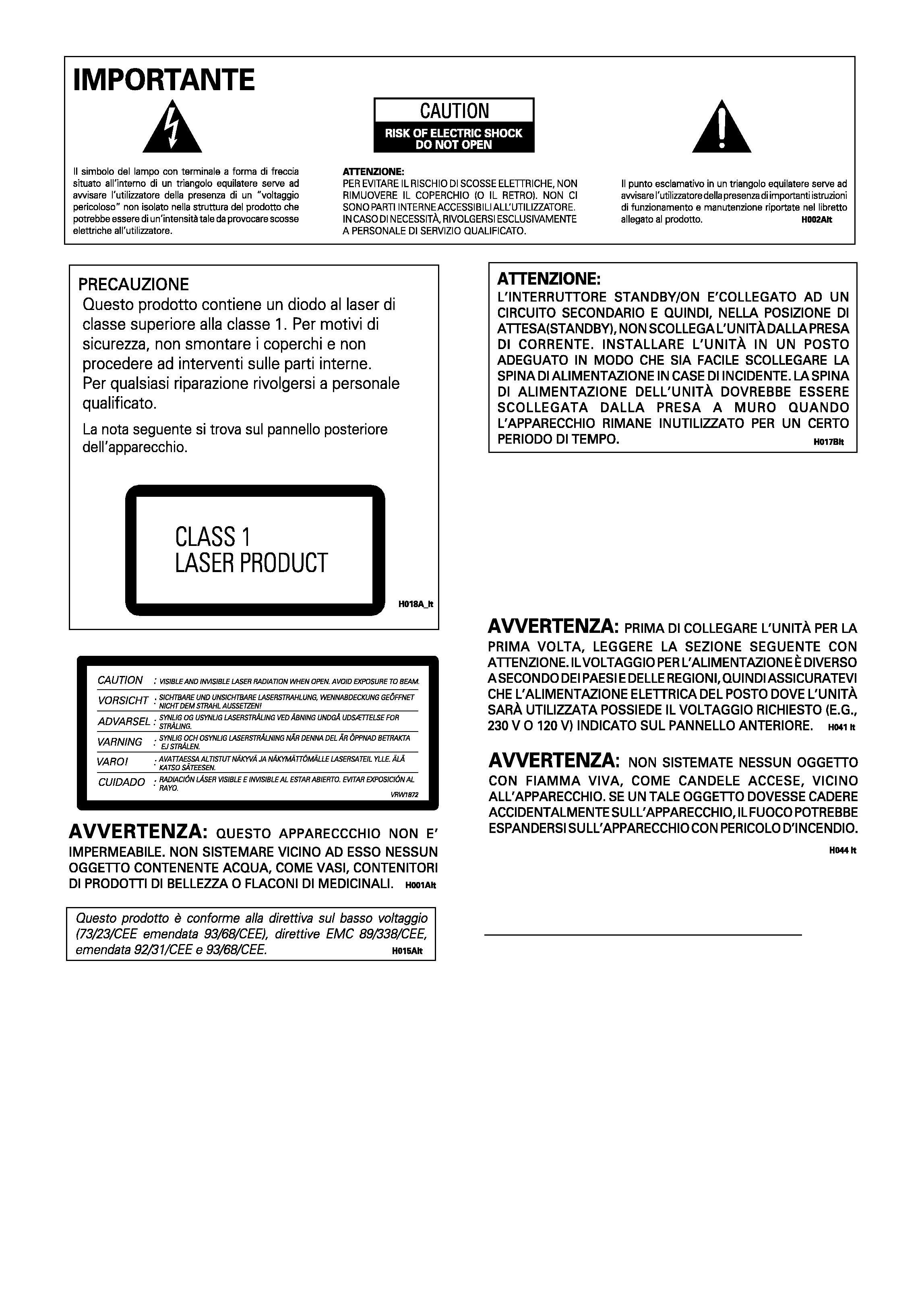

It
Sul coperchio dell'apparecchio
AVVERTENZA: Feritoie ed aperture nella struttura sono
previste solo per la ventilazione e, in modo da assicurare
il buon funzionamento del prodotto, proteggerlo dal
surriscaldamento, dai rischi d'incendio, le aperture non
devono mai essere ostruite o ricoperte da oggetti come
giornali, tovaglie, tende, ecc... Inoltre, non posizionare
l'apparecchio su tappetti spessi, letti, divani o mobili
aventi una spessa imbottitura.
H040 It
Condizioni ambientali di funzionamento
Umidità e temperatura di funzionamento:
+5ºC ­ +35ºC (+41ºF ­ +95ºF); inferiore a 85%RH (feritoie
di raffreddamento non ostruite)
Non posizionare nei seguenti luoghi:
÷ luoghi esposti alla luce diretta del sole o a forti
sorgenti di luce artificiale
÷ luoghi esposti a condizioni di alta umidità o scarsa
ventilazione
H045 It
background image
2
En
Features of This Player
Compatible with DVD, Video CD
and CD formats
DVD, Video CD and CD discs that display the logos
shown below can be played back on PIONEER DVD
players. For more information on discs compatible with
this player, refer to the table below.
The disc format logos shown above are found on disc
labels or on disc jackets.
· To prevent malfunction, do not use an 8 cm adaptor
(for CDs).
· Discs other than the ones indicated above cannot be
played on this unit.
· DVDs that have incompatible region numbers, DVD-
Audio, DVD-ROM, and DVD-RAM cannot be played
on this unit. The region number of the player can be
found on the rear panel.
*1Playing recordable CDs
This unit can play CD-R and CD-RW discs recorded in
CD Audio or Video CD format, or with MP3 audio
files.
MP3 compatibility information
· The CD-ROM must be ISO 9660 compatible.
· Files should be MPEG1 Audio Layer 3 format, 44.1 or
48kHz, fixed bit-rate. Incompatible files will not play
and "UNPLAYABLE MP3 FORMAT" will be
displayed.
· Not compatible with variable bit-rate (VBR) files.
· This player only plays tracks that are named with the
file extension ".mp3" or ".MP3".
· This player is not compatible with multi-session
discs. If you try and play a multi-session disc, only
the first session will be played.
· Use CD-R or CD-RW media for recording your MP3
files. The disc must be finalized in order to play.
· Audio encoded at 128Kbps should sound close to
regular audio CD quality. Although this player will
play lower bit-rate MP3 tracks, the sound quality
becomes noticeably worse at lower bit-rates.
· Only the first 8 characters of folder and track names
(excluding the ".mp3" extension) are displayed.
· This player can recognize a maximum of 250 folders
and 250 tracks. Discs containing more than 250
folders or tracks will play, but only the first 250
folders/tracks.
Caution!
· CD-R/RW discs recorded using a personal
computer or a CD recorder may not play if the
disc is damaged or dirty, or if there is dirt or
condensation on the player's lens.
· If you record a disc using a personal computer,
even if it is recorded in a compatible format, there
are cases in which it may not play because of the
settings of the application software used to create
the disc. (Check with the software publisher for
more detailed information.)
· Unfinalized CD-R/RW discs can be played, but not
all time information (playing time, etc.) will be
displayed.
· For more information on using CD-R/RW discs,
see
`Disc care' wstarting on page 53.
CONGRATULATIONS ON YOUR PURCHASE OF THIS FINE PIONEER PRODUCT.
Pioneer is on the leading edge of DVD research for consumer products and this unit incorporates the latest technological
developments.
We are sure you will be fully satisfied with the DVD player.
Thank you for your support.
Please read through these operating instructions so you will know how to operate your model properly. After you
have finished reading the instructions, put them away in a safe place for future reference.
· This player is not suitable for commercial use.
8 cm/
single-sided
8 cm/
double-sided
DVD VIDEO
DVD VIDEO
Types of playable
discs and their marks
Diameter/Playable
sides
Playback time
133 min.
242 min.
266 min.
484 min.
VIDEO CD
CD
Digital audio
Digital video
(MPEG 2)
DVD VIDEO
VIDEO CD
12 cm/
single-sided
CD
12 cm/
single-sided
41 min.
75 min.
82 min.
150 min.
VIDEO CD single
8 cm/
single-sided
CD single
8 cm/
single-sided
Digital audio
Digital video
(MPEG 1)
Max. 20
minutes
Digital audio
Max. 74
minutes
Digital audio
Max. 20
minutes
12 cm/
single-sided
12 cm/
double-sided
1 layer
2 layer
1 layer
2 layer
1 layer
2 layer
1 layer
2 layer
*1
*1
Digital audio
Digital video
(MPEG 2)
Digital audio
Digital video
(MPEG 1)
Max. 74
minutes
background image
3
En
English
Compatible with a wide range of
DVD digital audio output formats
DVDs are recorded in one of four types of digital audio
formats (as of October 1998). The digital audio output
jacks of this player output Dolby*2 Digital, DTS*3,
MPEG, and linear PCM digital bitstreams.
This player has a function that converts Dolby Digital
and MPEG audio formats into the linear PCM format.
This allows playback of DVDs recorded in Dolby Digital
and MPEG without the need for a decoder.
TruSurround
TruSurround*4 uses technology that simulates
multichannel surround sound using only two speakers.
TruSurround works in conjunction with 2 channel audio
sources to create a realistic surround sound.
MP3 compatibility
This player is compatible with CD-R, CD-RW and CD-
ROM discs that contain MP3 audio tracks.
Video adjust function
[Fine Focus], [Contrast], [Sharpness], [Chroma level]
and [Hue] picture quality adjustment settings are
available. You can memorize up to three sets of picture
quality settings (pages 29, 30).
Easy setup and adjustment using
on-screen menus
Press SETUP on the remote control to open the Setup
screen and you'll find setting up and adjusting the
system easy to do with on-screen menus conveniently
organized and arranged. Additionally, on-screen
information ( i ) appears to clarify the functions and
explain the options available. Below are just a few
examples.
*2 Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. © 1992-1997
Dolby Laboratories. All rights reserved.
*3 "DTS" is a registered trademark of Digital Theater
Systems, Inc.
*4 TruSurround and the
® symbol are trademarks of SRS
Labs, Inc. TruSurround technology is incorporated under
license from SRS Labs, Inc.
Audio
: 1
English
Dolby Digital
5.1CH
Audio
: 2
Spanish
HELLO
HOLA
Dolby Digital
5.1CH
Angle
: 2/4
Angle
: 3/4
24-bit/192kHz compatible DAC delivers
higher-than-CD quality audio.
The DAC used to convert digital audio to analog in this
player is fully 24-bit/192kHz compatible.
Multiple video output formats that
can be selected to best suit your
TV or monitor
This player features composite, S-video jacks, and AV
CONNECTOR (RGB)-TV jack. RGB signal output is
possible from the AV CONNECTOR (RGB)-TV jack.
Wide range of DVD viewing options
Multi-Angle (page 31)
You can view scenes from different camera angles when
watching movies or other media with multiple angle
playback available.
Answer a few questions
and have all the
necessary audio, video,
and on-screen language
adjustments set
automatically by the
player using the Setup
Navigator (pages 15, 16).
General
A2
V2 Language
Audio1
Video1
Exit
Move
Select
Setup using the Setup Navigator
Setup Navigator
Setup Navigator
Start
Auto Start Off
SETUP
ENTER
Multiple Languages (page 32)
You can select the language on when watching movies
or other media that have multiple language and/or audio
soundtracks recorded on them.
Multi-Language Subtitles (page 34)
You can select a subtitle language or turn subtitles off
when watching movies or other media with subtitles
available.
This mark indicates this may not be possible with
certain discs.
Energy-saving design
This unit is designed to use less than 1 W of energy
when this player is in standby mode.
HELLO!
HOLA!
Subtitle
:1 English
Subtitle
:2 Spanish
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection
technology must be authorized by Macrovision
Corporation, and is intended for home and other
limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
1
