PIONEER DV-3500 Service Manual

Cover page of PIONEER DV-3500 Service Manual

Service Manual for PIONEER DV-3500, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 14 pages
  • File size: 1.34 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
D
DV
V--3
35
50
00
0
SERVICE MANUAL
DVD Player
Effective : December, 2002
S-0081A
NOTES
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number in the
exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
£
Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
CONTENTS
1 SPECIFICATIONS
2
2 DISASSEMBLY
3
3 EXPLODED VIEWS AND PARTS LIST
4
4 PC BOARDS AND PARTS LIST
6
5 BLOCK DIAGRAM
9
6 WIRING DIAGRAM
10
7 OSCILLOGRAMS
11
background image
D
DV
V--3
35
50
00
0
SERVICE MANUAL
DVD Player
Effective : December, 2002
S-0081A
NOTES
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number in the
exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
£
Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
CONTENTS
1 SPECIFICATIONS
2
2 DISASSEMBLY
3
3 EXPLODED VIEWS AND PARTS LIST
4
4 PC BOARDS AND PARTS LIST
6
5 BLOCK DIAGRAM
9
6 WIRING DIAGRAM
10
7 OSCILLOGRAMS
11
background image
1 SPECIFICATIONS
DVD Player
Signal system: NTSC / PAL
Laser: Semiconductor laser, wavelength 650 nm
Frequency range:
DVD : 4 Hz to 22 kHz (fs:48kHz)
4 Hz to 44 kHz (fs:96kHz)
CD/VCD : 4 Hz to 20 kHz
Signal-to-noise rating (DVD): 106 dB
Audio dynamic range (DVD): 106 dB
Harmonic distortion (DVD): 0.002%
Wow and flutter:
Below measurable level (less than ± 0.001% (W.PEAK))
Operating conditions:
Temperature: 5°C to 35°C
Operation status: Horizontal
Outputs
Video output:
RCA jack x 1
1.0 V (p-p), 75 , negative sync.
S-video output:
Mini DIN 4-pin x 1
(Y) 1.0 V (p-p), 75 , negative sync.,
(C) 0.286 V (p-p) 75
Audio output (digital audio):
RCA jack x 1, 1.15 V (p-p), 75
OPTICAL digital jack x 1
Audio output (analog audio):
RCA jack x1, 2.0 Vrms (1 kHz, 0 dB)
AV connector output:
SCART jack x1
General
Power supply: AC 230V, 50 Hz
Power consumption: 14 W
Weight: 3.6 kg
External dimensions (W x H x D):
435 x 70 x 276 mm
Accessories
Remote Control Unit x 1
Owner's manual x 1
AV Cable (RCA) x 1
· Design and specifications are subject to change without notice.
· Weight and dimensions are approximate.
Type of Discs That Can be Played on This System
This player can playback discs bearing any of the following
marks:
Note 1
DVD players and discs are designed with region numbers that
dictate the regions in which a disc can be played. If the region
number on the disc you want to play does not match the region
number of your DVD player, you will not be able to play the disc.
In that case, error message will appear on the screen.
The region code is printed on the rear panel of this unit.
Discs having following region code can be played with this unit :
Note 2
The specific playback functionality for some DVD and video CD
discs is determined by the disc manufacturer. Because this DVD
player plays disc data in accordance with the disc manufacturer's
guidelines, some functions may not be available on some discs.
Be sure to read the instructions provided with the disc.
The PROHIBIT icon "A" displayed during DVD player operation
indicates that such manufacturer imposed restrictions apply.
Note 3
The audio on a DVD disc recorded in MPEG version 2.0 format
maybe cannot be played (MPEG-2 is an image only format).
Note 4
File names of MP3 should be alphanumeric characters. This unit
cannot display symbols and full-size or 2 bytes-wide characters
(such as Japanese, Chinese, etc.) correctly.
Also, be sure to use the extension ".mp3".
When more than 200 MP3 files are recorded on the disc, the unit
might not be able to play it correctly.
DVDs
12cm or 8cm disc
See Note 1, 2, 3.
Video CDs
12cm or 8cm disc
(version up to 2.0)
See Note 2.
Audio CDs, MP3
12cm or 8cm disc
See Note 4.
2
background image
2 DISASSEMBLY
3
Door Tray Removal
1. Supply Power and open Tray 1.
2. Disassemble the Door Tray 2 in direction off arrow "A".
3. Close Tray 1 and power off.
Note : If Tray doesn't open, insert a sharp point into emergency hole, and then push the tap in the hole in direction of arrow,
After then open tray manually.
1Tray
2Door Tray
Bottom View
"A"
background image
3 EXPLODED VIEWS AND PARTS LIST
4
w
a
s
a
a
a
s
s
a
q
background image
5

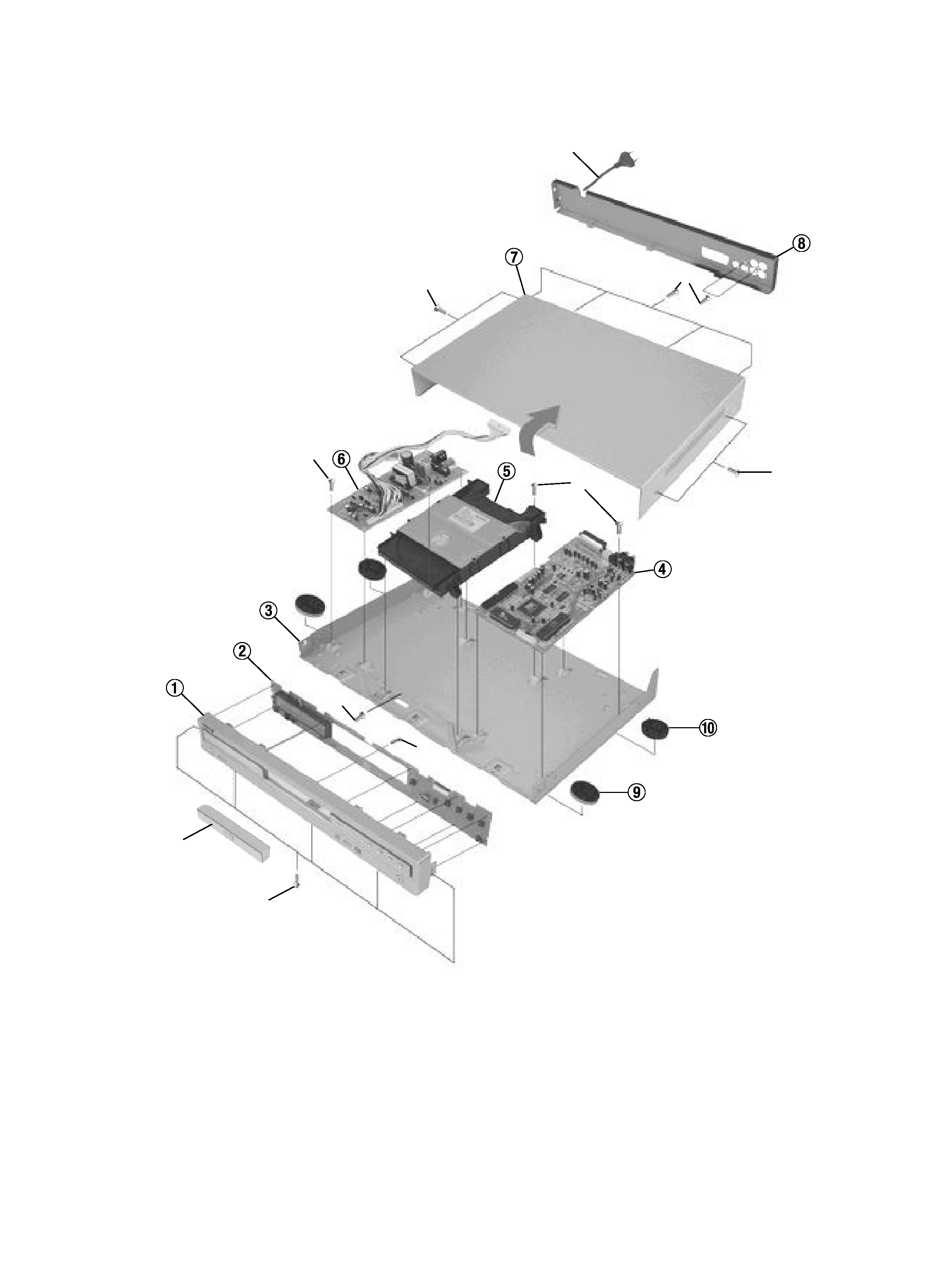

EXPLODED VIEW
£
INCLUDED ACCESSORIES
