ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
CRT3946
CD RECEIVER
DEH-P8980BT
/XF/BR
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No.
Order No.
Mech. Module
Remarks
DEH-P790BT/XN/UC
CRT3903
CX-3195
CRT3815
S10.5COMP2
CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
K-ZZA. MAY 2007 Printed in Japan
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
CRT3946
CD RECEIVER
DEH-P8980BT
/XF/BR
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No.
Order No.
Mech. Module
Remarks
DEH-P790BT/XN/UC
CRT3903
CX-3195
CRT3815
S10.5COMP2
CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
K-ZZA. MAY 2007 Printed in Japan
background image
DEH-P8980BT/XF/BR
2
12
34
1
234
C
D
F
A
B
E
EXPLODED VIEWS AND PARTS LIST
PACKING(DEH-P7900BT/XN/UC, DEH-P8950BT/XN/ES)(Page 10)
PACKING(DEH-P7900BT/XN/UC, DEH-P8950BT/XN/ES) SECTION PARTS LIST
*:Non spare part
EXTERIOR(1)(Page 12)
EXTERIOR(1) SECTION PARTS LIST
EXTERIOR(2)(Page 14)
EXTERIOR(2) SECTION PARTS LIST
Mark
No.
Description
DEH-P8950BT/XN/ES
DEH-P8980BT/XF/BR
2
Cord Assy
CDP1009
CDP1008
3
Unit Box
CHG6110
CHG6112
4
Contain Box
CHL6110
CHL6112
27-1 Owner's Manual
CRD4206
CRB2353(Portuguese(B))
27-2 Owner's Manual
CRD4207
Not used
27-3 Installation Manual
CRD4211
CRB2354(Portuguese(B))
27-4 Caution Card
CRP1310
*CRN1084
*
27-5 Warranty Card
Not used
CRY1262
*
27-9 Service Network
Not used
CRY1227
Mark No.
Description
DEH-P8950BT/XN/ES
DEH-P8980BT/XF/BR
3
Cord Assy
CDP1009
Not used
9
Detach Grille Assy
CXC7497
CXC7498
24
Sub Grille Assy
CXC7502
CXC8005
32
Cord Assy
Not used
CDP1008
33
Terminal Cover
Not used
CKX-003
Mark No.
Description
DEH-P8950BT/XN/ES
DEH-P8980BT/XF/BR
12
Tuner Amp Unit
CWN2344
CWN2509
24
Connector(CN151)
Not used
CKS4124
32
Holder
CND3835
CND3834
64
Panel Unit
CXC5696
CXC8537
33
32
background image
DEH-P8980BT/XF/BR
3
56
7
8
56
7
8
C
D
F
A
B
E

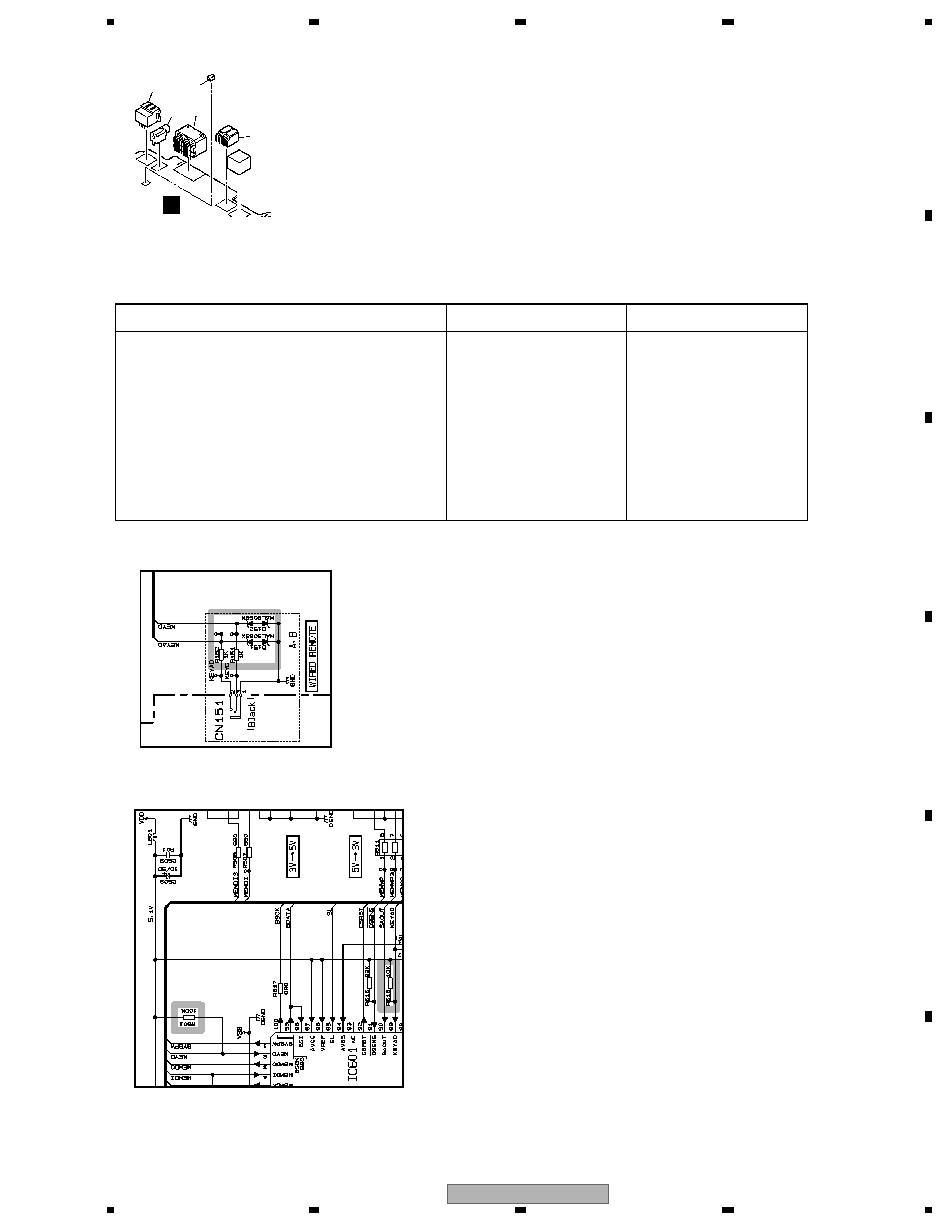

ELECTRICAL PARTS LIST(Page 52)
TUNER AMP UNIT
Circuit Symbol and No.
Part Name
DEH-P8950BT/XN/ES
DEH-P8980BT/XF/BR
D151
Diode
Not used
MALS068X
D152
Diode
Not used
MALS068X
R151
Not used
RS1/16S102J
R152
Not used
RS1/16S102J
R601
Not used
RS1/16S104J
R615
Not used
RS1/16S103J
R955
RS1/16S103J
Not used
R956
RS1/16S103J
Not used
A
A
27
24 20
29
21
44
Page 27 Address 5F
Page 24 Address 4F
