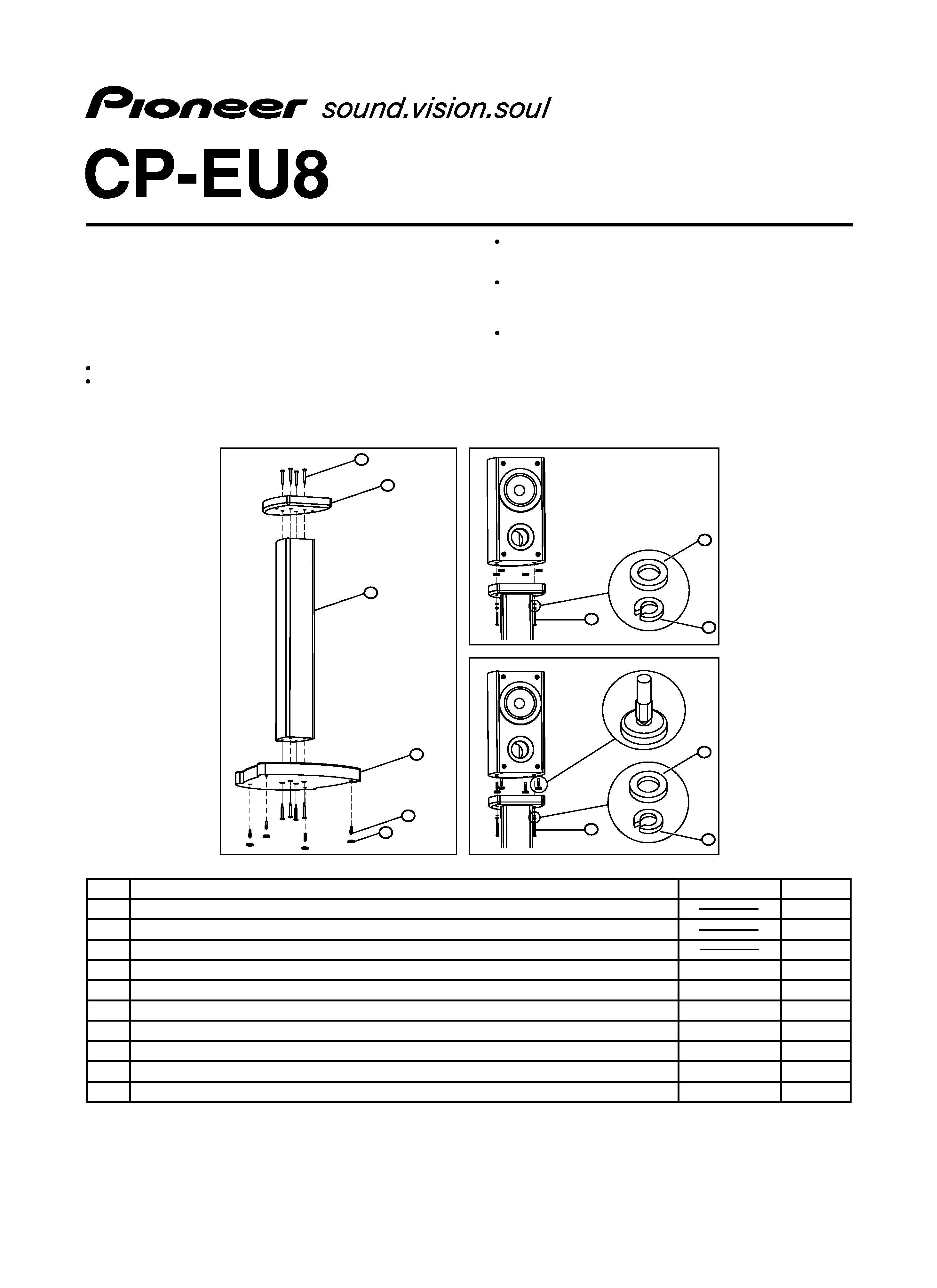

ASSEMBLING THE SPEAKER STANDS
Speaker Stand
Operating Instructions
Thank you for buying this Pioneer product. This speaker stand should only be
used with the S-EU8BS-LR Pioneer speaker system. Please read through these
operating instructions for proper assembly and use. After you have finished
reading the instructions, put them away in a safe place for future reference.
BEFORE YOU START
Before setting up your speaker system, we recommend reading the operating
IMPORTANT :
Pioneer assumes no liability whatsoever for damages resulting from assembly,
improper mounting, insufficient reinforcement, misuse of the product, acts of
nature, etc.
CAUTION :
Only use the screws supplied when fixing the speaker to the speaker stand.
Do not place the stand on an unstable and/or sloping surface. The stand and
speaker may fall and cause injury.
Do not use with any speaker system other than the one for which the unit was
designed. The stand may collapse and be damaged and/or the speaker may fall
and cause injury.
When moving the speaker and stand, first remove the speaker from the stand,
and then move the stand, holding it by the two stems.
Item
1
2
3
4
5
6
7
8
9
10
Part no.
SBA6010
SBA6008
SBG6001
SBA6011
SBA6012
SBE1036
SBE1035
Description of goods
Base plate
Pole
Top plate
Screw M5 x L50 mm (for pole)
Decoupling Spike
Base for decoupling Spike
Screw M4 x L40 mm (for hangup speakers)
Screw M4 x L50 mm (for hangup speakers)
Washer
Spring Washer
Qty
2 pcs
2 pcs
2 pcs
16 pcs
8 pcs
8 pcs
4 pcs
4 pcs
4 pcs
4 pcs
3
4
2
1
5
6
A
B
8
7
9
10
9
10
background image
ASSEMBLING THE SPEAKER STANDS
Speaker Stand
Operating Instructions
Thank you for buying this Pioneer product. This speaker stand should only be
used with the S-EU8BS-LR Pioneer speaker system. Please read through these
operating instructions for proper assembly and use. After you have finished
reading the instructions, put them away in a safe place for future reference.
BEFORE YOU START
Before setting up your speaker system, we recommend reading the operating
IMPORTANT :
Pioneer assumes no liability whatsoever for damages resulting from assembly,
improper mounting, insufficient reinforcement, misuse of the product, acts of
nature, etc.
CAUTION :
Only use the screws supplied when fixing the speaker to the speaker stand.
Do not place the stand on an unstable and/or sloping surface. The stand and
speaker may fall and cause injury.
Do not use with any speaker system other than the one for which the unit was
designed. The stand may collapse and be damaged and/or the speaker may fall
and cause injury.
When moving the speaker and stand, first remove the speaker from the stand,
and then move the stand, holding it by the two stems.
Item
1
2
3
4
5
6
7
8
9
10
Part no.
SBA6010
SBA6008
SBG6001
SBA6011
SBA6012
SBE1036
SBE1035
Description of goods
Base plate
Pole
Top plate
Screw M5 x L50 mm (for pole)
Decoupling Spike
Base for decoupling Spike
Screw M4 x L40 mm (for hangup speakers)
Screw M4 x L50 mm (for hangup speakers)
Washer
Spring Washer
Qty
2 pcs
2 pcs
2 pcs
16 pcs
8 pcs
8 pcs
4 pcs
4 pcs
4 pcs
4 pcs
3
4
2
1
5
6
A
B
8
7
9
10
9
10
background image
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1540, Long Beach, California 90801-1540
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium Tel : +32-3-570.05.11
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, Tel : (03) 580-9911
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. San Lorenzo Num 1009 3er piso Desp. 302 Col. Del Valle, Mexico D.F.; C.P. 03100 Tel : 5-688-52-90
Published by Pioneer Corporation.
2006 Pioneer Corporation.
All reproduction and translation rights reserved.
Printed in China <SRD6061-A>
SPECIFICATIONS
External dimensions ........ 367 (W) mm x 720 (H) mm x 405 (D) mm
Weight ..................................................................................... 9.7 kg
SUPPLIED ACCESSORIES
Base plate ....................................................................................... 2
Pole ................................................................................................. 2
Top plate ......................................................................................... 2
Screw (M5 x L50 mm) [SBA6010] ................................................ 16
Decoupling Spike [SBA6008] .......................................................... 8
Base for decoupling Spike [SBA6001] ............................................ 8
Screw (M4 x L40 mm) ..................................................................... 4
Screw (M4 x L50 mm) ..................................................................... 4
Washer [SBE1036] ......................................................................... 4
Spring Washer [SBE1035] .............................................................. 4
Foam cushion [FREC-067] ............................ 2 sheets (4 pcs/sheet)
Instruction manual [SRD6061]
INSTALLATION
In order to minimize the transmission of vibrations from the speaker to the floor, PIONEER
offers two possibilities :
4 metal decoupling spikes to be screwed under the base. If desired (especially with
polished wood floors), you can also employ the 4 provided metal bases between the 4
decoupling spikes and the floor.
4 foam cushions to be stuck on the underside of the base.
CAUTION :
Make sure you assemble the stand on a flat surface that is relatively soft (such
as a carpet).
Note that these spikes are sharp metal and can cause damage to flooring.
Make sure to lay down a cloth or suitable base before setting up.
The spike bases should be placed as shown below (with the depression on the
top side).
Make sure to use the spike bases provided to avoid damaging the surface
where you place the stand.
CABINET AND STAND MAINTENANCE
Use a polishing cloth or dry cloth to wipe off dust and dirt.
If the cabinet or stand is very dirty, use a soft cloth dipped in some neutral
cleanser diluted 5 or 6 times with water. Finally, wipe again using a dry cloth. Do
not use furniture wax or cleaners.
Never use thinners, benzine, insecticide sprays and other chemicals on or near
the cabinet or stand, since these will corrode the surfaces.
REPLACEMENT PART NUMBERS
Part name
Top spacer
Top protector
Bottom protector
Spacer for Top plate
Spacer for Base plate
Packing case
Part no.
[SHA6056]
[SHA6057]
[SHA6058]
[SHA6059]
[SHA6060]
[SHG6226]
There are two alternative methods for mounting the S-EU8BS-LR
loudspeaker on the matching CP-EU8 speaker stand. (see images A
and B on first page).
Solution A : Use the foam cushions provided with the S-EU8BS-LR
loudspeaker, positionned between the underside of the speaker
cabinet and the top plate of the stand.
Solution B : Use the decoupling spikes (also provided with the S-
EU8BS-LR loudspeaker) between the underside of the speaker
cabinet and the top plate of the stand.
Remark : The specifications and design of this product are subject to change
without notice, in the interests of improvements.
