background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1999
c
CLD-S320F
RRV2091
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 7
3. PCB CONNECTION DIAGRAM .......................... 13
CONTENTS
T ­ IZE JAN. 1999 Printed in Japan
Type
Model
Power Requirement
Remarks
CLD-S320F
WYXQ/FR
AC220-240V
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
CD CDV LD PLAYER
Refer to the service manual RRV1342 for CLD-S310F/
WEZW/FR.
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1999
c
CLD-S320F
RRV2091
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 7
3. PCB CONNECTION DIAGRAM .......................... 13
CONTENTS
T ­ IZE JAN. 1999 Printed in Japan
Type
Model
Power Requirement
Remarks
CLD-S320F
WYXQ/FR
AC220-240V
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
CD CDV LD PLAYER
Refer to the service manual RRV1342 for CLD-S310F/
WEZW/FR.
background image
2
CLD-S320F
Mark No.
Description
Part No.
Mark No.
Description
Part No.
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES:
·Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
·The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
·Reference Nos. indicate the pages and Nos. in the service manual for the base model.
·When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560
56
× 101
561 ........................................................ RD1/4PU 5 6 1 J
47k
47
× 103
473 ........................................................ RD1/4PU 4 7 3 J
0.5
R50 ..................................................................................... RN2H R 5 0 K
1
1R0 ..................................................................................... RS1P 1 R 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k
562
× 101
5621 ...................................................... RN1/4PC 5 6 2 1 F
Mark
Ref.
Symbol and Description
Part No.
Remarks
CLD-S310F CLD-S320F
No.
/WEZW/FR
/WYXQ/FR
2.1 PACKING
NSP
P4-1 Caution (EW)
VRM1027
Not used
P4-4 Operating Instructions (French)
VRC1041
VRC1070
P4-5 Protector
VHB1007
Not used
NSP
P4-8 Dry Cell Battery (R6P, AA)
VEM-013
VEM1010
P4-9 Remote Control Unit
VXX2268
Not used
P4-9 Remote Control Unit (CU-CLD155)
Not used
VXX2614
P4-12 Protector B
VHB1012
Not used
P4-13 Mirror Mat Sheet
Z23-007
DHL1006
NSP
P4-14 Warranty Card
ARY7008
ARY7022
P4-15 Packing Case
VHG1450
VHG1752
NSP
Cord Bag
Not used
VEG-012
for AC Power Cord
Pad L
Not used
VHA1193
1 No. 1
Pad R
Not used
VHA1194
1 No. 2
2.2 EXTERIOR AND DISC TRAY SECTION
P6-1 Bonnet S
VXX2117
VXX2351
P6-7 CD Tray
VNK2687
VNK3007
NSP
P6-10 LD Tray
VNK2686
VNK3188
P6-12 Door Spring
VBH1247
VBH1248
P6-13 Door Holder
VNL1658
VNL1697
P6-15 Door Shaft
VLL1455
Not used
NSP
P6-15 Door Shaft
Not used
VLL1466
2
P6-16 CD Door
VNK2791
Not used
NSP
P6-16 CD Door
Not used
VNK3316
2
P6-17 Damper Assy
VXA1999
Not used
P6-18 Tray Panel
VNK2801
VNK3315
P6-19 Disc Pad
VEC1682 (
×12) VEC1682 (×14)
P6-20 Tray Assy-S
VXX2171
Not used
NSP
P6-22 Caution Label (F)
VRW-328
Not used
CD Door Assy
Not used
VXA2237
2
2.3 TOP VIEW SECTION
NSP
P9-15 Panel Holder
VNA1710
VNA1840
CONTRAST TABLE
CLD-S320F/WYXQ/FR and CLD-S310F/WEZW/FR are constructed the same except for the following :
background image
3
CLD-S320F
Mark No.
Description
Part No.
Mark No.
Description
Part No.
Mark
Ref.
Symbol and Description
Part No.
Remarks
CLD-S310F CLD-S320F
No.
/WEZW/FR
/WYXQ/FR
2.4 FRONT PANEL SECTION
NSP
P8-1
Front Panel
VNK3195
Not used
P8-1
Front Panel
Not used
VNK4305
1 No. 1
P8-2
Pioneer Badge
PAM1608
PAM1776
1 No. 2
P8-3
FL Lens
VEC1791
VEC2002
1 No. 3
P8-4
Key A
VNK2793
Not used
P8-6
PW Button
VNK2329
Not used
P8-7
L Key
VNK2812
Not used
P8-8
Main Key
VNK3181
Not used
P8-10
FLKY Assy
VWG1657
VWG1965
1 No. 4
NSP
P8-11
KEYB Assy
VWG1627
Not used
Key K
Not used
VNK2998
1 No. 5
LD Key
Not used
VNK4087
1 No. 6
CD Key
Not used
VNK4088
1 No. 7
10 Key
Not used
VNK4201
1 No. 8
Lens Holder
Not used
VNK4266
1 No. 9
Play Key
Not used
VNK4306
1 No. 10
Skip Key
Not used
VNK4307
1 No. 11
Stop Key
Not used
VNK4308
1 No. 12
NSP
KALB Assy
Not used
VWG1964
1 No. 13
2.5 BOTTOM VIEW SECTION
P10-1
MOTHER Assy
VWS1198
VWS1372
P10-3
SYPS Assy
VWR1234
VWR1275
P10-4
AC Power Cord
VDG1061
ADG1154
P10-5
Cord Stopper
CM-22B
Not used
P10-7
Rear Panel R
VNA1598
VNA1977
P10-12
Insulator
PNW1912 (
×4) PNW1912 (×2)
1 No. 1 (for Front)
NSP P10-14
Base Chassis
VNA1461
VNA1564
NSP P10-15
Rear Panel L
VNA1580
Not used
P10-15
Rear Panel L
Not used
VNA1976
NSP P10-20
SCRB Assy
VWV1432
VWV1656
Insulator Assy
Not used
VXA2295 (
×2)
1 No. 2 (for Rear)
Power Joint
Not used
VNK4302
1 No. 3
1 : The numbers in the remarks column correspond to the numbers on the "EXPLODED VIEWS".
2 :
CD Door Assy VXA2237
NSP
Door Shaft VLL1466
NSP
CD Door
VNK3316
background image
4
CLD-S320F
Mark No.
Description
Part No.
Mark No.
Description
Part No.

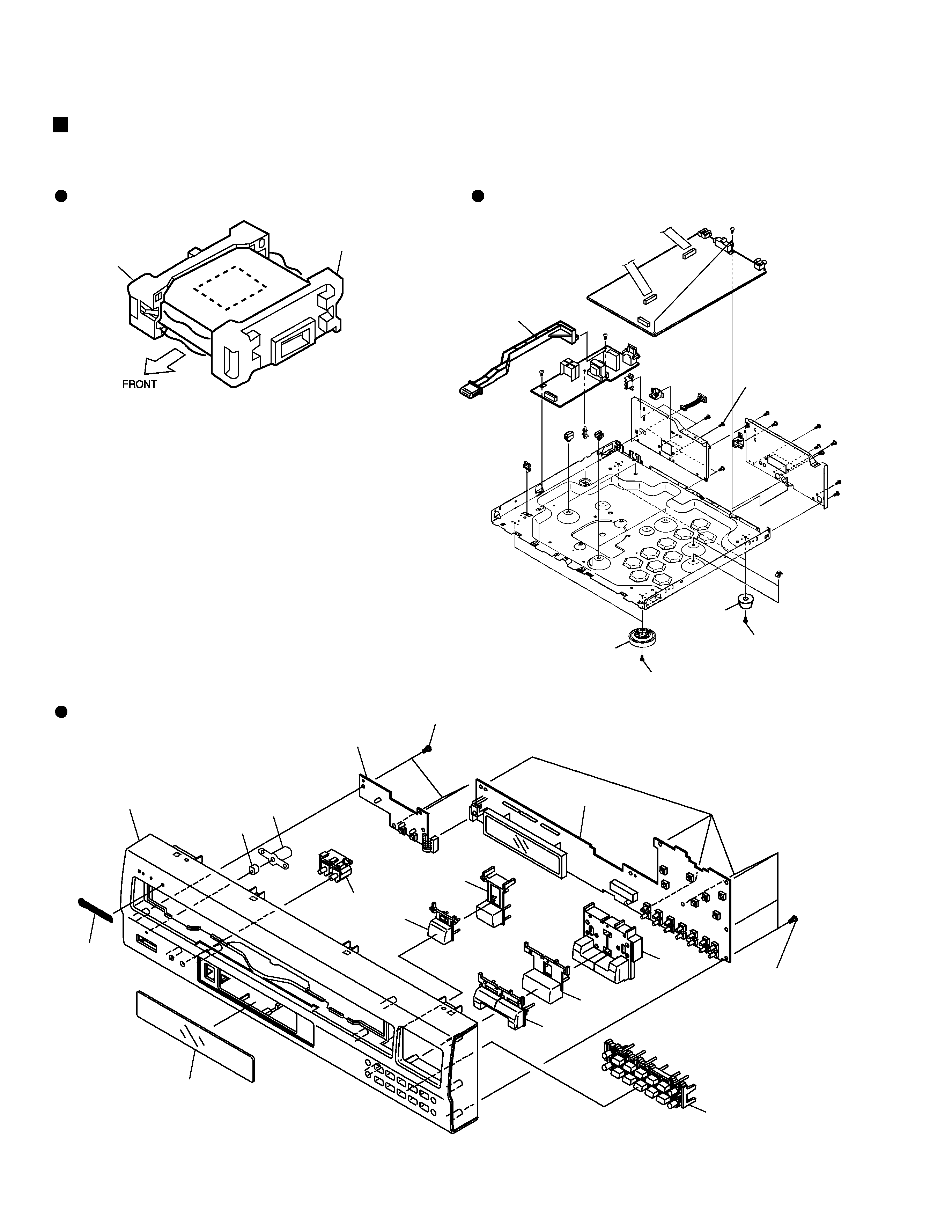

EXPLODED VIEWS
No. 1
No. 2
No. 5
No. 6
No. 2
No. 1
No. 3
No. 1
No. 1
Packing
Note : The numbers on the exploded views correspond to the numbers on the "CONTRAST TABLE".
Front Panel Section
Bottom View Section
No. 3
No. 9
No. 13
No. 12
No. 4
No. 7
Screw
(BBZ30P080FMC)
Screw
(BBZ30P100FMC)
Screw
(BBZ30P080FMC)
No. 6
No. 10
No. 8
No. 11
Screw
(BBZ30P100FMC)
Screw
(BBZ30P080FMC)
background image
5
CLD-S320F
Mark No.
Description
Part No.
Mark No.
Description
Part No.
PCB PARTS LIST
Mark
Symbol and Description
Part No.
Remarks
CLD-S310F
CLD-S320F
/WEZW/FR
/WYXQ/FR
NSP
MACB ASSY
VWM1507
VWM1507
NSP
LMSB ASSY
VWG1554
VWG1554
NSP
PKSB ASSY
VWG1555
VWG1555
NSP
FG ASSY
VWG1556
VWG1556
NSP
FLKB ASSY
VWM1592
Not used
NSP
KEYB ASSY
VWG1627
Not used
FLKY ASSY
VWG1657
Not used
NSP
FLKB ASSY
Not used
VWM1844
NSP
KALB ASSY
Not used
VWG1964
FLKY ASSY
Not used
VWG1965
MOTHER ASSY
VWM1601
VWM1899
MOTHER ASSY
VWS1198
VWS1372
NSP
SCRB ASSY
VWV1432
VWV1656
SYPS ASSY
VWR1234
VWR1275
LIST OF WHOLE PCB ASSEMBLIES
MOTHER ASSY
VWS1372 and VWS1198 are constructed the same except for the following :
Mark
Symbol and Description
Part No.
Remarks
VWS1198
VWS1372
IC400
PAC005B
LA7133
IC801
PAC002A
LA9425
IC901
PAC003A
LA9420M
Q103,Q161,Q207,Q901,Q910
UN2212
DTC124EK
Q209,Q514,Q515
UN2112
DTA124EK
Q152
2SC3802K
2SC3082K
C444,C917
CEAS100M50
CEAT100M50
C424,C543,C565
CEAS101M10
CEAT101M10
C300
Not used
CEAT102M6R3
Refer to page 12.
C904
CEAS1R0M50
CEAT1R0M50
C274,C275,C465,C922,C967,C968,C987
CEAS220M25
CEAT220M25
C519,C532,C576,C974,C975
CEAS221M10
CEAT221M10
C845,C902,C926
CEAS2R2M50
CEAT2R2M50
C101,C207,C225,C226,C270,C271,C422,C450,C458
CEAS470M10
CEAT470M10
C508,C516,C527,C530,C542,C547,C549,C553,C555
CEAS470M10
CEAT470M10
C558,C562,C564,C569,C801,C803,C833,C842,C844
CEAS470M10
CEAT470M10
C893,C927,C933
CEAS470M10
CEAT470M10
C210,C216
CEAS471M10
CEAT471M10
C850,C870
CEAS4R7M50
CEAT4R7M50
R106
RS1/10S104J
RS1/10S103J
R220,R222 (4.7
, 1/6W)
DCN1001
RFA1/6PU4R7J
VR450 (2.2k
)
RCP1019
VCP1123
VR603 (4.7k
)
RCP1020
VCP1154
VR604,VR607,VR612 (47k
)
RCP1047
VCP1160
SCRB ASSY
VWV1656 is the same as that of VWV1432.
G
H
