ONKYO DV-SP500 Service Manual

Cover page of ONKYO DV-SP500 Service Manual

Service Manual for ONKYO DV-SP500, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 89 pages
  • File size: 8.17 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
DV-SP500
SERVICE MANUAL
SERVICE MANUAL
DVD PLAYER
Black, Silver and Golden models
MODEL
DV-SP500
120V AC, 60Hz
110 - 240V AC, 50/60Hz
B MDD, B MDC
B MUT, B MUS, B MUP
G MUT, G MUS, G MUR, G MUK
S MUP
Ref. No. 3724
072002
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
449DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV
ON/STANDBY
VOL +
VOL -
TV/ VCR
CH +
CH -
TV
DVD
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
450DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV
ON/STANDB
Y
VOL+
VOL-
TV/ VCR
CH+
CH-
TV
TV
DVD
DVD
U.S.A., Canadian
models only
Other models
RC-449DV
RC-450DV
SAFETY-RELATED COMPONENT
WARNING!!
THE MARK
FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
DV-SP500
SERVICE MANUAL
SERVICE MANUAL
DVD PLAYER
Black, Silver and Golden models
MODEL
DV-SP500
120V AC, 60Hz
110 - 240V AC, 50/60Hz
B MDD, B MDC
B MUT, B MUS, B MUP
G MUT, G MUS, G MUR, G MUK
S MUP
Ref. No. 3724
072002
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
449DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV
ON/STANDBY
VOL +
VOL -
TV/ VCR
CH +
CH -
TV
DVD
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
450DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV
ON/STANDB
Y
VOL+
VOL-
TV/ VCR
CH+
CH-
TV
TV
DVD
DVD
U.S.A., Canadian
models only
Other models
RC-449DV
RC-450DV
SAFETY-RELATED COMPONENT
WARNING!!
THE MARK
FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
Power supply
AC 100 ­ 240 V, 50/60 Hz
Power consumption
15 W
Power consumption (standby mode)
2.6 W
Weight
3.4 kg
External dimensions
435
91
312 mm (W/H/D)
Signal system
PAL/Auto mode
Regional restriction code
U.S.A. and Canadian area
1
Asia, Oseania and Korea area 3
South American area
Chinese area
Laser
Semiconductor laser, wavelength 650 nm
Frequency range (digital audio)
DVD linear sound:
48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
Audio CD:
4 Hz to 20 kHz
Signal-to-noise ratio (digital audio)
More than 100 dB
Audio dynamic range (digital audio)
More than 96 dB
Harmonic distortion (digital audio)
Less than 0.015 %
Wow and flutter
Below measurable level (less than +/-0.001 % (W.PEAK))
Operating conditions
Temperature: 5 C to 35 C, Operation status: Horizontal
Outputs
Video output
1.0 V (p-p), 75 ohm, negative sync., pin jack
1, SCART socket
1
S-video output
(Y) 1.0 V (p-p), 75 ohm, negative sync., Mini DIN 4-pin
1
(C) 0.286 V (p-p), 75 ohm, SCART socket
1
Component video output
RGB signal output, 0.7 V (p-p), 75 ohm, SCART socket
1
Audio output (digital output Optical)
Optical connecter
1
Audio output (digital output Coaxial)
0.5 V (p-p), 75 ohm, pin jack
1
Audio output (analog audio)
2.0 V (rms), 470 ohm, pin jack (L, R)
1, SCART socket
1
2.0 V (rms), 470 ohm, pin jack (MONO)
1
x
x
x
x
x
x
x
x
x
x
x
x
<MUP> only
<MUP> only
<MUP> only
4
6
DVD Player
Specifications and features are subject to change without notice.
General
DV-SP500
SPECIFICATIONS
background image
DV-SP500
SERVICE PROCEDURES-1
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DA LA FICHE DANS LA
BORNE CORRESPONDANTE DA LA PRISE ET POUSSER JUSQU' AU FOND.
WARNING :
CAUTION :
ATTENTION :
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instruction
in the literature accompanying the appliance.
1. Replacing the fuses
2. Safety-check out
(Only U.S.A. model)
After correcting the original service problem perform the
following safety check before releasing the set to the customer
Connect the insulating-resistance tester between the plug of
power supply cord and terminal GND on the back panel.
Specifications: More than 10M ohm at 500V
REF. NO.
PART NO.
DESCRIPTION
F1
252152 or
1.6A-T/UL-ST2 or
252147
1.6A-TSC, Fuse <MDD/MDC>
NOTE :
<MDD,MDC> : 120 V model only
: 100 - 240 V model only
This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse , For fuse rating, refer to
the marking adjust to the symbol.
Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.
252273 or
1.6A-SE-TL250V or
252073
1.6A-SE-EAK Fuse
<MUP,MUS,MUT,MUR,MUK>
<MUP,MUS,MUT,MUR,MUK>
3. LASER WARNING LABELS
background image
DV-SP500
SERVICE PROCEDURES-2
4. Remove the solder of Laser Diode shorting
1-1
Connect Pickup and DVD main circuit PC board by FFC(3 pcs).
1-2
Fix it with the DVD Mechanism
1-3
Remove the solder of Laser Diode shorting on Pickup.
1-4
Connect total unit of DVD Mechanism (DVD Main PCB + Mechanism) to output terminal.
5. Key check mode
Press the [STOP] and [SKIP UP] keys at the same time .
FL display light up, and check the FL display. (about 2 second)
To cancel this process, Please press the [STOP] and [DISPLAY] keys at the same time again.
6. Factory setting (Initial setting)
3-1 Push the power switch "ON" (Mechanical switch)
3-2 Press the [STOP] and [STANDBY ON] keys at same time, and
it waits until the display of FL tube will be the display of "No Disc" from "Loading".
Rear View
Short
DVDM Assy
Side
Short SW
Open
background image
DV-SP500

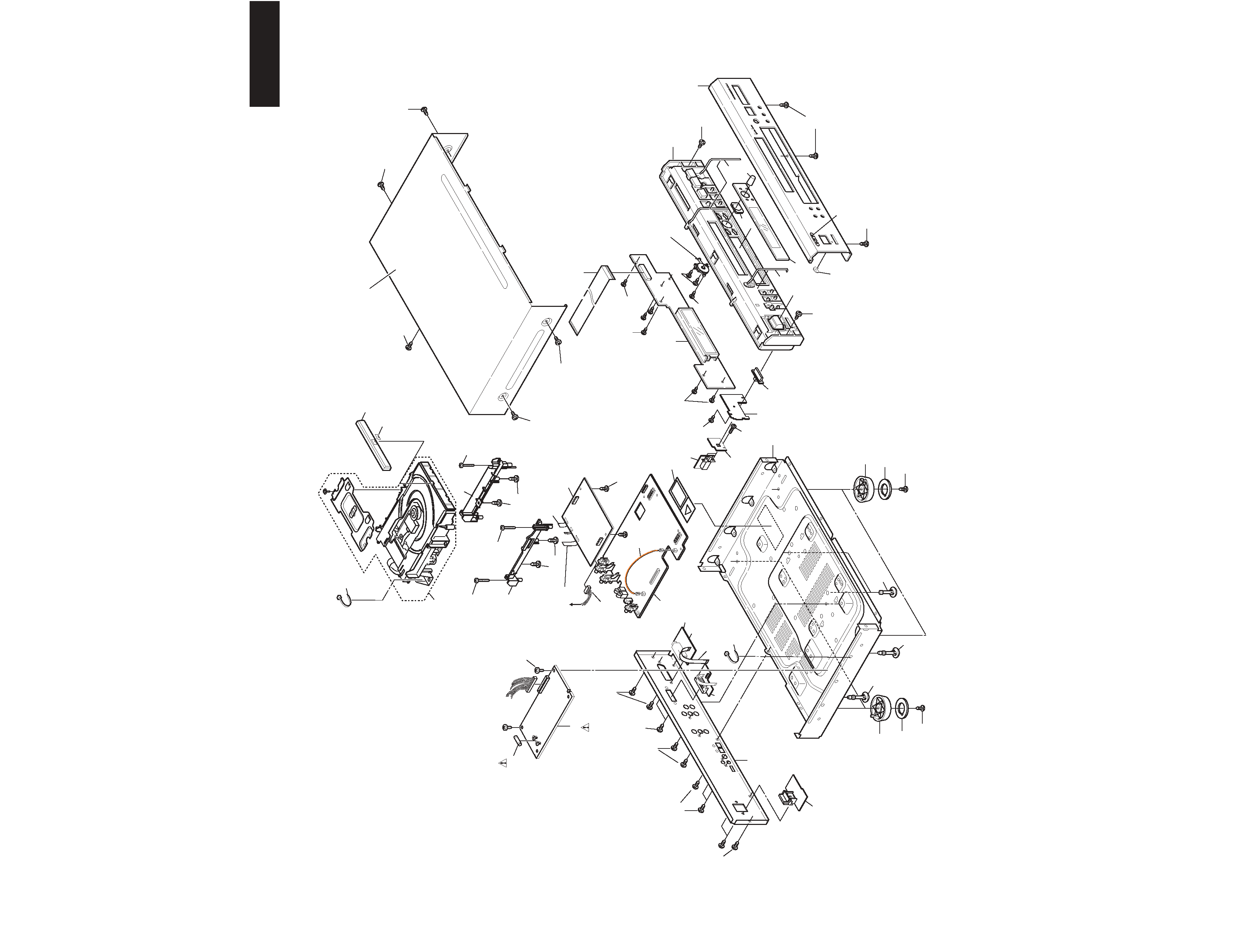

EXPLODED VIEW
U7
53
E204
31
33
To DVD
Mechanism
Z101
Z102
Z103
Z104
Z104
U1
41
43
49
19
21
23
03
03
1
3
3
7
E903
51
53
53
23
5
5
49
7
11
9
17
20
23
U2
E701
23
23
23
25
27
29
45
53
53
E702
F1
S731
Z100
U5
U4
U6
U3
U20
53
26*
22*
: Torque 1.6+/-0.5kgf
*
9
20
23
P351
MJJ only
MUP only
DVD
35
37
37
37
13
13
15
a
a
b
b
To DVD
Mechanism
DV
D P
LA
YE
R
DV
-SP50
0
13
E903
D
IR
E
C
T D
IG
IT
A
L
PA
TH
37
37
