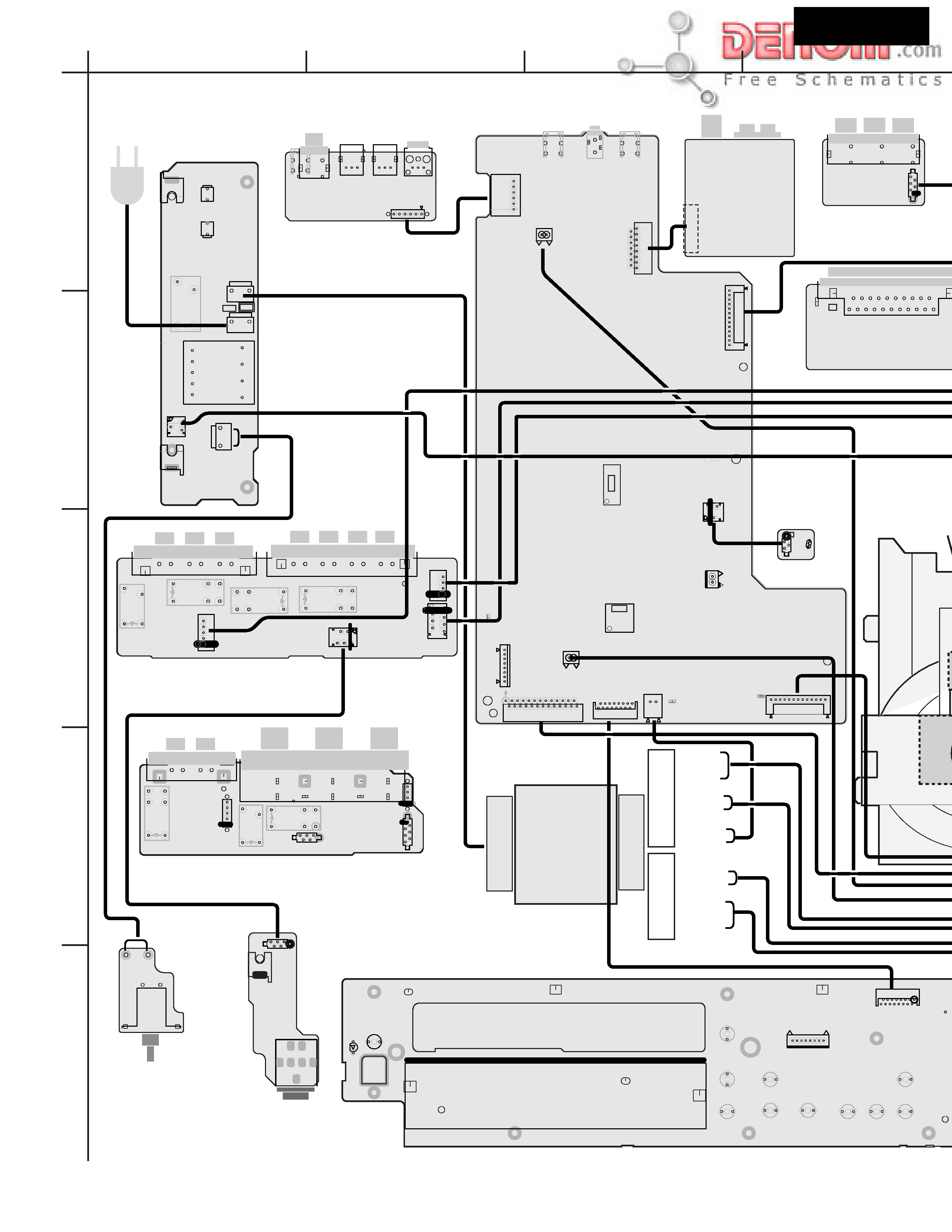

DR-S2.2
SPECIFICATIONS
AMPLIFIER SECTION
(FTC)
All channels 40 watts per channel min.
RMS. into 6 ohms two channel driven,
1,000 Hz with no more than 5 % total
harmonic distortion.
Continuous power output (DIN)
All channels 30 watts per channel min.
RMS. into 6 ohms two channel driven,
1,000 Hz
Continuous Power output (EIAJ)
All channel 45 watts per channel min.
RMS. into 6 ohms two channel driven,
1,000 Hz
Dynamic Power
6 ohms: 42 W (L/R)
8 ohms: 35 W (L/R)
Total Harmonic Distortion 5 % at rated power
0.2 % at 1 watt output
IM Distortion
5 % at rated power
0.2 % at 1 watt output
Damping Factor
40 at 8 ohms
Input Sensitivity and Impedance
VIDEO 1 DIGITAL INPUT (OPT)
21 to 15 dBm
VIDEO 2 DIGITAL INPUT (COAX)
0.5 Vp-p, 75 ohms
TUNER SECTION
Tuning Range
FM: 87.50 to 108.00 MHz (50 kHz steps)
AM: (North American and South American models)
530 to 1710 kHz (10 kHz steps)
Usable Sensitivity
FM: Mono
11.2 dBf, 1.0 µV (75 ohms IHF)
0.9 µV (75 ohms DIN)
Stereo
17.2 dBf, 2.0 µV (75 ohms IHF)
23 µV (75 ohms DIN)
AM: 30 µV
50 dB Quieting Sensitivity
FM: Mono
17.2 dBf, 2.0 µV (75 ohms)
Stereo
37.2 dBf, 20.0 µV (75 ohms)
Capture Ratio
FM: 2.0 dB
Image Rejection Ratio
FM: (North American and South American models)
40 dB
AM: 40 dB
DVD SECTION
Signal readout system
Optical non-contact
Linear velocity
3.49 m/s (Single Layer)
3.84 m/s (Dual Layer)
Error correction system
Reed Solomon Product Code
Signal system
North American model: NTSC
Other models: PAL/Auto
Regional restriction code
USA and Canadian area: 1
European area: 2
South-east Asian area: 3
Australian and South American area: 4
PRC: 6
Laser
Semiconductor laser
, wavelength DVD 650 nm CD 780nm
Frequency response
10 Hz to 44 kHz (96 kHz)
Signal-to-noise ratio (digital audio)
More than 100 dB
Audio dynamic range (digital audio)
More than 93 dB
Harmonic distortion (digital audio)
Less than 0.025%
Wow and flutter
Below threshold of measurability
Operating conditions
Temperature: 5 C to 35 C (41 F to 95 F),
Operation status: Horizontal
GENERAL
Power Supply Rating
(North American and South American models)
and Power Consumption
AC 120 V, 60Hz
(Other models)
AC 120V, 60Hz
170 W
AC 230-240 V, 50Hz
170 W
Specifications and features are subject to change without notice.
LINE (VIDEO 1, VIDEO 2/CDR/PC, TV/LINE, TAPE/MD/HD)
200 mV/50 kohms
Composite (VIDEO 1, VIDEO 2/CDR/PC) 1 Vp-p, 75 ohms
S-VIDEO (VIDEO 1, VIDEO 2/CDR/PC)
Y: 1 Vp-p, 75 ohms
C: 0.28 Vp-p, 75 ohms
Output Level and Impedance
DIGITAL OUTPUT (OPT)
21 to 15 dBm
REC OUT (TAPE/MD/HD, VIDEO 2/CDR/PC)
200 mV, 2.2 kohms
PRE OUT (SUBWOOFER)
1 V, 470 ohms
Composite (MON OUT , VIDEO 1)
1 Vp-p, 75 ohms
S-VIDEO (MON OUT , VIDEO 1)
Y: 1 Vp-p, 75 ohms
C: 0.28 Vp-p, 75 ohms
COMPONENT VIDEO OUTPUT
Y: 1.0 Vp-p, 75 ohms
(Except European model)
PB/PR: 0.7 Vp-p, 75 ohms
RGB (European model)
0.7 Vp-p, 75 ohms
Frequency Response
20 to 30,000 Hz : +/ 0.8 dB
Acoustic Control
1: +9 dB at 120 Hz
2: +9 dB at 120 Hz
+6 dB at 10,000 Hz
Signal-to-noise Ratio
100 dB (0.5 V INPUT LINE)
Muting
50 dB
Dimensions (W x H x D)
Weight
8.8 kg (19.4 lb.)
(Other models)
522 to 161 1 kHz (9 kHz steps)
(Other models)
85 dB
IF Rejection Ratio
FM: 90 dB
AM: 40 dB
Signal-to-noise Ratio
FM: Mono
73 dB, IHF
Stereo
67 dB, IHF
AM: 40 dB
Alternate Channel Att. (+/ 400 kHz)
FM: Mono
55 dB, IHF
Selectivity
FM: 50 dB, DIN 55dB, IHF
AM Suppression Ratio
FM: 50 dB
Harmonic Distortion
FM: Mono
0.2 %
Stereo
0.3 %
AM:
0.7 %
Frequency response
FM: 30 to 15,000 Hz (+/ 1.0 dB)
Stereo Separation
FM: 45 dB at 1,000 Hz
30 dB at 100 to 10,000 Hz
Stereo Threshold
FM: 17.2 dBf, 20 µV (75 ohms)
Power Output
435 x 101 x 428 mm (17 1/8 x 4 x 16 13/16 ins.)
2.0 A
