NAD HTR-2 Owner's Manual

Cover page of NAD HTR-2 Owner's Manual

Owner's Manual for NAD HTR-2, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 60 pages
  • File size: 0.65 MB
  • Available language versions: Portuguese, French, English, Dutch, German, Italian
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA

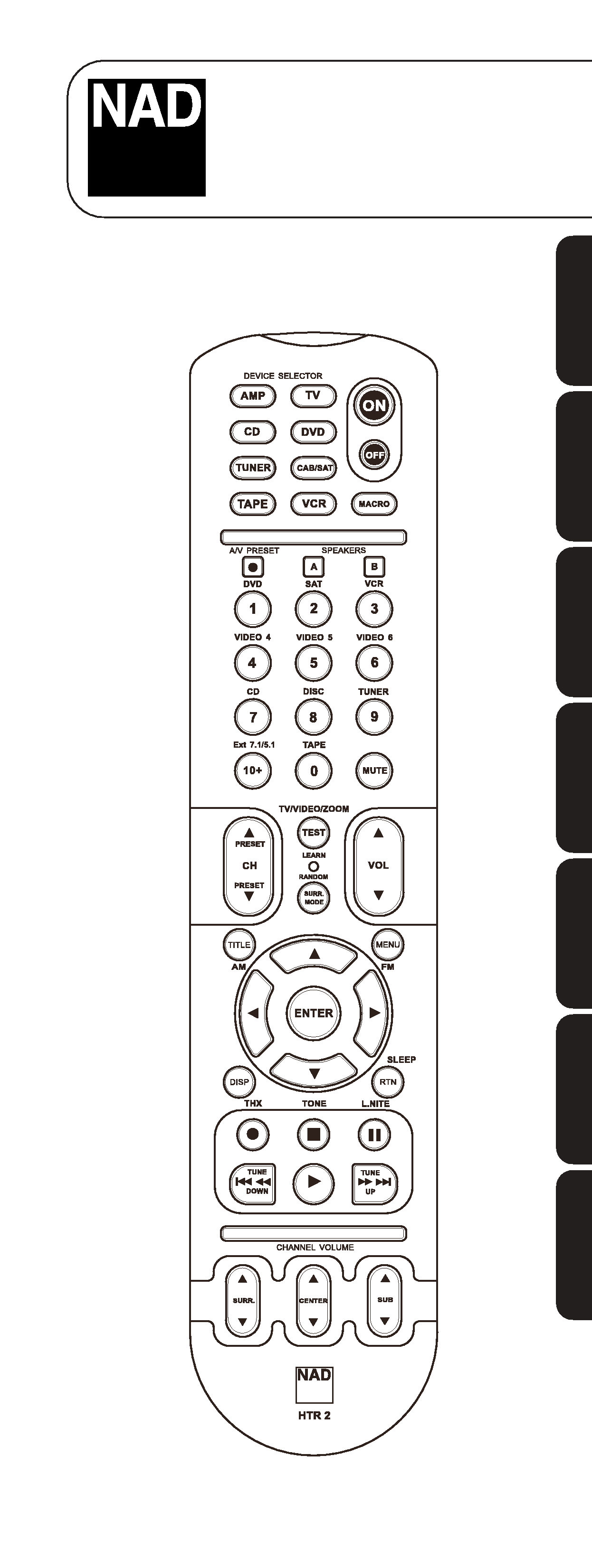

HTR 2
LEARNING REMOTE CONTROL
®
background image
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
HTR 2
LEARNING REMOTE CONTROL
®
background image
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA

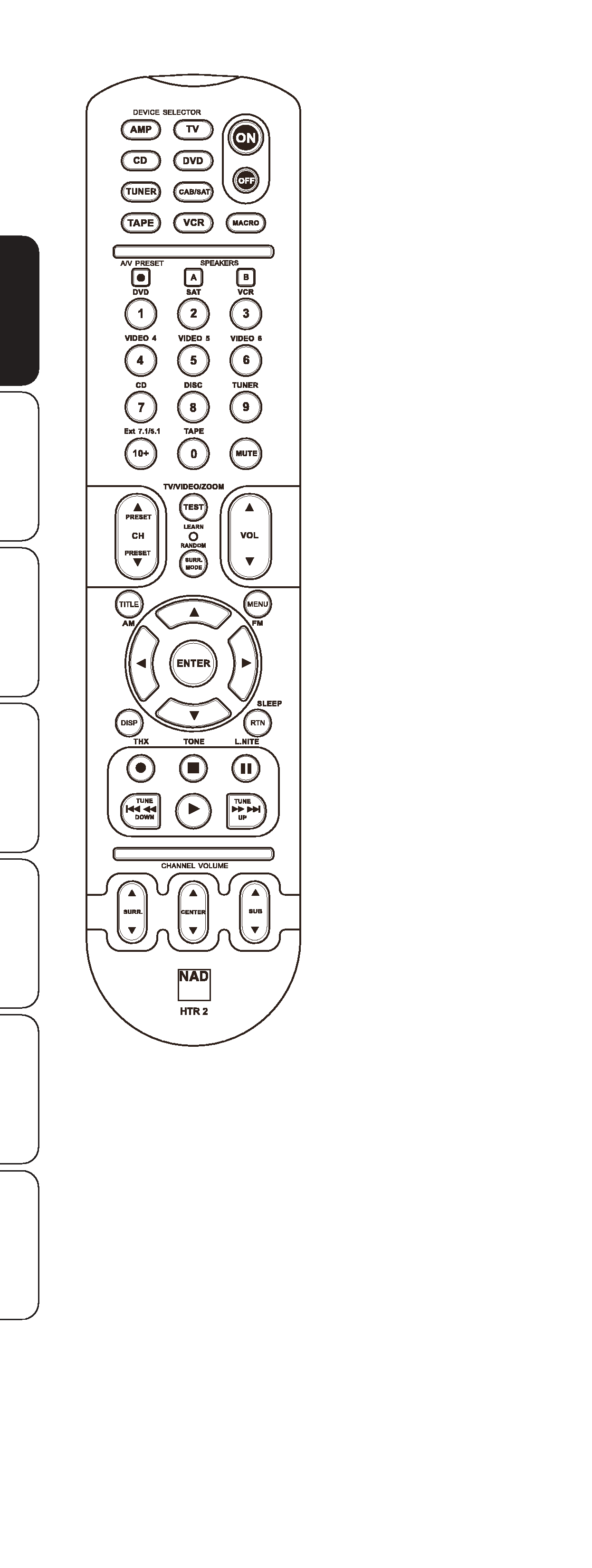

·Top section features
ON/OFF, MACRO and
eight DEVICE SELECTOR
keys
·
Upper middle section has
AV PRESET, SPEAKER and
number keys 0 to 10+
·
Middle section with
channel, volume, DVD
navigation and surround-
sound keys
·
Lower middle section
with transport control
keys
·
Bottom section with
CHANNEL VOLUME
trimming keys
NAD is a trademark of NAD Electronics International,
a division of Lenbrook Industries Limited
Copyright 2002, NAD Electronics International,
a division of Lenbrook Industries Limited
background image
OVERVIEW OF THE HTR 2
·
Controls up to 8 devices.
·
44 function keys.
·
Learns up to 352 commands.
·
Records up to 44 macros with a maximum of 64 commands each.
·
Configurable punch-through function.
·
Key illumination with programmable time-out.
·
Contains pre-programmed library of NAD remote codes.
The NAD HTR 2 is ready to operate NAD components right out of the box,
but it is really eight remotes in one. Each of the 8 Device Selector keys at
the top of the handset can call up a new "page" of remote-control codes
to be transmitted by the remaining 44 keys. The HTR 2 can "learn" codes
from virtually any infrared-remote-controlled component, regardless of
brand, to any or all of these Device Selector keys. When setting up the HTR
2 to operate your entire Home Theatre system, the most logical approach is
to teach the codes from your DVD player to the [DVD] Device Selector key,
your television's codes to the [TV] key, and so on. But there is no required
scheme: You may load any commands to any key on any page (see
"Learning Codes From Other Remotes," below).
The HTR 2 is already preprogrammed with a full complement of NAD
commands on its [AMP] Device Selector page, and with library commands
to operate most NAD DVD, CD, TUNER, or TAPE components on the
corresponding Device Selector keys. These default commands are
permanent: Even if you teach the HTR 2 new commands to take their place,
the underlying library commands remain in place and can easily be recalled
should you add an NAD component to your system later (see "Delete
Mode," below).
GETTING FAMILIAR WITH THE HTR 2
The HTR 2 is divided into two main sections. The Device Selector section at
the top of the handset, and the remaining 44 Control keys.
Eight Device Selector keys at the top-[AMP], [DVD,] [TV,] and so on -
determine which component the remaining 44 control keys will operate. A
DEVICE SELECTOR key determines only what component the HTR 2 will
command; it does not perform any function on the receiver. The Device
Selector keys are organized into two vertical rows of 4 buttons each; the row
on the left are all Audio devices, the row on the right are all Video devices.
The control keys are function keys that can "learn" control codes from
virtually any infrared remote controller, allowing you to teach the codes of
your equipment, regardless of brand, to the HTR 2. All of the Control keys
on the [AMP] Device Selector are preprogrammed to control NAD amps,
preamps, and receivers. (The HTR 2 can also command many other NAD
components, from its [DVD,] [CD,] [TUNER,] and [TAPE] pages.)
Since HTR 2 Control keys can perform different functions, depending on the
selected Device Selector key, the HTR 2 uses color coding to indicate the
function of the Control keys when different Device keys are chosen. Thus,
the color of the Device Selector key-labeling corresponds to the labelling of
the function keys (similar to a scientific calculator). For example, the red-
orange [AMP] Device Selector key label corresponds to the red-orange
input-select labelling adjacent to the numeric keys: When the HTR 2's [AMP]
Device Selector page is active, these keys select the amp or receiver inputs.
Similarly, the purple [DVD] Device Selector key label corresponds to several
purple labels, the green [TV] Device key to green labels, and so on.
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
background image
LEARNING CODES FROM OTHER REMOTES
Begin by positioning the HTR 2 "nose-to-nose" with the source remote so
the two devices' infrared windows are about 2 inches apart.
·
Enter Learning Mode: On the HTR 2, simultaneously press-and-hold for
3 seconds both a Device Selector key and the [·] "record" key (just
below the [DISP] key), until the Learn LED at the center of the HTR 2
turns steady green.
·Press the HTR 2's Control key you wish to teach a command; the Learn
LED will turn amber.
·Press-and-hold the control function key on the source remote: The HTR
2's Learn LED will flicker amber for a second or two, then turn solid
green. The command is learned. Repeat this process for all commands
you wish to learn under the selected Device Selector key.
·Press the HTR 2's Device Selector key again to exit the learning mode
after you have completed learning all commands for that Device.
NOTE
If the Learn LED does not flicker amber you may need to vary the
distance between the remotes or try fresh batteries in both remotes. If
the Learn LED turns red rather than green, that particular command of
that source remote command has not been learned. Try again. In rare
instances there may be some IR format that is not compatible with the
HTR 2.
CANCEL OPERATION
You can cancel configuring a key, by pressing the active Device Selector key
before the learn is complete; the Learn LED will turn red.
Example: Learning "DVD Pause":
·
Position the HTR 2 and your DVD player's remote as described above.
·
On the HTR 2, simultaneously press-and-hold [DVD] and [·]; the Learn
LED turns steady green.
·Press the HTR 2's [ || ] (pause) key; the Learn LED turns amber.
·Press-and-hold the DVD player's remote's pause key; the HTR 2's Learn
LED flickers amber and then turns solid green. The command is learned.
·Press [DVD] again to exit the learning mode.
LIBRARY MODE
To enter the library mode, press and hold a device selector key and the
Preset key for 3 seconds until the status LED turns green. While in Library
mode you can cycle through and test the different pre-programmed tables
in the remote to find if there is an appropriate table for your device. The
several ways of navigating the Library tables are described below. The Learn
LED will flash twice when all available tables have been transmitted.
DIGIT KEYS
The digit keys (0 - 9) can be used to directly select one of the tables. Enter
the 3 digit table number. After pressing the third digit the HTR 2 will
automatically transmit the Power Off command as a test to be sure you
have selected the correct table.
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
background image
CURSOR UP / CURSOR DOWN
The Cursor Up / Cursor Down keys can be used to cycle through the
available tables. The HTR 2 will transmit a test (Power Off) command after
each press of the Cursor key. Holding down one of the Cursor keys will cycle
through all the available library tables at the rate of two per second,
allowing you to quickly find the correct table from the available tables.
NOTE
You can change the command transmitted for the test. If you press a
key that is not used for anything else in library mode, that command
will be transmitted. Any subsequent test commands resulting from
changing tables will then use that command which you last pressed.
This can be helpful with some devices that do not have a standby mode,
in which case the code searches do not work. For example some CD
players may not have a power off command, and you may want to use
Play as your test command instead.
ENTER
Press the enter key when in the Library Mode will make the currently
selected table become active and will exit the Library Mode.
NOTE
Making a table active will deactivate any currently learned commands
and active Punch-through functions. Deactivated learned commands
can be restored again (without having to relearn them) as described in
the Copy Mode section of this manual.
DISPLAY
The Display key can be used to determine the reference number for the
table you have currently selected. After pressing the Display key, the table
number will be displayed by flashing the Tape, VCR, and Macro keys,
corresponding to the first, second, and third digits of the command table.
For example: if the table number is 103, then the TAPE key would flash
once, followed by the Macro key flashing three times.
PUNCH-THROUGH
The HTR 2's "punch-through" function allows you to retain a function key
from one Device Select "page" on another, so that, for example, the AMP
[SURR MODE] function might still control the T 752 when the DVD Device
Selector page is active
NOTE
The HTR 2's [VOL] and [MUTE] keys are pre-programmed as "punched-
through" for all Device Select pages (except TV): [VOL] and [MUTE] will
operate the NAD's master-volume regardless of the currently selected
device. The [SURR.] [CENTER,] and [SUB] Channel Volume controls
similarly are pre-programmed as punched-through for all devices.
To set a punch through, after entering the Learning Mode, and pressing the
desired key to be punched-through, simply press the device key twice of the
device to punch through to. The status LED will turn green; press the Device
Selector key again to exit Learning Mode.
Example: Punch-through to the DVD "page" from the AMP [SURR
MODE] key:
·
On the HTR 2, simultaneously press-and-hold [DVD] and [·] (record); the
Learn LED turns steady green.
·Press [SURR MODE]; the Learn LED turns amber.
·Press [AMP] twice; the Learn LED turns green.
·Press [DVD] again to exit the learning mode.
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
