NAD HTR-1 UNIVERSAL REMOTE CONTROL
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Inserting & replacing batteries & back-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Key Backlighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the HTR-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Device keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting up Pre-programmed codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
By Library search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
By Manufacturing ID code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Code Recall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Learning remote commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Setting up Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Reset to factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Code listing table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HTR1 manual 120mm
20/4/01
8:17 pm
Page 3
background image
4
GB
USING THE NAD HTR-1 UNIVERSAL REMOTE CONTROL WITH THE NAD T761 AV RECEIVER
The NAD HTR-1 Universal Remote control packed with your NAD T761 AV receiver has been pre-configured to
operate all controls. Besides operating the receiver, the HTR-1 can replace up to eight remote controls for different
devices. It has a database of remote control commands built-in for a large range of different brands and devices.
In case your particular brand or model isn't featured in the database, the HTR-1 can also "learn" remote commands
from the original remote control of the device. Refer to the HTR-1 instruction manual on how to program.

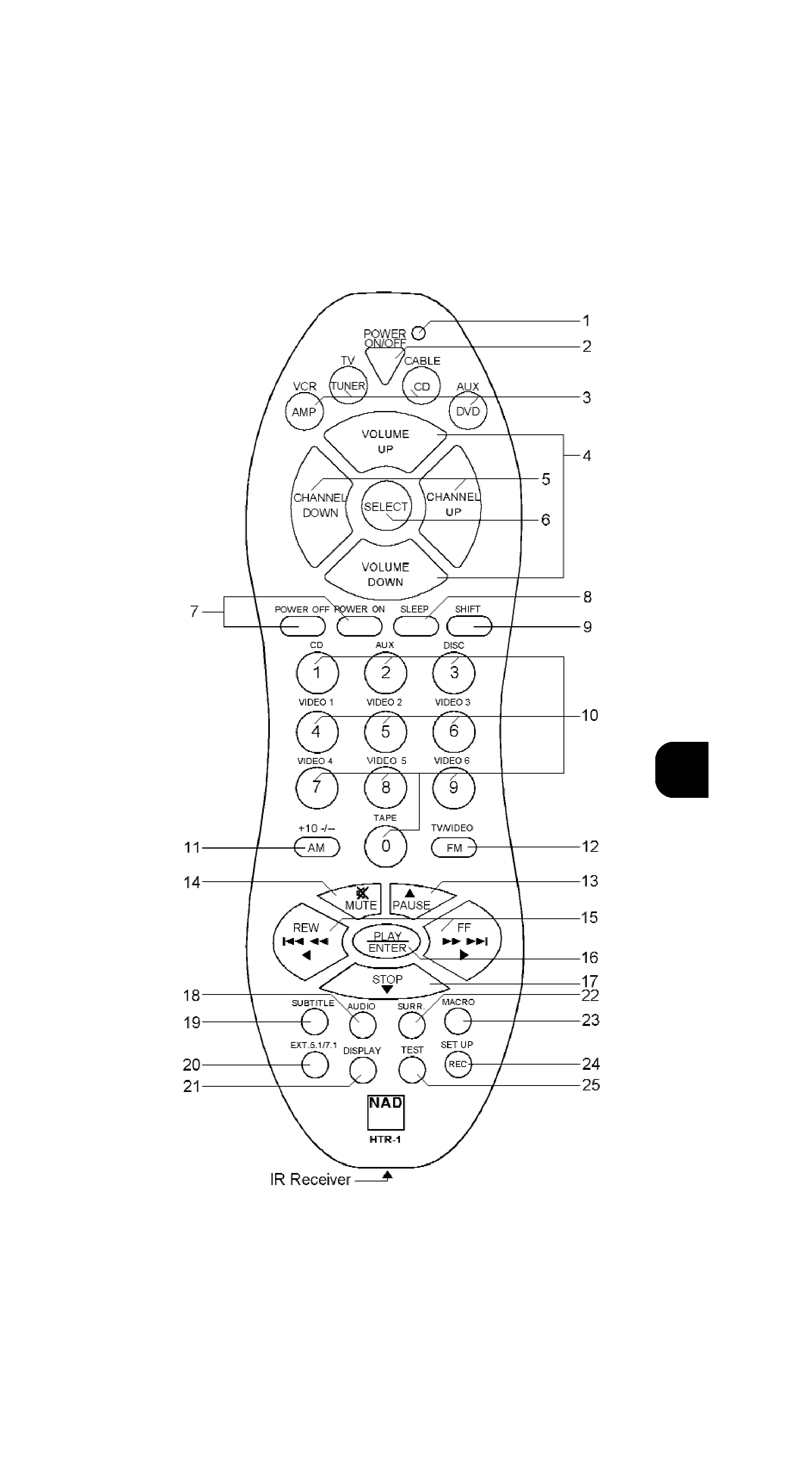

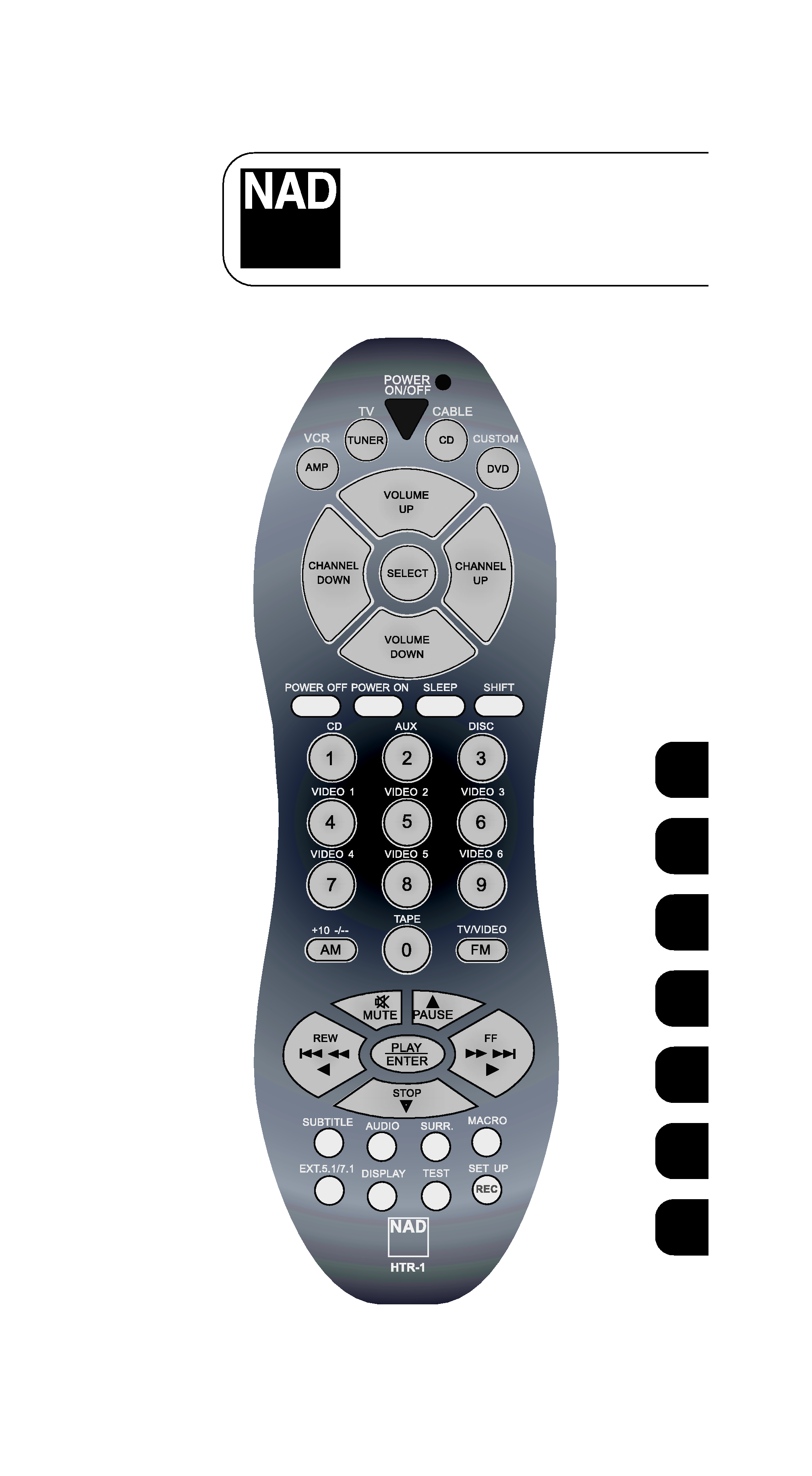

The table below indicates the locations and functions available; the numbers refer to the drawing in the NAD HTR-
1 manual. Refer to the T761 instruction manual for explanation of specific functions.
Make sure the "AMP" mode has been selected when using the HTR-1 Universal Remote Control to operate your
receiver.
No. Key description
T761 function
2
POWER ON/OFF
Power On/Off
3
AMP (VCR), TUNER (TV), CD (CABLE), DVD (AUX)
Select AMP for T761
4
VOLUME UP/DOWN
Master Volume Up/Down
5
CHANNEL UP/DOWN
Preset/Tune Up/Preset/Tune Down
6
SELECT
Preset/Tune mode
7
POWER OFF & POWER ON
Power Off & Power On
8
SLEEP
Sleep
9
SHIFT
---
10 1 (CD), 2 (AUX), 3 (DISC),... ...9 (VIDEO 6), 0
Input select
11 AM (+10 -/--)
Select AM
12 FM (TV/VIDEO)
Select FM
13 PAUSE
OSD Cursor Up
14 MUTE
Volume Mute
15
&
OSD Cursor Right & Left
16 PLAY/ENTER
Enter
17 STOP
OSD Cursor Down
18 AUDIO
Tone Control
19 SUBTITLE
Dynamic Range
20 EXT 5.1/7.1
Ext 5.1
21 DISPLAY
Display
22 SURR.
Surround Mode
23 MACRO
---
24 SETUP/REC
Channel select
25 TEST
Surround Test On/Off
HTR1 manual 120mm
