KENWOOD X-S300 Service Manual

Cover page of KENWOOD X-S300 Service Manual

Service Manual for KENWOOD X-S300, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 15 pages
  • File size: 1.94 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
STEREO CASSETTE DECK
X-S300
SERVICE MANUAL
© 1997-6/B51- 5325-00 (K/K) 2147
STEREO CASSETTE DECK X-S300
POWER
O.T.E.
1
0
¡
8
2
3
CCRS
COUNTER
RESET
REV.
MODE
REC LEVEL
DOLBY
- ON ­ OFF
7
R
L
REC
IN
PLAY
OUT
SYSTEM
CONTROL
AC 110 -
120V ~
AC 220 -
240V ~
LINE
Knob
(K27-2211-04)
Knob assy
(K29-6676-04)
Escutcheon
(B07-2344-02)
Knob assy
(K29-6678-04)
Panel
(A60-1148-11)
Power cord bushing
(J42-0083-05)
Knob
(K29-6680-02)
Panel assy
(A29-0869-03)
Front glass
(B10-2356-12)
Knob
(K29-6680-02)
Phono jack
(E63-0136-05)
Miniature phone jack
(E11-0293-05)
Slide switch
(S62-0001-05)
AC power cord *
(E30-)
* Refer to parts list on page 13.
X-S300(k) COVER( 98.4.24 9:15 AM y[W 2
background image
STEREO CASSETTE DECK
X-S300
SERVICE MANUAL
© 1997-6/B51- 5325-00 (K/K) 2147
STEREO CASSETTE DECK X-S300
POWER
O.T.E.
1
0
¡
8
2
3
CCRS
COUNTER
RESET
REV.
MODE
REC LEVEL
DOLBY
- ON ­ OFF
7
R
L
REC
IN
PLAY
OUT
SYSTEM
CONTROL
AC 110 -
120V ~
AC 220 -
240V ~
LINE
Knob
(K27-2211-04)
Knob assy
(K29-6676-04)
Escutcheon
(B07-2344-02)
Knob assy
(K29-6678-04)
Panel
(A60-1148-11)
Power cord bushing
(J42-0083-05)
Knob
(K29-6680-02)
Panel assy
(A29-0869-03)
Front glass
(B10-2356-12)
Knob
(K29-6680-02)
Phono jack
(E63-0136-05)
Miniature phone jack
(E11-0293-05)
Slide switch
(S62-0001-05)
AC power cord *
(E30-)
* Refer to parts list on page 13.
X-S300(k) COVER( 98.4.24 9:15 AM y[W 2
background image
X-S300
2
CONTENTS / ACCESSORIES
Accessories
CONTENTS / ACCESSORIES ....................................2
ADJUSTMENT .............................................................3
PARTS DESCRIPTIONS .............................................4
PC BOARD ..................................................................5
SCHEMATIC DIAGRAM ..............................................7
EXPLODED VIEW .....................................................11
PATS LIST .................................................................13
SPECIFICATIONS .....................................................17
Contents
Audio cord ......................(2)
(E30-0505-05)
System control cord ........(1)
(E30-2816-05)
* AC plug adapter ...........(1)
(E03-0115-05)
Check that the following accessories are present.
* Use to adapt the plug on the
power cord to the shape of the
wall outlet (Accessory only for
regions where use is necessary.)
X-S300(k) COVER( 98.4.24 9:15 AM y[W 3
background image
R
L
REC
IN
PLAY
OUT
SYSTEM
CONTROL
AC 110 -
120V ~
AC 220 -
240V ~
LINE
Oscilloscope
AC voltmeter
Frequency counter
AC voltmeter
AG
{
(A)
(B)
X-S300
3
ADJUSTMENT
NO.
ITEM
INPUT SETTING
OUTPUT
SETTING
CASSETTE TAPE
DECK SETTING
ALIGNMENT
POINTS
ALIGN FOR
FIG.
Unless otherwise specified, set the respective switches as follows:
0dBs = 0.775V
TAPE : NORMAL
DOLBY : OFF
I
Cassette mechanism unit (Adjustment of the REC / PLAY head)
(1)
Demagnetization
and cleaning
--
--
Power : OFF
Demagnetization,
cleaning, PLAY
Recording
head, erase
head, capstan
pinch roller
Demagnetize the REC / PLAY head
with the head eraser. Clean the REC /
PLAY head, erase head, capstan and
pinch roller using a cotton swab slightly
damped with alcohol.
(2)
Azimuth of the
REC / PLAY
head
SCC-1727
TCC-153
MTT-114
10kHz, -10dB
(B)
PLAY
Adjust the output to maximum and
adjust the azimuth adjustment screw
for the Lissajours waveform pattern of
the oscilloscope to become close to a
45° straight ling.
II
PC BOARD ADJUSTMENT
(1)
TAPE SPEED
(NORMAL)
TCC-110
MTT-111
SCC-1727
3kHZ
(B)
PLAY
VR7
Adjust the tape speed so that 3kHz is
obtained at the center of the tape.
III
PC board adjustment.
(1)
PLAYBACK
LEVEL
MTT-150
400Hz
(B)
PLAY
VR 1 (L)
VR 2 (R)
Adjust the playback output to ­1dBs.
MTT-256, SCC-1727
315Hz
Adjust the playback output to ­4dBs.
MTT-256U, TCC-120
315 Hz
Adjust the playback output to 0 dBs.
(2)
BIAS CURRENT
(A)
Adjust the AG for the
output of the DECK to
become 12.5KHz ­20dBs.
400Hz/12.5kHz (AC-224)
(B)
REC PLAY
VR 3 (L)
VR 4 (R)
Record 400Hz and 12.5kHz alternately,
and adjust the bias current adjustment
potentiometer for the playback levels to
become the same.
(3)
RECORDING
LEVEL
(A)
Adjust the AG for the
output of the DECK to
become 1kHz ­20dBs.
(B)
REC PLAY
VR 5 (L)
VR 6 (R)
­20 dBs
Measurement Equipment Connections
RVS
FWD
X-S300(k) COVER( 98.4.24 9:15 AM y[W 7
background image
X-S300
4

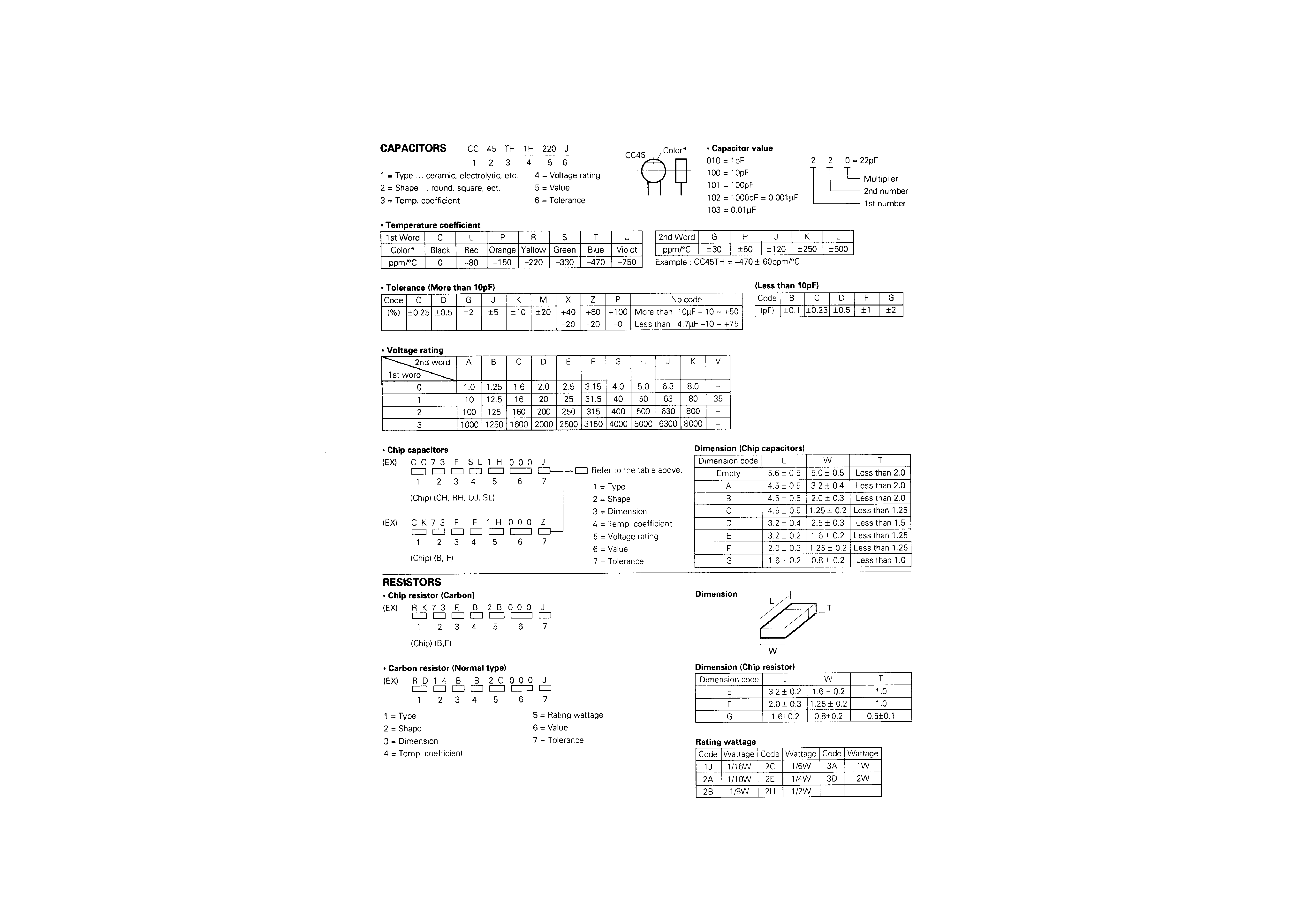

PARTS DESCRIPTIONS
X-S300(k) COVER( 98.4.24 9:16 AM y[W 8
background image
ACE
G
I
BD
F
H
J
2
1
3
5
7
4
6
Refer to the schematic diagram for the value of resistors and capacitors.
PC BOARD(Component side view)
5
6
X28-2892-70: TE
X28-2940-20: MI
X28-2940-71: XC
X-S300(K)PCB/SD( 98.4.249:23AM y[W 2
