KENWOOD KRF-V4080D Owner's Manual

Cover page of KENWOOD KRF-V4080D Owner's Manual

Owner's Manual for KENWOOD KRF-V4080D, downloadable as a PDF file.

We also have service manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 36 pages
  • File size: 1.53 MB
  • Available language versions: French, English, Spanish, Dutch, German, Italian
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
1 EN
DEUTSCH
FRANÇAIS
ENGLISH
NEDERLANDS
IT
ALIANO
ESP
AÑOL
AUDIO VIDEO SURROUND RECEIVER
KRF-V4080D
KRF-V5580D
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-5446-00 00
MA
(E)
0311
This instruction manual is for some models. Model availability and features
(functions) may differ depending on the country and sales area.
About the supplied remote control
Compared to standard remote controls, the remote control supplied with this model has several operation
modes. These modes enable the remote control to control other audio/video components. In order to
effectively use the remote control it is important to read the operating instructions and obtain a proper
understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
04.1.24, 7:11 PM
1
background image
1 EN
DEUTSCH
FRANÇAIS
ENGLISH
NEDERLANDS
IT
ALIANO
ESP
AÑOL
AUDIO VIDEO SURROUND RECEIVER
KRF-V4080D
KRF-V5580D
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-5446-00 00
MA
(E)
0311
This instruction manual is for some models. Model availability and features
(functions) may differ depending on the country and sales area.
About the supplied remote control
Compared to standard remote controls, the remote control supplied with this model has several operation
modes. These modes enable the remote control to control other audio/video components. In order to
effectively use the remote control it is important to read the operating instructions and obtain a proper
understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
04.1.24, 7:11 PM
1
background image
2 EN
ENGLISH
Before applying the power
Caution : Read this page carefully to ensure safe
operation.
How to use this manual
This manual is divided into four sections, Preparations, Operations,
Remote Control, and Additional Information.
Preparations
Shows you how to connect your audio and video components to this
model and prepare the surround processor.
Since this model works with all of your audio and video components, we
will guide you in setting up your system to be as easy as possible.
Operations
Shows you how to operate the various functions available on this model.
Remote Control
Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations. Once
you have registered your components with the proper setup codes, you'll
be able to operate both this model and your other AV components (TV,
VCR, DVD player, CD player, etc.) using the remote control supplied with
this model.
Additional Information
Shows you additional information such as "In case of difficulty"
(troubleshooting) and "Specifications".
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
In regard to contact cleaner
Do not use contact cleaner because it could cause a malfunction. Be
specially careful not to use contact cleaners containing oil, for they
may deform the plastic component.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.
· Power mode.
· SUBWOOFER ON/OFF.
· Input selector settings.
· SW RE-MIX ON/OFF.
· Picture output.
· Distance setting.
· Speaker ON/OFF.
· Input mode setting.
· Volume level.
· Midnight mode setting.
· BASS, TREBLE, INPUT level.
· PRO LOGIC II mode setting.
· TONE ON/OFF.
· Broadcast band.
· LOUDNESS ON/OFF.
· Frequency setting.
· Dimmer level.
· Preset stations.
· MD/TAPE settings.
· Tuning mode.
·Listen mode setting.
· ACTIVE EQ mode.
· SP SYSTEM.
· DSP mode.
· Speaker settings.
Units are designed for operation as follows.
U.S.A. and Canada ........................................... AC 120 V only
Australia ........................................................... AC 240 V only
Europe and U.K. ............................................... AC 230 V only
China and Russia ............................................. AC 220 V only
Other countries .......... AC 110-120 / 220-240 V switchable*
04.1.24, 7:11 PM
2
background image
3 EN
ENGLISH
Basic remote control operations for other
components ....................................................... 31
DVD player operation keys .............................. 31
CASSETTE deck, CD player & MD recorder
operations ........................................................ 32
In case of difficulty .......................................... 33
Specifications .................................................. 35
Before applying the power ...................................................... 2
Safety precautions ..................................................................... 2
How to use this manual ............................................................. 2
Unpacking .................................................................................. 4
Preparing the remote control ..................................................... 4
Special features ......................................................................... 5
Names and functions of parts ................................................. 6
Main Unit .................................................................................... 6
Remote control unit (RC-R0627) (KRF-V4080D) ........................ 7
Remote control unit (RC-R0628) (KRF-V5580D) ........................ 8
Setting up the system ........................................ 9
Connecting audio components ........................ 10
Connecting video components ........................ 11
Digital connections .......................................... 12
Connecting a DVD player (6-channel input)
(For KRF-V4080D only) .................................... 13
Connecting the speakers ................................. 14
Connecting the terminals ................................ 15
Connecting the antennas ................................. 15
Connecting the system control ....................... 16
Preparing for surround sound ....................... 17
Speaker settings .............................................. 17
Normal playback .............................................. 19
Preparing for playback ..................................... 19
Listening to a source component .................... 19
Adjusting the sound ......................................... 20
Recording .......................................................... 21
Recording audio (analog sources) ................... 21
Recording video ............................................... 21
Recording audio (digital sources) .................... 21
Listening to radio broadcasts ....................... 22
Tuning (non-RDS) radio stations ...................... 22
Using RDS (Radio Data System) ..................... 22
Presetting radio stations manually .................. 23
Receiving preset stations ................................ 23
Receiving preset stations in order (P.CALL) ... 23
Using the RDS DISPLAY key ........................... 24
Presetting RDS stations (RDS AUTO
MEMORY) ........................................................ 24
Tuning by Program TYpe (PTY search) ............ 25
Ambience effects ............................................. 26
Surround modes .............................................. 26
Surround play ................................................... 28
DVD 6-channel playback
(For KRF-V4080D only) .................................... 29
Convenient functions ....................................... 29
Contents
Caution : Read the pages marked
carefully to ensure
safe operation.
Before applying the power
Preparations
Operations
Remote
Control
Additional
Information
04.1.24, 7:11 PM
3
background image

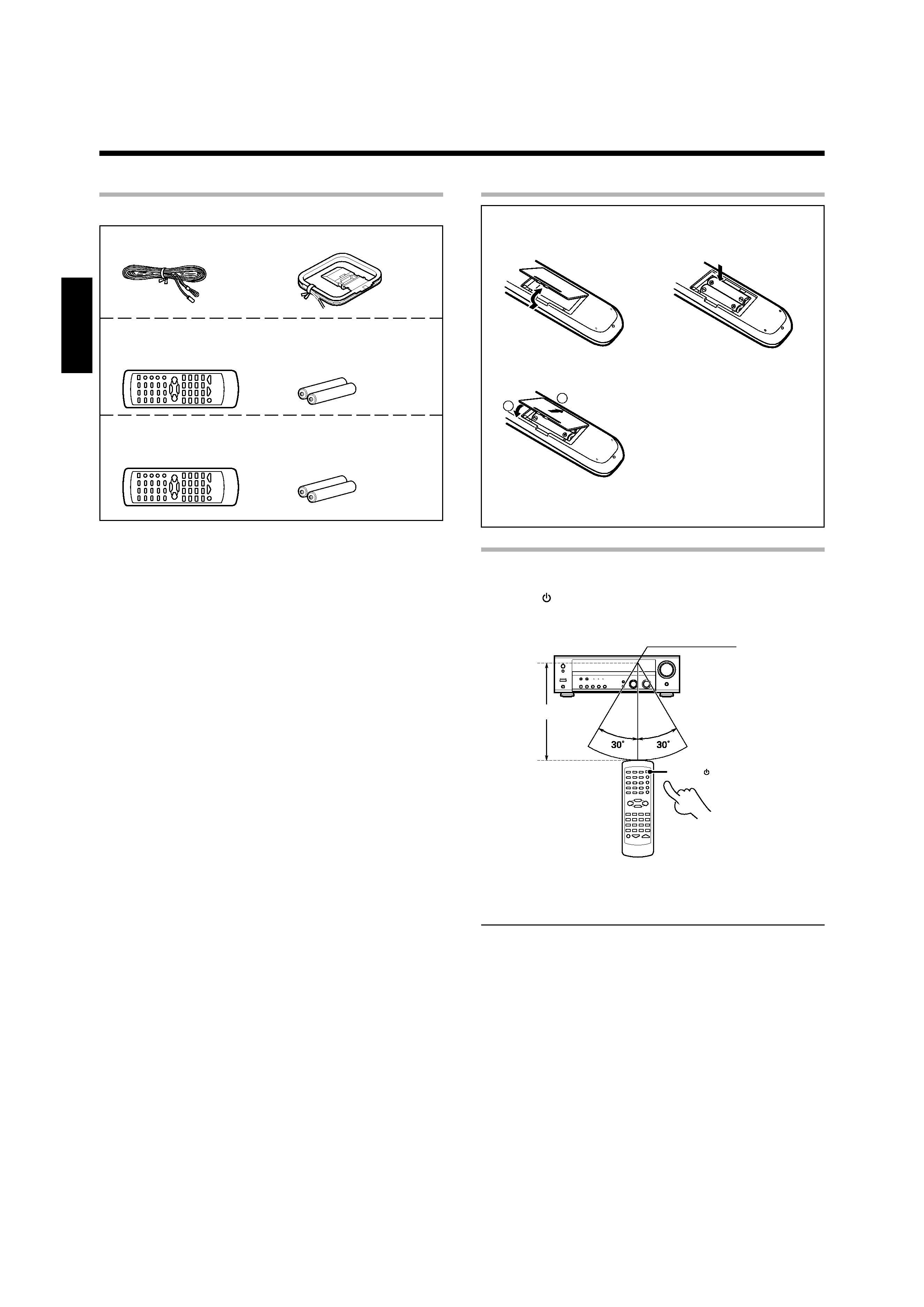

4 EN
ENGLISH
Operation
When the STANDBY indicator is lit, the power turns ON when you press
the POWER
key on the remote control. When the power comes ON,
press the key you want to operate.
· When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Before applying the power
6 m
POWER
Preparing the remote control
Loading the batteries
1 Remove the cover.
2 Insert the batteries.
3 Close the cover.
· Insert two AA-size (R6) batteries as indicated by the polarity markings.
Operating range
(Approx.)
Remote sensor
Infrared ray system
1
2
Unpacking
Unpack the unit carefully and make sure that all accessories are present.
FM indoor antenna (1)
AM loop antenna (1)
For KRF-V4080D
Remote control unit (1)
Batteries (R6/AA) (2)
RC-R0627
For KRF-V5580D
Remote control unit (1)
Batteries (R6/AA) (2)
RC-R0628
If any accessories are missing, or if the unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped to you directly,
notify your shipper immediately. Kenwood recommend that you retain
the original carton and packing materials in case you needs to move or
ship the unit in the future.
Keep this manual handy for future reference.
04.1.24, 7:11 PM
4
background image
5 EN
ENGLISH
Before applying the power
Special features
True home theater sound
This model incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy!
§
Dolby Digital
The DOLBY DIGITAL mode lets you enjoy full digital surround from
software processed in the Dolby Digital format. Dolby Digital provides up
to 5.1 channels of independent digital audio for better sound quality and
more powerful presence than conventional Dolby Surround.
Dolby PRO LOGIC II
DOLBY PRO LOGIC II, whilst totally compatible with its predecessor
PRO LOGIC, provides greater advantages in surround sound. It allows
user to enjoy the conventional stereo or Dolby Surround with a convincing
"5.1 like" presentation. PRO LOGIC II offers special features for controlling
the overall spatial, dimensionality and frontal sound field imaging. PRO
LOGIC II produces an impressive surround sound from video software
marked
and three-dimensional space from music CD.
When listening to music, you will be able to enjoy the experience of sheer
STEREO surround sound.
DTS
DTS (Digital Theater System) is a 5.1 channel digital audio format that
provides five full-spectrum channels and one low-frequency (subwoofer)
channel for unprecedented clarity, optimum channel separation and a
(wide) dynamic range.
In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD
disc (carrying the "DTS" marking) can be played in Digital Surround.
Important:
When a DTS disc is played on a CD, LD or DVD player, noise may be
output from the analog output. It is recommended that you connect the
digital output of the player to the digital input of this unit.
DSP surround modes
The DSP (Digital Signal Processor) used for this model incorporates a
variety of high quality adjustable sound fields, like "ARENA", "JAZZ
CLUB", THEATER", STADIUM" and "DISCO". It is compatible with
almost any kind of program source.
DVD 6-channel input (For KRF-V4080D only)
If you own a DVD player equipped with 6-channel output, this model
allows you to obtain the full surround sound impact of DVD source
material featuring multi-channel encoding. Since the source signals are
digital and each channel is input independently, the resulting ambience
is far superior to what can be achieved with conventional surround sound
systems.
ACTIVE EQ
ACTIVE EQ mode will produce a more dynamic sound quality in any
condition. You can enjoy a more impressive sound effect when ACTIVE
EQ is turned on during Dolby Digital and DTS playback.
IR (InfraRed) remote control
In addition to the basic opeations of this model, this IR remote control
supplied can also operate Kenwood cassette deck, MD recorder or CD
player which are connected using the system control cords.
This remote control can also control Kenwood DVD players directly
without using the DVD players' remote control.
RDS (Radio Data System) tuner
This model is equipped with an RDS tuner that provides several convenient
tuning functions: RDS Auto Memory, to automatically preset up to 40
RDS stations broadcasting different programs; station name display, to
show you the name of the current broadcast station; and PTY search to
let you tune stations by program type.
PTY (Program TYpe) search
Tune the stations by specifying the type of program you want to hear.
04.1.24, 7:11 PM
5

Reviews

There are no reviews of this manual yet.
