KENWOOD KRC-21SA Owner's Manual

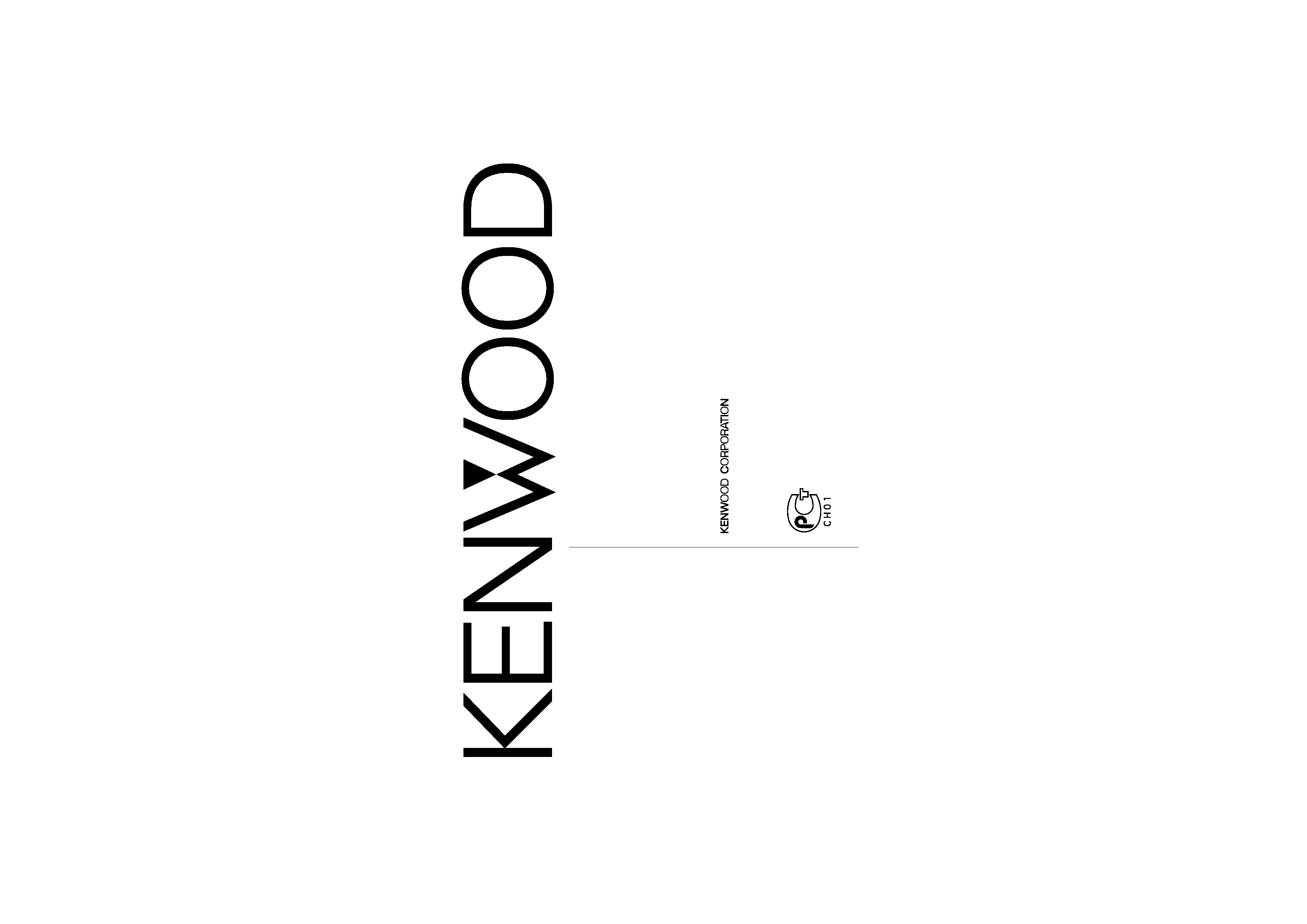

Cover page of KENWOOD KRC-21SA Owner's Manual

Owner's Manual for KENWOOD KRC-21SA, downloadable as a PDF file.

We also have service manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 48 pages
  • File size: 2 MB
  • Available language versions: Polish, English, Russian, Croatian, Spanish, Czech, Slovenian, Hungarian
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
KRC-21SA
KRC-21SG
M
© B64-2444-00/00 (EW)
CASSETTE RECEIVER
INSTRUCTION MANUAL
KACCETH PAOPEMHK
HCTPKC O KCATA
RADIOODTWARZACZ
PODRCZNIK OBSLUGI
B64-2444-00
02.12.16
8:54 AM
Page 1
background image
KRC-21SA
KRC-21SG
M
© B64-2444-00/00 (EW)
CASSETTE RECEIVER
INSTRUCTION MANUAL
KACCETH PAOPEMHK
HCTPKC O KCATA
RADIOODTWARZACZ
PODRCZNIK OBSLUGI
B64-2444-00
02.12.16
8:54 AM
Page 1
background image
-- 2 --
English
Contents
Safety precautions...............................................3
About Cassette tape ............................................4
General features...................................................5
Power
Selecting the Source
Volume
Attenuator
Loudness
dB (Sound Coordinate)
Audio Control
Switching Clock Display
Adjusting Clock
Theft Deterrent Faceplate
Tuner features ......................................................8
Tuning Mode
Tuning
Station Preset Memory
Auto Memory Entry
Preset Tuning
CRSC (Clean Reception System Circuit)
Cassette player features....................................10
Playing Cassette Tapes
Fast Forwarding and Rewinding
Tuner Call
Accessories ........................................................11
Installation Procedure........................................11
Connecting Wires to Terminals .........................12
Installation .........................................................13
Troubleshooting Guide ......................................15
Specifications ....................................................16
B64-2381-00
02.9.25
2:44 PM
Page 2
background image
-- 3 --
To prevent injury and/or fire, take the
following precautions:
· Insert the unit all the way until it is fully
locked in place. Otherwise it may fly out of
place during collisions and other jolts.
· When extending the ignition, battery, or
ground wires, make sure to use automotive-
grade wires or other wires with a 0.75mm2
(AWG18) or more to prevent wire
deterioration and damage to the wire
coating.
·To prevent short circuits, never put or leave
any metallic objects (e.g., coins or metal
tools) inside the unit.
· If the unit starts to emit smoke or strange
smells, turn off the power immediately and
consult your Kenwood dealer.
· Make sure not to get your fingers caught
between the faceplate and the unit.
· Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it
contains glass parts.
· Do not touch the liquid crystal fluid if the
LCD is damaged or broken due to shock. The
liquid crystal fluid may be dangerous to your
health or even fatal.
If the liquid crystal fluid from the LCD
contacts your body or clothing, wash it off
with soap immediately.
2WARNING
To prevent damage to the machine,
take the following precautions:
· Make sure to ground the unit to a negative
12V DC power supply.
· Do not open the top or bottom covers of the
unit.
· Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
· Do not set the removed faceplate or the
faceplate case in areas exposed to direct
sunlight, excessive heat or humidity. Also
avoid places with too much dust or the
possibility of water splashing.
·To prevent deterioration, do not touch the
terminals of the unit or faceplate with your
fingers.
· Do not subject the faceplate to excessive
shock, as it is a piece of precision
equipment.
· When replacing a fuse, only use a new one
with the prescribed rating. Using a fuse with
the wrong rating may cause your unit to
malfunction.
·To prevent short circuits when replacing a
fuse, first disconnect the wiring harness.
· Do not place any object between the
faceplate and the unit.
· During installation, do not use any screws
except for the ones provided. The use of
improper screws might result in damage to
the main unit.
2CAUTION
Safety precautions
B64-2381-00
02.9.25
2:44 PM
Page 3
background image
-- 4 --
English

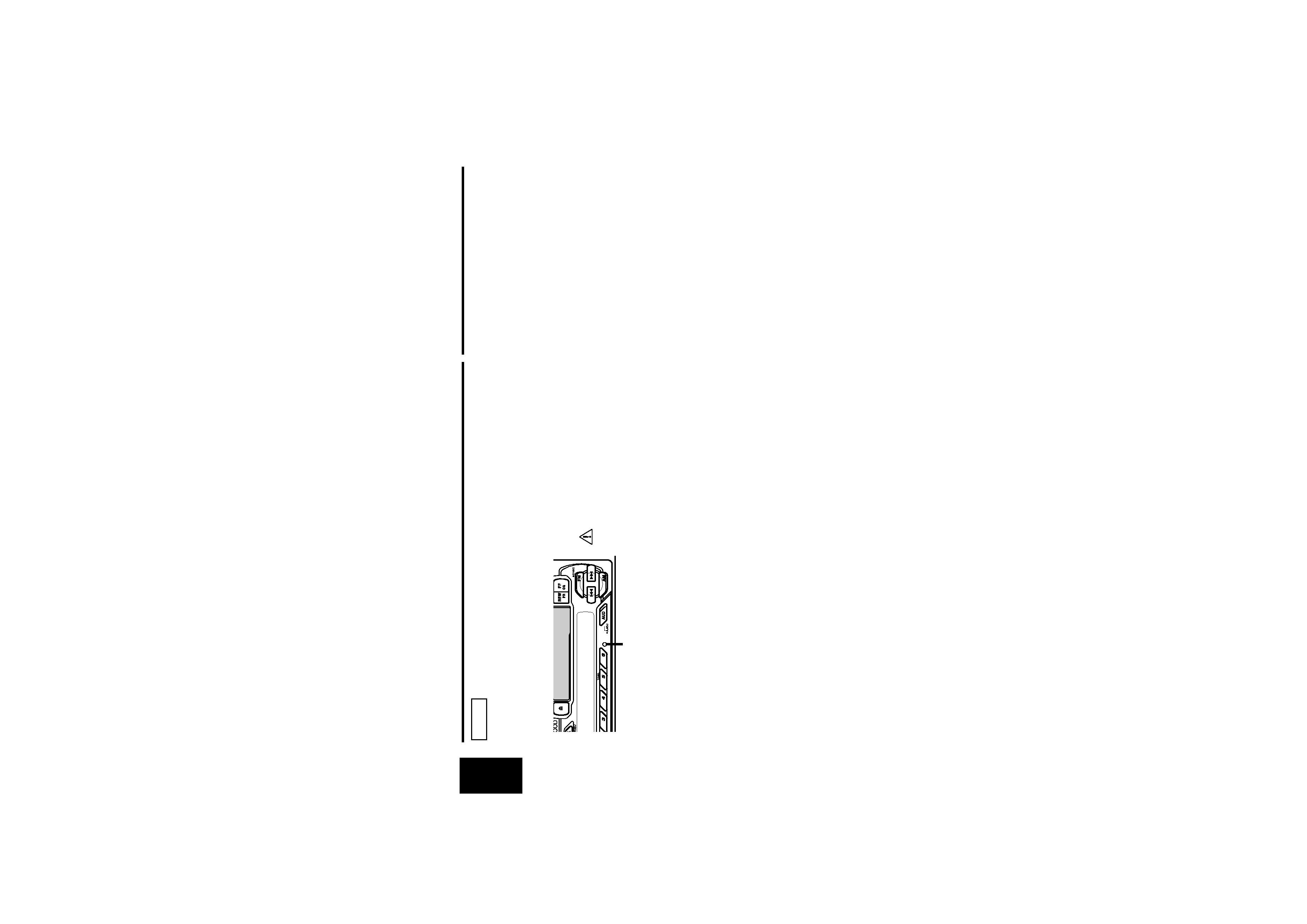

· If you experience problems during
installation, consult your Kenwood dealer.
· If the unit does not seem to be working
right, try pressing the reset button first. If
that does not solve the problem, consult
your Kenwood dealer.
· Characters in the LCD may become difficult
to read in temperatures below 41 °F (5 °C).
· The illustrations of the display and the panel
appearing in this manual are examples used
to explain more clearly how the controls are
used. Therefore, what appears on the display
in the illustrations may differ from what
appears on the display on the actual
equipment, and some of the illustrations on
the display may represent something
impossible in actual operation.
NOTE
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get
dirty, wipe them with a dry, soft cloth.
Cleaning the Unit
If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain
off with a cloth moistened with neutral
cleaner, then wipe neutral detergent off.
Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch
the surface or erases characters.
Safety precautions
Cleaning the tape head
When there's noise or the sound quality is bad
during tape play the tape head maybe dirty,
clean the tape head.
About Cassette tape
· If the tape is slack tighten it.
· If the cassette tape label is peeling off glue it
on again.
· Don't use deformed cassette tape.
· Don't place cassette tape on the dashboard
etc. where the temperature is high.
· Don't use cassette tape that's 100 minutes
long or longer.
About Cassette tape
Reset button
B64-2381-00
02.9.25
2:44 PM
Page 4
background image

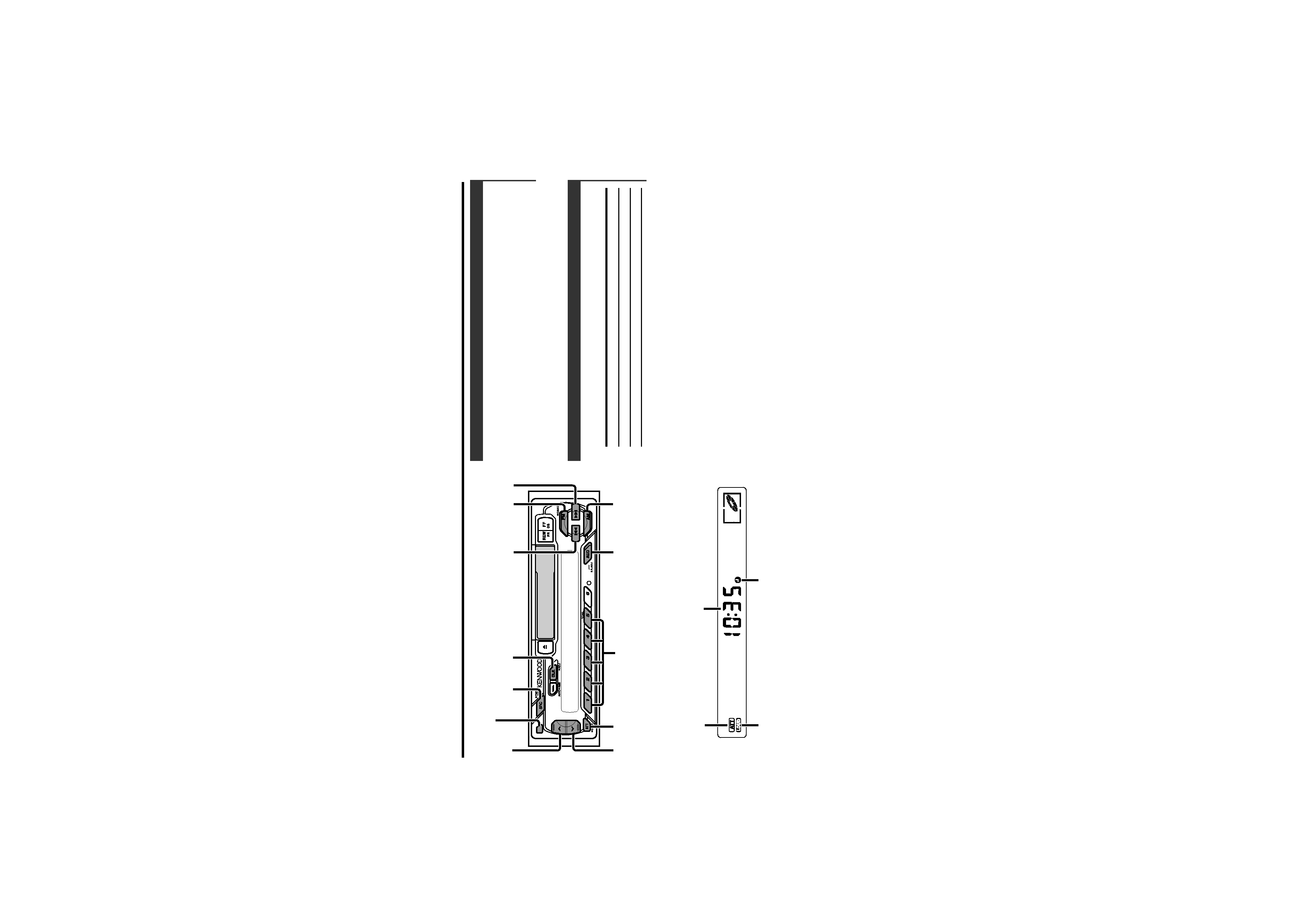

Press the [SRC] button.
Source required
Display
Tuner
"TUnE"
Tape
"TAPE"
Standby (Illumination only mode)
"OFF"
Selecting the Source
Turning ON the Power
Press the [SRC] button.
Turning OFF the Power
Press the [PWR OFF] button for at least 1 second.
Power
General features
-- 5 --
SRC/
PWR OFF
¢
4
CLK
FM
AM
AUD/
A.ADJ
ATT/
LOUD
d
u
#1 - 5
ATT indicator
LOUD indicator
Release button
Clock indicator
Clock display
B64-2381-00
02.9.25
2:44 PM
Page 5
