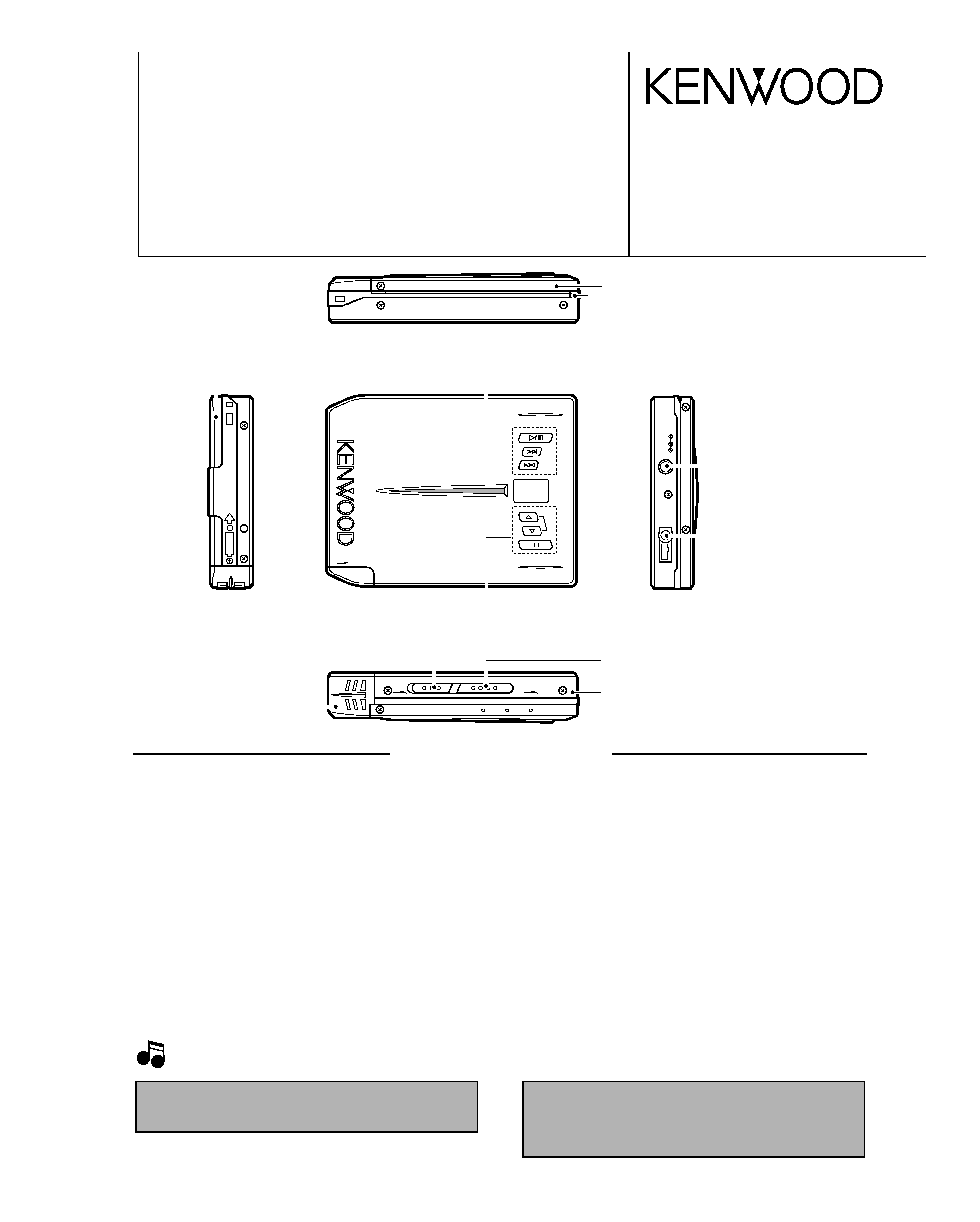

DMC-K3
2

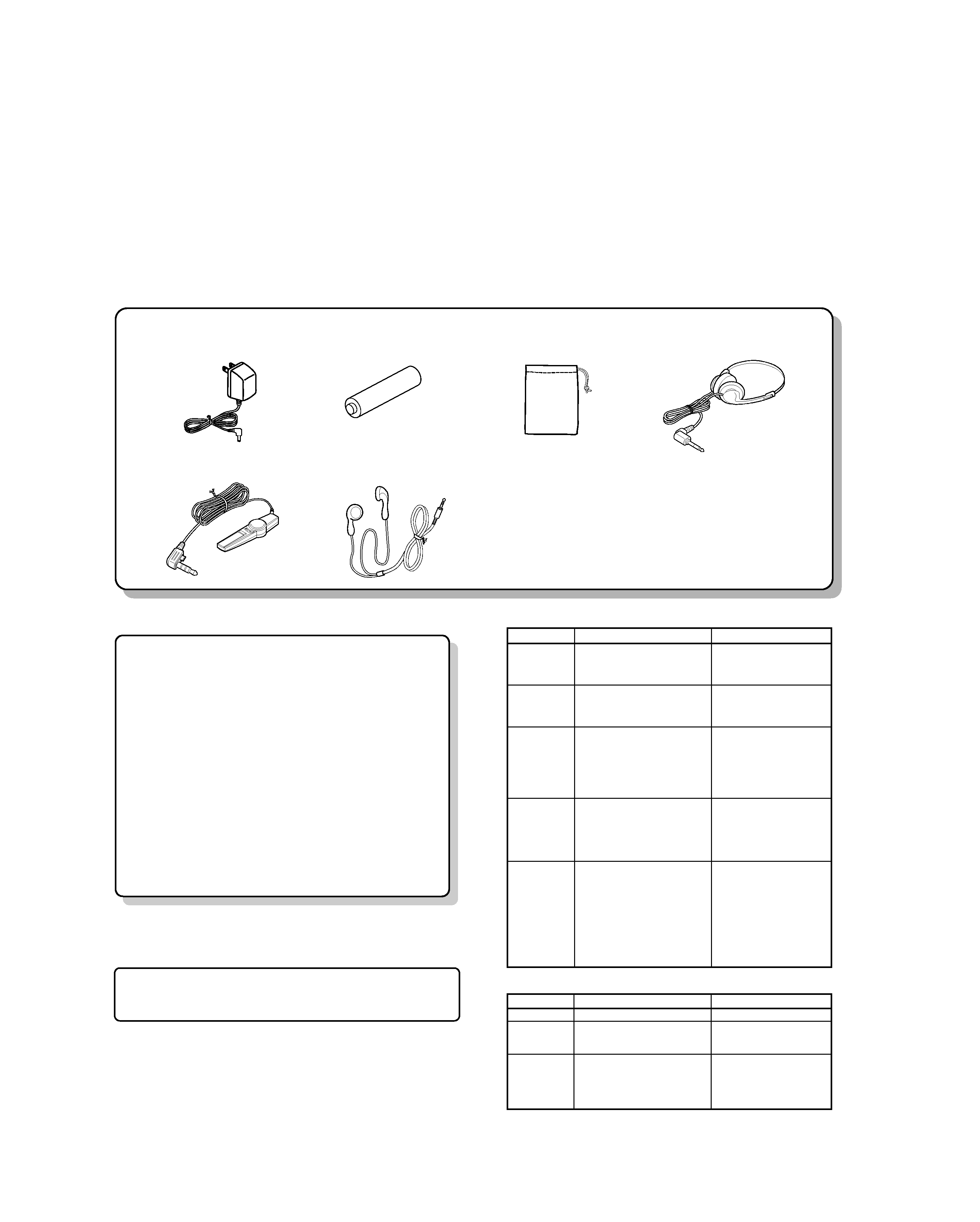

CONTENTS / ACCESSORIES
AC adapter (1) *
(W09-)
Remotcon (1)
(A70-1258-05)
Stereo headphone (1) *
(W01-)
Stereo headphone (1) *
(W01-0963-05)
* Refer to parts list on page 17.
Batteries : NB150 (1)
(W09-1267-05)
Carrying case (1)
(W01-0938-05)
Contents
Accessories
Caution
SPECIFICATIONS .........................................Top cover
CONTENTS / ACCESSORIES ....................................2

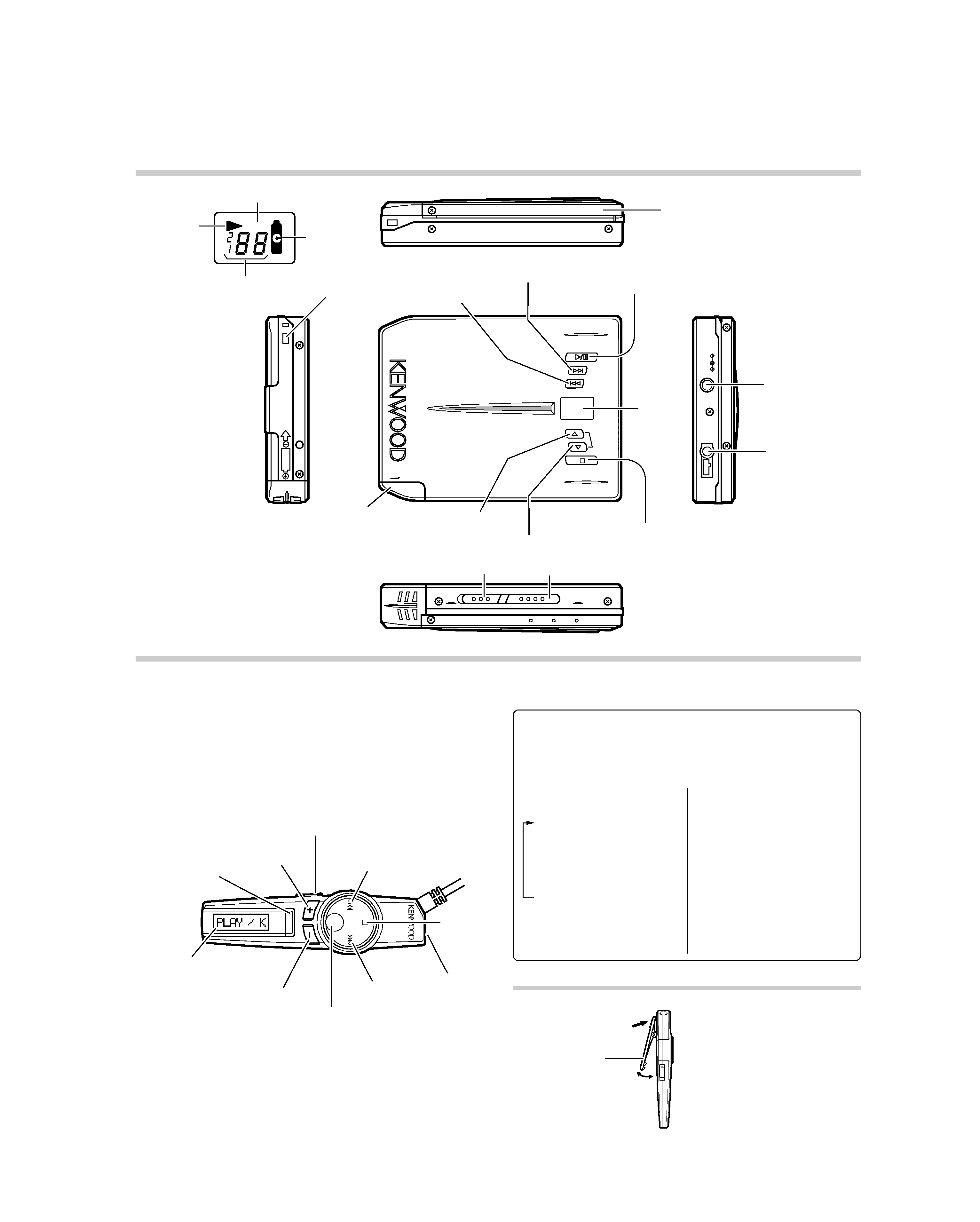

CONTROLS .................................................................3

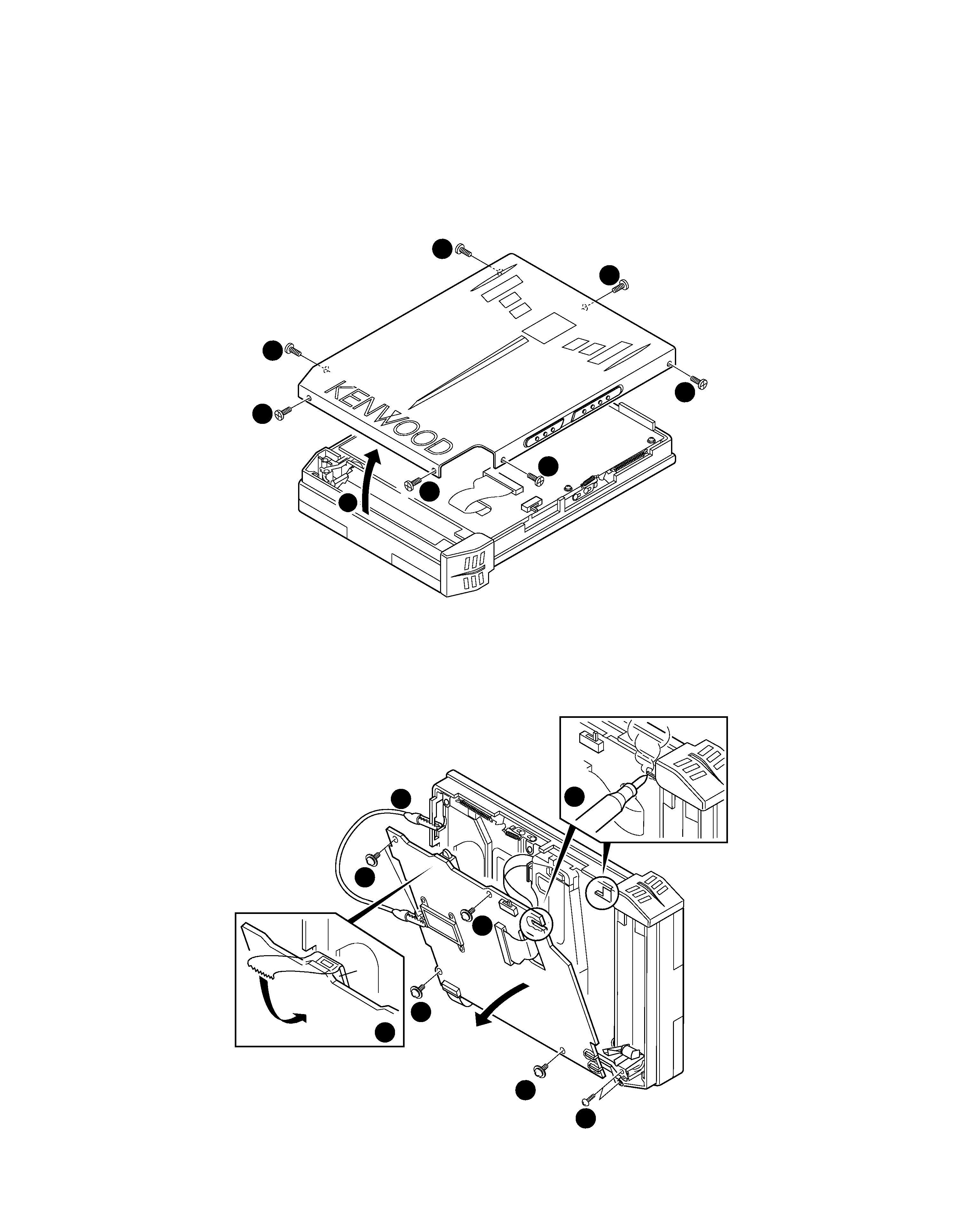

DISASSEMBLY FOR REPAIR .....................................4

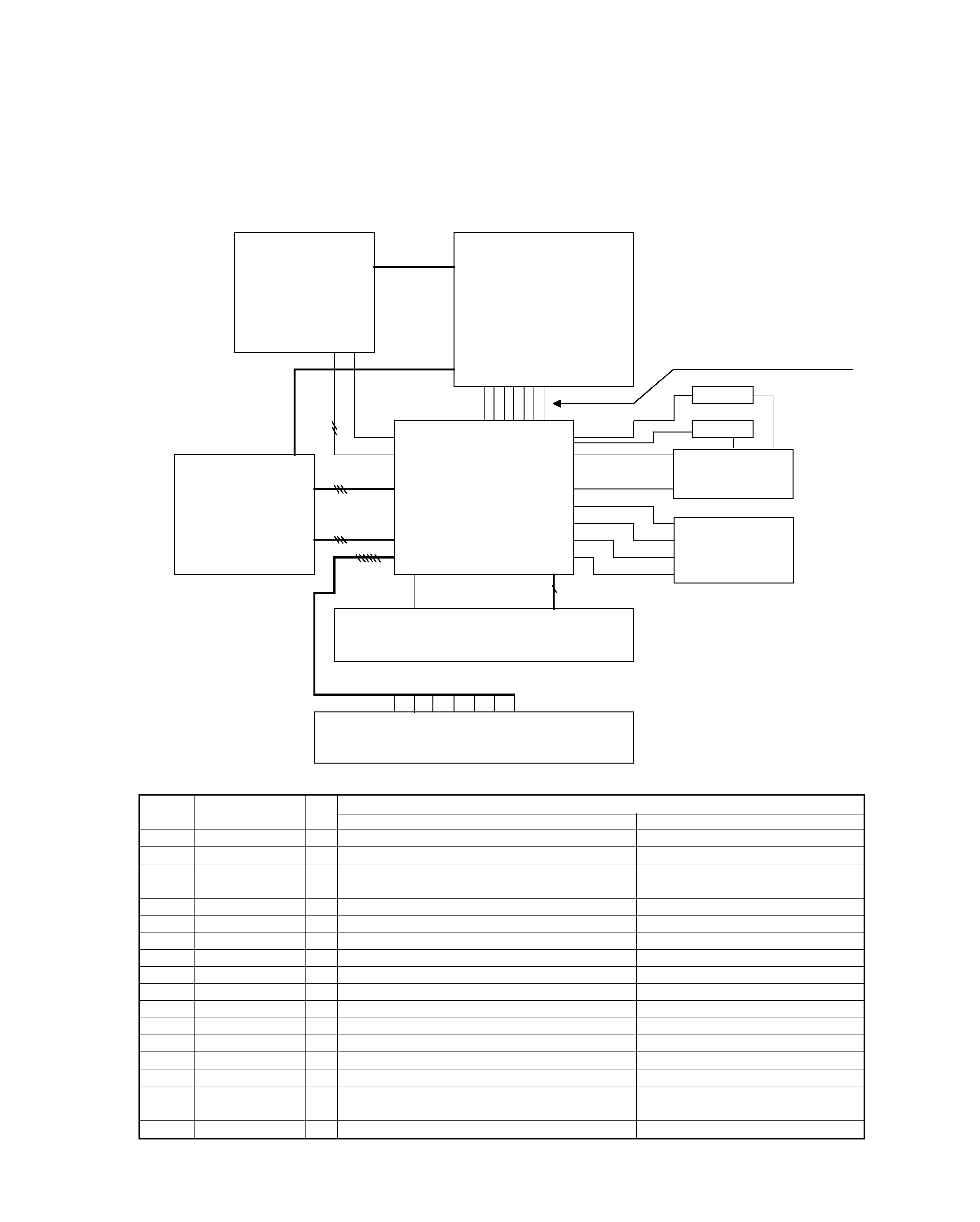

CIRCUIT DESCRIPTION .............................................5
PC BOARD ..................................................................9
SCHEMATIC DIAGRAM ............................................11
EXPLODED VIEW .....................................................15
PARTS LIST...............................................................17
Action
÷ Insert a MD into the unit.
÷ Replace the disc with a
prerecorded MD when
playing it back.
÷ Replace the MD.
÷ Replace the MD.
Symptom
Cause
Remedy
÷ The disc holder is not securely
closed.
÷ The battery is depleted.
÷ HOLD status is engaged.
÷ The volume is at minimum
level.
÷ The remote control or head-
phones are disconnected.
÷ HOLD status is engaged.
÷ The battery is depleted.
÷ The remote control or head-
phone plug is not securely in-
serted.
÷ The disc holder is not securely
closed.
÷ The disc is scratched or dam-
aged or the recording is not
good.
÷ The unit is in a place where
there is excessive vibration.
÷ You are using commercial re-
chargeable battery.
÷ The unit has become hot be-
cause of exposure to direct
sunlight etc.
÷ You are using another AC
adaptor than the accessory
adaptor.
÷ The AC adaptors has become
disconnected.
Unit fails to
turn ON.
÷ Close disc holder securely.
÷ Charge the battery.
÷ Deactivate HOLD status.
÷ Increase the volume.
÷ Insert plug securely.
÷ Deactivate HOLD status.
÷ Charge the battery.
÷ Insert plug securely.
÷ Close disc holder securely.
÷ Replace the MD.
÷ Move the unit to a place
where there is little vibra-
tion or set to "PS off".
÷ Use the special recharge-
able battery (NB-150)
÷ Wait until the unit has
cooled to normal tempera-
ture.
÷ Use the accessory AC
adaptor.
÷ Connect the AC adaptor
securely.
There is no
sound.
The unit does
not respond
to key opera-
tion.
Sound skips.
Troubleshooting
Message
Meaning
÷ There is no MD in the unit.
÷ Nothing is recorded on this
MD.
÷ The *UTOC contents are
faulty.
÷ The disc is scratched or dam-
aged, so playback is not pos-
sible.
"BLANK "
"noDISC"
"ERROR "
Meaning of display messages
*UTOC: A recordable MD has an area for recording so-called UTOC
(User's Table of Contents) data. The UTOC contains number
of tracks, playing time, written data, and other rewritable
information.
Battery does
not charge.
Resetting the unit
This system uses a microcomputer so it may malfunction due to external
noise or interference. In such a case, unplug the power cord and remove the
batteries, then plug the power cord again and insert the batteries again.
Beware of condensation
When water vapor comes into contact with the surface of cold materi-
al, water drops are produced.
If condensation occurs, correct operation may not be possible, or the
unit may not function correctly.
This is not a malfunction, however, and the unit should be dried.
(To do this, turn the POWER switch ON and leave the unit as it is for
several hours.)
Be especially careful in the following conditions:
· When the unit is brought from a cold place to warm place, and there is
a large temperature difference.
· When a heater starts operating.
· When the unit is brought from an air-conditioned place to a place of
high temperature with high humidity.
· When there is a large difference between the internal temperature of
the unit and the ambient temperature, or in conditions where conden-
sation occurs easily.
