Operation Manual
Mode demploi
High power CD/MP3/WMA player with FM/MW/LW
tuner
Lecteur de CD/MP3/WMA Puissance élevée avec
syntoniseur FM/MW (PO)/LW (GO)
DEH-281MP
English
Nederlands
Italiano
Français
Deutsch
Español
C
AA:89
background image
Operation Manual
Mode demploi
High power CD/MP3/WMA player with FM/MW/LW
tuner
Lecteur de CD/MP3/WMA Puissance élevée avec
syntoniseur FM/MW (PO)/LW (GO)
DEH-281MP
English
Nederlands
Italiano
Français
Deutsch
Español
C
AA:89
background image
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, keep this man-
ual in a safe place for future reference.
Before You Start
About this unit 3
About MP3 3
About WMA 3
Visit our website 4
Protecting your unit from theft 4
Removing the front panel 4
Attaching the front panel 4
Whats What
Head unit 5
Operating this unit
Basic Operations 6
Turning the unit on and selecting a
source 6
Adjusting the volume 6
Turning the unit off 6
Tuner 6
Listening to the radio 6
Storing and recalling broadcast
frequencies 7
Tuning in strong signals 7
Storing the strongest broadcast
frequencies 7
Built-in Player 8
Playing a disc 8
Repeating play 9
Playing tracks in random order 9
Scanning tracks or folders of a
disc 9
Pausing disc playback 9
Searching every 10 tracks in the
current disc or folder 10
Using compression and BMX 10
Displaying text information on
disc 10
Audio Adjustments 11
Introduction of audio
adjustments 11
Using balance adjustment 11
Using the equalizer 11
Adjusting equalizer curves 11
Adjusting loudness 11
Adjusting source levels 12
Initial Settings 12
Adjusting initial settings 12
Setting the clock 12
Setting the FM tuning step 13
Additional Information
Error messages 14
Handling guideline of discs and player 14
MP3, WMA and WAV files 14
Example of a hierarchy 15
Compressed audio compatibility 15
Specifications 16
Contents
En
2
background image
If you want to dispose this product, do not mix
it with general household waste. There is a se-
parate collection system for used electronic
products in accordance with legislation that re-
quires proper treatment, recovery and recy-
cling.
Private households in the 25 member states of
the EU, in Switzerland and Norway may return
their used electronic products free of charge
to designated collection facilities or to a retai-
ler (if you purchase a similar new one).
For countries not mentioned above, please
contact your local authorities for the correct
method of disposal.
By doing so you will ensure that your disposed
product undergoes the necessary treatment,
recovery and recycling and thus prevent po-
tential negative effects on the environment
and human health.
About this unit
The tuner frequencies on this unit are allo-
cated for use in Western Europe, Asia, the
Middle East, Africa and Oceania.
CAUTION
! Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, this unit damage, smoke, and overheat
could result from contact with liquids.
! CLASS 1 LASER PRODUCT
! This product contains a laser diode of higher
class than 1. To ensure continued safety, do
not remove any covers or attempt to gain ac-
cess to the inside of the product. Refer all ser-
vicing to qualified personnel.
! The Pioneer CarStereo-Pass is for use only in
Germany.
! Keep this manual handy as a reference for op-
erating procedures and precautions.
! Always keep the volume low enough so that
you can hear sounds from outside the vehicle.
! Protect this unit from moisture.
! If the battery is disconnected or discharged,
the preset memory will be erased and must be
reprogrammed.
! Should this product fail to operate properly,
contact your dealer or nearest authorized Pio-
neer Service Station.
About MP3
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use
this product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media), broad-
casting/streaming via internet, intranets and/
or other networks or in other electronic con-
tent distribution systems, such as pay-audio or
audio-on-demand applications. An indepen-
dent license for such use is required. For de-
tails, please visit
http://www.mp3licensing.com.
About WMA
The Windows Media" logo printed on the box
indicates that this unit can play back WMA
data.
WMA is short for Windows Media Audio and
refers to an audio compression technology
that is developed by Microsoft Corporation.
WMA data can be encoded by using Windows
Media Player version 7 or later.
Before You Start
En
3
English
Section
01
background image
Windows Media and the Windows logo are tra-
demarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
Note
This unit may not operate correctly depending on
the application used to encode WMA files.
Visit our website
Visit us at the following site:
! Register your product. We will keep the de-
tails of your purchase on file to help you
refer to this information in the event of an
insurance claim such as loss or theft.
! We offer the latest information about Pio-
neer Corporation on our website.
Protecting your unit from
theft
The front panel can be detached from the
head unit and stored in the provided protective
case to prevent theft.
Important
! Never use force or grip the display and the
buttons too tightly when removing or attach-
ing.
! Avoid subjecting the front panel to excessive
shocks.
! Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press DETACH to release the front
panel.
Press DETACH and the right side of the panel
is released from the head unit.
2 Grab the front panel and remove.
Grab the right side of the front panel and pull
away to the left. The front panel will be de-
tached from the head unit.
3 Put the front panel into provided pro-
tective case for safe keeping.
Attaching the front panel
1 Place the front panel flat against the
head unit.
2 Press the front panel into the face of
the head unit until it is firmly seated.
Before You Start
En
4
Section
01
background image

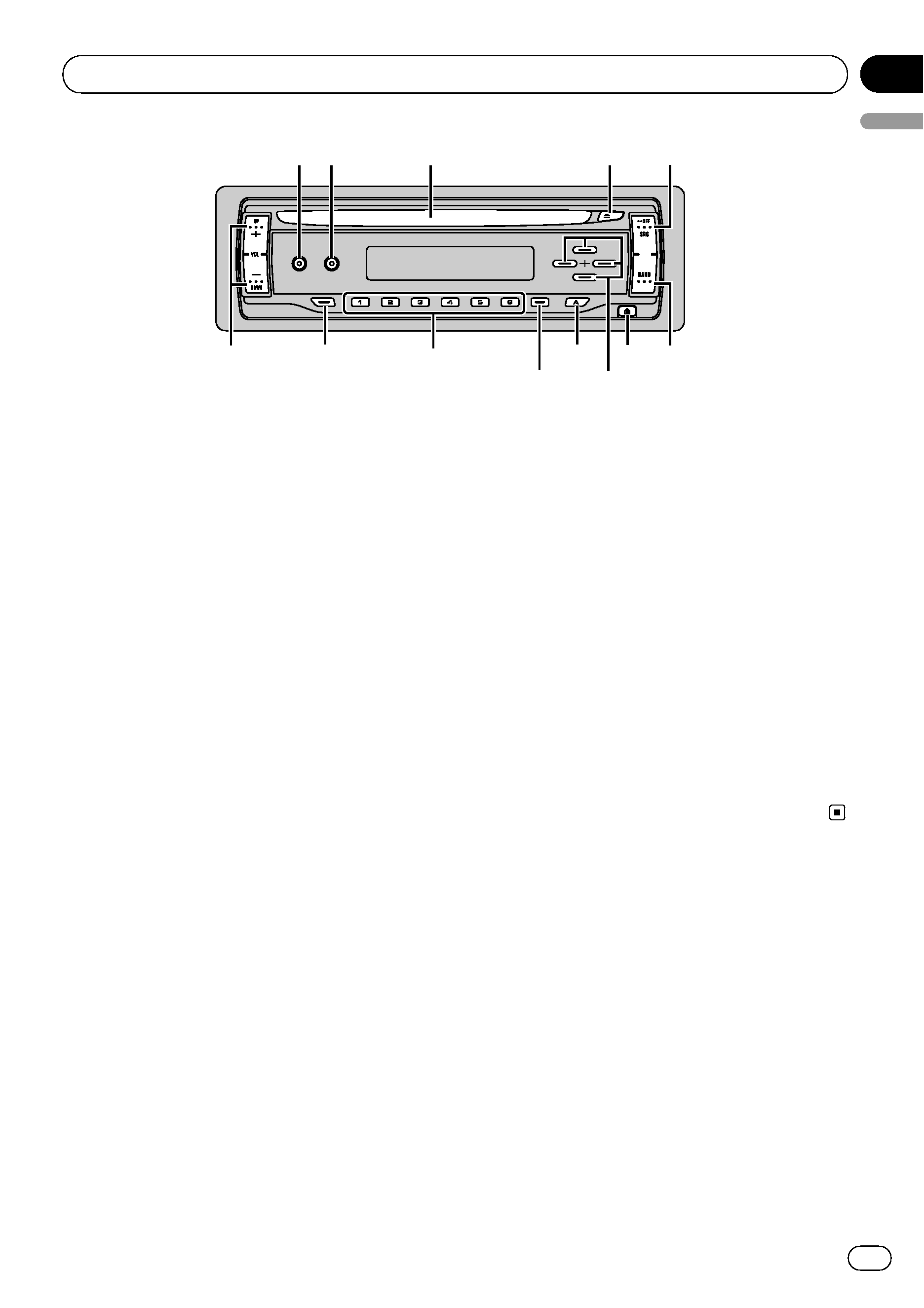

Head unit
1 EQ button
Press to select various equalizer curves.
Press and hold to turn loudness on or off.
2 DISPLAY button
Press to select different displays.
3 Disc loading slot
Insert a disc to play.
4 EJECT button
Press to eject a CD from your built-in CD
player.
5 SOURCE button
This unit is turned on by selecting a source.
Press to cycle through all the available
sources.
6 BAND button
Press to select among MW/LW and two FM
bands and cancel the control mode of func-
tions.
7 DETACH button
Press to remove the front panel from the
head unit.
8 a/b/c/d buttons
Press to perform manual seek tuning, fast
forward, reverse and track search controls.
Also used for controlling functions.
9 AUDIO button
Press to select various sound quality con-
trols.
a LOCAL/BSM button
Press to turn local function on or off.
Press and hold to turn BSM function on or
off.
b 16 buttons
Press for preset tuning. Also used for con-
trolling functions.
c CLOCK button
Press to change to the clock display.
d VOLUME (+/) buttons
Press to increase or decrease the volume.
3
3
3
d
d
d
1 2
4
6
6
6
5
5
5
7
7
7
8
8
9
9
9
a
a
a
b
b
b
c
c
c
Whats What
En
5
English
Section
02
